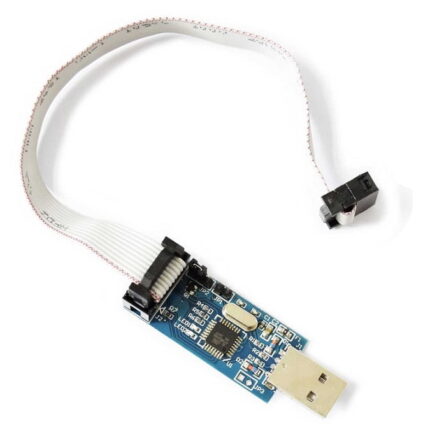

USBASP ISP AVR Programmer

Name: USBASP ISP AVR Programmer - MechBlock
Brand: MECHBLOCK
SKU: ELC3004
Price: 179.00 INR
Availability: InStock
Rating: 4.96 (49 reviews)

MECHBLOCK

Rated 4.96 out of 5 based on 49 customer ratings

(49 customer reviews)

Original price was: ₹259.00.Current price is: ₹179.00. Incl GST (₹151.69 +18%GST)

Allows you to read or write the microcontroller EEPROM, firmware, fuse bits and lock bits
Support for Windows, Mac OS X and Linux (will work on Windows 8.1)
5 KB/sec maximum write speed
Software controlled SCK option to support targets with low clock speed (< 1.5MHz)
The driver will work on both 32 and 64 bit platforms.
On Linux And Mac OS X no kernel driver is required, just use AVRdude and specify the correct port.

EAN: 8903470449855 SKU: ELC3004 Categories: Clearance, Boards & Programmer Tags: Clearance, programmer

In stock

Purchase & earn 2 MechBlock points!

Check Estimated Delivery at

Shipping to IN

Add ₹499.00 to cart and get free shipping! Free shipping over 499/-

11 People watching this product now!

Mechblock Shopping Event

Hurry and get discounts on all Mechblock Products up to Rs.1000

Coupon code: MECHBLOCK

Description :

These AVR programmers are based on Thomas Fischl’s USBasp design and connect to your computer’s USB port. Not only are they quite compact (70x20mm), but the design is really elegant. The USB interface is achieved by using an atmega8 processor and the rest is done in firmware.

Being an Open source hardware (OSHW) project, released under the GNU General Public License, you are free to download the schematic and firmware from Thomas’s website, but then you have a chicken and egg problem. In order to load the USBASP firmware onto the atmega8 on the programmer, yes you guessed it, you need an AVR programmer. Much easier to buy one fully built and programmed.

Features:

Allows you to read or write the microcontroller EEPROM, firmware, fuse bits and lock bits
Support for Windows, Mac OS X and Linux (will work on Windows 8.1)
5 KB/sec maximum write speed
Software controlled SCK option to support targets with low clock speed (< 1.5MHz)
10 pin ISP interface (conforms to standard ISP 10-pin pinout)
The latest Window Drivers are fully signed, so you can use them on Windows Vista and above without any issues.
The driver will work on both 32 and 64 bit platforms.
On Linux And Mac OS X no kernel driver is required, just use AVRdude and specify the correct port.

The programmer will work with a wide variety of Atmel AVR microcontrollers including the Atmega8a and Atmega168a. A full list is available on the specifications tab. The programmer will also work with a variety of software including:

AVRdude(http://download.savannah.gnu.org/releases/avrdude/) – Version 5.2 or later. AVRdude is available for many platforms.
Khazama AVR Programmer(http://khazama.com/project/programmer/) – An AVRdude GUI for MS Windows
BASCOM-AVR(http://www.mcselec.com/index.php?option=com_content&task=view&id=14&Itemid=41) – Version 1.11.9.6 or later
eXtreme Burner(http://extremeelectronics.co.in/avr-tutorials/gui-software-for-usbasp-based-usb-avr-programmers/) – An easy to use GUI application for MS Windows.

Links :

USBasp – USB programmer for Atmel AVR controllers(http://www.fischl.de/usbasp/)

Specifications:

Size: 70 x 20 x 9mm
Supported Software: AVRDude 5.2 or higher

Supported Microcontrollers: Mega Series
ATmega8 ATmega8A ATmega48 ATmega48A ATmega48P
ATmega48PA ATmega88 ATmega88A ATmega88P ATmega88PA
ATmega168 ATmega168A ATmega168P ATmega168PA ATmega328
ATmega328P ATmega103 ATmega128 ATmega128P ATmega1280
ATmega1281 ATmega16 ATmega16A ATmega161 ATmega162
ATmega163 ATmega164 ATmega164A ATmega164P ATmega164PA
ATmega169 ATmega169A ATmega169P ATmega169PA ATmega2560
ATmega2561 ATmega32 ATmega32A ATmega324 ATmega324A
ATmega324P ATmega324PA ATmega329 ATmega329A ATmega329P
ATmega329PA ATmega3290 ATmega3290A ATmega3290P ATmega64
ATmega64A ATmega640 ATmega644 ATmega644A ATmega644P
ATmega644PA ATmega649 ATmega649A ATmega649P ATmega6490
ATmega6490A ATmega6490P ATmega8515 ATmega8535

Tiny Series
ATtiny12 ATtiny13 ATtiny13A ATtiny15 ATtiny25
ATtiny26 ATtiny45 ATtiny85 ATtiny2313 ATtiny2313A
Classic Series
AT90S1200 AT90S2313 AT90S2333 AT90S2343 AT90S4414
AT90S4433 AT90S4434 AT90S8515
AT90S8535
CAN Series
AT90CAN128
PWM Series
AT90PWM2 AT90PWM3

Package Include:

USBASP ISP AVR Programmer – 1PC

Brand	MECHBLOCK
Condition	New
HSN Code	84439090

15 Days Warranty

This item is covered with a standard warranty of 15 days from the time of delivery against manufacturing defects only. This warranty is given for the benefit of Mechblock customers from any kind of manufacturing defects. Reimbursement or replacement will be done against manufacturing defects.

What voids warranty:

If the product is subject to misuse, tampering, static discharge,mishandelling of the product, accident, water or fire damage, use of chemicals & soldered or altered in any way.
