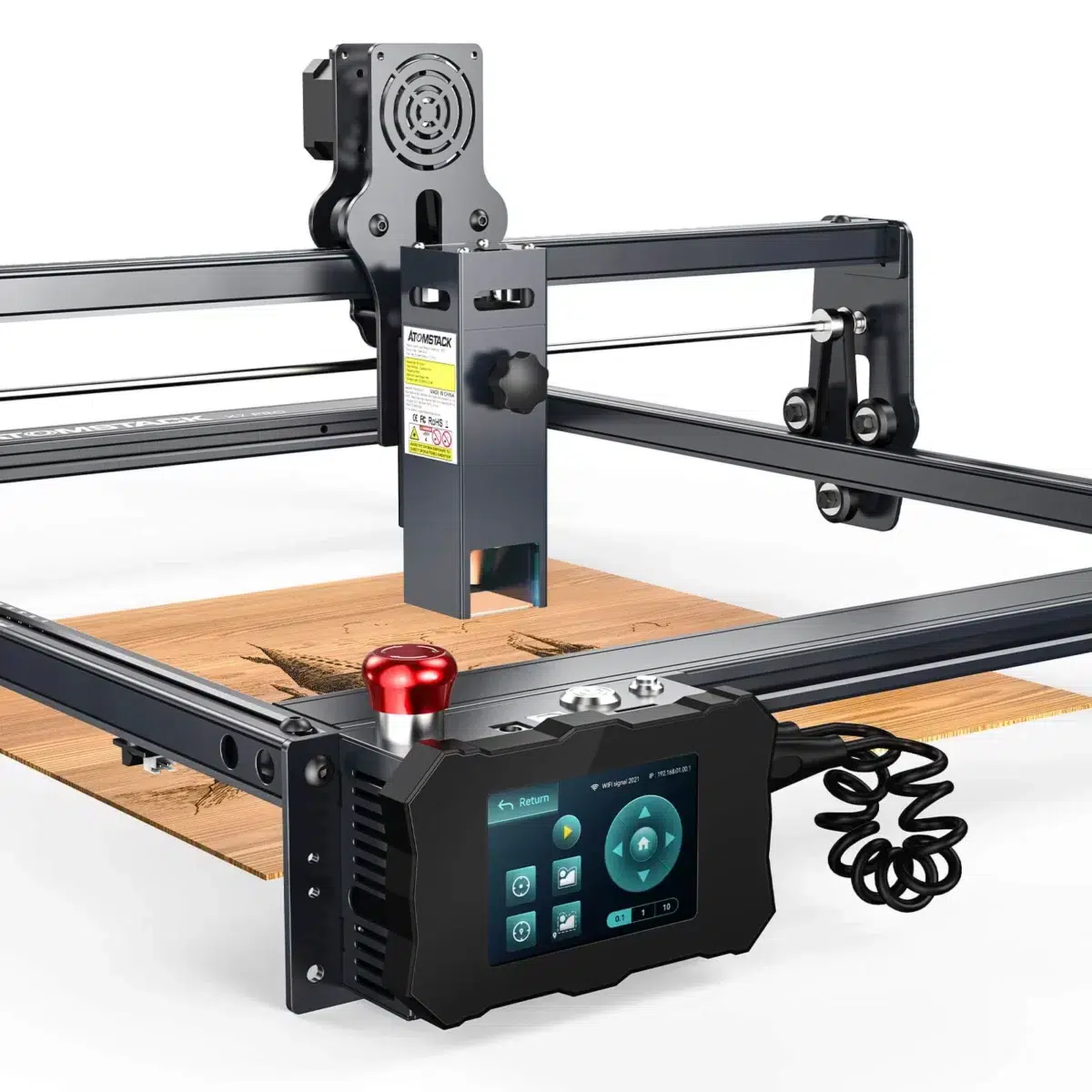

ATOMSTACK X7 PRO is an eye-protecting laser engraving machine with a laser power of 10W. It has an engraving area of 410x400mm and an all-aluminum alloy structure, which can be installed quickly. ATOMSTACK X7 Pro supports engraving materials including metal, 304 mirrors stainless steel, high-energy wood, CNC, wood, slate, etc. It is a high-power, high-energy laser cutting equipment, and supports offline engraving. ATOMSTACK X7 Pro has an emergency stop button and a horizontal gyroscope so that it can achieve a safe 150W CO₂ laser engraving effect.
Main Features:
1. The new filter panoramic glass eye protection design: the panoramic filter glass protective cover plays a very good role in protecting your eyes, filtering 97% of the ultraviolet light, you and the people around you do not need to wear goggles, you can also watch laser engraving. Reduce the cost of your goggles and the inconvenience of wearing goggles.
2. Solid and easy installation structure design: The all-aluminum alloy anodized structure design makes the machine more durable, and improves the accuracy of engraving. The entire structure has been designed for quick assembly, and the assembly can generally be completed within 10-20 minutes.
3. Upgraded high-performance fixed-focus laser: no need to adjust the focus before engraving; The focal spot area of the new laser is only 1/3 of the spot area of other ordinary lasers, new laser combines precision engraving and high-energy cutting at the same time. The laser power of the fixed-focus laser is more stable than the zoom laser.
4. Wide compatibility: The machine can be compatible with various mature engraving software, such as LaserGRBL, LightBurn, support Win XP / Win 7 / Win 8 / Win 10 / Win 11, and also support MAC system (LightBurn), engraving file format supports NC, BMP, JPG, PNG, DXF, etc.
5. Precise scale lines axis: There are precise scale lines on the X-axis and Y-axis to facilitate quick length measurement. 410x400mm large area engraving interval can meet your various engraving needs.
6. Upgraded dual compression spot coupling technology: ultra-fine laser focus area is reduced to 0.06*0.06mm, the high-density laser can easily cut 20mm thick wood, 15mm thick black acrylic; can directly engrave mirror stainless steel metal, ceramics, glass, and engraving &The cutting speed is 40% higher than the ordinary model, which can be comparable to the effect of the 150W CO₂ laser engraving machine.
7. Integral screw rod: The machine uses an integrated screw rod instead of a combined coupling. The stepping motor and the screw rod are integrated, which makes the movement of the laser more precise and the coupling more durable.
8. New laser with knob: It is more convenient and quick to adjust the height of the laser.
9. Support offline engraving: ATOMSTACK X7 PRO configures the terminal control panel and supports offline engraving, you can carry out engraving work anytime and anywhere without being restricted by the computer.
10. The new laser is equipped with a horizontal gyroscope: which stops working immediately when it is tilted to ensure your safety
11. The laser sintering temperature is up to 1200℃
12. Emergency stop button: In the event of an unexpected situation, stop the machine at any time to make the engraving safer
13. Stopper: Yes
14. Reset switch: Yes
15. Expandable engraving size: modular design of the body mechanism, only need to replace the frame components, you can get 410*850mm super large engraving size
Product Information:
- Item model number: ATOMSTACK X7 PRO
- Working area: 410*400mm
- Carving Objects: Wood, bamboo, cardboard, plastic, leather, PCB board, aluminum oxide, non-reflective
- Electroplating layer and paint surface layer metal, 304 mirrors stainless steel, glass, ceramics, cotton cloth, slate;
- Cutting Objects: Cardboard, non-woven fabric, wood board, black acrylic, some thin plastic board, sponge;
- Machine Power: 50W
- Laser Output Power: 10-11W
- Wave Length: 445 ± 5nm
- Engraving accuracy: 0.01mm
- Focusing method: fixed focus laser, no need to focus
- Laser protective cover: Protect the user’s eyes and prevent pets from grabbing the laser spot.
- Operating software: LaserGRBL, supports Win XP / Win 7 / Win 8 / XP / Win 10 / Win 11 system;
- LightBurn supports Windows/Mac OS/Linux
- Input Format: NC, BMP, JPG, PNG, DXF, etc.
- Data transmission method: USB connection.
- Input Voltage: AC100-240V, 50/60Hz
- Output Voltage: DC12V, 5A
- Certification: CE, FCC, RoHS, FDA, PSE
