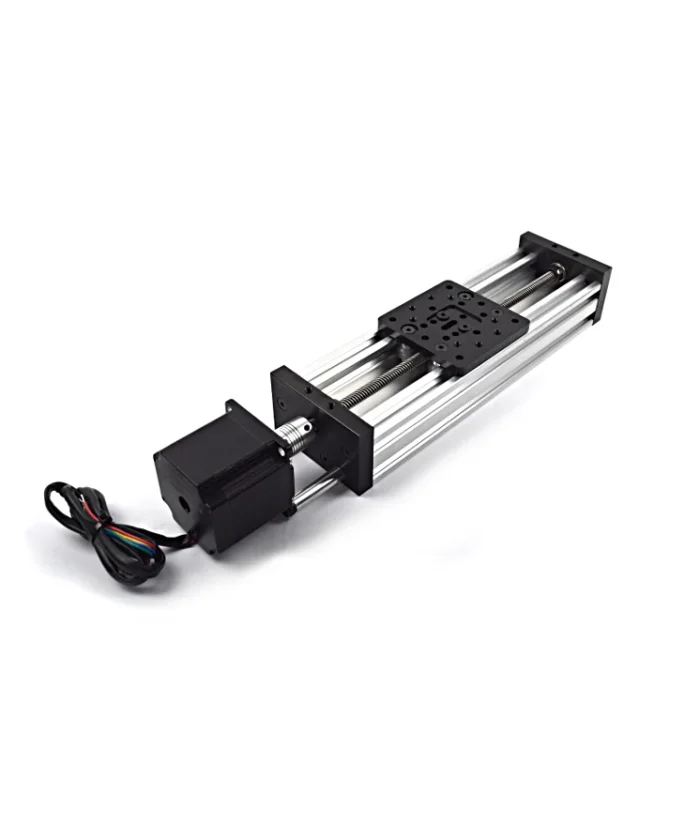

C-Beam Linear Actuator Kit with motor Assembled
₹6,100.00 (Inc. GST) ₹930.51 GST Input (18%) Claimable with B2B Billing. Enter GST number at checkout.
- Precision Motion: C-Beam Linear Actuator with NEMA 23 motor for smooth, accurate, and reliable linear movement.
- Versatile Use: Perfect for CNC machines, 3D printers, robotics, automation, and DIY projects.
- Durable Build: Heavy-duty C-Beam construction ensures strength, stability, and long service life.
- Easy Installation: Includes all required hardware for quick assembly and seamless integration.
- Industrial Performance: Delivers quiet, precise operation for both hobby and professional applications.
- Fully Assembled: Supplied as a complete linear actuator with motor, ready for installation.
Ship Location – Delhi Warehouse
Description
The C-Beam Linear Actuator is a great component in any linear system and a popular choice for many applications.
It’s precise and modular which means it can easily be built into any system.
Four Mini V Wheels run on the inside of the C-Beam Linear Rail leaving the surrounding V-Slots for outside mounting options. This along with the optional C-Beam Shield offer a sleek finished look while protecting the lead screw from debris.
Take advantage of this amazingly affordable linear motion system today!
Typical Applications
- CNC Routers & CNC Milling Machines
- Laser Engraving & Cutting Machines
- 3D Printers
- Industrial Automation Systems
- Robotics & Pick-and-Place Machines
- Camera Sliders
- Packaging Equipment
- DIY Motion Systems
- Laboratory Automation
- Custom Manufacturing Projects
- Leads Screw Driven
- Travel distance:
- 150mm is ~2″ (50mm)
- 200mm is ~4″ (100mm)
- 250mm is ~6″ (150mm)
- 300mm is ~8″ (200mm)
- 350mm is ~10″ (250mm)
- 400mm is ~12″ (300mm)
- 450mm is ~14″ (350mm)
- 500mm is ~16″ (400mm)
- 1000mm is 35″ (900mm)
- 1500mm is ~55″ (1400mm)
- Accuracy: 0.001″ ~0.003″ (0.05mm ~0.10mm)
- Accuracy Positioning: 0.091mm
- Max Force: 26lb (115N)
- Max Speed: 8000 mm/min
This is a self assembly kit comes with the following parts:
| Qty | Description |
| 2 | M5-Nyloc-Nut |
| 10 | M5-Low-Profile-20mm |
| 4 | M5-Low-Profile-25mm |
| 2 | M5-Low-Profile-55mm |
| 2 | Aluminium-Spacer-3mm |
| 2 | Aluminium-Spacer-6mm |
| 2 | Aluminium-Spacer-40mm |
| 1 | ACME-Anti-Backlash-Nut-Block |
| 2 | 688ZZ-Bearing |
| 2 | 8mm-Shim |
| 2 | 8mm-Lock-Collar |
| 4 | Mini-V-Wheel-Xtreme-Kit |
| 1 | Flexible-Coupler-6mm-1/4″ |
| 2 | Eccentric-Spacer-6mm |
| 1 | Nema 23 Stepper Motor-175oz*in |
| 2 | C-Beam-End-Mount |
| 1 | C-Beam-Gantry-Plate |
| 1 | C-Beam Linear Rail Optional 150mm/200mm/250mm/300mm/350mm/400mm/450mm/500mm/1000mm/1500mm |
| 1 | ACME-Lead-Screw Optional 190mm/240mm/290mm/340mm/390mm/440mm/490mm/540mm/1040mm/1540mm |
C-Beam Linear Rail    C-Beam Gantry Plate     Xtreme Mini V Wheel    Acme Lead Screw      Anti-Backlash Nut    Assembly Hardware    NEMA 23 Stepper Motor
Key Features
- Heavy-duty C-Beam aluminium extrusion for superior rigidity
- Precision ACME lead screw with anti-backlash nut
- Powerful NEMA 23 stepper motor included
- Smooth linear motion using four Mini V Wheels
- High positioning accuracy of up to 0.091 mm
- Compatible with the V-Slot modular building system
- Multiple length options available
- Easy assembly with all required hardware included
- Suitable for CNC, robotics, automation, and industrial machinery
Reliable Linear Motion Solution
Whether you’re building a CNC router, automation system, robotics project, or custom machine, the C-Beam Linear Actuator offers a dependable combination of precision, strength, and modularity. Designed for long-term performance and easy integration, it is an excellent choice for anyone looking for a high-quality linear motion solution.
