DRV8825 Stepper Motor Driver

(2 customer reviews)

150.00 Incl GST (127.12 +18%GST)

  • Supply Voltage: 8.2 – 42 VDC.
  • Current Capacity : 2.2A max(24V).
  • Continuous current per phase: 1.5 A.
  • Minimum Logic voltage: 2.5V.
  • Maximum Logic Voltage: 5V.
  • Microstep resolutions: full, 1/2, 1/4, 1/8, 1/16, and 1/32.
EAN: 8903470000247GTIN: 262626 SKU: DRV8825 Categories: , , Tag:

19 in stock

19 in stock

Processing time: 1 days

You need extra 150 Points for get this product for free

Check Estimated Delivery at

Shipping to IN
Add 1,999.00 to cart and get free shipping!
19 People watching this product now!

Mechblock Shopping Event

Hurry and get discounts on all Mechblock Products up to Rs.1000

Coupon code: MECHBLOCK

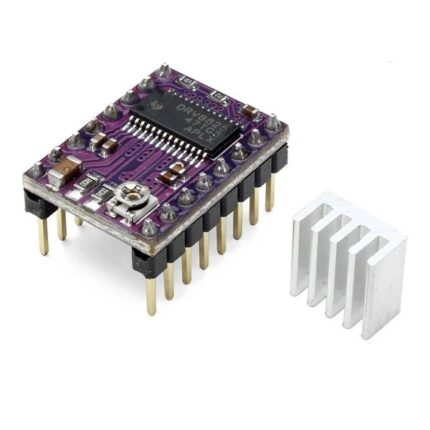

The DRV8825 stepper motor driver carrier is a breakout board for TI’s DRV8825 micro stepping bipolar stepper motor driver. The DRV8825 features adjustable current limiting, over-current and over-temperature protection, and six microstep resolutions (down to 1/32-step). It operates from 8.2 – 45 V and can deliver up to approximately 1.5 A per phase without a heat sink or forced air flow (rated for up to 2.2 A per coil with sufficient additional cooling).

This product is a carrier board or breakout board for TI’s DRV8825 stepper motor driver; we therefore recommend careful reading of the DRV8825 datasheet before using this product. This stepper motor driver lets you control one bipolar stepper motor at up to 2.2 A output current per coil.

Features:

  • Simple step and direction control interface
  • Six different step resolutions: full-step, half-step, 1/4-step, 1/8-step, 1/16-step, and 1/32-step
  • Intelligent chopping control that automatically selects the correct current decay mode (fast decay or slow decay)
  • 45 V maximum supply voltage
  • Built-in regulator (no external logic voltage supply needed)
  • Can interface directly with 3.3 V and 5 V systems
  • Over-temperature thermal shutdown, over-current shutdown, and under-voltage lockout
  • Short-to-ground and shorted-load protection
  • 4-layer, 2 oz copper PCB for improved heat dissipation
  • Exposed solderable ground pad below the driver IC on the bottom of the PCB
  • Adjustable current control lets you set the maximum current output with a potentiometer, which lets you use voltages above your stepper motor’s rated voltage to achieve higher step rates.

Specifications:

  • Minimum operating voltage: 8.2V
  • Maximum operating voltage: 45V
  • Continuous current per phase: 1.5 Amp
  • Maximum current per phase: 2.2 Amp
  • Minimum logic voltage: 2.5V
  • Maximum logic voltage: 5.25V
  • Microstep resolutions: Full, 1/2, 1/4, 1/8, 1/16 and 1/32
  • Reverse voltage protection?: No

Package Includes:

  • DRV8825 Stepper Motor Driver with Aluminum Heat Sink-1PC
Weight 0.050 kg
Dimensions 5 × 5 × 2 cm
Brand

Condition

HSN Code

15 Days Warranty


This item is covered with a standard warranty of 15 days from the time of delivery against manufacturing defects only. This warranty is given for the benefit of Mechblock customers from any kind of manufacturing defects.  Reimbursement or replacement will be done against manufacturing defects.


What voids warranty:

If the product is subject to misuse, tampering, static discharge,mishandelling of the product, accident, water or fire damage, use of chemicals & soldered or altered in any way.
