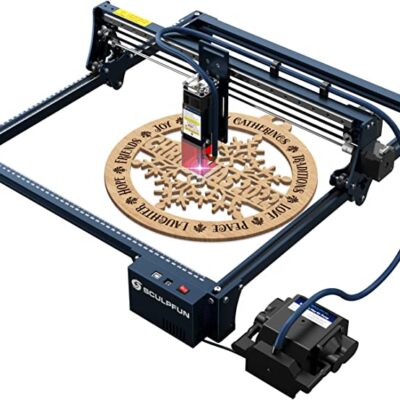

    SCULPFUN S30 Pro 10W Laser Engraver Cutter Automatic Air-assist_1
    • Sculpfun Laser Engraver & Cutter
      • SCULPFUN S30 Pro 10W Laser Engraver Cutter Automatic Air-assist_1 New! SCULPFUN S30 20W ,10W, 5W
      • SCULPFUN S10 SCULPFUN S10 10W
      • laser engraver SCULPFUN S9 5.5W
    SCULPFUN S9 Air Assist Kit
    • Accessories
      • Ortur Air Pump 1.0 for LU2-4 LF & LU2-10A S9 Air Assist Kit
      • Ortur Air Pump 1.0 for LU2-4 LF & LU2-10A Air Pump
      • Ortur YRR 2.0 Rotary Roller Rotary Roller
      • Ortur Laser Engraving Platform for Ortur & Aufero Laser Engraver (LEP1.0) Honeycomb Worktable Panel 300 x 200 mm
      • Ortur Laser Engraving Platform for Ortur & Aufero Laser Engraver (LEP1.0) Honeycomb Worktable Panel 400 x 400 mm
      • Ortur Extension Kit for Laser Master 3 Series (ETK2.0) Extension Kits
    SCULPFUN S10 Laser Module 10W For Laser Engraving Machine
    • Spare Parts
      • Ortur Air Pump 1.0 for LU2-4 LF & LU2-10A S10 Laser Module
      • Ortur Air Pump 1.0 for LU2-4 LF & LU2-10A S30 Laser Module
      • Ortur Air Pump 1.0 for LU2-4 LF & LU2-10A S9 Laser Module
    Sculpfun s30 5w
    • Support
      • Materials Reference
      • Software Downloads
      • Quick Start Guide
      • Video Tutorials
      • FAQ
  • CNC
  • OpenBuilds
Login / Register
0 Compare
0 Wishlist
0 items ₹0
Home Laser Engraver Ortur Ortur Accessories Ortur LU2-10A 10W Laser Module
Ortur Laser Engraving Platform
Ortur Laser Engraving Platform ₹10,999 ₹9,999 Incl GST (₹8,474 +18%GST)
Back to products
Ortur Air Pump
Ortur Air Pump 1.0 for LU2-4 LF & LU2-10A ₹14,999 ₹13,999 Incl GST (₹11,864 +18%GST)
HotNew10W
Ortur LU2-10A 10W Laser Module
Untitled design 6
10W LU2-10A Laser Module for Ortur & Aufero Laser Engraver
10W LU2-10A Laser Module for Ortur & Aufero Laser Engraver
10W LU2 10A Laser Module for Ortur & Aufero Laser Engraver 9
10W LU2 10A Laser Module for Ortur & Aufero Laser Engraver 8
Click to enlarge

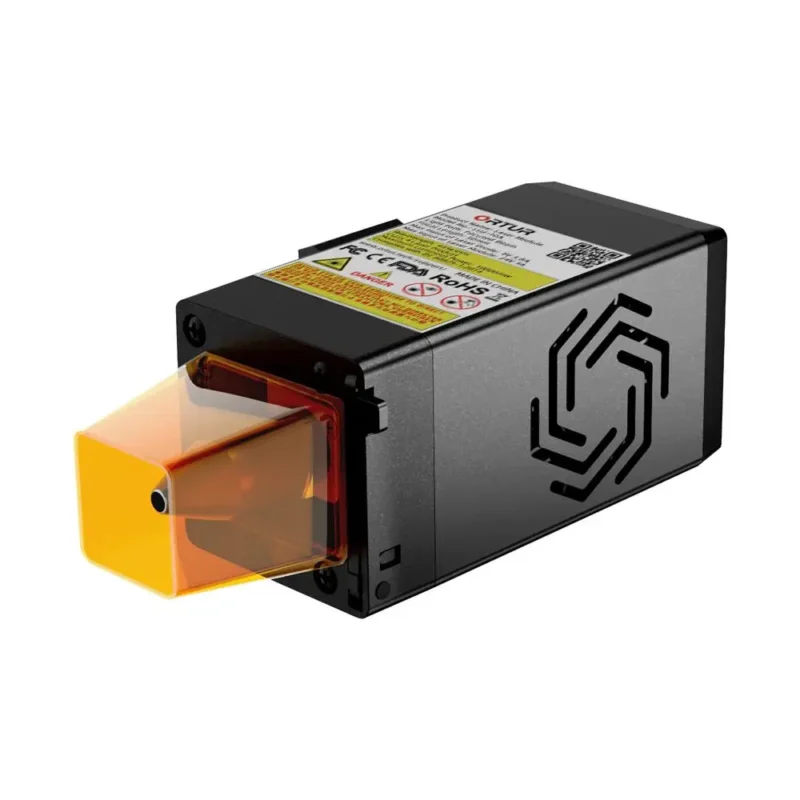

Ortur LU2-10A 10W Laser Module
10W LU2-10A Laser Module for Ortur & Aufero Laser Engraver
10W LU2-10A Laser Module for Ortur & Aufero Laser Engraver
ORTUR

Ortur LU2-10A 10W Laser Module

Rated 4.71 out of 5 based on 7 customer ratings
(7 customer reviews)

₹27,999 Incl GST (₹23,728 +18%GST)

Ortur LU2-10A 10w Laser Module for Ortur & Aufero Laser Engraver

  • More Precise Cutting & Engraving
  • Engraving Speed up to 15,000mm/min
  • Stable & Lighter 10W Laser Module
  • Air Assist
  • Higher Precision
Brand

ORTUR

HSN

84798999

Optical Power

10W

Condition

New

Compare
Add to wishlist
51 People watching this product now!
EAN: 8903470321649 SKU: ORTLU210W Categories: Laser Engraver, Laser Engraver Accessories, Ortur, Ortur Accessories Tags: 10W, Laser Module, Ortur
Share:
  • Description
  • Reviews (7)
  • About ORTUR
  • WARRANTY
Description

Highlights

Luminous Power
LU2-10A 24V 10W Laser Module has a real luminous power of 10 W and a focal spot of 0.07 x 0.06 mm; with a smaller luminous cavity and small focal point, the laser head is perfect for engraving high-precision patterns

Default Focal Length
The default focal length of the laser module is 50 mm; the safe engraving distance frees you from worry about the safety hazards of laser

High Precision
High-precision control of the laser beam, more stable and continuous output power; up to 8,000 hours ultra-long service life

Protective Laser Shield
The protective laser shield effectively reduces the damage to the eyes caused by the laser; kind reminder: do not stare at the laser for a long time which will cause irreversible damage

Fast Heat Dissipation
With aluminum housing and radiator, the heat can be quickly dissipated so that the machine will not overheat when it runs for a long time

Ortur Laser Module LU2-10A 24V 10W, Compressed Spot Fixed Focus for Desktop Engraving Machine and Aufero Laser Engraver

Ortur Laser Module LU2-10A 24V 10W, Compressed Spot Fixed Focus for Desktop Engraving Machine and Aufero Laser Engraver

Ortur Laser Module LU2-10A 24V 10W, Compressed Spot Fixed Focus for Desktop Engraving Machine and Aufero Laser Engraver

Ortur Laser Module LU2-10A 24V 10W, Compressed Spot Fixed Focus for Desktop Engraving Machine and Aufero Laser Engraver

Ortur Laser Module LU2-10A 24V 10W, Compressed Spot Fixed Focus for Desktop Engraving Machine and Aufero Laser Engraver

Ortur Laser Module LU2-10A 24V 10W, Compressed Spot Fixed Focus for Desktop Engraving Machine and Aufero Laser Engraver

Ortur Laser Module LU2-10A 24V 10W, Compressed Spot Fixed Focus for Desktop Engraving Machine and Aufero Laser Engraver

Ortur Laser Module LU2-10A 24V 10W, Compressed Spot Fixed Focus for Desktop Engraving Machine and Aufero Laser Engraver

Ortur Laser Module LU2-10A 24V 10W, Compressed Spot Fixed Focus for Desktop Engraving Machine and Aufero Laser Engraver

Ortur Laser Module LU2-10A 24V 10W, Compressed Spot Fixed Focus for Desktop Engraving Machine and Aufero Laser Engraver

Ortur Laser Module LU2-10A 24V 10W, Compressed Spot Fixed Focus for Desktop Engraving Machine and Aufero Laser Engraver

ORTUR LU2-10A 10W Laser Module, 0.07*0.06mm Compressed Spot, Fixed Focus, Air Assist Interface

S1f9ef5b77f6d4a4f851c666c6acbbbc8V

Specification

General Brand: ORTUR
Type: Laser Module
Model: LU2-10A 24V 10W
Specification Optical Power: 10W
Focal Spot: 0.07x 0.06 mm
Light Path: Focused Beam
Focal Length: 50 mm
Electric Current: 1.1-1.35A
Wavelength: 445±10 nm
Voltage: 24V
Weight & Size Product Weight: 10.3 ounces
Product Size(L x W x H): 8.66 x 3.14 x 3.14 inches
Package Contents 1 x LU2-10A Laser Module
1 x OUC Universal Adapter Board
1 x 24V 2A Power Adapter
1 x Dedicated Laser Wire
1 x Air Assist
1 x Air Pipe
1 x Slider
10 x Cable Tie
4 x M3*5mm Screw
4 x M3*8mm Screw
1 x Laser Shield
2 x Thumb Screw
1 x Air Flow Regulator
1 x Pipe Connector
Reviews (7)
4.7
Rated 4.7 out of 5
7 reviews
Rated 5 out of 5
5
Rated 4 out of 5
2
Rated 3 out of 5
0
Rated 2 out of 5
0
Rated 1 out of 5
0

7 reviews for Ortur LU2-10A 10W Laser Module

Clear filters
  1. Mahesh Kohli (verified owner) – 10/02/2023

    Rated 5 out of 5

    I think this is amazing. Lots of features and customizable from every point of view. The few times I asked for help in support they were competent, fast and above all very patient. Really recommend

    0
    0
  2. Indubai Sinde (verified owner) – 30/01/2023

    Rated 4 out of 5

    Got some issues, but it works for me.

    0
    0
    • Store manager mechblock – 30/01/2023

      We value your decision to shop with us and leave an instructive review!

  3. Prabhu Kashyap (verified owner) – 26/01/2023

    Rated 5 out of 5

    Just love the design and the customer support is the nicest.

    0
    0
    • Store manager mechblock – 26/01/2023

      Thank you for your kind review! It’s a big encouragement to us!

  4. Kalinda Narayan (verified owner) – 10/01/2023

    Rated 4 out of 5

    A promising product, worth trying

    0
    0
    • Store manager mechblock – 10/01/2023

      We value your decision to shop with us and leave an instructive review!

  5. Dhruv Chadha (verified owner) – 25/10/2022

    Rated 5 out of 5

    I’m caught 🙂 Find my love and will never buy in any other shop.

    0
    0
  6. Ishivara Pandey (verified owner) – 27/07/2022

    Rated 5 out of 5

    I’m caught 🙂 Find my love and will never buy in any other shop.

    0
    0
  7. Bhaskara Tayal (verified owner) – 09/07/2022

    Rated 5 out of 5

    Been using it for a while, I usually don’t write a review but this time I am truly convinced to write.

    0
    0
Add a review Cancel reply

Your email address will not be published. Required fields are marked *

1 2 3 4 5
1 2 3 4 5
1 2 3 4 5
1 2 3 4 5
1 2 3 4 5
1 2 3 4 5

You have to be logged in to be able to add photos to your review.

About ORTUR
Ortur is a high-tech manufacturer focus on developing diode laser engravers founded by a group of passionate engineers. We love to discover the unknown and try to develop our products to the next level with vitality and creativity.
WARRANTY

1 Year Manufacturer Warranty

This item is covered with a Manufacturer warranty of 1 year from the time of delivery against manufacturing defects only. This is a quality product from the original manufacturer. Only manufacturing defects are covered under this warranty. Reimbursement or replacement will be done against manufacturing defects.

How to Claim Warranty:

  1. All Branded Product comes with 1 Year of warranty.
  2. For any Manufacturing defects, You can directly contact the after-sales team of the Manufacturer( Contacts is also mentioned in the User Manual)
  3. For claiming a warranty you need to submit support ticket.  https://mechblock.in/support/
  4. After a successful claim, Manufacturer will provide you with the products through us or directly.

What voids the warranty:

If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.

*All Generic & Non-Branded products do not come under warranty.



Related products

TWOTREES Desktop CNC 3d machine engrave lazer TT-5.5s
Compare
Quick view
Add to wishlist

TWOTREES TT-5.5S Laser 40W Engraver Machine

TWOTREES
Rated 5.00 out of 5

Out of stock

₹30,668 Incl GST (₹25,990 +18%GST)
Read more
Weight 6.5 kg
Dimensions 53 × 24 × 20 cm
Model Number

TT5.5s -EU Plug

Power

40W

Brand

TWOTREES

Condition

New

-6%
SCULPFUN Air Pump Compressor
Compare
Quick view
Add to wishlist

SCULPFUN 30L/Min Air Pump Air Compressor for Laser Engraving Machine Adjustable Speed Low Noise Low Vibration Stable Output

SCULPFUN
Rated 5.00 out of 5

In stock

₹8,490 ₹7,999 Incl GST (₹6,779 +18%GST)
Add to cart
Weight 1.68 kg
Dimensions 25 × 19 × 15 cm
Brand

SCULPFUN

HSN

84138190

Condition

New

-17%HotNew20W
ATOMSTACK X20 PRO A20 S20 130W Laser Engraver
Compare
Quick view
Add to wishlist

ATOMSTACK X20 PRO 20W Laser Output 130W Laser Engraver Metal Diode CNC Metal Marking Acrylic Woodwork Cutting Machine Built-in Air Assist

ATOMSTACK
Rated 4.92 out of 5

In stock

₹125,999 ₹104,990 Incl GST (₹88,975 +18%GST)
Add to cart
Weight 10.8 kg
Dimensions 57 × 51 × 18 cm
Color

GRAY-X20 PRO, GOLD-S20 PRO

Brand

ATOMSTACK

Optical Power

20W

Laser Spot Size

0.08*0.10mm

Working Area

400*400mm

Expansion Kit Support

Only on Y-Axis

Machine Power

130W

SD Card Support

Yes

Connectivity

Mobile App, WiFi

Offline Control / Touch Screen

Yes

HSN

84798999

Condition

New

-2%10W
TTS Pro 10w
Compare
Quick view
Add to wishlist

Twotrees TTS Pro 10w Laser Engraving Cutting Machine

TWOTREES
Rated 5.00 out of 5

In stock

₹49,999 ₹48,990 Incl GST (₹41,517 +18%GST)
Add to cart
Weight 5.47 kg
Dimensions 64 × 22.5 × 19 cm
Brand

TWOTREES

Optical Power

10W

HSN

84798999

Condition

New

5.5W
TWOTREES NEW TTS 5.5w
Compare
Quick view
Add to wishlist

TWOTREES NEW TTS 5.5w mini CNC DIODE laser engraver cutting machine

TWOTREES
Rated 5.00 out of 5

In stock

₹33,999 Incl GST (₹28,813 +18%GST)
Add to cart
Weight 5.33 kg
Dimensions 61 × 23 × 19 cm
Model Number

TTS-UK Plug, TTS-US Plug, TTS-CN Plug, TTS-EU Plug

Power

5.5W

Brand

TWOTREES

Optical Power

5.5W

HSN

84798999

Condition

New

5.5W
Atomstack P7 M40 5.5W Optical Power Portable Laser Engraving Machine
Compare
Quick view
Add to wishlist

Atomstack P7 M40 5.5W Optical Power Portable Laser Engraving Machine

ATOMSTACK
Rated 5.00 out of 5

In stock

₹44,999 Incl GST (₹38,135 +18%GST)
Add to cart
Weight 6 kg
Dimensions 50 × 30 × 14 cm
Brand

ATOMSTACK

HSN

84798999

Optical Power

5.5W

Condition

New

-7%
ATOMSTACK air assist system
Compare
Quick view
Add to wishlist

ATOMSTACK Air assist system Laser Engraver Air-assisted Accessories

ATOMSTACK
Rated 5.00 out of 5

In stock

₹13,999 ₹12,990 Incl GST (₹11,008 +18%GST)
Add to cart
Weight 1.14 kg
Dimensions 22 × 16 × 11.5 cm
Model Number

Air Assist System

Brand

ATOMSTACK

HSN

84138190

Condition

New

-20%Hot10W

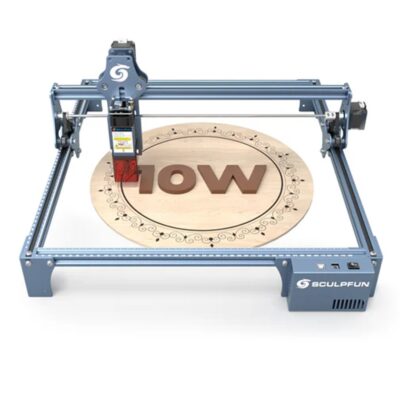

SCULPFUN S10
Compare
Quick view
Add to wishlist

SCULPFUN S10 10W Laser Engraving Machine

SCULPFUN
Rated 5.00 out of 5

In stock

₹64,999 ₹51,990 Incl GST (₹44,059 +18%GST)
Add to cart
Weight 6.06 kg
Dimensions 61 × 35.5 × 14 cm
Brand

SCULPFUN

Optical Power

10W

Laser Spot Size

0.08*0.08mm

Working Area

410*420mm

Expansion Kit Support

On Both X & Y Axis

Machine Power

36w

Connectivity

N/A

SD Card Support

No

Offline Control / Touch Screen

No

HSN

84798999

Condition

New

Mechblock Sales Office

S-5, 2nd floor, Manish Link Road Plaza 2,Plot No. 10, Sector 5 Market, Dwarka,South West Delhi, New Delhi-110075

Mechblock Registered Office

 E-502, Plot No 36, Sector 10,Vinayak Apt, Dwarka,  South West Delhi, New Delhi-110075

Mechblock Warehouse

Plot No. 10, Sector 5, Central Road, Dwarka, South West Delhi, New Delhi-110075

mechblock

ORTUR | ATOMSTACK | TWOTREES | SCULPFUN| COMGROW Authorized Dealer Distributor Partner in India

Subscribe us

Brands

    • Ortur
    • Atomstack
    • Sculpfun
    • Twotrees
    • Openbuilds
    • Comgrow

Useful Links

    • About Us
    • Our contacts
    • Become an Affiliate
    • Submit Support Ticket
    • GST Input Tax Credit

Our Policies

    • About Us
    • Privacy Policy
    • Terms of Service
    • Shipping & Return Policy
    • Payment & Refunds
    • International Shipping Payments & Returns

Launching soon

Check us also at

mechblock
MECHBLOCK 2023 OWNED BY SUN ENTERPRISES. INDUSTRIAL E-COMMERCE SOLUTIONS.
payments
  • Menu
  • Categories
  • Atomstack
  • Ortur
  • Sculpfun
  • TwoTrees
  • OpenBuilds
  • Home
  • All Laser Engraver
  • Atomstack
  • Ortur
  • Sculpfun
  • CNC
  • OpenBuilds
  • Wishlist
  • Compare
Shopping cart
Close
Sign in
Close

Lost your password?

Continue with Google
OR
Don't have an account? Signup

No account yet?

Create an Account
We use cookies to improve your experience on our website. By browsing this website, you agree to our use of cookies.
Accept
Loading...
0 Compare
0 Wishlist
0 items Cart
Menu

Back

Insert/edit link

Enter the destination URL

Or link to existing content

    No search term specified. Showing recent items. Search or use up and down arrow keys to select an item.
