Widely compatible design: The SCULPFUN laser module has a clever and widely compatible structural connection device, which can be well adapted to different laser engraving machines, laser cutting machines, 3D printers, CNC milling machines, etc. It can be installed on a variety of brand machines, such as SCULPFUN, ATOMSTACK, ORTUR laser engraving machine, or other DIY type machines.

90W effect laser beam shaping technology: S9 uses the latest 5.5W laser beam shaping technology ,the effect of this technique is to get a super-high-density energy laser beam , it is more than just a thinner focus, the entire beam is very thin. It has an ultra-fine 0.06mm sharp laser focus, with super cutting penetration and precision, he can cut up to 15mm thick wood, 10mm acrylic, carve ceramics and stainless steel, this is almost beyond the effect of 90W CO2 laser.

Fast fixed focus design: The S9 laser module has the fastest focusing design on the market. It combines a fixed focus lens and a sliding design. You only need to slide the laser and tighten the screws to complete focusing. This makes the use of the laser very simple. Using it on different machines does not affect its sliding fixed focusing function.

Circle eye protection cover design: The laser filter cover filters 98% of the ultraviolet light to the eyes. You and the people around you can watch laser engraving from all angles without wearing goggles. At the same time, it can prevent animals from catching the laser spot.

General 12V/PWM modulation board: It uses a common 12V/PWM modulation board, which can be adapted to common GRBL or CNC motherboards. You can view product pictures for details.

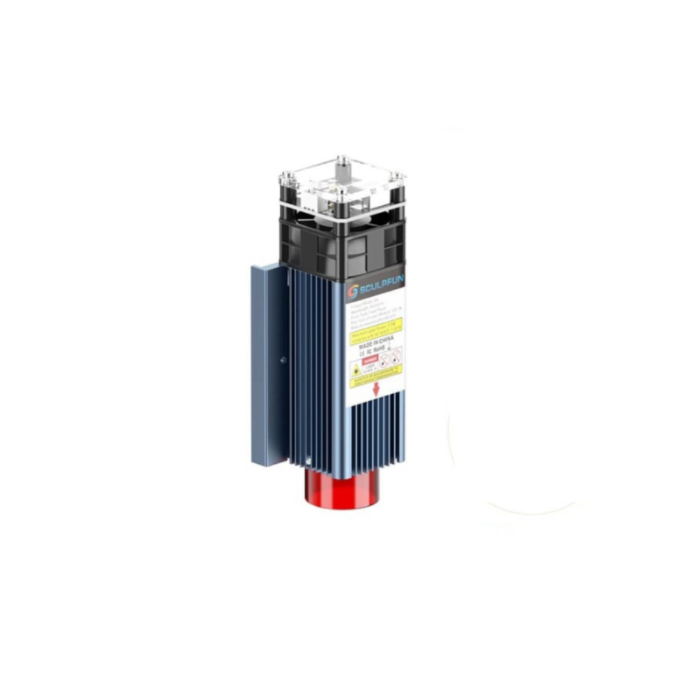

Product model: SCULPFUN S9 Laser module

Applicable machines: laser engraving machines such as SCULPFUN, ATOMSTACK, ORTUR, ELEKSMAKER, or DIY 3D printers, CNC machine tools.

Engraving materials: paper, paper, cardboard, plastic, white, PCB board, alumina, stainless steel, black metal, ceramic

Cutting material: thin board, acrylic board, cardboard, non-woven fabric, bamboo, some plastic board;

Laser effect power: 90W (cutting effect similar to 90W CO2 laser)

Laser output power: 5.5-6W (light energy)

Laser wave length 455±5nm

Laser type and fixed focus method: fixed focus laser, fixed focus through 20mm measuring column

Laser protective cover: the ring-shaped violet filter cover protects the user’s eyes and prevents animals, etc. from contacting the laser spot.

Laser shell material: aluminum alloy

Circuit Board Size: 40*40mm

Circuit Board:12V/PWM modulation board

Input voltage: 12V

Max Input of laser module:12V 3A

Wire Rod:HY2.0, 3Pin terminal (3-core cable, A: PWM +, B: GND, C: VCC ).

Fan:12V 0.15A 4020 fan

Fan speed: 10000 rpm

Operating temperature: -20 ℃ to 70 ℃

Package weight: 0.5kg

Packing size: 11*12*18cm

Packing List

Laser head*1

Multi-function structural connection device *1

20mm measuring column*1

Screws and tool kit*1

Precautions
