C-Beam Gantry Bundle

(44 customer reviews)

1,604.001,745.00

  • This Bundle is a great way to get all the parts for a C-Beam Gantry.
  • This Bundle allows a C-Beam Gantry Plate to run along the C-Beam Linear Rail system, with the wheels and nut block on the inside.
EAN: 8903470053229 SKU: MOGAN-CB-1190 Categories: , , Tags: ,
Processing time: 1 days

Check Estimated Delivery at

Shipping to IN
Add 1,999.00 to cart and get free shipping!
16 People watching this product now!

Mechblock Shopping Event

Hurry and get discounts on all Mechblock Products up to Rs.1000

Coupon code: MECHBLOCK

For the most demanding builds, our C-Beam Gantry Set is the ideal Linear Actuator gantry when a strong, solid and stable operation is needed. This one is used on the Y Axis on our.
Specifications:
  • 77.5mm x 77.5mm Plate
  • 8 pre-tapped holes
  • Compatible with C-Beam Linear Rail
  • For Leadscrew drive systems



Product Features
• Model: CS-1
• Quick Assembly of the motion system
• Multiple pre-drilled and tapped holes
• Ready to use Gantry for C-Beam Linear Rail
• Designed for Lead Screw driven systems



This is a self-assembly kit and comes with the following parts:

Item Name                                                          Qty
Low Profile Screws – 25mm                                4
Low Profile Screws – 20mm                                2
Aluminum Spacers – 6mm                                   2
Aluminum Spacers – 3mm                                   2
Eccentric Spacers – 6mm                                      2
M5 nylon nut                                                              2

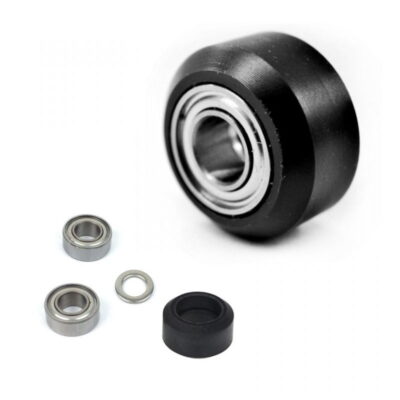

Mini V Wheel Kit (Black or Clear)                     4
C-Beam Gantry Plate                                               1
Anti-Backlash Nut Block – 8mm                        1

Weight

0.3 kg

Dimensions

10 × 10 × 10 cm

Brand

OPENBUILDS

Condition

New

HSN Code

84439090

Wheel Color

Black , Clear

15 Days Warranty


This item is covered with a standard warranty of 15 days from the time of delivery against manufacturing defects only. This warranty is given for the benefit of Mechblock customers from any kind of manufacturing defects.  Reimbursement or replacement will be done against manufacturing defects.


What voids warranty:

If the product is subject to misuse, tampering, static discharge,mishandelling of the product, accident, water or fire damage, use of chemicals & soldered or altered in any way.
