Home OpenBuilds Machine Kits Openbuilds MiniMill CNC Machine Kit
Micro Limit Switch Plate
Micro Limit Switch Plate ₹299 Incl GST (₹253 +18%GST)
Back to products
Microstep driver DM860H Stepper Motor Controller
Digital Microstep driver DM860H Stepper Motor ₹2,979 Incl GST (₹2,525 +18%GST)
Openbuilds MiniMill CNC Machine Kit
Openbuilds MiniMill CNC Machine Kit
Openbuilds MiniMill CNC Machine Kit
Openbuilds MiniMill CNC Machine Kit
Click to enlarge
Openbuilds MiniMill CNC Machine Kit
Openbuilds MiniMill CNC Machine Kit
Openbuilds MiniMill CNC Machine Kit
Openbuilds MiniMill CNC Machine Kit
OPENBUILDS

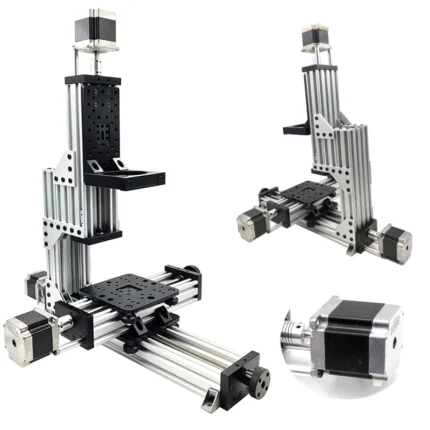

Openbuilds MiniMill CNC Machine Kit

Rated 5.00 out of 5 based on 8 customer ratings
(8 customer reviews)

₹40,999 – ₹50,999

This MiniMill is a super strong, accurate and easy to assemble CNC machine.

Weight 11 kg
Dimensions 41 × 20 × 15 cm
Brand

OPENBUILDS

EXTRUSION COLOR

Silver

XYZ AXIS MOTORS

3 x Nema 23 Stepper Motor 1.26N.m

Condition

New

HSN

84659990

ROUTER

None, Makita RT0700C Trim Router 65mm

Clear
Select a product variation to get estimate
Compare
Add to wishlist
41 People watching this product now!
EAN: 8903470050891 SKU: MN01 Categories: CNC, CNC Machine Bundles, Machine Kits Tags: cnc kit, desktop cnc, mini 3d printer, router cnc
Share:
  • Description
  • Reviews (8)
  • About OPENBUILDS
  • WARRANTY
Description

This is the MECHBLOCK kit of the popular Open Source MiniMill CNC Machine.

The MiniMill was originally designed and published on Openbuilds. It is a super strong, accurate and easy to assemble CNC machine.

Based on C-Beam, V-Slot, Xtreme Solid V-Wheels and TR8x8(P2) Leadscrews it is strong, accurate and reliable.

It has been carefully designed and can accurately cut foams, woods, plastics and aluminium to 0.1-0.2mm accuracy or better.

Functional engineering parts, toys, signs or anything else that can be imagined, can be made on the WorkBee CNC Machine.

Kit Including:

  • Clear/Black Anodized C-Beam Linear Rail (pre-tapped!!!)
  •  Xtreme Solid V wheel kits and Xtreme Mini V wheel kits
  • The C-Beam Gantry Plates,End Mounts
  • Jog Knob
  • Spacers and Plates
  • T8*8 Metric Acme Lead screw and shaft coupling
  • Lock collar and Bearings
  • Anti-Backlash Nut Blcok
  • All fasteners as Screws,Nuts,shims etc.
  • 3 x NEMA 23 (1.26N.m) Stepper Motors



PLEASE NOTE——————————————————————————————————————-

NOT Includes: Electronic parts as Drive board,Power supply and other Electronic kits.

——————————————————————————————————————————————-

Dimension Details

Travel (Cutting Area):
   – X Axis: 120 mm
   – Y Axis: 195 mm
   – Z Axis: 80 mm
Workable Material Height (max): 60 mm (with a 12 mm base board)>
Drive System: TR8 x 8(P2) ACME Lead Screw
Machine Accuracy: 0.05 mm – 0.10 mm
Footprint: 560 mm x 406 mm (not including motors)



Compatible Material for Cutting/Milling:

  • Aluminium
  • Hard Wood
  • Soft Wood
  • Plexi Glass
  • Delrin
  • HDPE
  • Foam

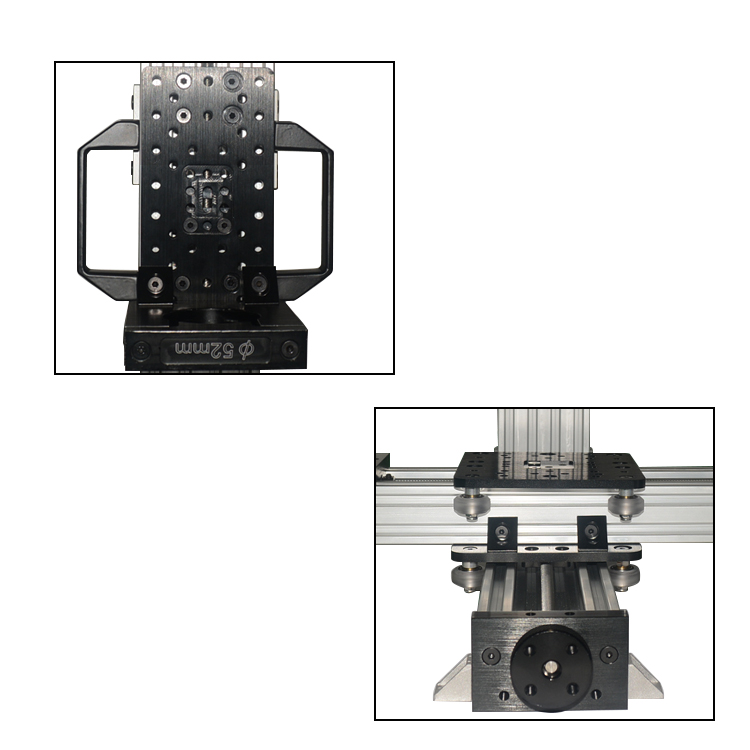

Hb664eab4532848638016998713f131feX
