16 in 1 Sensor kit Compatible with Raspberry Pi 3 & Raspberry Pi 2 Model B

Rated 5.00 out of 5 based on 4 customer ratings
(4 customer reviews)

₹699 Incl GST (₹592 +18%GST)

Weight 0.2 kg
Dimensions 10 × 10 × 5 cm
Brand

MECHBLOCK

HSN

84669390

Condition

New

In stock

Compare
Add to wishlist
66 People watching this product now!
EAN: 8903470004658 SKU: 16IN01 Categories: Sensors, Clearance
Share:
  • Description
  • Reviews (4)
  • About MECHBLOCK
  • WARRANTY
Description

If you are Raspberry pi user and frequency need various sensors to explore the all possible project with Raspberry Pi 3 & Raspberry Pi 2 Model B. Here is Sensor kit in which you will get 16 different sensors compatible with the raspberry pi.


Following is some brief info about sensors:

1.KY-008 laser sensor module
Operating voltage: 5V
Specifications: 15 * 24 mm
Light source wavelength: 650 nm

2.Obstacle avoidance sensor module
VCC: 3.3V-5V external voltage (can be directly connected to the 5v and 3.3v microcontroller MCU)
GND: External GND
OUT: Small board digital output interface (0 and 1)
Connection method: VCC-VCC; GND-GND; OUT-IO
Board size: 3.2 x 1.4cm

3.Flame sensor module
Operating voltage: 3.3V-5V
Output form: DO digital switching output (0 and 1) and AO analog voltage output
Size: 3.2cm x 1.4cm
Detect flame or wavelength range (approx): 760 nm to 1100 nm, lighter flame test distance is 80cm, the greater flame, the farther test distance
Detection angle is about 60 degree, particularly sensitive to flame photometry
Adjustable sensitivity

4.315M wireless transceiver module
Operating voltage: DC5V
Quiescent current: 4mA
Receiving frequency: 315MHz
Receiving sensitivity: -105DB
Size: 30 x 14 x 7mm

5.Emission head parameters
Transmission distance: 20-200 meter (different voltage, different effect)
Operating voltage: 3.5-12V
Dimension: 19 x 19mm
Work: AM
Transfer rate: 4KB / S
Transmitting power: 10mW
Transmission frequency: 315M
Pinout left → right: (DATA, VCC, GND)

6.One channel TCRT5000 tracing module
Detection distance: about 10mm
Operating voltage: 5V, black line output low level, white line output high level

7.Vibration sensor module
Operating voltage: 3.3V-5V
Output type: Digital switching output (0 and 1)
Small PCB board size: 3.2cm x 1.4cm

8.MQ-2 gas sensor module
Dimension: 32 x 22 x 27mm
The main chip: LM393, ZYMQ-2 gas sensor
Operating voltage: 5V DC
Dual signal output (analog output, and TTL level output)
TTL output valid signal is low level. (When the output low level signal light can be directly connected microcontroller)
Analog output: 0 ~ 5V voltage, the higher the concentration the higher the voltage.

9.Sound sensor module
Operating voltage: 3.3V-5V
Small PCB board size: 3.4cm x 1.6cm

10.DHT11 temperature and humidity sensor module
VDD: 3.3-5.5V DC
DATA: Serial data
NC: No connection
GND: Grounding, negative power supply

11.HC-SR04 ultrasonic sensor module
Operating voltage: 5V
Ultra-small quiescent current: less than 2mA
Induction angle: not more than 15 degrees
Detection distance: 2cm-400cm
High precision: up to 0.3cm

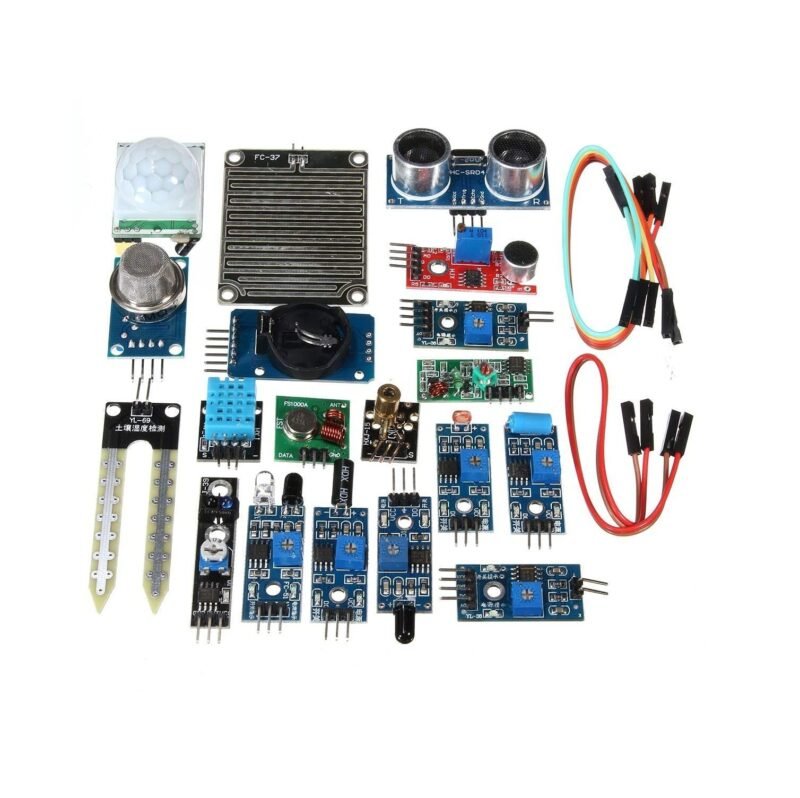

Package Includes:

1 x DS1302 RTC Real Time Clock Module (No Battery)
1 x SW-420 Normally Closed Vibration Sensor Module
1 x SW1801P 3pin Normally open vibration sensor module
1 x 315Mhz RF Wireless Transmitter and Receiver Kit
1 x Sound Sensor Module
1 x TCRT5000 Tracking Module
1 x KY-008 650nm Laser sensor Module 6mm 5V
1 x DHT11 Temperature and Humidity Sensor Module
1 x HC-SR501 PIR Motion Sensor Module Green
1 x HC-SR04 Ultrasonic Sensor 4pin
1 x MQ-2 Smoke Gas LPG Butane Hydrogen Sensor Module
1 x Soil Moisture Detection Humidity Sensor Module
1 x Raindrops Detection Sensor Module Snow RainWeather
1 x IR Infrared Flame Detection Sensor Module
1 x 3pin Photosensitive Sensor Module Light-Dependent Control
1 x Infrared Obstacle Avoidance Tracking Sensor Module

Reviews (4)
5
Rated 5 out of 5
4 reviews
Rated 5 out of 5
4
Rated 4 out of 5
0
Rated 3 out of 5
0
Rated 2 out of 5
0
Rated 1 out of 5
0

4 reviews for 16 in 1 Sensor kit Compatible with Raspberry Pi 3 & Raspberry Pi 2 Model B

Clear filters
  1. monish – 17/01/2023

    Rated 5 out of 5

    Awesome kit and superb quality

    0
    0
  2. Kavita Bisht (verified owner) – 25/08/2022

    Rated 5 out of 5

    I’m caught 🙂 Find my love and will never buy in any other shop.

    0
    0
  3. Subrata Mehta (verified owner) – 23/08/2022

    Rated 5 out of 5

    I rarely leave a comment, but this item is beyond worth it! Gotta let you guys know!

    0
    0
  4. Satyavathi Anand (verified owner) – 17/07/2022

    Rated 5 out of 5

    Good response from the support.

    0
    0
Add a review Cancel reply

Your email address will not be published. Required fields are marked *

1 2 3 4 5
1 2 3 4 5
1 2 3 4 5
1 2 3 4 5
1 2 3 4 5
1 2 3 4 5

You have to be logged in to be able to add photos to your review.

About MECHBLOCK
Literally and metaphorically your single soup to nuts destination, Sun Enterprises(https://mechblock.in/) is a New Delhi based innovators collective. We’re here to look after all your Machine Design as well factory goods requirements, we design turn-key solutions for everyone. We understand that easy access to components and parts forms the basis of all great inventions. Sun Enterprises(https://mechblock.in/) was founded to address this basic challenge of the availability of high-quality reasonably-priced products with quickest deliveries.
WARRANTY

1 Year Manufacturer Warranty

This item is covered with a Manufacturer warranty of 1 year from the time of delivery against manufacturing defects only. This is a quality product from the original manufacturer. Only manufacturing defects are covered under this warranty. Reimbursement or replacement will be done against manufacturing defects.

How to Claim Warranty:

  1. All Branded Product comes with 1 Year of warranty.
  2. For any Manufacturing defects, You can directly contact the after-sales team of the Manufacturer( Contacts is also mentioned in the User Manual)
  3. For claiming a warranty you need to submit support ticket.  https://mechblock.in/support/
  4. After a successful claim, Manufacturer will provide you with the products through us or directly.

What voids the warranty:

If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.

*All Generic & Non-Branded products do not come under warranty.



Related products

GRBL 0.9 3 Axis Controller USB Port CNC Control Board
Compare
Quick view
Add to wishlist

GRBL 0.9 3 Axis Controller USB Port CNC Control Board

GENERIC
Rated 5.00 out of 5

In stock

₹1,599 Incl GST (₹1,355 +18%GST)
Add to cart
Weight 0.080 kg
Dimensions 10 × 10 × 4 cm
HSN

84669390

Brand

GENERIC

Condition

New

Compare
Quick view
Add to wishlist

Dust Cover 65mm Diameter Spindle for CNC Spindle Motor Milling Machine Router Tools with 80mm adapter Clearance Sale

GENERIC
Rated 5.00 out of 5

Out of stock

₹3,999 Incl GST (₹3,389 +18%GST)
Read more
Weight 2.5 kg
Dimensions 25 × 20 × 20 cm
Brand

GENERIC

HSN

84439090

Condition

New

TowerPro MG996R Servo Motor
Compare
Quick view
Add to wishlist

Tower Pro MG996R Digital Metal Gear High Torque Servo Motor (180 Degree Rotation)

GENERIC
Rated 5.00 out of 5

In stock

₹235 Incl GST (₹199 +18%GST)
Add to cart
Weight 0.100 kg
Dimensions 5 × 5 × 5 cm
HSN

84669390

Brand

GENERIC

Condition

New

Compare
Quick view
Add to wishlist

TMC2208 V2.0 – Stepper Motor Driver – MKS

GENERIC
Rated 5.00 out of 5

In stock

₹699 Incl GST (₹592 +18%GST)
Add to cart
Weight 0.050 kg
Dimensions 5 × 5 × 2 cm
Brand

GENERIC

HSN

84439090

Condition

New

stlink-v2-programmer
Compare
Quick view
Add to wishlist

ST-LINK/V2 in-circuit debugger/programmer for STM8 and STM32

MECHBLOCK
Rated 5.00 out of 5

In stock

₹949 Incl GST (₹804 +18%GST)
Add to cart
Weight 0.200 kg
Dimensions 15 × 15 × 10 cm
Brand

MECHBLOCK

HSN

84669390

Condition

New

Compare
Quick view
Add to wishlist

Driver board MACH3 engraving machine 5 Axis CNC breakout board with optical coupler for stepper motor drive controller

MECHBLOCK
Rated 5.00 out of 5

Out of stock

₹707 Incl GST (₹599 +18%GST)
Read more
Weight 0.200 kg
Dimensions 10 × 10 × 5 cm
HSN

84669390

Brand

MECHBLOCK

Condition

New

New
IR Remote Control Extension Cord Cable IR Receiver Transmitter Repeater
Compare
Quick view
Add to wishlist

IR Remote Control Extension Cord Cable

GENERIC
Rated 5.00 out of 5

In stock

₹299 Incl GST (₹253 +18%GST)
Add to cart
Weight 0.040 kg
Dimensions 10 × 10 × 4 cm
HSN

84678990

Brand

GENERIC

Condition

New

tb6600
Compare
Quick view
Add to wishlist

TB6600 Upgraded Stepper Motor Driver Controller

GENERIC
Rated 5.00 out of 5

In stock

₹599 Incl GST (₹508 +18%GST)
Add to cart
Weight 0.2 kg
Dimensions 12 × 12 × 10 cm
HSN

84669390

Brand

GENERIC

Condition

New

Mechblock Sales Office

S-5, 2nd floor, Manish Link Road Plaza 2,Plot No. 10, Sector 5 Market, Dwarka,South West Delhi, New Delhi-110075

Mechblock Registered Office

 E-502, Plot No 36, Sector 10,Vinayak Apt, Dwarka,  South West Delhi, New Delhi-110075

Mechblock Warehouse

Plot No. 10, Sector 5, Central Road, Dwarka, South West Delhi, New Delhi-110075

mechblock

ORTUR | ATOMSTACK | TWOTREES | SCULPFUN| COMGROW Authorized Dealer Distributor Partner in India

Subscribe us

Brands

    • Ortur
    • Atomstack
    • Sculpfun
    • Twotrees
    • Openbuilds
    • Comgrow

Useful Links

    • About Us
    • Our contacts
    • Become an Affiliate
    • Submit Support Ticket
    • GST Input Tax Credit

Our Policies

    • About Us
    • Privacy Policy
    • Terms of Service
    • Shipping & Return Policy
    • Payment & Refunds
    • International Shipping Payments & Returns

Launching soon

Check us also at

mechblock
MECHBLOCK 2023 OWNED BY SUN ENTERPRISES. INDUSTRIAL E-COMMERCE SOLUTIONS.
payments
  • Menu
  • Categories
  • Atomstack
  • Ortur
  • Sculpfun
  • TwoTrees
  • OpenBuilds
  • Home
  • All Laser Engraver
  • Atomstack
  • Ortur
  • Sculpfun
  • CNC
  • OpenBuilds
  • Wishlist
  • Compare
Shopping cart
Close
Sign in
Close

Lost your password?

Continue with Google
OR
Don't have an account? Signup

No account yet?

Create an Account
Loading...
0 Compare
0 Wishlist
0 items Cart
Menu

Back

Insert/edit link

Enter the destination URL

Or link to existing content

    No search term specified. Showing recent items. Search or use up and down arrow keys to select an item.
