Home OpenBuilds Electronics DM556 Digital Stepper Motor Driver Controller 2 Phase 5.6A for 42/57/86 Stepper Motor
atomstack camera
Atomstack AC1 Lightburn Camera Precise Positioning For Laser Engraving Machine ₹15,999 ₹13,999 Incl GST (₹11,864 +18%GST)
Back to products
DRV8825 Stepper Motor Driver ₹235 Incl GST (₹199 +18%GST)
dm556 stpper driver
dm556 stepper motor driver 3
dm556
Click to enlarge
GENERIC

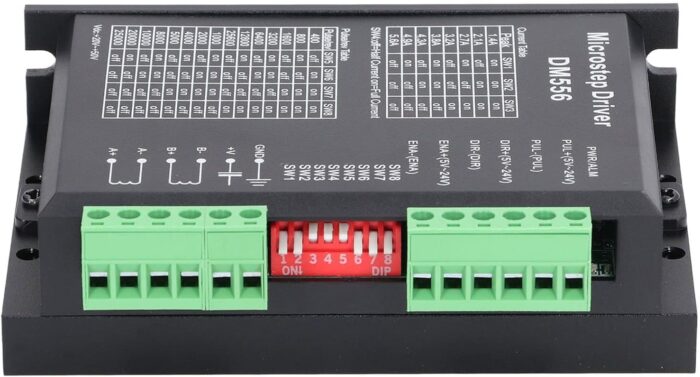

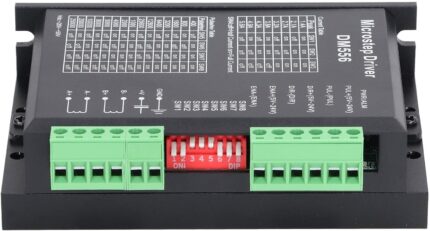

DM556 Digital Stepper Motor Driver Controller 2 Phase 5.6A for 42/57/86 Stepper Motor

₹2,299 Incl GST (₹1,948 +18%GST)

DM556 Digital Stepper Motor Driver 20-50VAC 1.0-5.6A 2 Phase Stepper Driver.

• Supply voltage up to +50 VDC
• Output current programmable, from 0.5A to 5.6A via DIP switches
• Pulse input frequency up to 200 kHz
• TTL compatible and optically isolated input
• Automatic idle-current reduction
• Suitable for 2-phase and 4-phase motors
• Support PUL/DIR and CW/CCW modes
• Over-voltage, over-current, phase-error protections

Weight 0.200 kg
Dimensions 15 × 15 × 10 cm
HSN

84669390

Brand

GENERIC

Condition

New

Out of stock product

Compare
Add to wishlist
66 People watching this product now!
EAN: 8903470000230 SKU: DM556 Categories: Stepper Driver, Electronics Tags: DM556, Stepper Driver, stepper motor driver
Share:
  • Description
  • Reviews (0)
  • About GENERIC
  • WARRANTY
Description
Features:
1. Supply voltage can reach 48V
2. The peak value of the output current can reach 5.6Az
3. Optical isolation, the pulse maximum response frequency is 200KHz
4. Low speed zero vibration with minimal noise
5. Strong anti-interference ability, in the harsh environment of the power grid, can achieve high-precision positioning.
Specifications:
Input current: 18~48V DC power supply, capacity :not less than 200VA. Typical value: DC36V
Output current: 1.0A~5.6A,8 gears adjustable, Resolving power 0.5A
Drive mode: Double constant current PWM drive output
insulation resistance: Normal pressure and temperature > 500MΩ
Insulation strength: Normal pressure and temperature 500V/min
Weight: About 267
Environmental requirements
Cooling method: Natural cooling
Use occasion: Avoid dust, oil mist and corrosive gases
Use temperature: 0°C~+50°C
Ambient humidity: <80%RH, No condensation, no frost
Shake: Maximum not more than 5.7m/s2
Package Included:
1 x Stepper Motor Driver
