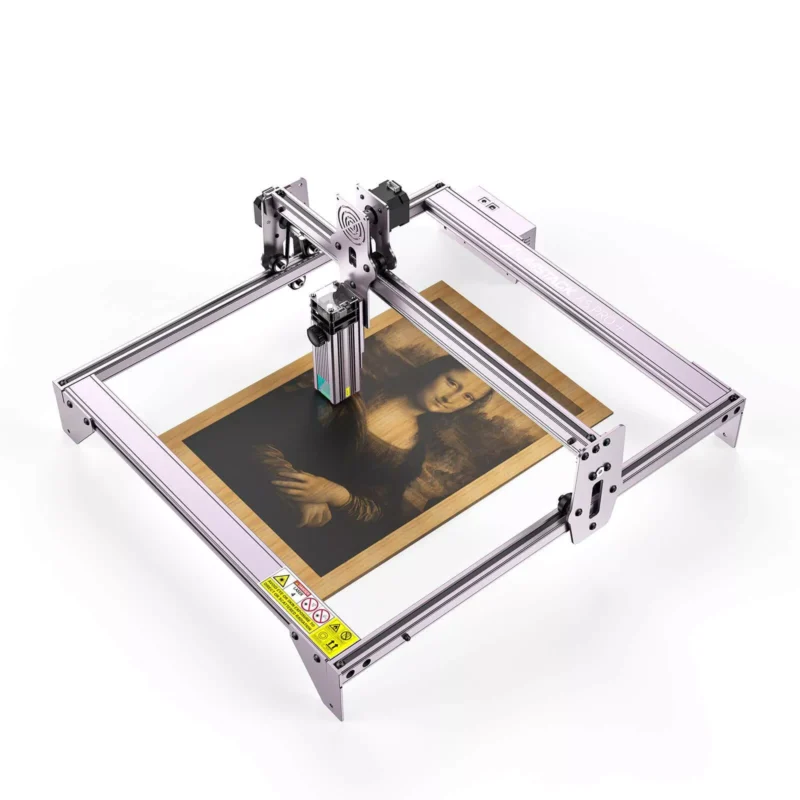

ATOMSTACK A5 PRO+ 5.5W Laser Output 40W Laser Engraving Cutting Machine

(47 customer reviews)

28,990.00 Incl GST (24,567.80 +18%GST)

ATOMSTACK A5 PRO+ Plus
  • Laser power: 40W
  • Laser output power: 4.5W-5.5W
  • Wave Length: 445 ± 5nm
  • Engraving accuracy: 0.01mm
  • Focusing method: fixed focus laser, no need to focus
  • Laser protective cover: Protect the user’s eyes and prevent pets from grabbing the laser spot.
  • Operating software: LaserGRBL, LightBurn, support Win XP / Win 7 / Win 8 / XP / Win 10 Win 11 system.

Out of stock

Out of stock

Add 1,999.00 to cart and get free shipping!
11 People watching this product now!

Mechblock Shopping Event

Hurry and get discounts on all Mechblock Products up to Rs.1000

Coupon code: MECHBLOCK

ATOMSTACK A5 PRO+ 5.5W Laser Output 40W Laser Engraving Cutting Machine

Main Features:

★ A5 PRO+ is an upgraded version of the star model A5 Pro. It has a better laser module and uses lens compression spot technology.

★ It can engrave on metal, ceramics, slate, glass, wood, and cut wood, acrylic and other materials.

★ It can easily cut 10mm wooden boards and 8mm acrylic to achieve the effect of a 100W CO₂ laser engraving machine.

★ It supports an extension kit of 850*410mm to expand the working area.

Video

Basic Specifications:

Model  A5 Pro+
Electric Power 40W
Laser Power 5.5-6W
Working Area 410*400mm
Data Transmission USB
Wave Length 0445 ± 5nm
Engraving Accuracy 0.01mm
Focusing Method Fixed focus laser, no need to focus
Operating Software LaserGRBL (free, supports Windows) or LightBurn (paid, supports Windows, Mac OS and Linux)
Input Format NC, BMP, JPG, PNG, DXF, etc
Input Voltage AC100-240V, 50/60Hz
Output Voltage DC12V, 5A
Laser Protective Cover Protect the user’s eyes and prevent pets from grabbing the laser spot.
Cutting Objects 1/5″ wood and Acrylic ( The deepest cut can be 1/2″, repeated cutting multiple times ), material, Cardboard, non-woven fabric, thin plastic board.
Carving Objects Wood, bamboo, paper, plastic, leather, PCB board, aluminum oxide, non-reflective plating and lacquered metal, ceramics
Equipment net weight 3.426kg
Package weight 5.072kg
Equipment size 570*600*270mm
Packing size 620*345*130mm
Certification CE FCC RoHS FDA



More details:

A5Pro New D1A5Pro New D2A5Pro New D3A5Pro New D4A5Pro New D5A5Pro New D6A5Pro New D7A5Pro New D8A5Pro New D9A5Pro New D10A5Pro New D11A5Pro New D12A5Pro New D13A5Pro New D15

A5 Pro+ PACKAGE:

1* X-axis assembly
2* Section 57CM
2* Section 48CM
1* Control box
3* support legs
1* Goggles
1* laser
1* 12V2A power adapter
1* Power switch line
1* USB cable

Step 1~5 installation package

1* M5 wrench
10* rolled belt
3* small wood
1* focal length film
1* M3 wrench
1* marker
1* brush
3* small acrylic
1* Stainless steel backing plate for cutting

Notes And Precautions:

  • Do NOT operate laser without eye protection.
  • When the laser engraver is working, the operator should not leave it alone, just in case the materials being carved catch fire
  • Please set up laser engraver in the fireproofing area, with good ventilation。
  • Please keep minors (especially kids younger than 14 yours old) away from this laser engraver. Minors of any age should not use this laser without direct Adult supervision and proper eye protection。
  • Please do not touch the laser beam with your hands or any other objects you do not wish to engrave/burn/cut. Serious physical harm is possible if used improperly。
  • Please avoid strongly impact on the machine。
  • Use the laser engraver in a room that can be closed by a door and ensure that neither laser beams nor stray light can penetrate through the windows。
  • While using the laser engraver, use door signs or a warning light on the door that indicates the laser engraver is in operation。
  • Please do not touch the heat sink, when the laser engraver just stops working, it may scald your hands。
