Meet ATOMSTACK P9 Laser Engraver, your affordable professional-grade desktop-friendly and portable laser engraver that supports all your DIY and business creations.

From demanding logo design and bulk or offline shop commercial customization to all kinds of production marking requirements, ATOMSTACK is also a good partner for your business! And it gets better: it works with a variety of new materials that you can engrave that conventional laser engravers could never work with.

Atomstack P9 50W Flagship Dual-Laser Portable Laser Cutter & Engraver

Features:

➢ The new filter panoramic glass eye protection design: the panoramic filter glass protective cover plays a very good role in protecting your eyes, filtering 97% of the ultraviolet light, you and the people around you do not need to wear goggles, you can also watch laser engraving . Reduce the cost of your goggles and the inconvenience of wearing goggles.

➢ Robust and easy-to-install structure design: The all-aluminum alloy anodized structure design makes the machine more durable and improves the accuracy of engraving. The portable all-metal structure, 85% pre-assembly, can be installed in 5 minutes.

➢ Upgraded high-performance fixed-focus laser: no need to adjust the focus before engraving;The focal spot area of the new laser is only 1/3 of the spot area of other ordinary lasers, new laser combine precision engraving and high energy cutting at the same time. The laser power of the fixed-focus laser is more stable than the zoom laser.

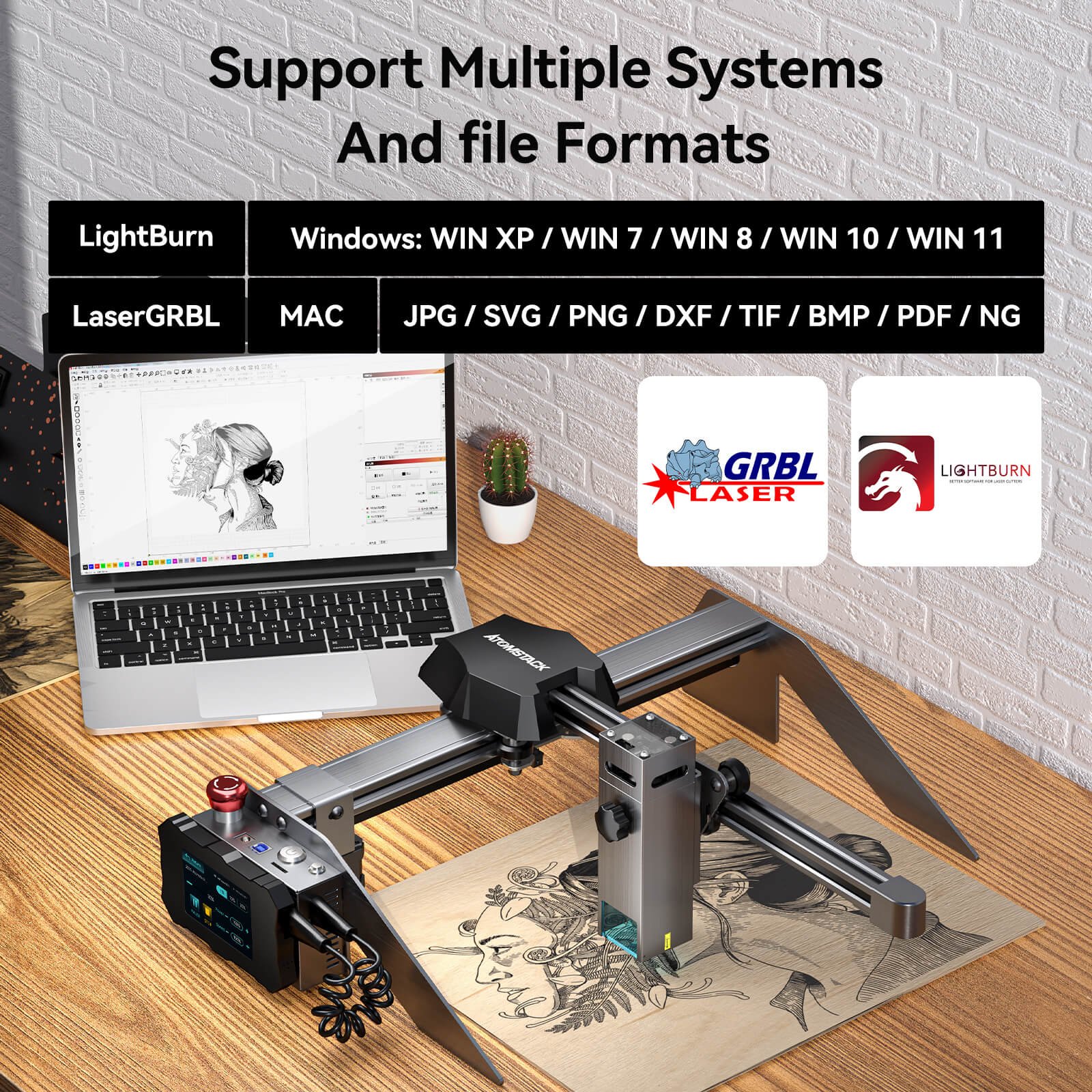

➢ Wide compatibility: The machine can be compatible with various mature engraving software, such as LaserGRBL, LightBurn, support Win XP / Win 7 / Win 8 / Win 10, and also support MAc system (LightBurn), engraving file format supports NC, BMP, JPG, PNG, DXF etc.

➢ Upgraded dual compression spot coupling technology: ultra-fine laser focus area is reduced to 0.08*0.06mm, high-density laser can easily cut 20mm light wood plank, 15mm thick black acrylic; can directly engrave mirror stainless steel metal, ceramics, glass, and engraving &The cutting speed is 40% higher than the ordinary model, which can be comparable to the effect of the 150W CO₂ laser engraving machine.

➢ Integral screw rod: The machine uses an integrated screw rod instead of a combined coupling. The stepping motor and the screw rod are integrated, which makes the movement of the laser more precise and the coupling more durable.

➢ New laser with knob: It is more convenient and quick to adjust the height of the laser.

➢ Support offline engraving: P9 M50 configures the terminal control panel, supports offline engraving, you can carry out engraving work anytime and anywhere without being restricted by the computer.

➢ The laser sintering temperature is up to 1200℃

➢ Emergency stop button: In the event of an unexpected situation, stop the machine at any time to make the engraving safer

➢ Stopper: Yes

➢ Reset switch: Yes

Basic Parameters:

Item model number: ATOMSTACK P9 M50
Recommend Working Size: 220*250 mm
Carving Objects: Wood, bamboo, cardboard, plastic, leather, PCB board, aluminum oxide, non-reflective
Electroplating layer and paint surface layer metal, 304 mirror stainless steel, glass, ceramics, cotton cloth, slate;
Cutting Objects: Cardboard, non-woven fabric, wood board, black acrylic, some thin plastic board, sponge;
Laser power: 50W
Laser output power: 10-11W
Wave Length: 445 ± 5nm
Engraving accuracy: 0.01mm
Focusing method: fixed focus laser, no need to focus
Laser protective cover: Protect the user’s eyes and prevent pets from grabbing the laser spot.
Operating software: LaserGRBL, LightBurn, support Win XP / Win 7 / Win 8 / Win 10 / Win 11 system and Mac OS.
Input Format: NC, BMP, JPG, PNG, DXF, etc.
Data transmission method: USB connection/SD card
Input Voltage: AC100-240V, 50/60Hz
Output Voltage: DC12V, 5A
Certification: CE FCC RoHS FDA PSE

Atomstack P9 M50 LASER ENGRAVER PACKAGE:

1×Screw parts (Step2/3/4/5)
1×Dust-free cloth
1×Tool kit
1×Fixed focus film
3×Acrylic sheet
3 × Wood chips
1×Card reader
5×Cable tie
1×Accessories package
1×Display assembly
1×Display cable
1×Power adapter
1×Power cable
1×Data line
1×Metal cutting pad
1×Manual
1×Laser assembly
1×X axis assembly
1×Y axis assembly
2×Support tripod
4×Assembly block
1×Desiccant

Note:

– When operating the laser engraving machine, please install the laser protective cover. If it is not installed, you need to wear goggles.
– Please do not touch the laser emitter with your hand, or it may burn your hand.
– Please avoid strong impact on the machine.
– Children under 14 are not allowed to use this product and children over 14 need adult supervision.
– The light engraving machine can not be directly applied to any mirror reflecting object, which may cause injury to the operator or burn the laser.
