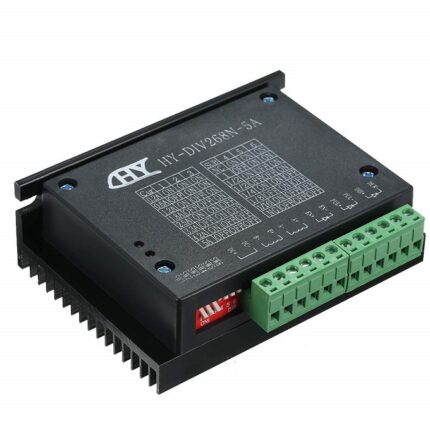

HY-DIV268N-5A Two-Phase Hybrid Stepper Motor Driver

(1 customer review)

650 Incl GST (551 +18%GST)

  • H bridge bipolar constant current drive.
  • Input signal high-speed photoelectric isolation.
  • A total of standard single pulse interfaces.
  • Offline retention function
  • The semi-enclosed casing can adapt to a more stringent environment.
  • Provide energy-saving half-automatic current lock function.
EAN: 8903470470552 SKU: MB-HSMD Category: Tag:

In stock

In stock

Add 999 to cart and get free shipping!
48 People watching this product now!

Mechblock Shopping Event

Hurry and get discounts on all Mechblock Products up to Rs.1000

Coupon code: MB01510

T86600 Stepper Motor Oilver in-to-use professional stepper motor dirt, which can control a two-phase hybrid stepper motor. It is compatible with Arduino and other microcontrollers that can output a 5V digital pulse signal

-DIV25-SA subdivision-type two-phase hybrid stepping motor drive using DC 12-48V power supply, suitable for drive Two-phase hybrid stepping motor dynamic voltage 12 to 48V, the current is less than 5A outer diameter of 35 to 86 mm. This drive uses the dive’s current loop subdivision control, the motor torque ripple is very small, and low-speed running is very smooth, with almost no vibration and noise. High-speed torque is much higher than other two-phase drives, high positioning accuracy, Widely used in the engraving machine, CNC machine tools, packaging machinery, and other high-resolution requirements on the device

You can set the cupid current with a 6 DHP switch. There are 8 kinds of current control (0.2A, 0.6A, 1.2A, 1.8A, 25A, 3.3A 4.2A, SA) in all. And all signal terminals adopt high-s As a professional device, it is able to dive 57, 47-type two-phase, hybrid stepper motor ed optocoupler isolation, enhancing its anti-high-frequency interference.

Control signal interface:

  • PUL+: step pulse signal is input side or the positive pulse signal input positive terminal
  • PUL-: the negative input of the negative input pulse signal or a positive pulse signal
  • DIR+: stepping direction signal input to the positive terminal or negative pulse signal input to the positive terminal
  • DIR-: stepping direction signal input of the negative side or reverse step pulse signal input negative terminal
  • EN+: Offline one can reset signal input
  • EN-: Offline can reset signal input negative terminal

Note

  • VCC is SV, Rshort
  • VCC value of 12V, R 1K more than 1/BW resistor
  • VCC of 24V R 2K more than 1/BWesistor

Features:

  • H bridge bipolar constant current drive.
  • Input signal high-speed photoelectric isolation.
  • A total of standard single pulse interfaces.
  • Offline retention function
  • The semi-enclosed casing can adapt to a more stringent environment.
  • Provide energy-saving half-automatic current lock function.

Specifications:

  • Input Supply Voltage (VDC): 12-48
  • Supply Current (A): 1 to 5
  • Max. Output Current (A): 0.2 to 5
  • Max Power Output (W): 160
  • Operating Temperature (°C): -10 to 45

Package Include:

  • HY-DIV268N-5A Two-Phase Hybrid Stepper Motor Driver -1PC
Weight 0.2 kg
