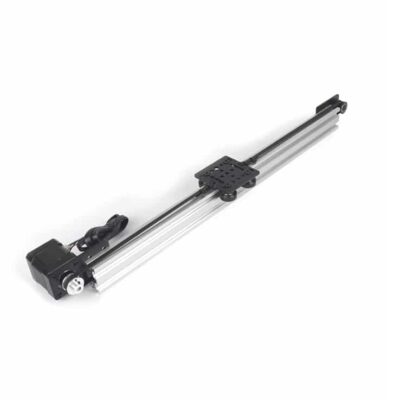

V-Slot NEMA 17 Linear Actuator Bundle (Belt Driven) OPENBUILDS
₹5,399.00 – ₹9,399.00 (Incl. GST)
V-Slot Gantry Plate
₹899.00 (Incl. GST)
V-Slot Mini V Linear Actuator (Belt Driven) OPENBUILDS
₹6,799.00 – ₹10,699.00 (Incl. GST)
- Belt Driven
- Travel distance:
- 250mm is ~5″ (130mm)
- 500mm is ~15″ (380mm)
- 1000mm is ~35″ (880mm)
- Accuracy: 0.003″ ~0.007″ (0.10mm ~0.20mm)
- Accuracy Positioning: 0.260mm
- Max Force: 2.5lb (11N)
- Max Speed: ~10000 mm/min
Check Estimated Delivery at
Shipping to IN
15
People watching this product now!
Mechblock Shopping Event
Hurry and get discounts on all Mechblock Products up to Rs.1000
Coupon code: MECHBLOCK
About

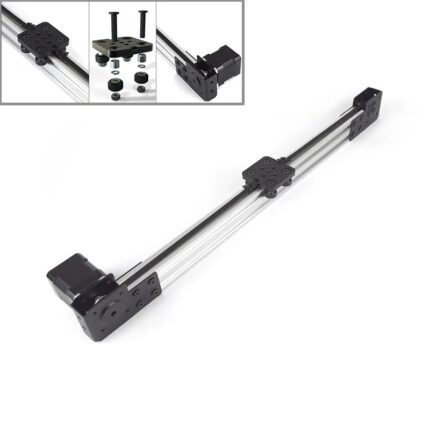

This V-Slot Mini V Linear Actuator (Belt Driven) is a fast and easy solution to a V-Slot Gantry System.
This kit utilises standard v-slot parts to create a very simple but powerful belt-driven linear actuator. The belt-driven linear actuator takes advantage of the v groove and uses the precise and strong mini v wheels for smooth linear motion. The linear actuator can be used for a whole host of applications, from a simple camera slider to a modular 3D Printer design.
Because this kit uses all standard v-slot parts it can be easily combined with more of these actuators, other types, or a design of your own to quickly build a functional machine.
Specifications:
- Belt Driven GT2-2M Timing Belts
- Travel distance:
- 250mm is ~5″ (130mm)
- 500mm is ~15″ (380mm)
- 1000mm is ~35″ (880mm)
- Accuracy: 0.003″ ~0.007″ (0.10mm ~0.20mm)
- Accuracy Positioning: 0.260mm
- Max Force: 2.5lb (11N)
- Max Speed: ~10000 mm/min
Lengths are available as follows:
- V-Slot 20*20/20*40/20*60/20*80 250mm 500mm 1000mm
If you need customized length please contact us to get a quote.
This is a self-assembly kit that comes with parts below :
| Item | Quantity |
| M5-Low-Profile-6mm | 16 |
| M5-Low-Profile-25mm | 4 |
| M5-Low-Profile-35mm | 1 |
| Button-Head-Screws M3-12mm | 4 |
| Aluminium-Spacer-6mm | 8 |
| Eccentric-Spacer-6mm | 2 |
| Double-Tee-Nut | 8 |
| Delrin-Mini-V-Wheel-Kit | 4 |
| Smooth-Idler-Pulley-Kit | 1 |
| GT2-Pulley-30-Tooth | 1 |
| Mini-V-Wheel-Plate | 1 |
| NEMA17-Motor-Mounting-Plate | 1 |
| Cable-Ties | 4 |
| Linear Actuator End Mount | 2 |
| GT2-Timing-Belt | 915mm/1220mm/2134mm/Custom length |
| V-Slot-Linear-Rail (To chosen profile, length, & color) | 250mm/500mm/1000mm/Custom length |
| NEMA17-Stepper-Motor-76oz*in | 1 |
Tools required:
- Allen keys
- 8mm wrench
Pro Tip:
- Don’t forget to slide the Gantry onto the V-Slot before you attach both Actuator Pulley Plates.
- Don’t forget to attach the Timing Pulley to the Nema17 Motor shaft before attaching the Motor to the Plate.
- Follow this process for correct tensioning the GT2 Belt:
- Tighten the screws on one Actuator Pulley Plate to secure the Plate in position.
- Feed the Belt over the Pulleys and through the hollow center of the V-Slot
- Tie or Clamp the GT2 Belt on both sides of the Gantry
- Pull the other Actuator Pulley Plate away to Tension the GT2 Belt, tighten the screws on the plate while it is under tension
| EXTRUSION PROFILE(mm) |
20×20 ,20×40 ,20×60 ,20×80 |
|---|---|
| ACTUATOR LENGTH(mm) |
250 ,500 ,1000 |
29 reviews for V-Slot Mini V Linear Actuator (Belt Driven) OPENBUILDS
