100mm V-Slot Gantry Plate
100mm V Slot Gantry Plate
Click to enlarge

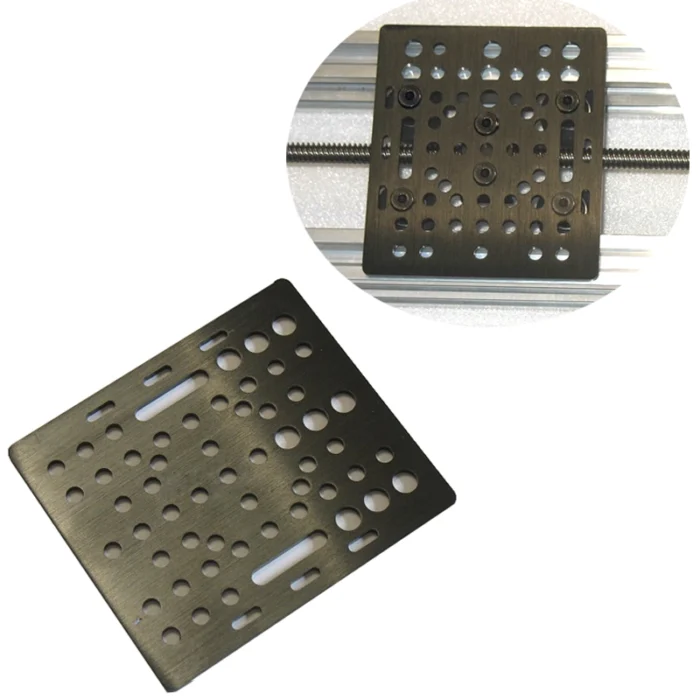

100mm V-Slot Gantry Plate

V-Slot Gantry Plate 100mm (T3*88*100mm)

OPENBUILDS
(42 customer reviews)

₹799.00 Incl GST (₹677.12 +18%GST)

This plate was designed to be used with the Bulk-Man 3D Actuator.

The size is wide enough to fit the actuator without any over hang while the standard gantry layout allows for a variety of mounting options – including the Acme Nut Block and Lead Screw.

EAN: 8903470015418 SKU: PL0011-2 Categories: , , Tag:

2 in stock

2 in stock

Processing time: 1 days

You need extra 799 Points for get this product for free

Check Estimated Delivery at

Shipping to IN
Add ₹1,999.00 to cart and get free shipping!
Compare
Add to wishlist
20 People watching this product now!

Mechblock Shopping Event

Hurry and get discounts on all Mechblock Products up to Rs.1000

Coupon code: MECHBLOCK

The size is wide enough to fit the actuator without any overhang while the standard gantry layout allows for a variety of mounting options – including the Acme Nut Block and Lead Screw.

We also wanted to ensure that we simplify belt clamping so we have incorporated ‘Fold-Through’ Slots to allow you to easily fold the timing belt teeth back onto themselves and zip tie or clamp them in place.

Two 5 mm slots that allow you to attach spacers for 90 degree belt mounts are located under or on top of the plate. This simplifies the overall building process and allows for quick assembly times of motion systems.

Specifications:

  • Model: PL0011-2
  • Size: T3*88*100
  • Material: 6063-T6 Aluminium
  • Colour: Black Anodised
  • Thickness: 3 mm
  • Hd0418ea6f3004b98afb94b30aea4d043s
Weight

0.06 kg

Dimensions

10 × 8.8 × 1 cm

Brand

OPENBUILDS

Condition

New

HSN Code

84439090

15 Days Warranty

This item is covered with a standard warranty of 15 days from the time of delivery against manufacturing defects only. This warranty is given for the benefit of Mechblock customers from any kind of manufacturing defects.  Reimbursement or replacement will be done against manufacturing defects.

What voids warranty:

If the product is subject to misuse, tampering, static discharge,mishandelling of the product, accident, water or fire damage, use of chemicals & soldered or altered in any way.
