Xtreme Solid Mini V Wheel Kit
Click to enlarge
OPENBUILDS

Xtreme Solid Mini V Wheel Kit

Rated 5.00 out of 5 based on 8 customer ratings
(8 customer reviews)

₹101 Incl GST (₹86 +18%GST)

This Xtreme Mini Wheel is part of the heavy duty Xtreme line of parts, designed with strength in mind.

Weight 0.017 kg
Dimensions 5 × 5 × 2 cm
Brand

OPENBUILDS

HSN

84439090

Condition

New

In stock

Compare
Add to wishlist
55 People watching this product now!
EAN: 8903470232730 SKU: VK0014O027 Category: Xtreme V Wheels Tags: Mini V Wheel, V Wheel, Xtreme Mini V Wheel
Share:
  • Description
  • Reviews (8)
  • About OPENBUILDS
  • WARRANTY
Description

The Xtreme Mini Wheel is part of the heavy duty Xtreme line of parts, designed with strength in mind.
These Xtreme Mini V’s are made from very hard poly-carbonate (clear) material which, due to its strong nature, will resist compression and wear and, in turn, leads to better overall precision and strength for your builds.
The Xtreme Wheels are designed to be used as a heavy duty alternative to the Delrin Wheels in applications such as CNC Routers/Mills where force and weight are introduced into the system. So, while the Delrin Mini V Wheels work great for most light load applications the Xtreme Mini Wheels can be used for builds where heavier loads are required and less compression in the delrin is desired.
Many of these wheels could be added to a gantry to allow an even distribution of the load across them.
These wheels are individually milled for consistent high precision and tolerance.

Specifications:

— Model: VK0014
— Material – Polycarbonate (clear)
— Dimensions 15.23 OD x 9.974 +/- 0.026 ID  x 8.8 ‘thickness’
— Rockwell Hardness M 75
— Competitive Strength 86 Mpa

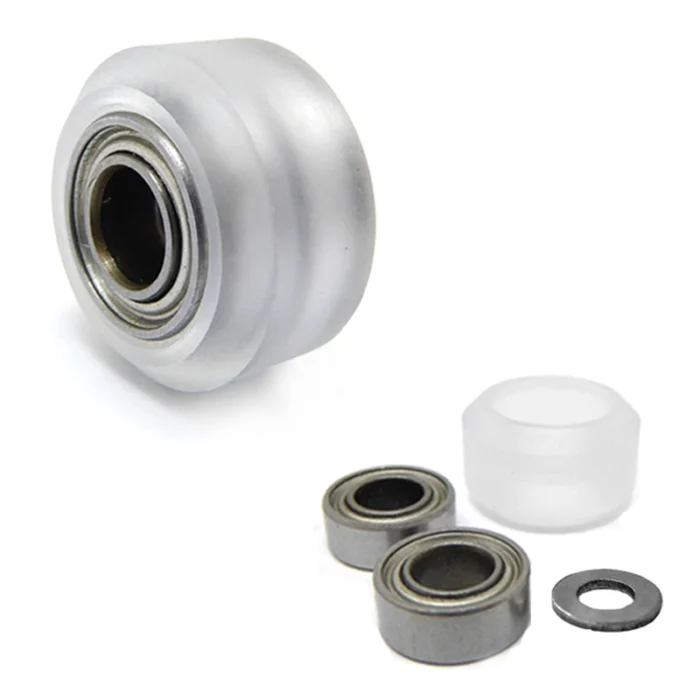

Kit Includes:

1 x Mini Xtreme Wheel
2 x Mini V Bearings
1 x Mini V 1 mm Precision Shim

Don’t forget to order your Spacers, Eccentric Spacers and Low Profile Screws!

Note: The 2 Mini Shim are placed in-between the two bearings. To assemble, first push one bearing into the wheel. Then using the screw as a guide push the 2 Mini Shim and 2nd bearing into the other side of the wheel.
