XLarge C-Beam Gantry Plate
Openbuilds C-Beam Gantry Plate – XL 1,299.00 Incl GST (1,100.85 +18%GST)

C-Beam Gantry Plate

(40 customer reviews)

799.00 Incl GST (677.12 +18%GST)

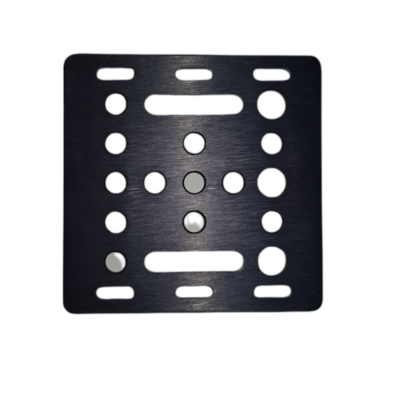

  • The size is wide enough to fit the actuator without any over hang while the standard gantry layout allows for a variety of mounting options – including the Acme Nut Block and Lead Screw.
EAN: 8903470016590 SKU: MOPL0014 Categories: , , Tags: , ,

In stock

In stock

Processing time: 1 days

Check Estimated Delivery at

Shipping to IN
Add 1,999.00 to cart and get free shipping!
13 People watching this product now!

Mechblock Shopping Event

Hurry and get discounts on all Mechblock Products up to Rs.1000

Coupon code: MECHBLOCK



The size is wide enough to fit the actuator without any over hang while the standard gantry layout allows for a variety of mounting options – including the Acme Nut Block and Lead Screw.

We also wanted to ensure that we simplify belt clamping so we have incorporated ‘Fold-Through’ Slots to allow you to easily fold the timing belt teeth back onto themselves and zip tie or clamp them in place.

We have also added two 5mm slots that allow you to attach spacers for 90 degree belt mounts under or on top of the plate as well.  This simplifies the overall building process and allows for quick assembly times of motion systems.

There are a lot of possible mounting configurations for this plate.

Specifications:

  • Model: PL0014
  • Material: 6063-T6 Aluminium
  • Size: T6*77.15*77.15 mm
  • Black Anodised Finished
  • A gantry plate designed specifily to give a clean and compact look while able to ride inside of the C-beam Linear Rail System using Mini V Wheels.
    • A strong 6mm thick aluminum 6061- T5 plate
    • Shiny black anodized for a finished look
    • Recessed screw pockets ensure flush mounts
    • Includes pre-tapped mounting holes for C-Beam Riser Plates
    • Adjustable center hole mount allows for belt actuator configurations

    Use in conjuction with either the Xtreme Mini Wheels or the Delrin Mini Wheels.


    Be sure to download the Example C-Beam builds pack from OpenBuilds to use C-Beam in your own Builds!






    Download Example Models

    C-Beam Actuator example builds for inspiration and use in your own builds!



     Download



    Models available in SketchUp and SolidWorks and other CAD formats
Weight 0.08 kg
Dimensions 15 × 15 × 15 cm
Brand
Condition
HSN Code

15 Days Warranty
