MACH3 USB 5-Axis STB5100 Motion Controller Bundle Without Power Supply
Original price was: ₹22,999.00.₹15,999.00Current price is: ₹15,999.00. (Incl. GST)
STB5100 control card’s features:
- Support for Windows XP, Windows 7 32/64bit, Windows8, and Windows10 operating systems;
- Applicable to all versions of mach3 software;
- Support for CNC-controlled 5-Axis, which can connect five stepper motor drivers or servo drivers;
- The maximum output pulse frequency is 100KHz, and the pulse width can automatically change with the pulse frequency, which can be applicable to the closed-loop driver of strict requirements on the pulse；
- Five optocoupler isolation input signal interfaces: limit switch, emergency stop switch, auto tool zero sensor, home switch, and NPN sensor switch can be connected.
- Inverter control signal interface (optocoupler isolation): Output 0-10V speed control signal, PWM speed control signal, spindle start control signal, used for mach3 software to control spindle’s speed, start and stop.
The MECHBLOCK MACH3 Controller Bundle contains all the hardware for powering and controlling your Ultimate Bee, Queenbee Pro, WorkBee, Ox CNC, or another CNC machine.
In stock
In stock
Check Estimated Delivery at
Shipping to IN
19
People watching this product now!
Mechblock Shopping Event
Hurry and get discounts on all Mechblock Products up to Rs.1000
Coupon code: MECHBLOCK
MACH3 USB 5-Axis STB5100 Motion Controller Bundle Without Power Supply
STB5100 control card’s features:
- Support for Windows XP, Windows 7 32/64bit, Windows8, Windows10 operating system;
- Applicable to all versions of mach3 software;
- Support for CNC controlled 5-Axis, can connect five stepper motor driver or servo driver;
- The maximum output pulse frequency is 100KHz, and the pulse width can automatically change with the pulse frequency, which can be applicable to the closed-loop driver of strict requirements on pulse；
- Five optocoupler isolation input signal interfaces: limit switch, emergency stop switch, auto tool zero sensor, home switch, NPN sensor switch can be connected;
- Inverter control signal interface (optocoupler isolation): Output 0-10V speed control signal, PWM speed control signal, spindle start control signal, used for mach3 software to control spindle’s speed, start and stop;
- Four universal output signal interfaces, the maximum output 500MA current, can drive relays, solenoid valves, used to control mist, pumps, cylinders and other equipment’s.
- Support for external connect electronic hand wheel, use HDR15 interface to connect electronic hand wheel, used for manual control of machine tools;
- Add the enable signal interface, can be used to control the driver enable signal;
- The power of control card: voltage 12-24VDC, current more than 500MA.
TB6600-T4 stepper motor driver board’s features:
- DC Power input type:+14V~40V；
- Output current:0～4.5A，current step less adjustable；
- Support for CNC controlled 5-Axis, can connect five stepper motor driver or servo driver;
- The maximum output pulse frequency is 100KHz, and the pulse width can automatically change with the pulse frequency, which can be applicable to the closed-loop driver of strict requirements on the pulse；
-
Five optocoupler isolation input signal interfaces: limit switch, emergency stop switch, auto tool zero sensor, home switch, NPN sensor switch can be connected;
- Inverter control signal interface (optocoupler isolation): Output 0-10V speed control signal, PWM speed control signal, spindle start control signal, used for mach3 software to control spindle’s speed, start and stop;
- Four universal output signal interfaces, the maximum output 500MA current, can drive relays, solenoid valves, used to control mist, pumps, cylinders and other equipment;
- Support for external connect electronic hand wheel, use HDR15 interface to connect electronic handwheel, used for manual control of machine tools;
- Add the enable signal interface, can be used to control the driver enable signal;
-
The power of the control card: voltage 12-24VDC, current more than 500MA.

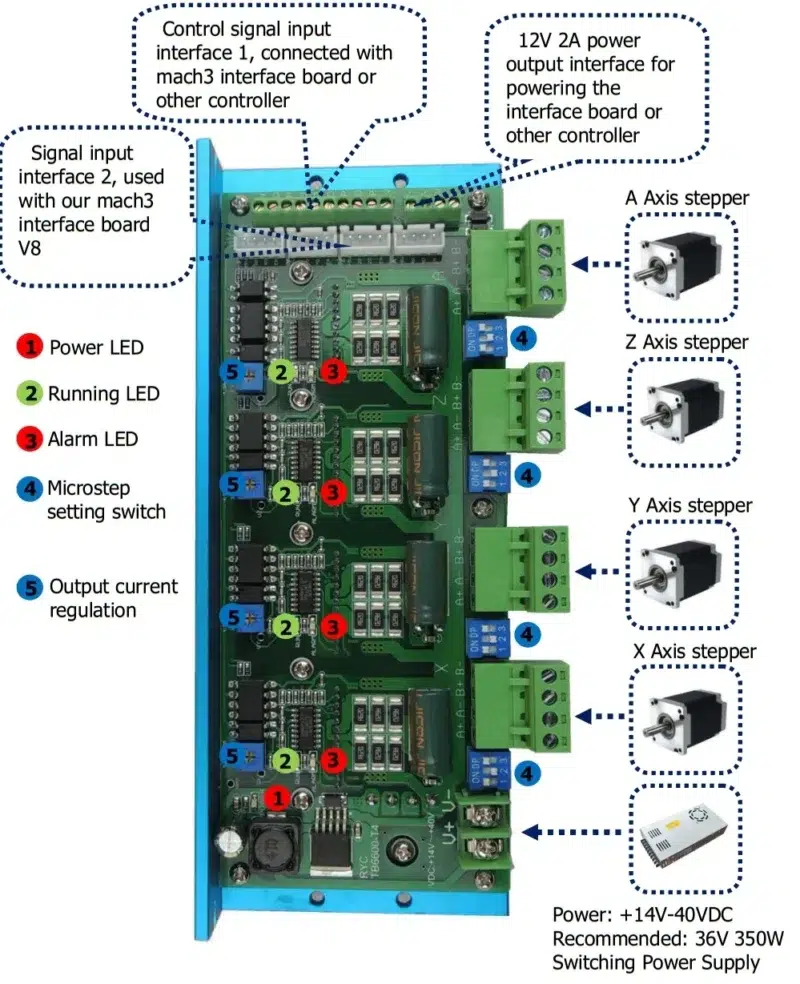

Wiring Schematic:
IMPORTANT NOTE:
NEVER connect or disconnect any wire while power is applied.
ALWAYS disconnect power before making any connections or disconnections.
Failure to do the above will result in damage to the stepper drivers.
Resources:
For latest drivers and manual files goto:https://www.nvcnc.net/nvum.html
Note:
A MACH3 license is NOT included with this item. A license can be purchased from www.machsupport.com
Note : Any Mains power connections must be installed by a Licensed electrician or suitability qualified person.
Package Includes :
| QTY | Description |
| 1 | Mach3 5 Axis STB5100 USB motion card |
| 1 | TB6600-T4 4 Axis stepper motor driver board |
| 4 | signal cables |
| 1 | USB cable(With two magnetic shields) |
| 1 | CD(Include Instructions, wiring diagrams, software, configuration files, etc.) |
39 reviews for MACH3 USB 5-Axis STB5100 Motion Controller Bundle Without Power Supply
