ATOMSTACK X20 Pro S20 Pro 20W BUNDLE Laser Output 130W Laser Engraver Metal Diode CNC Metal Marking Acrylic Woodwork Cutting Machine Built-in Air Assist with R3 Pro+F1 Honeycomb+Atomstack L1 Z-axis Adjuster for Laser Module

(41 customer reviews)

78,999.00 Incl GST (66,948.31 +18%GST)

πŸ”† Without a doubt, the Atomstack X20 Pro is now the most powerful diode laser engraver. It is equipped with a world’s first quad-core laser module. Four 6W lasers are coupled into a 20W super laser, making the X20 Pro the absolute ruler in the field of engraving and cutting.

πŸ‘‰The World’s First Quad-core Diode Laser
πŸ‘‰12mm Solid wood Cutting in One-PASS
πŸ‘‰8mm Black Acrylic Cutting in One-PASS
πŸ‘‰It can even cut 0.05mm thin sheet metal
πŸ‘‰Built-in Powerful air assist kit

S20/X20And A20 Pro are the same model only difference is color.

Out of stock

Out of stock

Add 499.00 to cart and get free shipping! Free shipping over 499/-
11 People watching this product now!

Mechblock Shopping Event

Hurry and get discounts on all Mechblock Products up to Rs.1000

Coupon code: MECHBLOCK

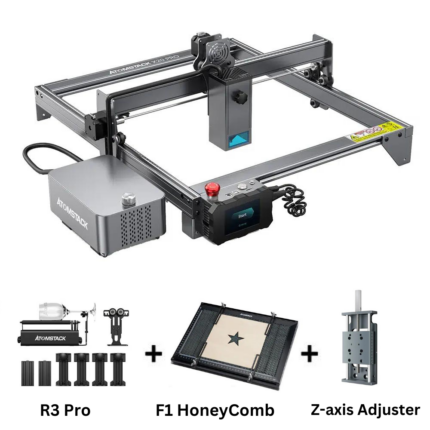

ATOMSTACK X20 Pro+R3 Pro+F1 Honeycomb

Powerful ATOMSTACK S20 Pro X20 Pro A20 Pro 130W laser engraver with the world’s first quad-core diode. This laser engraving machine with F30 Pro Upgraded Air Assist kit can easily cut 12mm wood and 8mmΒ acrylic, and even cut 0.05mm thin sheet metal.

Higher Accuracy and Stability by Durable Mechanical Structure. Supporting 100+ materials: Wood, Metal, Acrylic, Glass, Leather, etc. Easy to use, smart, powerful and fast cutting machine for home, business and school.



Β Atomstack X20 Pro Laser Engraver Features:

1.Super high power: World’s first 20W optical power laser engraver. The laser output power soars up with the latest generation of four 6W laser coupling technology, is able to cut off 12-15mm thick tungsten board as well as the 8mm thick black acrylic board with only one pass, and even cut the 0.05mm thick stainless steel sheet.

2. Newly designed laser: Tired of focusing with the sheet? Air assist is not perfect looking? Surprise, the new S20 ProA20 ProX20 Pro laser has a built-in tool-free focusing module as well as a built-in air-assist system, enjoy the concise beauty and cordless freedom.

3.Newly upgraded Atomstack self-developed 32-bit motherboard: built-in 256-bit color scale, achieving the finer engraving result and higher contrast effect. Now your projects are no longer in black only!

4.The product comes standard with the F30 Pro upgraded air Assist kit: the cutting capacity is greatly improved, as well as the cutting accuracy and quality is optimized to a considerable extent.

5. Atomstack’s self-developed mobile phone APP: Atomstack’s self-developed mobile phone APP is now available in major Android application markets and Apple APP store (The APP is downloadable via scanning the QR code from the manual as well). Mini size and multi-function, bringing you a fresh control experience, come and have a try!

6.The new filter panoramic glass eye protection design: the panoramic filter glass protective cover plays a very good role in protecting your eyes, filtering 97% of the ultraviolet light, you and the people around you do not need to wear goggles, you can also watch laser engraving . Reduce the cost of your goggles and the inconvenience of wearing goggles.

7. Upgraded high-performance fixed-focus laser: no need to adjust the focus before engraving;The focal spot area of the new laser is only 1/3 of the spot area of other ordinary lasers, new laser combine precision engraving and high energy cutting at the same time. The laser power of the fixed-focus laser is more stable than the zoom laser.

8.Solid and easy installation structure design:The all-aluminum alloy anodized structure design makes the machine more durable, and improves the accuracy of engraving. The entire structure has been designed for quick assembly, and the assembly can generally be completed within 20-30 minutes.

9. Wide compatibility:The machine can be compatible with various mature engraving software, such as LaserGRBL, LightBurn, support Win XP / Win 7 / Win 8 / XP / Win 10, and also support MAc system (LightBurn), engraving file format supports NC, BMP, JPG, PNG, DXF etc.

10.Precise scale lines axis :There are precise scale lines on the X-axis and Y-axis to facilitate quick length measurement. 400x400mm large area engraving interval can meet your various engraving needs.

11. Upgraded compression spot coupling technology: ultra-fine laser focus area is reduced to 0.08*0.1mm, high-density laser can easily cut 25mm thick wood, 30mm thick black acrylic; can directly engrave mirror stainless steel metal, ceramics, glass, and engraving &The cutting speed is 40% higher than the ordinary model, which can be comparable to the effect of the 150W COβ‚‚ laser engraving machine.

12. Integral screw rod: The machine uses an integrated screw rod instead of a combined coupling. The stepping motor and the screw rod are integrated, which makes the movement of the laser more precise and the coupling more durable.

13. New laser with knob: It is more convenient and quick to adjust the height of the laser.

14. Support offline engraving: ATOMSTACK S20 ProA20 ProX20 Pro configures the terminal control panel, supports offline engraving, you can carry out engraving work anytime and anywhere without being restricted by the computer.

16. The laser sintering temperature is up to 2400℃

17. Emergency stop button: In the event of an unexpected situation, stop the machine at any time to make the engraving safer

18. Stopper: Yes

19. Reset switch: Yes

20. Expandable engraving size: modular design of the body mechanism, only need to replace the frame components, you can get 400*850mm super large engraving size.

Please download the user manual settings/ installation manual /specification Sheet under the supports page orΒ Download:Β S20 Pro User ManualΒ ,S20 Pro Air Assist Kit User Manual,Β LaserGRBL Engraving Parameter TableΒ ,Β LightBurn Engraving Parameter Table

Notify:Β All orders for purchasing bundles will be shipped by different packages. There will be multiple tracking numbers. All of them may not reach you at the same time. Thank you for your understanding and support.

ATOMSTACK X20 Pro

Product description:

  • Item model number: ATOMSTACK S20 ProA20 ProX20 Pro
  • Print Size: Recommend Print Size 400*400mm
  • Carving Objects: Wood, bamboo, cardboard, plastic, leather, PCB board, aluminum oxide, non-reflective Electroplating layer and paint surface layer metal, 304 mirror stainless steel, glass, ceramics, cotton cloth, slate;
  • Cutting Objects : Cardboard, non-woven fabric, wood board, acrylic, some thin plastic board, sponge;
  • Machine Power: 130W
  • Electric power: 90W
  • Laser output power: 20-21W
  • Wave Length: 445 Β± 5nm
  • Engraving accuracy: 0.01mm
  • Focusing method: fixed focus laser, no need to focus
  • Laser protective cover: Protect the user’s eyes and prevent pets from grabbing the laser spot.
  • Operating software: LaserGRBL, LightBurn,
  • support Win : XP / Win 7 / Win 8 / XP / Win 10 / Win 11 system.
  • Input Format: NC, BMP, JPG, PNG, DXF, etc.
  • Data transmission method: USB connection.
  • Input Voltage: AC100-240V, 50/60Hz
  • Output Voltage: DC12V, 5A
  • Certification: CE FCC RoHS FDA PSE
  • Random Color Will be send as per the Availability

Atomstack X20 Pro LASER ENGRAVER PACKAGE:

1 Γ— Mounting screw 1Γ—Tool kit 4Γ—Foot pad foam
1Γ—Film 3Γ—Acrylic sheet 3 Γ— Wood chips
10Γ—Wire tie 1Γ—Desiccant 1Γ—Brush
1Γ—Clean cloth 1Γ—Card reader 1Γ—TF card
1Γ—Power adapter 1Γ—Instruction 1Γ—Data line
1Γ—Touch screen components 1Γ—HDMI cable 1Γ—Laser module
1Γ—Cutting pad 1Γ—X axis assembly 1Γ—Y axis left profile
1Γ—Y axis right profile 1Γ—Profile on the base 1Γ—Under the base profile
3Γ—Foot bracket 1Γ—R3 Pro 1Γ—F1 HoneycombΓ— Atomstack L1 Z-axis Adjuster for Laser Module

S20 Pro X20 Pro A20 Pro 130w laser engraveratomstack s20 pro 130w laser engraver softwareatomstack S20 Pro X20 Pro A20 Pro 130w engraving atom stack S20 Pro X20 Pro A20 Pro 130w laser engraver cheapatom stack S20 Pro X20 Pro A20 Pro 130watomstack S20 Pro X20 Pro A20 Pro 130w laserS20 Pro X20 Pro A20 Pro 130w laser engraving machine cheapatomstack S20 Pro X20 Pro A20 Pro 130w laser cuttingatomstack S20 Pro X20 Pro A20 Pro bestatomstack S20 Pro X20 Pro A20 Pro powerfulAtomstack x20 Bundle

Weight 12 kg
Dimensions 57 × 51 × 18 cm
