- 600x600mm engraving area : the real engraving area is 600x600mm, which makes many of your works not limited by the area, and you can produce most of the large-scale cutting works. In addition, the 600x600mm area is very sufficient, and the service life is extremely long, and there is almost no need to upgrade the structure in future use.
- Enhanced 11W, 22W, 33W three laser options : S30 Ultra series laser uses a single enhanced 6W diode, which makes its actual laser power and cutting ability higher, and provides 11W/22W/33W three through combined design laser options.
- Professional safety design : S30 Ultra series is equipped with emergency stop switch and safety child lock. In an emergency, tapping the emergency stop switch can stop the machine; after pulling out the key, the machine cannot be turned on, which can prevent children from turning it on by mistake.
- One series One structure, easy to upgrade : S30 Ultra series models keep high compatibility in design, S30 Ultra 11W/22W/33W power adapter, structure, and laser cable are all the same. In future upgrades, 11W- 22W-33W you only need to replace the laser head without any other changes.
- Tool box, laser repair box, fixed-focus column holder : S30 Ultra provides professional tool storage boxes and maintenance tool boxes, including mechanical wrenches, tweezers, nozzle cleaners, etc., all of which are conveniently stored in boxes. In addition, a professional fixed-focus column storage box is provided on the machine, which is convenient for storing the fixed-focus column.
- Enhanced 42-bit stepping motor : Enhanced 42-bit stepping motor provides sufficient power to make the machine move at high speed. The torque reaches 4.2 Kg·cm (ordinary machines are 3.1 Kg·cm). In future upgrades, even if the laser or the load becomes heavier, there is no need to replace the motor.

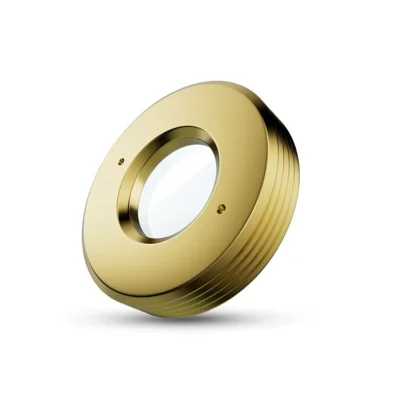

- Replaceable protective lens : S30 Ultra series laser adopts innovative replaceable lens, which greatly improves the service life of the laser, which is more than 10 times longer than other general lasers. When the lens is damaged or after long-term use, the lens can be replaced to restore its cutting power. One free lens is included in the package with purchase, lenses are very cheap and can be easily purchased from SCULPFUN.
- Built-in high-pressure air-assisted nozzle : S30 Ultra series is equipped with advanced high-pressure air-assisted metal nozzle, which can generate high-pressure airflow under the air pump, greatly improving cutting efficiency, and the cutting speed is more than 5 times faster than that without air assist. The powerful airflow blows away the residue, making the cutting surface very clean.
- Upgraded 32-bit air-assisted motherboard : the latest 32-bit motherboard supports automatic air-assisted control function, supports wireless Bluetooth connection to control the machine, and is not limited by the distance of the USB cable.
- Industrial-grade cutting precision : S30 Ultra adopts an extremely strong 0.005mm high-precision linear slide rail X-axis to achieve industrial-grade engraving precision. When comparing small engraving details, the S30 Ultra does not have the wavy patterns that appear on ordinary engraving machines.
- Detachable laser eye shield : S30 series is equipped with a detachable glass eye shield, which will not be dazzling even if you don’t wear glasses. Plus you can easily disassemble it if you don’t need it.
- Solid and durable frame : The S30 series is made of high-strength aluminum alloy, and its frame can withstand a weight of up to 50KG without damage, which is very durable. The frame can be used for a long time and maintain high precision, when the machine needs to be upgraded, only the latest laser needs to be upgraded.
Tech Specs :
- Diode laser output power : 11W (note that this is light energy not electrical energy)
- Laser focus : 0.08×0.08mm
- Laser wavelength : 455±5nm
- Focusing method : fixed focus column + sliding device
- Laser protection cover : Equipped with a detachable laser protection cover
- Engraving accuracy : 0.005mm
- Engraving area size : standard version is 600x600mm
- Machine electric power : about 84W
- Type : ainboard-controlled air pump, voltage 24V, flow 30L/min
- Air hose inner diameter : 7.5mm
- 32-bit air-assisted motherboard, supports Bluetooth wireless connection.
- Carving materials: all kinds of wood (including walnut, cherry wood and other high-density wood), MDF, stone, cardboard, plastic, leather, PCB board, aluminum oxide, 304 stainless steel, ceramics, dark stone Cutting materials: all kinds of wood (including walnut, cherry wood and other high-density wood), MDF, acrylic board, cardboard, non-woven fabric, bamboo chips, leather, some plastic boards, PCB boards
1× laser shield
1× Laser Repair Kit
1×24V automatic air pump
2×460*230*3mm wood board
2×460*230 protective aluminum plate
1×24V 7A power adapter
1 x power cord
1× rubber air hose
1× tool box
1× laser goggles
Step 1-6 installation package
1× instruction manual
1× X-axis assembly
2 x X-profiles
2 x Y profile
1×control box assembly
1x cable clamp bag
1x fixed focus column mount
1x spare screw pack
1x Non-slip seat Pack
Detailed Diagram :
