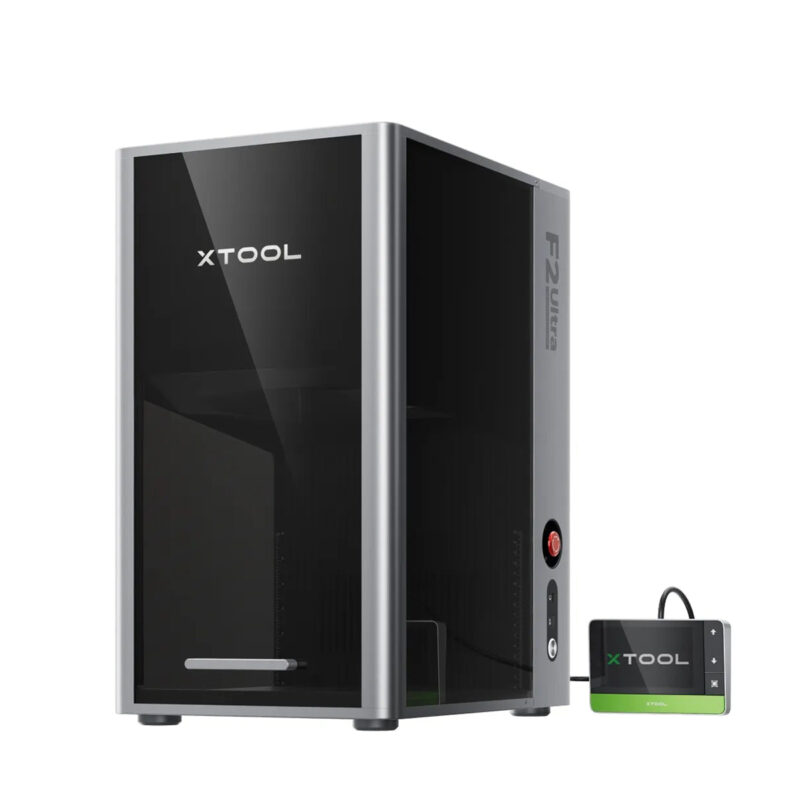

xTool F2 Ultra 60W MOPA and 40W Diode Dual Laser Engraver

The xTool F2 Ultra is a high-performance, dual-laser engraving and cutting machine designed to deliver professional results across a wide range of materials. Equipped with a powerful 60-watt MOPA fiber laser and a 40-watt diode laser, the F2 Ultra is engineered for speed, precision, and versatility. It is ideal for professionals, small businesses, and serious makers who require high-speed production, fine detail, and the ability to work on both metals and non-metallic materials.

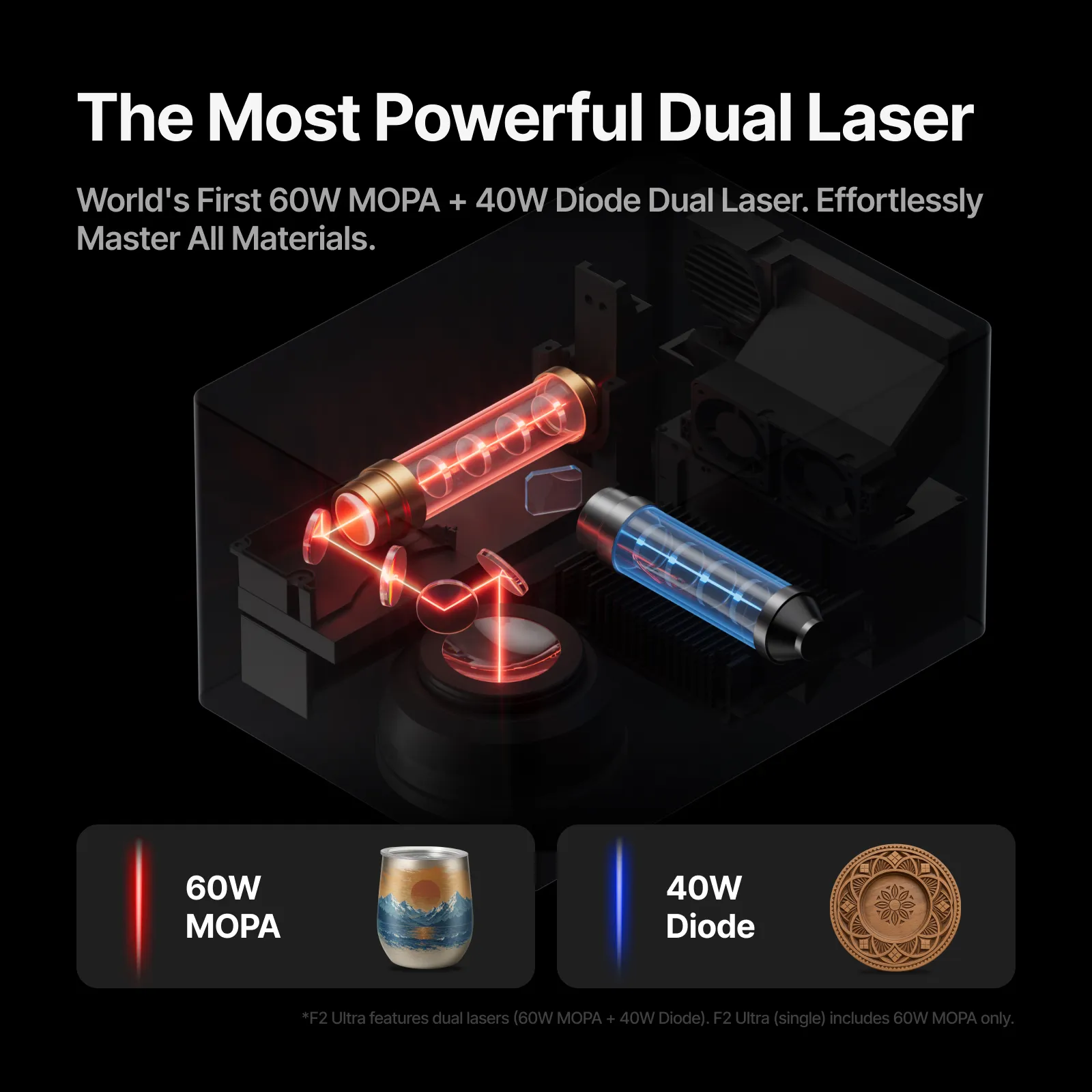

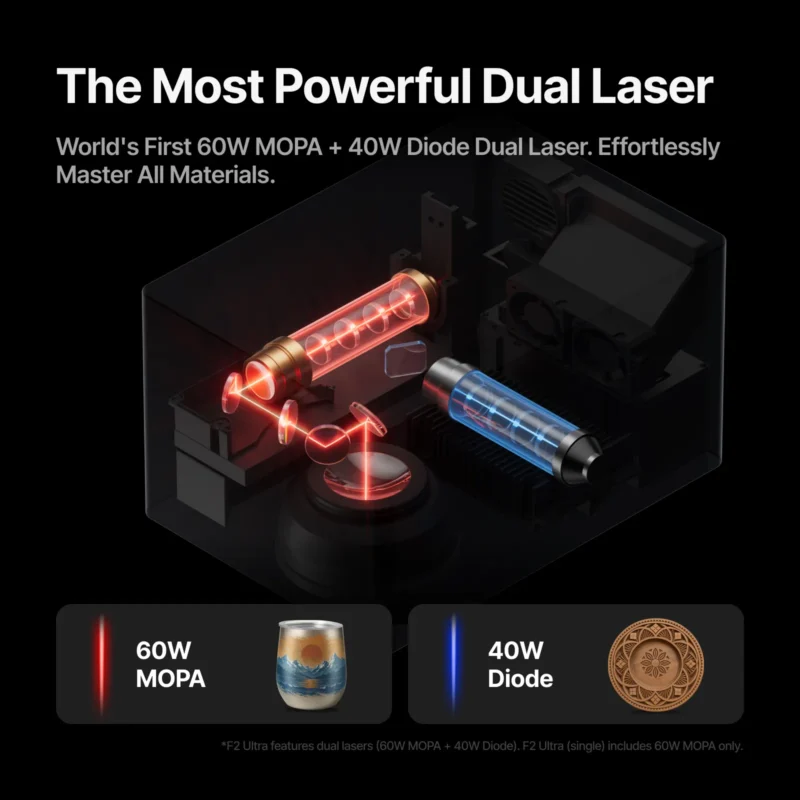

Dual-Laser Technology

The xTool F2 Ultra combines two laser sources in one integrated system:

• The 60-watt MOPA laser is specifically designed for metal processing. It allows for high-precision engraving and cutting on materials such as stainless steel, aluminum, brass, gold, silver, titanium, platinum, and coated or painted metals. It also supports advanced features like frequency and pulse control, which enable color engraving on stainless steel and titanium. This laser can also cut metal sheets up to two millimeters thick, significantly outperforming traditional fiber lasers of lower wattage.

• The 40-watt diode laser is optimized for organic and non-metallic materials such as wood, leather, MDF, felt, bamboo, fabric, paper, and dark opaque acrylic. It offers deep cutting capabilities, including up to twenty-three millimeters in basswood and up to twenty millimeters in acrylic, when used in multiple passes.

The dual-laser configuration allows users to switch between laser types depending on the material and project requirements, significantly expanding the machine’s range of applications.

High-Speed Processing and Precision

The xTool F2 Ultra delivers an impressive maximum processing speed of fifteen thousand millimeters per second. This allows for fast production without compromising quality. Its motion accuracy is as fine as zero point zero zero four eight two millimeters, ensuring sharp, clean results even on highly detailed designs.

The laser spot size of the diode laser is zero point zero nine by zero point one millimeters, while the MOPA laser offers an ultra-fine spot size of zero point zero three by zero point zero three millimeters. This level of focus precision enables extremely detailed engravings, even on small items like jewelry, watches, and electronic components.

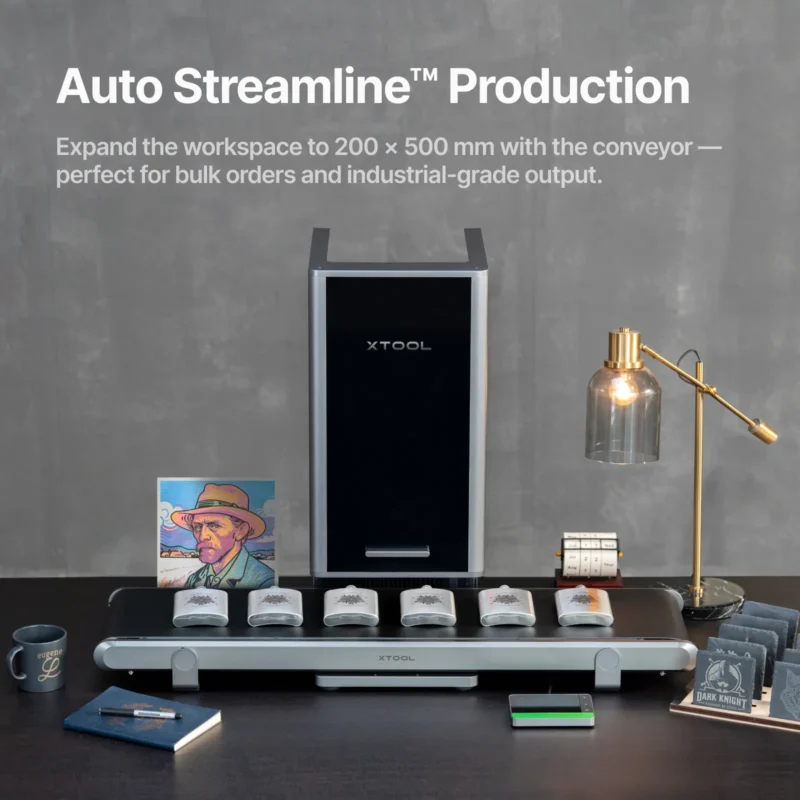

The working area is two hundred twenty by two hundred twenty millimeters, and it can be expanded to two hundred twenty by five hundred millimeters when used with the conveyor accessory. The maximum processing height is one hundred fifty millimeters, and rotary engraving is supported for cylindrical objects up to one hundred fifty millimeters in diameter.

Advanced AI Features and Camera System

The F2 Ultra is the first laser engraver of its kind to incorporate artificial intelligence for real-time image optimization. This includes automatic adjustments to contrast, clarity, and engraving depth based on the material and design. These AI features enhance output quality and reduce trial-and-error in settings adjustments.

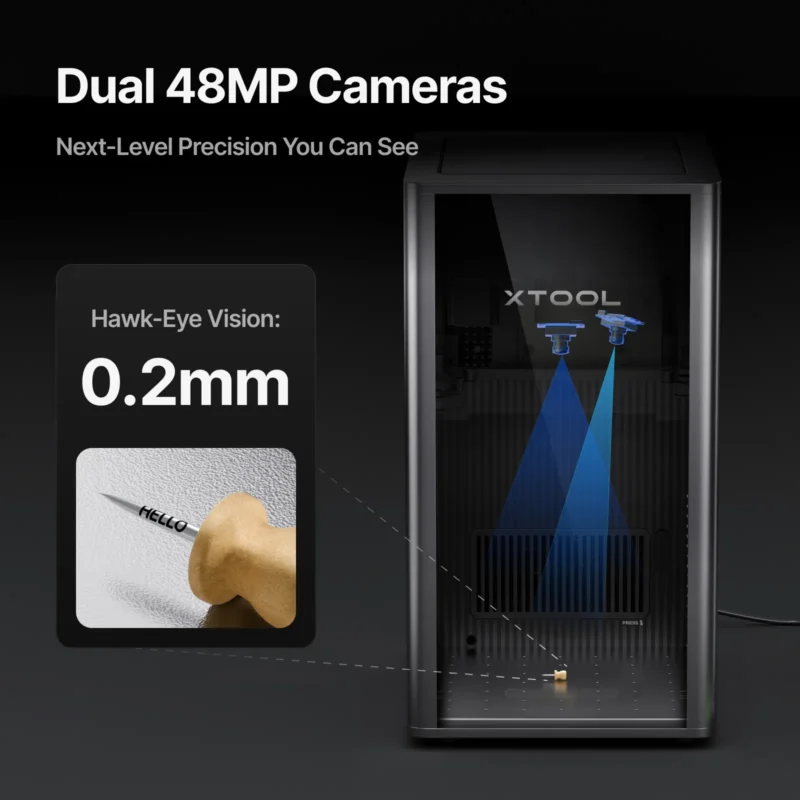

The built-in dual-camera system consists of two forty-eight megapixel cameras that offer highly accurate positioning and live preview functionality. The dual-camera setup increases positioning precision by up to sixty percent compared to single-camera systems, providing alignment accuracy of up to zero point two millimeters. The autofocus system ensures consistent depth and detail across different material thicknesses.

Smart camera preview and autofocus allow users to place designs accurately, visualize the result before engraving, and eliminate the need for manual adjustments.

Supported Materials

The xTool F2 Ultra supports both engraving and cutting across a wide variety of materials:

• Cuttable with diode laser: Paper, wood, leather, MDF, felt, some dark opaque acrylic

• Cuttable with MOPA laser: Brass, stainless steel, aluminum

• Engravable with diode laser: Paper, wood, leather, MDF, stainless steel, bamboo, fabric, dark glass, ceramic, jade, marble, shale, cement, brick, plated metal, painted metal, and some dark opaque acrylic

• Engravable with MOPA laser: Stainless steel, aluminum, brass, silver, gold, titanium, platinum, and plastic

This range makes the machine suitable for applications including product personalization, gift creation, metal marking, industrial part labeling, and decorative work.

Software and Connectivity

The F2 Ultra is compatible with both Windows and macOS operating systems and works with xTool Creative Space and Atomm software platforms. Supported file formats include SVG, DXF, JPG, JPEG, PNG, BMP, and TIF, allowing users to import vector and image files with ease.

For connectivity, the machine offers multiple options including USB, Wi-Fi, and IP networking. This flexibility allows it to fit seamlessly into different workspace setups, whether standalone or integrated into a production line.

Safety and Build Quality

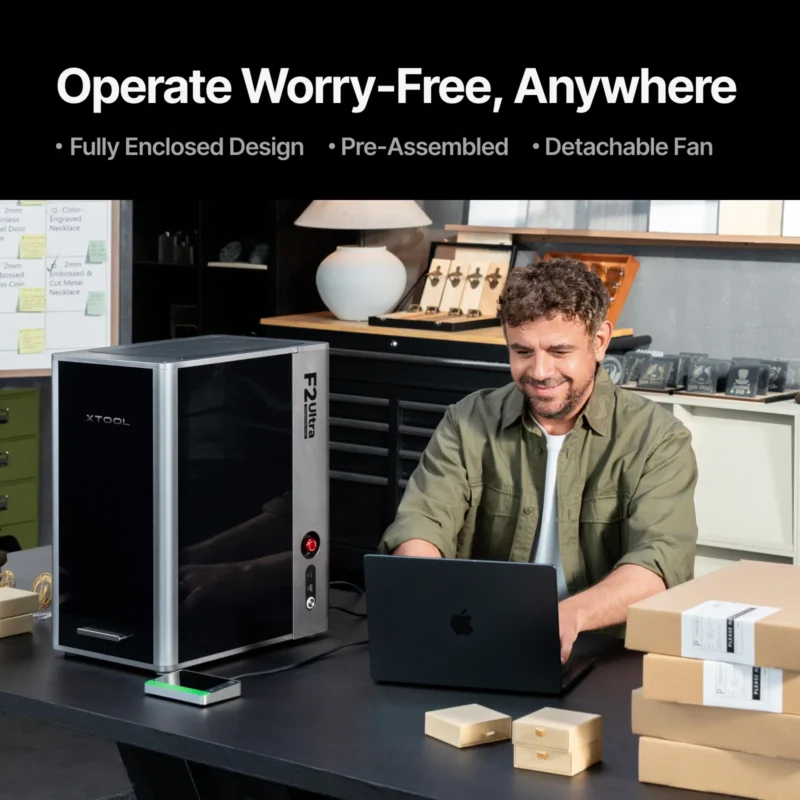

Safety is a priority in the xTool F2 Ultra’s design. It is Class Four Laser Safety certified and features an enclosed working area with a protective cover to shield users from direct laser exposure. An automatic fire safety stop system adds another layer of protection during operation.

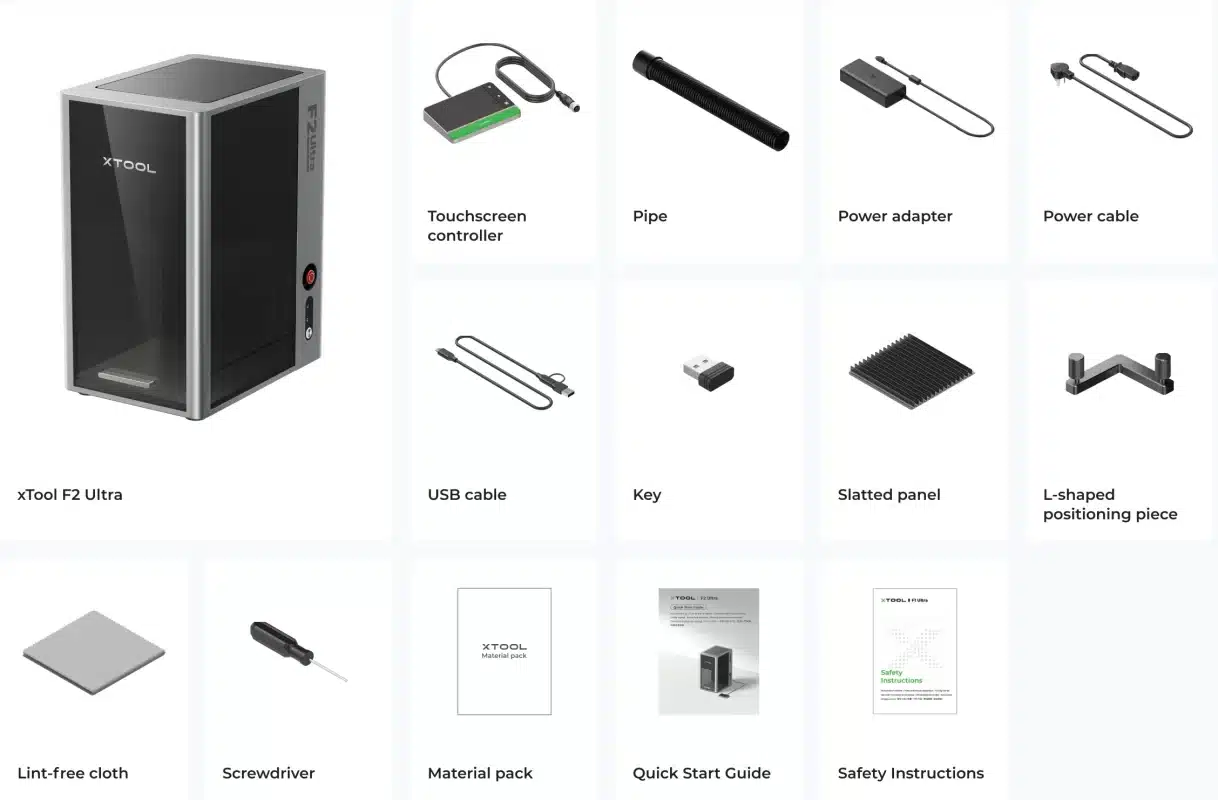

The machine arrives fully assembled and ready to use. Its solid construction includes high-quality components and a robust frame. The unit measures two hundred ninety-four millimeters by four hundred twenty-nine millimeters by five hundred twenty-one millimeters and weighs approximately twenty-one point six kilograms.

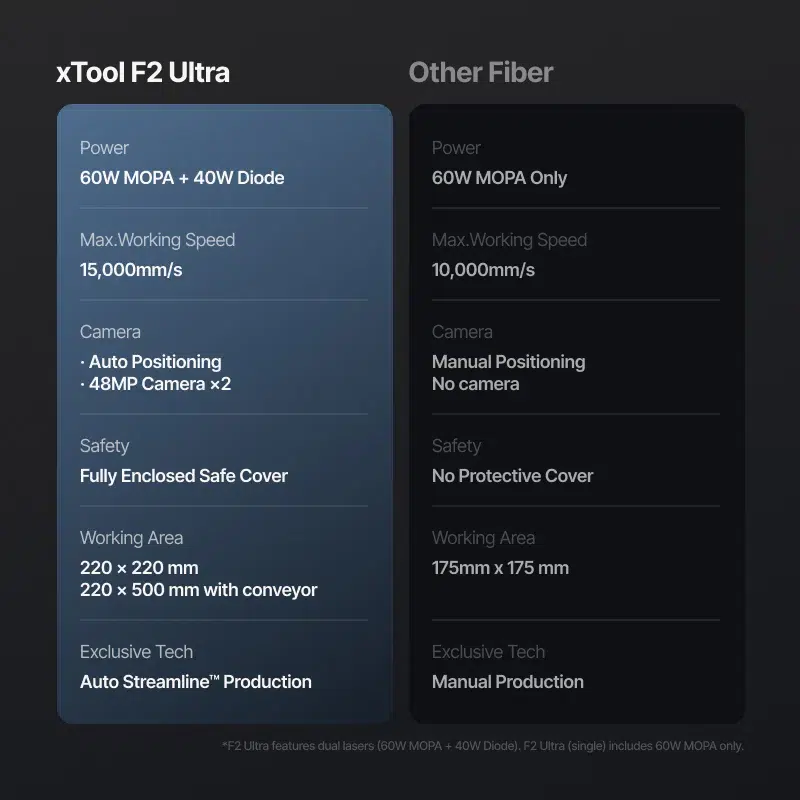

Key Features Summary

• Dual-laser system with sixty-watt MOPA and forty-watt diode lasers

• Maximum speed of fifteen thousand millimeters per second

• Engraves in over one hundred colors on stainless steel and titanium

• Cuts up to two millimeters metal, twenty millimeters acrylic, and twenty-three millimeters wood

• Dual forty-eight megapixel cameras for precise alignment

• Working area up to two hundred twenty by five hundred millimeters with conveyor

• Autofocus and smart preview system

• Compatible with SVG, DXF, JPG, PNG, BMP, and TIF file formats

• Supports Windows and macOS

• Connects via USB, Wi-Fi, or IP network

• Built-in safety features with enclosed design and emergency stop
