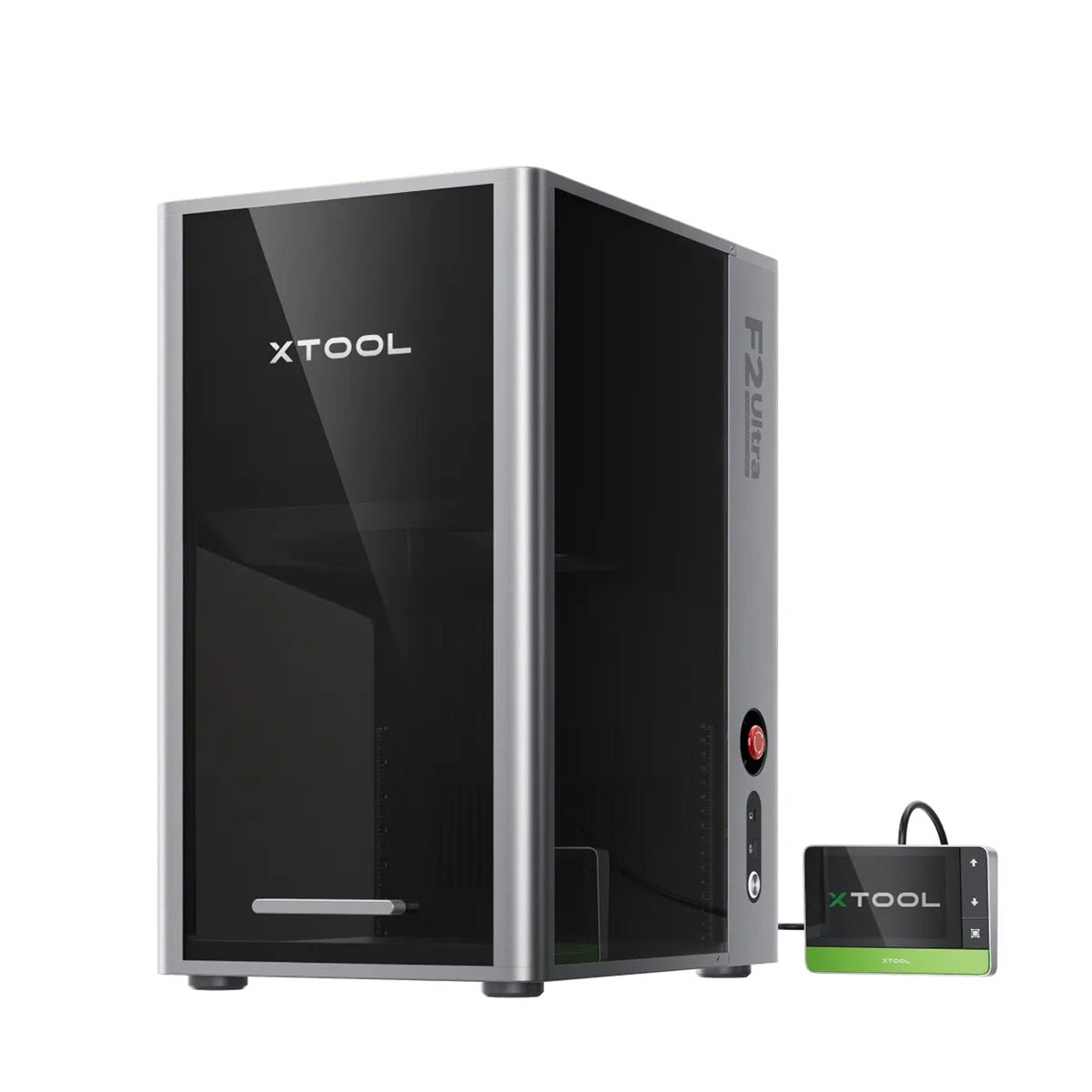

xTool F2 Ultra Single 60W MOPA Fiber Laser Engraver with AI
60W MOPA laser for deep engraving, cutting, welding, and high-precision metal processing
Engrave over 100 vibrant colors on metal using advanced MOPA technology and preset color files
Dual 48MP cameras with AI for fast autofocus, real-time preview, and accurate material detection
Operates at speeds up to 15000 mm per second for fast and efficient high-volume production
Fully enclosed with fume control, flame detection, and wide material compatibility for safe use
Original price was: ₹799,999.00.₹563,889.00Current price is: ₹563,889.00. Incl.GST / ₹477,872.03 Excl.GST
1 in stock
1 in stock
Ship Location – Delhi Warehouse
Description
The xTool F2 Ultra (Single Laser Version) is a professional-grade 60W MOPA fiber laser engraver designed to tackle the most demanding metalwork with exceptional speed, accuracy, and color capabilities. Whether you’re creating intricate designs, deep 3D engravings, or brilliant full-color metal artwork, the F2 Ultra delivers flawless results every time—making it the ideal choice for creators, manufacturers, and small business owners.
Key Features
All-Metal Mastery
Experience full creative freedom with a machine built to handle it all—deep engraving, 2mm metal cutting, black marking on aluminum, laser cleaning, 3D embossing, and even thin metal welding. Works seamlessly on stainless steel, brass, aluminum, gold, silver, titanium, and more.
xTool F2 Ultra Specifications
| Specification | Details |
|---|---|
| Laser Configuration | 40W Diode Laser + 60W MOPA Laser |
| Processing Modes | Laser Engraving, Laser Cutting |
| Laser Cuttable Materials | 40W Diode: Paper, Wood, Leather, MDF, Felt, Selected Dark Opaque Acrylic60W MOPA: Brass, Stainless Steel, Aluminum |
| Laser Engravable Materials | 40W Diode: Paper, Wood, Leather, MDF, Stainless Steel, Bamboo, Fabric, Dark Glass, Ceramic, Jade, Marble, Shale, Cement, Brick, Plated Metal, Painted Metal, Selected Dark Opaque Acrylic60W MOPA: Stainless Steel, Aluminum, Brass, Silver, Plastic, Platinum, Titanium, Gold |
| Working Area | 220 × 220 mm (8.6″ × 8.6″)220 × 500 mm (8.6″ × 19.6″) with Conveyor |
| Maximum Working Speed | 15,000 mm/s (590.55 ips) |
| Maximum Wood Cutting Capacity | Up to 23 mm Basswood (Multiple Passes) |
| Maximum Acrylic Cutting Capacity | Up to 20 mm Acrylic (Multiple Passes) |
| Maximum Processing Height | 150 mm |
| Maximum Rotary Engraving Diameter | 150 mm |
| Supported Software | xTool Studio |
| Operating Systems | Windows, macOS |
| Connectivity | USB, Wi-Fi, IP Network |
| Supported File Formats | SVG, DXF, JPG, JPEG, PNG, BMP, TIF |
| AI Make Compatibility | Yes |
| Pre-Assembled | Yes |
| Built-in Camera | Dual 48 MP Smart Cameras |
| Positioning Method | Camera Positioning |
| Focus Mode | Autofocus |
| Preview Method | Smart Camera Preview |
| Laser Spot Size | 40W Diode: 0.08 × 0.10 mm60W MOPA: 0.03 × 0.03 mm |
| Positioning Precision | 0.2 mm |
| Ranging Precision | 0.2 mm (Camera-Based) |
| Motion Accuracy | 0.00482 mm |
| Safety Certification | Class 4 Laser Safety |
| Machine Dimensions | 294 × 429 × 521 mm (11.57″ × 16.88″ × 20.51″) |
| Product Weight | 21.6 kg (47 lb) |
| Maximum Machine Power Consumption | 400 W |
| Power Input | 100–240 V AC, 50/60 Hz |
100+ Vivid Metal Colors with MOPA Precision
Unlock a full spectrum of over 100 consistent and vibrant colors on metal. The 60W MOPA laser, combined with xTool’s premium optics and precision calibration, brings metal to life with stunning color engravings. Use pre-set color files to eliminate guesswork and repetitive testing—just click and engrave.
AI-Driven Accuracy

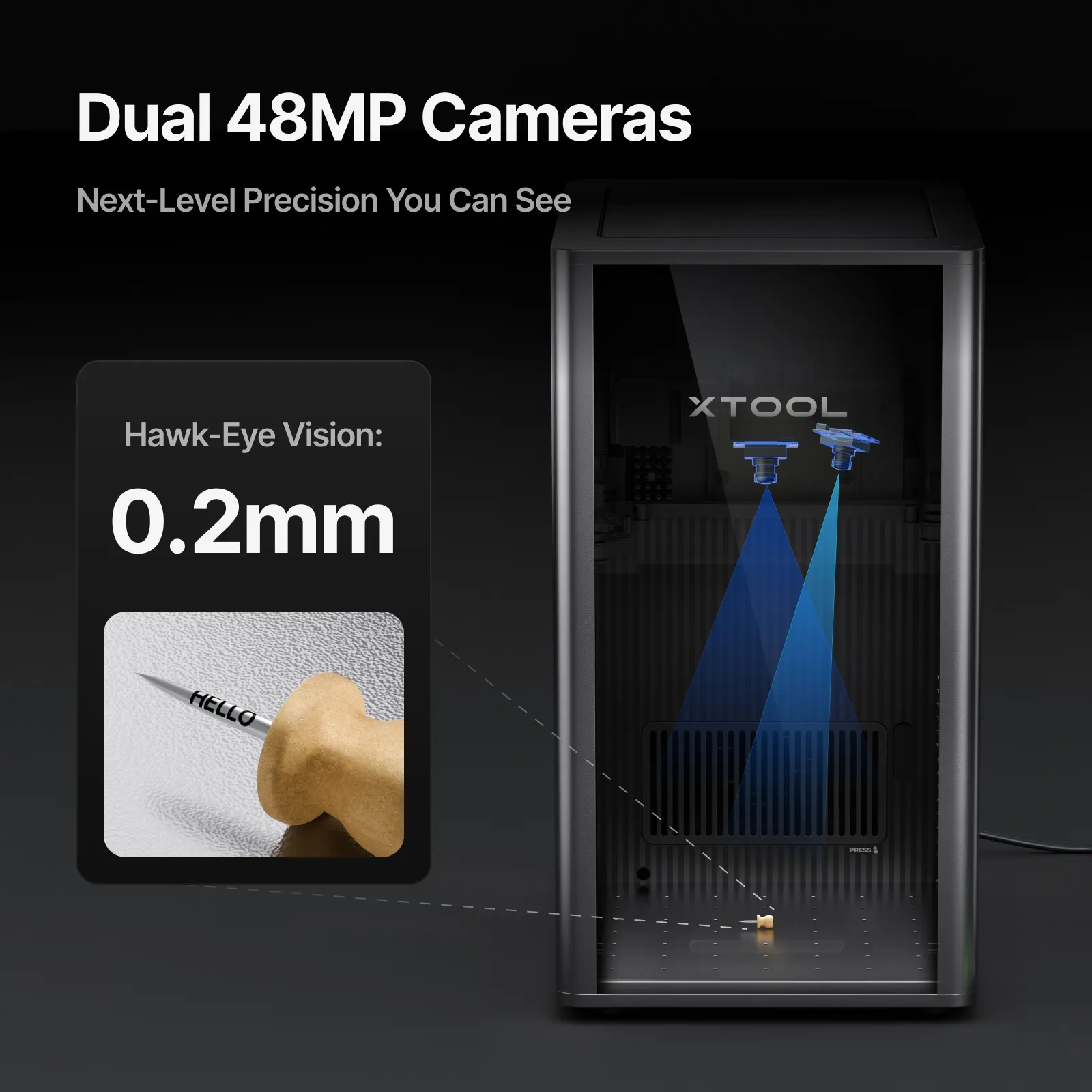

Equipped with dual 48MP cameras and an advanced AI system, the F2 Ultra ensures ultra-precise positioning (±0.2mm). Enjoy features like automatic material detection, one-click autofocus, and real-time previews, making setup faster and foolproof.
Industrial-Grade Speed & Efficiency

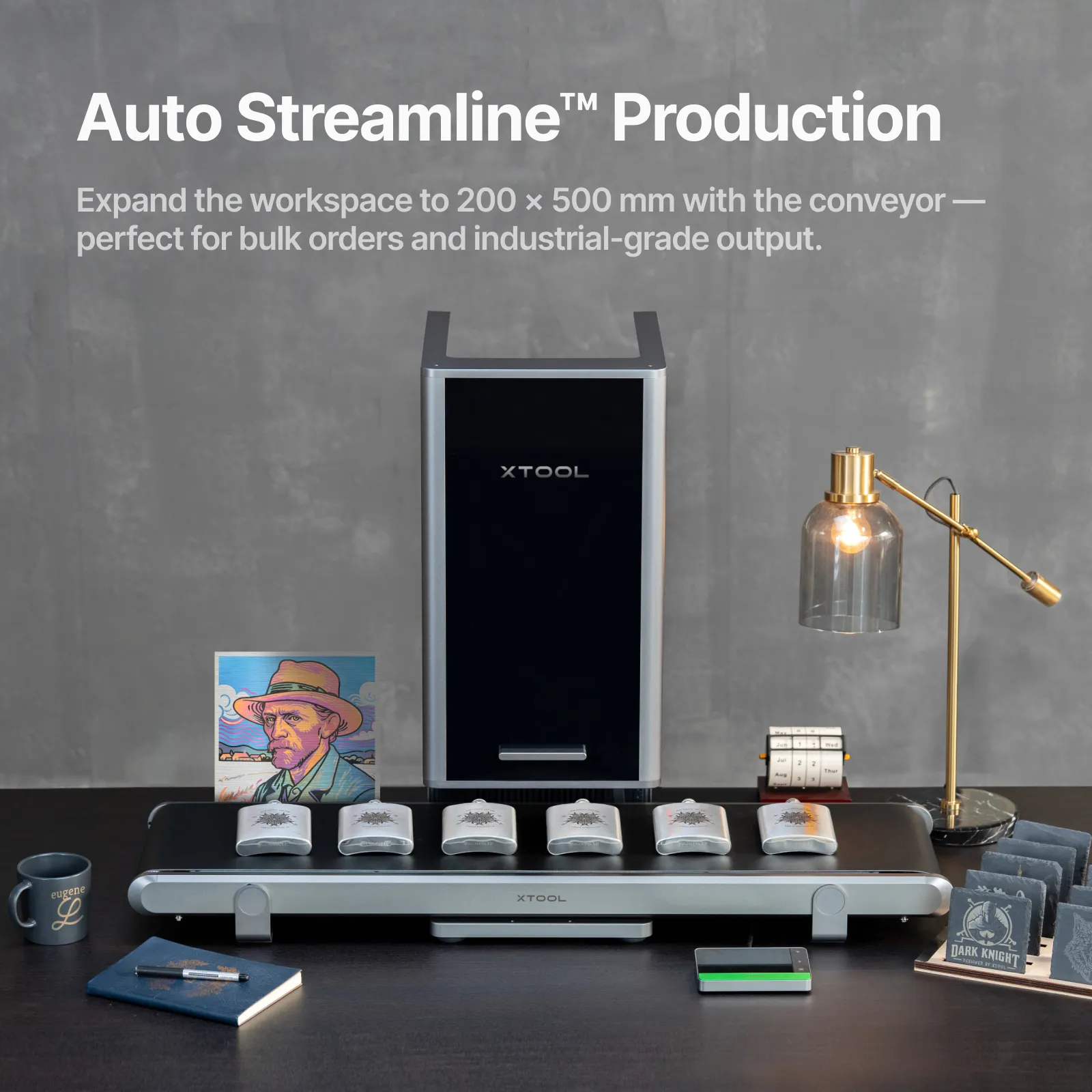

With blazing speeds up to 15,000mm/s, the F2 Ultra completes jobs up to 80% faster than standard 20W fiber lasers. Its 220mm x 220mm work area (expandable to 220mm x 500mm with optional conveyor) supports batch processing and high-volume production with minimal intervention.
xTool F2 Ultra Single Laser vs xTool F1 Ultra Comparison
| Feature | xTool F2 Ultra | xTool F1 Ultra |
|---|---|---|
| Laser Configuration | 60W MOPA Laser | 20W Diode + 20W Fiber Laser |
| Best For | Industrial engraving, deep cutting, production workflows | Fast engraving, personalization, small business production |
| Working Area | 220 × 220 mm (Expandable to 220 × 500 mm with Conveyor) | 220 × 220 mm (Expandable to 220 × 500 mm with Conveyor) |
| Maximum Engraving Speed | 15,000 mm/s | 10,000 mm/s |
| Basswood Cutting Capacity | 23 mm (Multiple Passes) | 15 mm (Multiple Passes) |
| Acrylic Cutting Capacity | 20 mm (Multiple Passes) | 12 mm (Multiple Passes) |
| Maximum Processing Height | 150 mm | 145 mm |
| Maximum Rotary Diameter | 150 mm | 145 mm |
| Built-in Camera | Dual 48 MP Smart Cameras | 16 MP Smart Camera |
| Laser Spot Size | 0.08 × 0.10 mm (Diode)0.03 × 0.03 mm (MOPA) | 0.08 × 0.10 mm (Diode)0.03 × 0.03 mm (Fiber) |
| Positioning Precision | 0.2 mm | N/A |
| Camera Ranging Precision | 0.2 mm | 0.5 mm |
| Motion Accuracy | 0.00482 mm | 0.00482 mm |
| Connectivity | USB, Wi-Fi, IP | USB, Wi-Fi, IP, Hotspot |
| AI Make Support | Yes | Yes |
| Operating System | Windows, macOS | Windows, macOS |
| Machine Weight | 21.6 kg | 14.7 kg |
| Maximum Power Consumption | 400 W | 250–275 W |
| Power Input | 100–240V AC, 50/60Hz | 100–240V AC, 50/60Hz |
| Safety Certification | Class 4 Laser Safety | Class 4 Laser Safety |
Built-In Safety & Convenience
Designed for any workspace, the fully enclosed structure features laser leak protection, fume control, flame detection, and an emergency stop—ensuring complete peace of mind in retail, studio, or industrial environments.Warranty & Shipping Information
Warranty Coverage
All xTool products purchased from Mechblock.in include a 1-Year Standard Manufacturer Warranty.
The warranty covers manufacturing defects under normal usage conditions and is supported in India by Mechblock.in, the authorized xTool distributor and service partner.
Warranty Terms:
- Valid only with the original purchase invoice and product serial number.
- Covers manufacturing defects only.
- Accessories, consumables, filters, lenses, belts, nozzles, and other wear-and-tear components are not covered unless specified by the manufacturer.
- Warranty service is subject to inspection and approval by the authorized service team.
The warranty does not cover:
- Physical, accidental, or cosmetic damage
- Damage caused by misuse, improper operation, incorrect installation, or lack of maintenance
- Damage resulting from unauthorized repairs, modifications, or third-party servicing
- Damage caused by electrical fluctuations, fire, water, or other external factors
- Normal wear and tear of consumable parts
Warranty processing times may vary depending on diagnosis, spare parts availability, and manufacturer approval.
Warranty Support
For technical assistance or warranty claims, please contact:
Email: Support@mechblock.in
Phone: +91-784 00 00 610
Shipping & Delivery
MechBlock delivers xTool products across India through trusted logistics partners.
Shipping Details:
- PAN India delivery available
- Standard delivery: 5–10 business days, depending on product availability and delivery location
- Pre-order or backordered products typically require 35–45 working days
- Products are securely packed to minimize transit damage
- Shipment tracking details are shared via WhatsApp and/or email after dispatch
Installation
Installation is not included with the product.
Professional installation and training services are available at an additional cost. Please contact our sales team for pricing, availability, and scheduling.
Important Information
xTool Warranty Information for India
Customers who purchase xTool products from MechBlock.in are covered under the standard manufacturer warranty applicable to their product.
As the authorized xTool distributor in India, MechBlock.in provides local warranty support, technical assistance, and after-sales service, ensuring a smooth and reliable ownership experience throughout the warranty period.
Specification
Overview
| Weight | 25 kg |
|---|---|
| Dimensions | 60 × 45 × 45 cm |
| Brand | XTOOL |
| Condition | New |
| HSN Code | 84561100 |
| Cutting Material | Aluminum, Brass, metal |
| Engraving Accuracy | 0.01 mm |
| Focusing method | Automatic |
| Laser Type | Mopa Laser |
| Model | F2 ultra single laser (60W mopa only) |
| Operating Software | xTool Studio |
| Laser Spot Size(mm) | 0.03*0.03mm |
| Supported file formats | SVG/DXF/JPG/JPEG/PNG/BMP/TIF |
| Working Area(mm) | 220 mm × 220 mm, (with conveyor 220 mm × 500 mm) |
| Product Size | 294 mm x 429 mm x 521 mm |
| Product Weight | 21.6KG |
| Operating System | Windows/macOS |
| Connection Method | USB/Wi-Fi/IP |
| Motion Accuracy | 0.00482 mm |
| Processing Mode | Laser EngravingLaser Cutting |
| Positioning Precision | 0.2 mm |
| Pre-assembled | Yes |
