xTool F2 5W IR & 15W Diode Portable Dual Laser Engraver
₹164,999.00 (Inc. GST) ₹25,169.34 GST Input (18%) Claimable with B2B Billing. Enter GST number at checkout.
- 15W Diode & 5W IR Dual Power: Unlocks more in a portable—color engraving, 3D relief, and deep black-on-metal.
- 50MP Camera: Full workspace live preview with up to 0.1 mm alignment accuracy on small pieces.
- Portable & Safe: Compact design with eye-protection cover—ready for on-site personalization and small-batch runs.
- Fast & Precise: Up to 6,000 mm/s marking for crisp detail and shorter cycle times.
- User-Friendly: Pre-assembled, intuitive operation, with live position preview.
Ship Location – Delhi Warehouse
Description

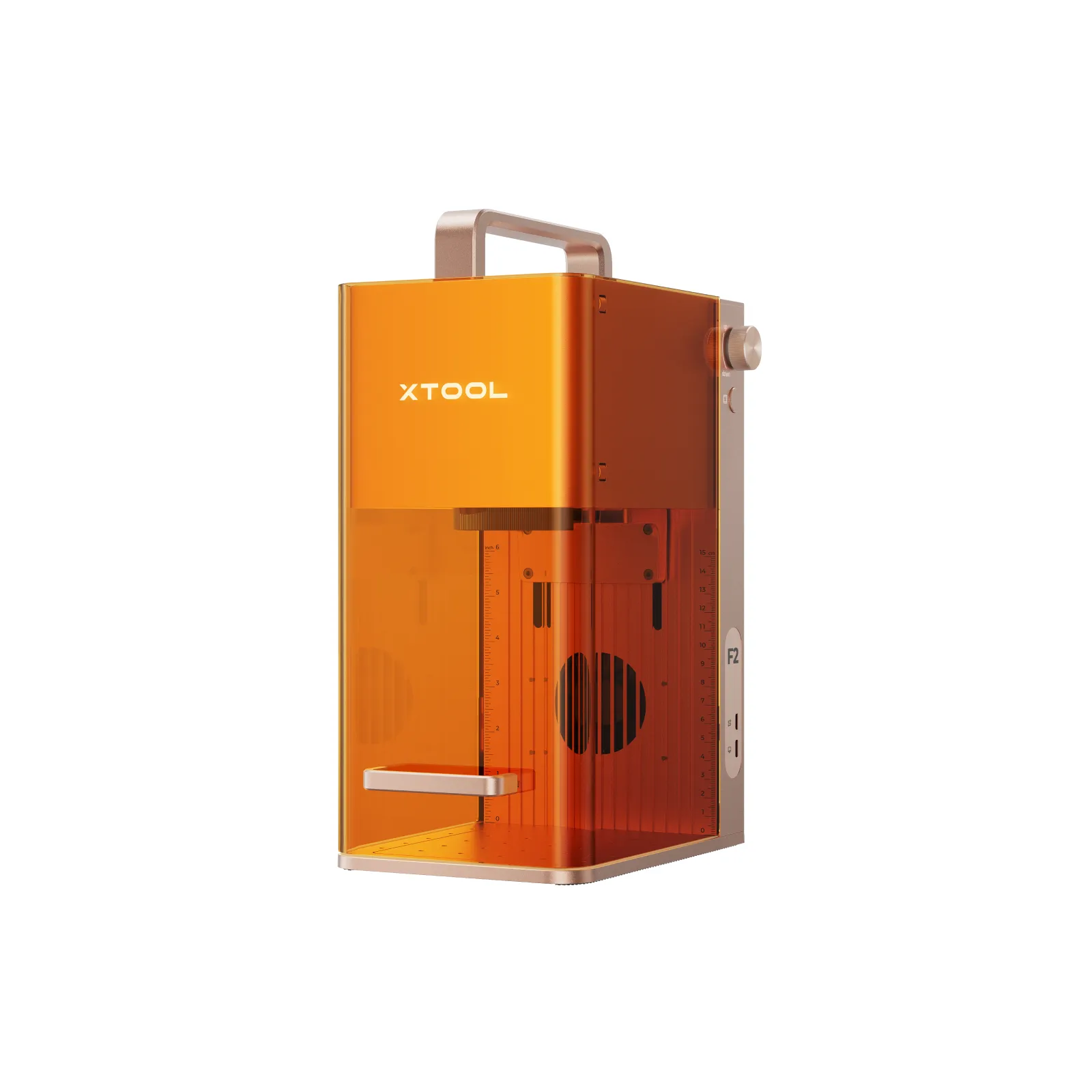

xTool F2 Portable Dual-Laser Engraver
Next-Generation Portable Laser Engraver for Professionals & Businesses
The xTool F2 is the next evolution of portable laser engraving technology, combining a powerful 15W blue diode laser with a 5W 1064nm infrared laser in one compact machine. Built for creators, makers, small businesses, jewelry brands, gift shops, event professionals, and industrial users, the F2 delivers exceptional speed, precision, and versatility while remaining lightweight enough for mobile use.
Featuring a 50MP intelligent camera, AI-powered positioning, automatic focusing, 8K engraving quality, and engraving speeds of up to 6,000mm/s, the F2 makes professional-grade laser engraving faster, easier, and more accurate than ever before.
Whether you’re producing personalized gifts, engraving metal products, cutting wood and acrylic, or running an on-demand customization business, the xTool F2 provides a complete production solution in a portable form factor.
Key Features

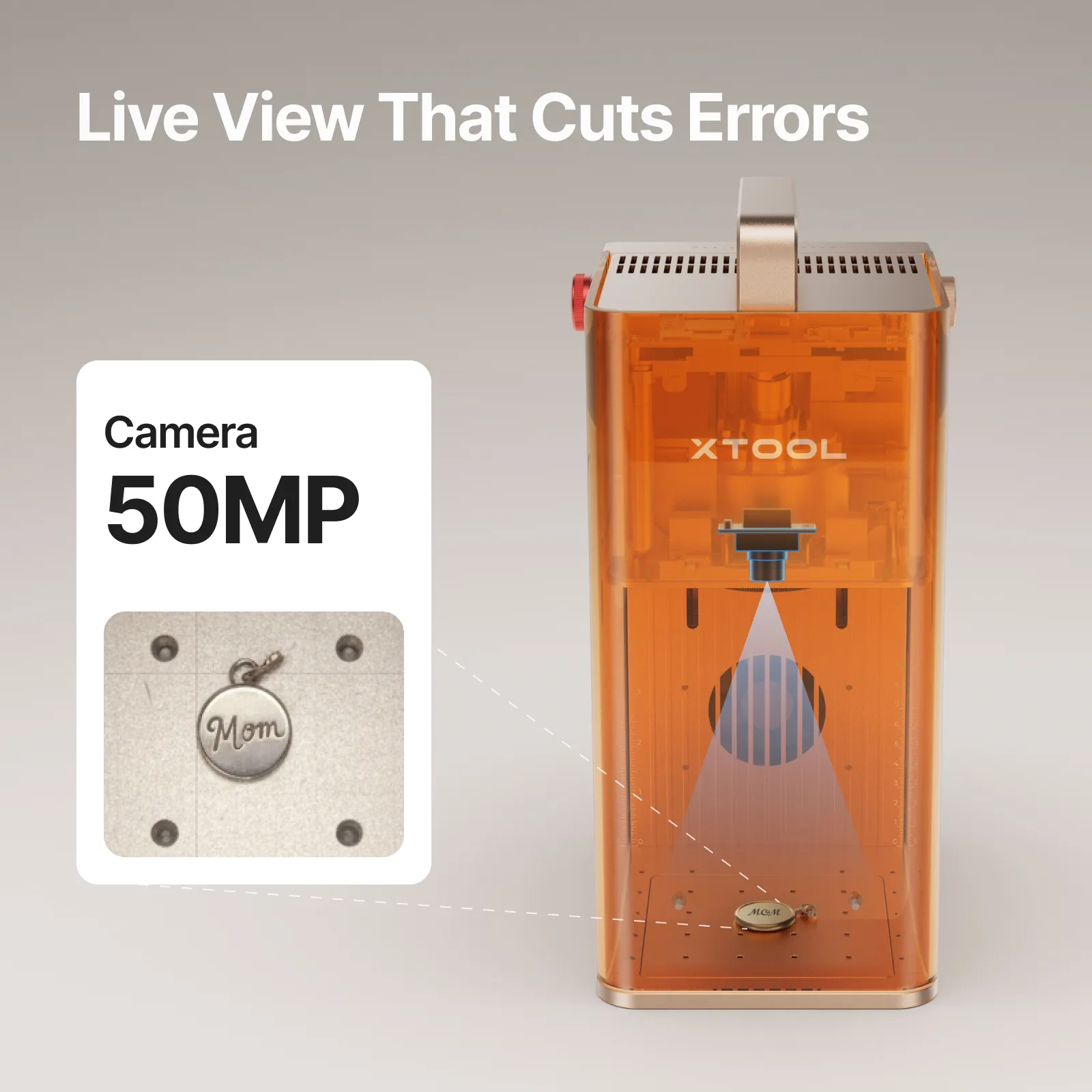

50MP Smart Vision Camera
The built-in 50MP ultra-high-resolution camera provides a full live preview of the working area, including the optional slide extension workspace (400 × 115 mm).
Features include:
- ±0.1mm positioning accuracy
- Automatic focus
- Intelligent object recognition
- Batch engraving support
- Smart Fill technology for optimized material usage
- Live workspace preview before engraving
This intelligent vision system minimizes setup time while improving accuracy and reducing material waste.
Powerful Dual Laser System
The xTool F2 combines two dedicated laser sources in one machine.
15W Blue Diode Laser
Ideal for:
- Wood
- MDF
- Leather
- Paper
- Felt
- Dark acrylic
- Coated metals
Capabilities:
- Cuts up to 15mm wood
- Cuts up to 12mm acrylic
- Faster multi-pass cutting
- Excellent engraving quality
5W Infrared Laser
Designed specifically for metal and plastic engraving.
Perfect for:
- Stainless Steel
- Gold
- Silver
- Platinum
- Aluminum
- Plastic
- Brass
- Jewelry
The infrared laser produces darker, cleaner, and deeper engravings while supporting detailed marking and 3D embossing.

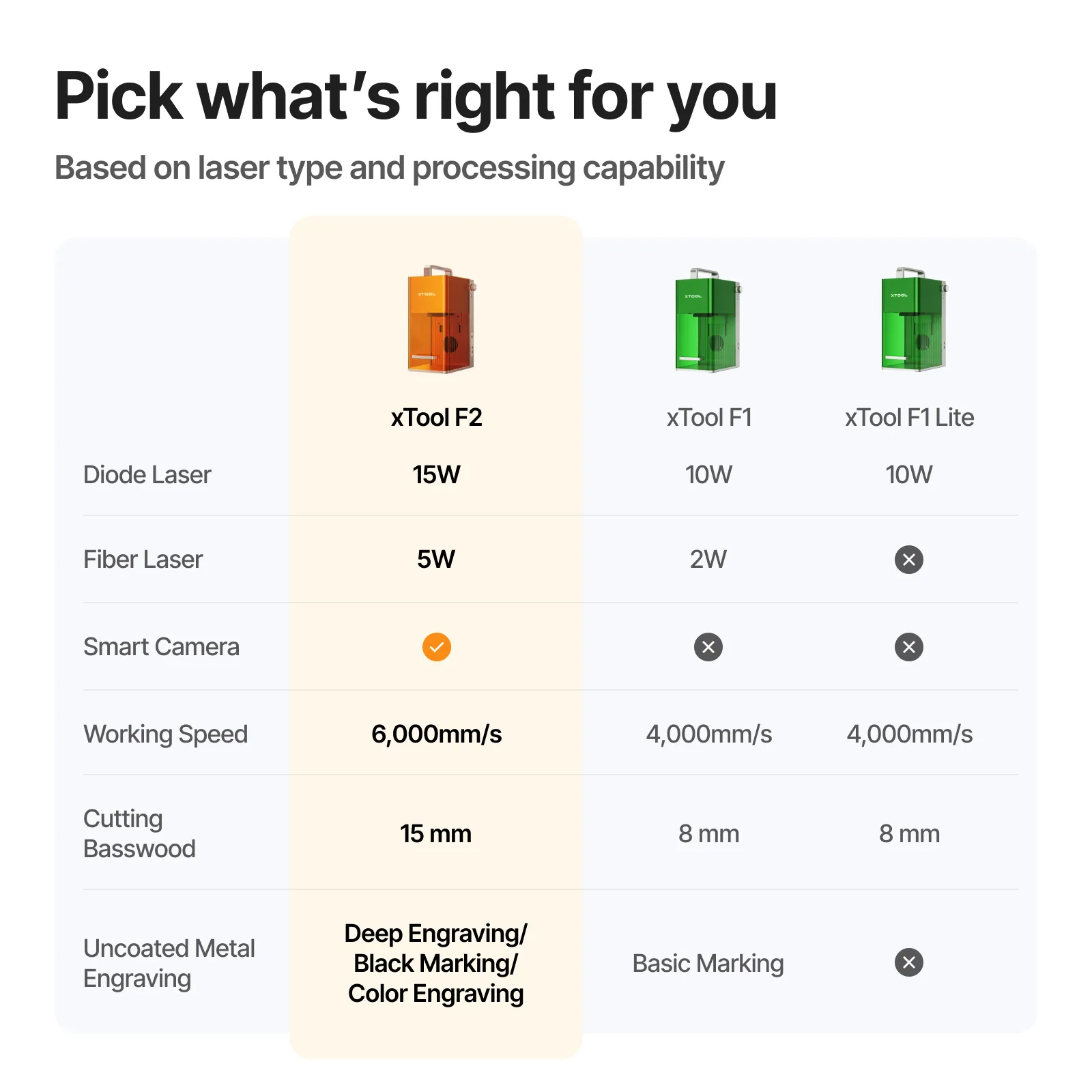

Comparison Table
| Feature | xTool F2 | xTool F1 | xTool D1 Pro |
|---|---|---|---|
| Laser Type | Dual: 15W Diode + 5W IR | Dual: 10W Diode + 2W IR | Diode Laser (10W/20W options) |
| Engraving Speed | 6000 mm/s (Galvo) | 4000 mm/s | 400 mm/s |
| Material Support | 300+ materials including metal, wood, leather, plastics | Similar but lower IR strength | Wood, leather, acrylic (no IR for metal) |
| Ideal For | Jewellery, branding, events, small business | Hobby & portable personalization | Large-area craft cutting |
| Work Area | Portable chamber / extension available | Ultra portable | Large (430 × 400 mm) |
| Camera | 50MP Smart Camera | Basic Preview | N/A |
| Portability | High | Very High | Low |
| Best Use Case | Metal engraving + craft engraving | Quick custom edits on the go | Crafting & cutting large designs |
Ultra-Fast Galvo Performance
Unlike conventional gantry laser machines, the xTool F2 uses an advanced Galvo motion system capable of engraving at speeds up to:
6,000 mm/s
Benefits include:
- Up to 3× faster production
- Reduced order turnaround
- Perfect for live customization
- High-volume production capability
- Exceptional engraving consistency
8K High-Resolution Engraving
The precision optical system produces incredibly fine engraving quality with crisp edges and smooth details.
Ideal for:
- Jewelry engraving
- QR codes
- Logos
- Product branding
- Fine artwork
- Industrial marking
- Nameplates
AI-Powered Smart Workflow
The xTool F2 introduces AImake, xTool’s intelligent crafting platform that simplifies production through AI-assisted workflows.
Features include:
- Smart positioning
- Automatic alignment
- AI-assisted layout
- Faster project setup
- Reduced material waste
- Streamlined production
Even beginners can achieve professional-quality results with minimal learning time.
Lightweight & Portable
Designed for professionals who need mobility without compromising performance.
Features:
- Compact integrated design
- Durable rolling hard case
- Lightweight 4.8kg construction
- Easy transportation
- Quick deployment
Ideal for:
- Craft fairs
- Wedding events
- Retail personalization
- Pop-up stores
- Trade exhibitions
- On-site engraving services

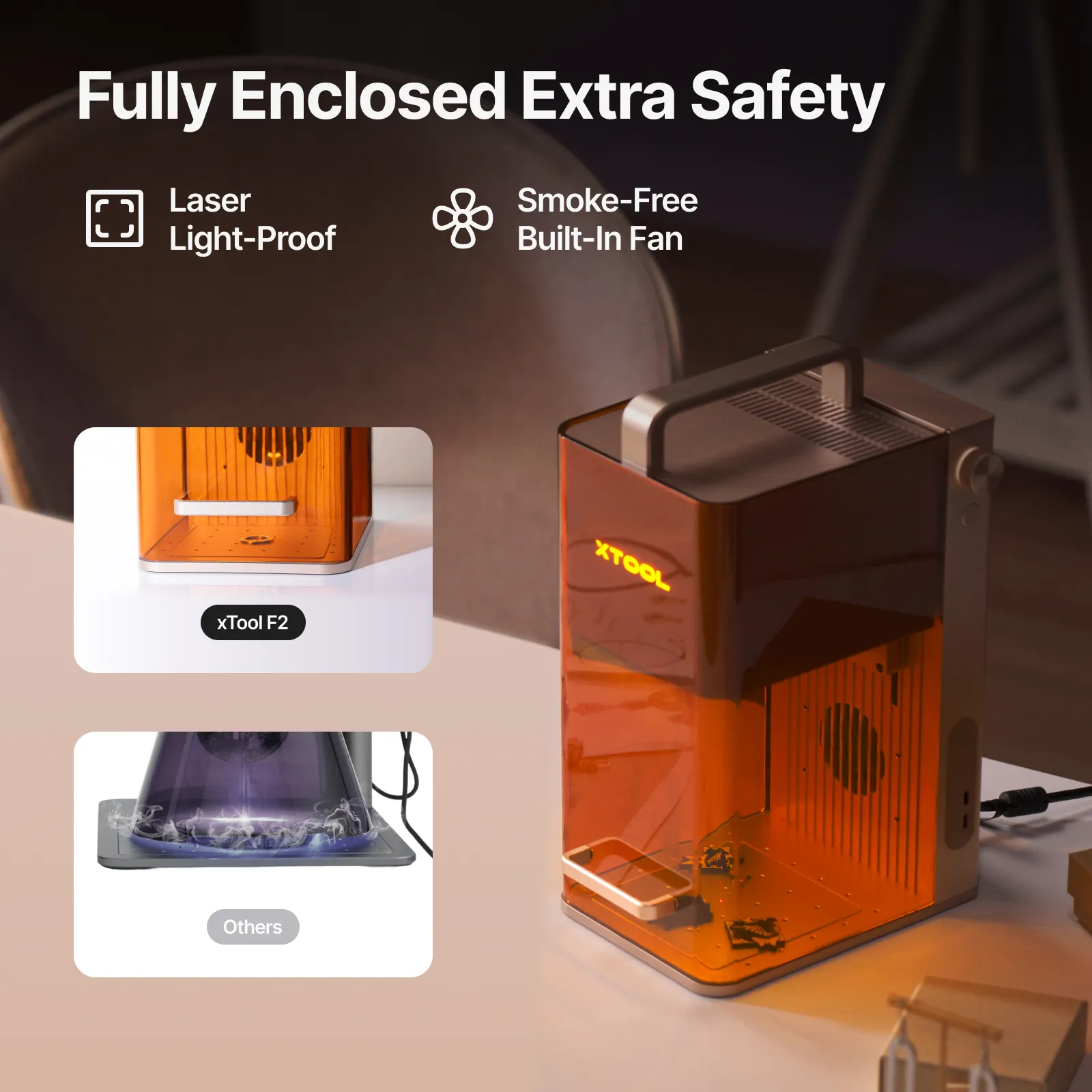

Enhanced Safety
The enclosed design makes the F2 safer for indoor operation.
Safety features include:
- Fully enclosed laser chamber
- AI-powered flame detection
- Integrated air purification compatibility
- Emergency safety protection
- Class 4 laser safety certification
Technical Specifications
| Category | Specification |
|---|---|
| Laser Type | 15W Diode + 5W 1064nm Infrared |
| Processing Mode | Laser Engraving & Laser Cutting |
| Working Area | 115 × 115 mm |
| Extended Area | 400 × 115 mm |
| Maximum Speed | 6,000 mm/s |
| Camera | 50MP Smart Camera |
| Focus | Auto & Manual |
| Positioning | Camera Positioning |
| Maximum Wood Cutting | 15mm |
| Maximum Acrylic Cutting | 12mm |
| Maximum Material Height | 120mm |
| Rotary Support | Up to 120mm Diameter |
| Software | xTool Studio |
| Connectivity | Wi-Fi, USB, IP |
| Operating System | Windows & macOS |
| Product Weight | 4.8kg |
| Machine Power | 150W |
Material Compatibility
The xTool F2 supports engraving and cutting on more than 300 materials, including:
- Wood
- MDF
- Leather
- Acrylic
- Paper
- Felt
- Stainless Steel
- Aluminum
- Brass
- Gold
- Silver
- Platinum
- Plastic
- Stone
- Coated Metals
- Ceramic
- Slate
- Rubber
- Cardboard
Why Choose xTool F2?
Compared to traditional desktop laser engravers, the xTool F2 offers:
- Dual-laser flexibility in one machine
- Industry-leading 6,000mm/s engraving speed
- AI-powered workflow automation
- 50MP intelligent vision camera
- Professional metal engraving capabilities
- Portable design for mobile businesses
- 8K engraving precision
- Simple setup with beginner-friendly operation
Whether you’re launching a personalization business, expanding your workshop, or upgrading your production capabilities, the xTool F2 delivers professional performance in a compact, portable package.
Ideal Applications
The xTool F2 is perfect for:
- Personalized gifts
- Jewelry engraving
- Leather products
- Corporate branding
- Promotional merchandise
- Industrial part marking
- Wedding favors
- Awards & trophies
- Signage
- Home décor
- Custom phone cases
- Metal business cards
- Craft businesses
- Small-scale manufacturing
FAQ
What Is the Difference Between the xTool F2 and xTool F1?
The xTool F2 is the next-generation upgrade to the popular F1, offering more power, smarter automation, and higher productivity for both hobbyists and businesses.
Key improvements include:
- More Powerful Lasers – 15W Blue Diode + 5W Infrared laser compared to the F1’s 10W Blue Diode + 2W Infrared laser.
- Built-in 50MP Smart Camera – Features autofocus, live preview, precise visual positioning, one-click auto-fill, and efficient batch processing. The F1 does not include a camera.
- Faster Engraving Speeds – Up to 6,000 mm/s, compared to 4,000 mm/s on the F1.
- Advanced Software Features – Supports curved surface engraving, relief engraving, autofocus, and intelligent batch production for greater productivity.
For businesses and creators who want faster production and advanced features, the xTool F2 is the ideal choice. The F1 remains an excellent entry-level option for beginners and DIY enthusiasts.
How Does the xTool F2 Compare to Other Portable Laser Engravers?
The xTool F2 combines high performance with intelligent automation, making it one of the most capable portable laser engravers in its class.
Its advantages include:
- Dual-Laser System – 15W Blue Diode and 5W Infrared laser for engraving and cutting a wide range of materials.
- 50MP Smart Camera – Autofocus, visual positioning, live preview, and batch engraving improve accuracy and workflow.
- High-Speed Performance – Engraving speeds of up to 6,000 mm/s help increase productivity.
- Professional Software Features – Includes one-click auto-fill, batch processing, curved surface engraving, relief engraving, and panoramic preview with the Slide Extension.
- Expandable Ecosystem – Compatible with rotary attachments, slide extensions, air purifiers, and other xTool accessories.
- Reliable Support – Backed by xTool’s global customer support, detailed learning resources, and extended warranty options.
Is the xTool F2 Compatible with xTool F1 Accessories?
Yes. The xTool F2 is compatible with most xTool F1 accessories, allowing existing users to upgrade without replacing their entire setup.
Compatible accessories include:
- xTool RA3 Rotary Attachment – For engraving tumblers, bottles, rings, and other cylindrical objects up to 120 mm.
- xTool RA2 Pro Rotary Attachment – Supports engraving on round and irregular-shaped objects.
- xTool F1 Slide Extension – Expands the working area to 115 × 400 mm for larger projects and efficient batch production.
- xTool Foot Pedal & Button Switch – Enables convenient hands-free operation during repetitive jobs.
- xTool Desktop Air Purifier – Helps reduce smoke and odors while engraving.
- Desktop Air Purifier Replacement Filter – Maintains optimal air filtration performance.
Note: The Rolling Hard Case designed for the xTool F1 is not compatible with the xTool F2.
What Is the Working Area and Maximum Material Height?
The xTool F2 offers a compact working area while supporting taller workpieces than its predecessor.
- Standard Working Area: 115 × 115 mm (4.5 × 4.5 inches)
- Extended Working Area: 115 × 400 mm (4.5 × 15.7 inches) with the Slide Extension
- Maximum Workpiece Height: Up to 120 mm (4.7 inches)
The extended workspace makes the F2 ideal for batch engraving and longer materials.
Which Metals Can the xTool F2 Engrave?
The integrated 5W Infrared (1064 nm) laser is designed for high-quality metal engraving and marking.
Compatible metals include:
- Stainless Steel
- Aluminum
- Copper
- Brass
- Titanium Alloys
- Plated Metals
- Anodized Aluminum
- Gold
- Silver
- Platinum
The infrared laser produces crisp, permanent markings with excellent detail on most common and precious metals.
What Software Does the xTool F2 Use? Does It Support LightBurn?
The xTool F2 operates exclusively with xTool Creative Space (XCS), xTool’s official design and machine control software.
xTool Creative Space provides:
- Design and artwork creation
- Material parameter settings
- Machine control
- Live preview and visual positioning
- Batch processing
- Project management
The software is available for Windows and macOS, offering an intuitive interface suitable for both beginners and professionals.
Note: The xTool F2 does not currently support LightBurn.
Specification
Overview
| Weight | 10 kg |
|---|---|
| Dimensions | 46 × 30 × 30 cm |
| Model | Xtool F2 |
| Working Area(mm) | 115×115 |
| Focusing method | Auto Focus, Manual Focus (Two dots alignment) |
| Laser Spot Size(mm) | 15W Diode Laser: (0.08mm x0.06mm), 5W Infrared Laser: (0.03mm x0.03mm) |
| Product Weight | 4.8 Kg |
| Operating Software | xTool Studio |
| Machine Electric Power | 150W |
| Laser Type | Diode, Dual, Infrared IR |
| Connectivity | USB/WiFi |
| Laser Wavelenght | 1064 ± 5 nm, 445 ± 15 nm |
| Brand | XTOOL |
| Cutting Material | dark acrylic, leather, slate, Stone, wood |
| Engraving Compatibility | ABS Plastic, Brass, Copper, dark acrylic, leather, Stainless Steel, Stone, wood |
Customer Reviews
1 review for xTool F2 5W IR & 15W Diode Portable Dual Laser Engraver
What Non-Metal Materials Can the xTool F2 Process?
The xTool F2's blue diode laser can engrave or cut a wide range of non-metal materials, making it suitable for crafts, signage, personalized gifts, and small business production.
Compatible materials include:
- Wood
- Bamboo
- MDF
- Leather
- PU & Synthetic Leather
- ABS
- PVC*
- Acrylic (Clear, Frosted, Colored, Mirrored, and more)
- Rubber
- Cardboard & Kraft Paper
- Felt
- Fabric & Denim
- Silicone Sheets
- Slate & Porcelain
- Ceramics
- Glass (with black tape or coating)
Note: Different colors and material transparencies absorb laser energy differently. Always perform a small test engraving before starting production.
What Metals Can the xTool F2 Engrave?
The integrated 5W Infrared Laser is designed for precise metal engraving and marking on a variety of metals.
Compatible materials include:
- Stainless Steel
- Aluminum
- Copper
- Brass
- Titanium Alloy
- Coated Metals
- Anodized Aluminum
- Gold
- Silver
For precious metals such as gold and silver, use lower laser power and fewer engraving passes to achieve the best results while minimizing heat.
Note: The 5W infrared laser is intended for engraving and marking only. It does not cut metal.
How Thick Can the xTool F2 Cut?
Wood
Using multiple high-speed passes, the xTool F2 can cut basswood up to 15 mm thick. For the best cutting quality, position the laser focus near the center of the material thickness.
Acrylic
With multiple passes, the xTool F2 can cut acrylic sheets up to 12 mm thick, depending on the material type and settings.
Can the xTool F2 Engrave Food, Leather, and Fabric?
Yes. The blue diode laser is capable of engraving food items such as cakes, bread, and jerky, making it ideal for personalized edible gifts and bakery products.
It also engraves and cuts materials including:
- Leather
- PU Leather
- Fabric
- Denim
These materials are commonly used to create customized products such as keychains, wallets, handbags, patches, and scarves.
Tip: When engraving food, use lower power settings and fewer passes to help prevent scorching.
Can the xTool F2 Engrave Glass?
Yes. The xTool F2 can engrave glass when the surface is prepared with a black coating, marking spray, or black masking tape. This improves laser absorption and helps produce clear, consistent engraving results.
Which Materials Should Not Be Processed with the xTool F2?
For safety and optimal performance, avoid processing the following materials:
- PVC and chlorinated plastics – Can release toxic chlorine gas when laser processed.
- Carbon Fiber and Fiberglass – Produce harmful fumes and fine particles.
- Polyethylene Film or Foam – Melts easily and delivers poor engraving or cutting results.
- Bare Glass or Crystal – May crack during processing unless coated or covered with black tape.
- Highly Reflective or Fluffy Materials – Materials such as untreated mirrors or loose cotton may cause inconsistent laser focus and reduced engraving quality.
Always use appropriate ventilation and follow recommended material safety guidelines when operating your laser machine.
vijay kumar –
Product is nice and good for the small business work as work is impossible small work is good
