SCULPFUN CAM500 Lightburn Camera for Laser Engravers
DESCRIPTION
Sculpfun official camera:ย Perfect for all models of SCULPFUN laser engraving machines, including S6, S9, S10, S30/S30 Ultra series.

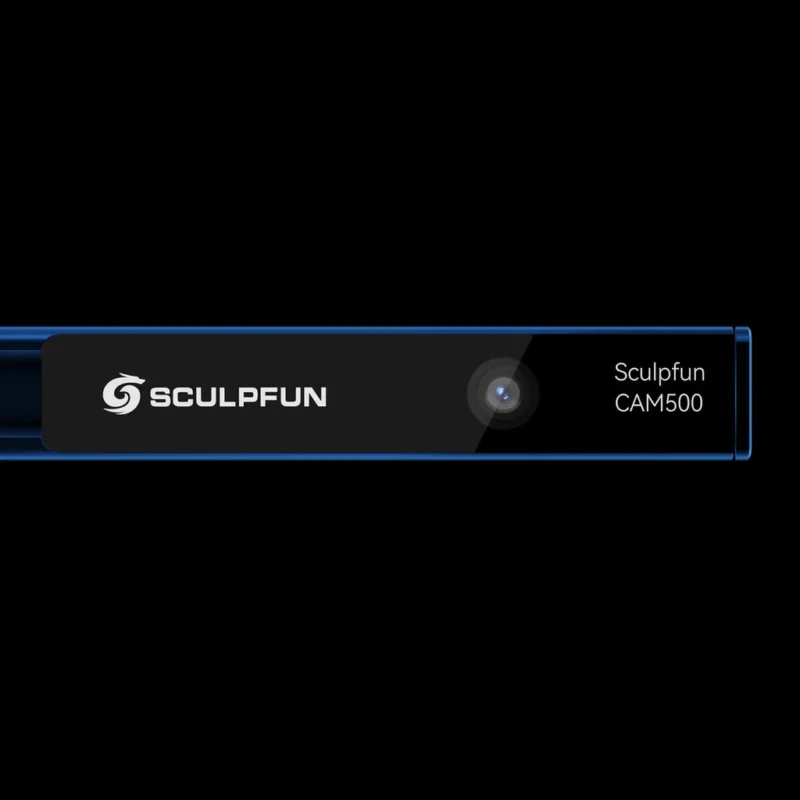

Industrial Camera for Laser Engraver:ย The camera is specially designed for laser engraving machines. With a true high-definition 5MP, the camera can capture clearer images and identify more accurate positioning.
Precise Positioning:ย The camera is perfectly fit with the CAM function of the Lightburn software, which can identify the position of engraving objects, with a positioning deviation of less than 1mm.
Engraving Position Controlling:ย You can move the pattern onto a certain position of the material through the lightburn software interface, the laser machine will engrave the pattern at that position.
Image Tracing:ย It can identify and extract the patterns from the surface of objects and form engraving vector files .
Batch Engraving:ย You can add multiple engraving objects and complete the different independent tasks at one time.

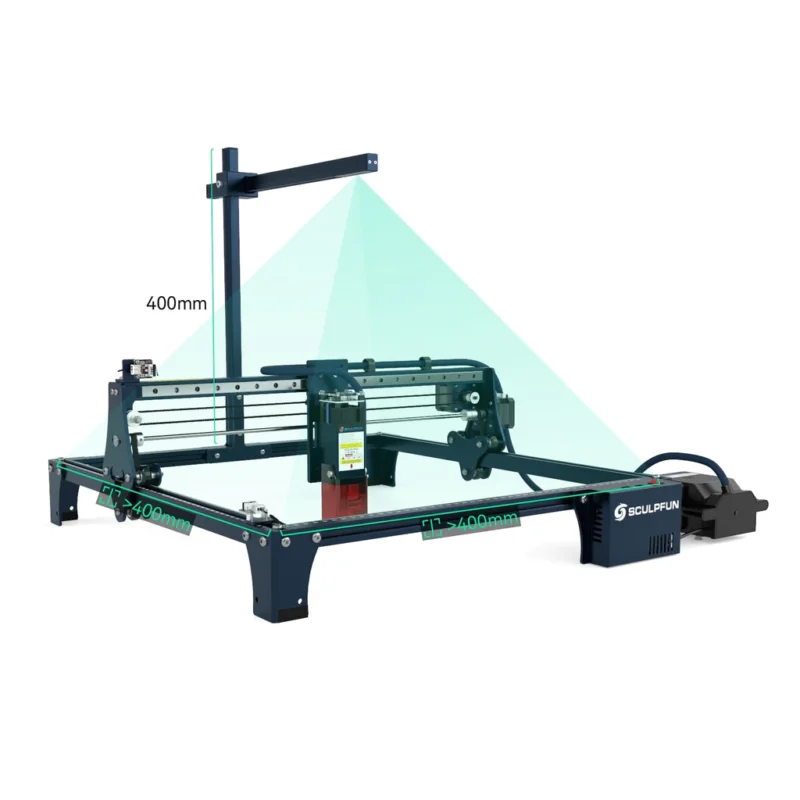

HD Video Recording:ย This Sculpfun laser engraving camera has a 120ยฐ wide-angle lens with a working area of 400*400mm.

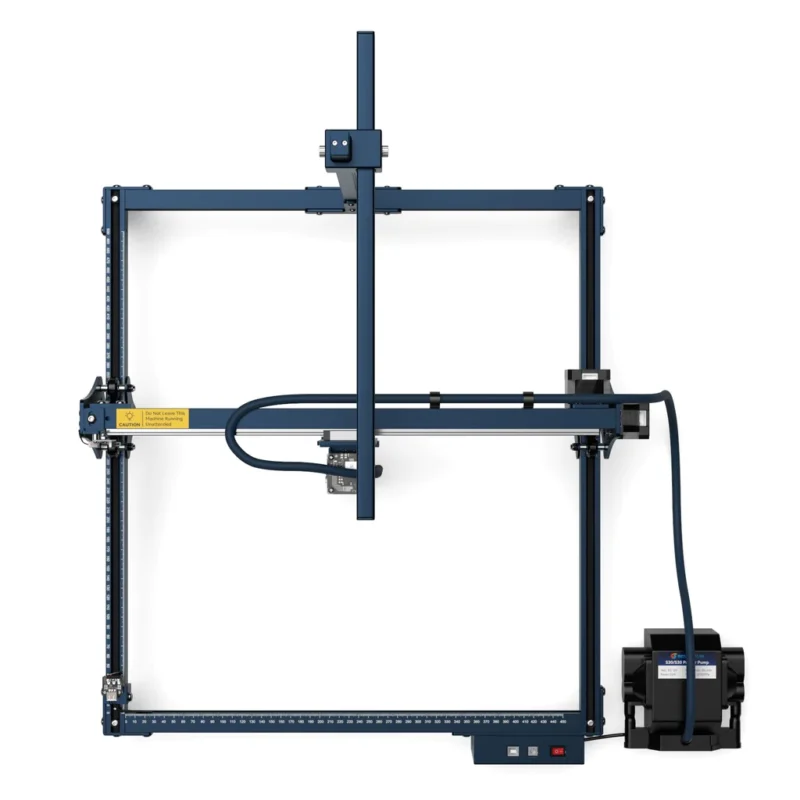

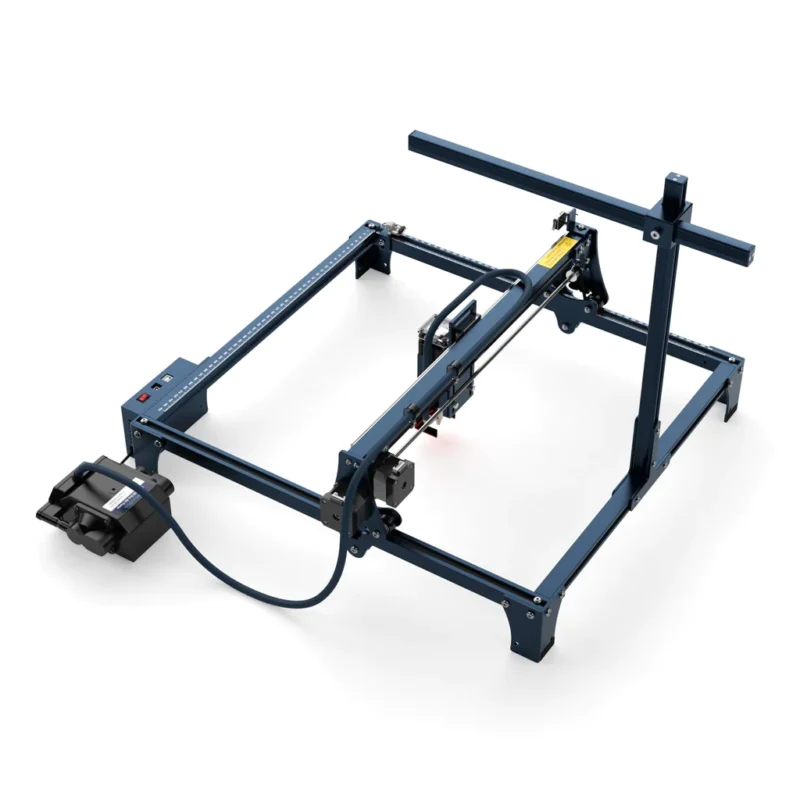

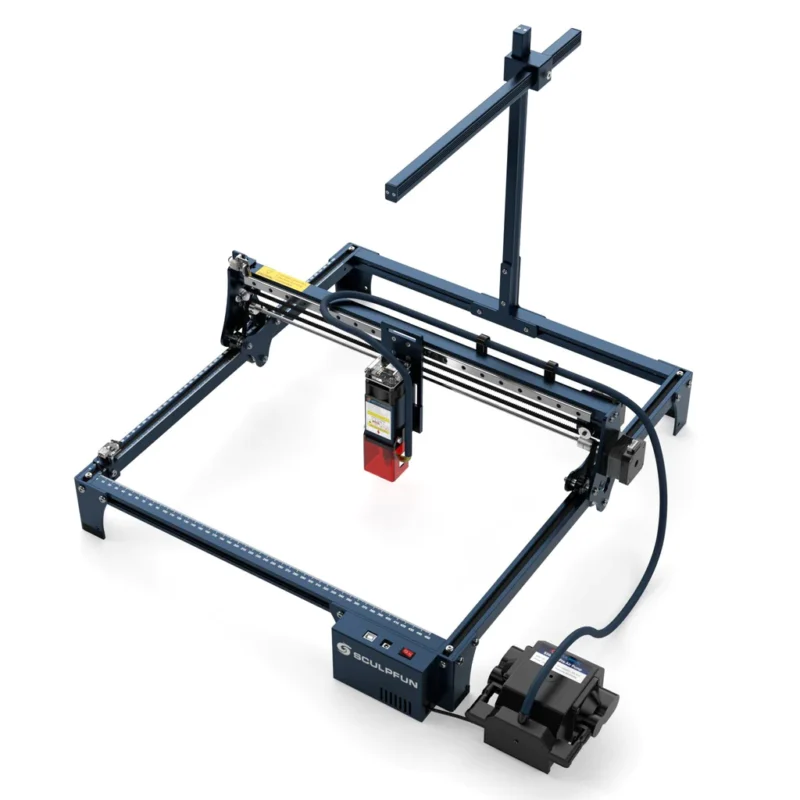

High Adaptability:ย T-shaped fixation clamp is suitable for SCULPFUN machine models and almost all engraving machines with V-slot structure.(Please note that the additional purchased area expansion kit is not applicable.)U-shaped fixation clamp is suitable for U-shaped beamย machines. Otherย applicable models: D1PRO, falcon2, LM2 PRO S2, 20PRO 20S, 55, JL3, 3 MAX V2.
*Notice:ย The recommended height from the camera to the engraving position is 325mm. With the camera well aligned, please make the objects as close to the center of the camera as possible, within the 400*400mm working area. The precision will be decreased as the engraving objects are moved away from the camera center.
PRODUCT PARAMETERS
PRODUCT MODEL
Mount Material: Aluminum
Recommended Height from the Camera to the Engraving Position: 325mm
Optimal Working Area: 400*400mm
Product Size (Horizontal Rod and Vertical Rod are the same): 400*15*20mm Notice: please allow the variations due to manual measurement!
Product Package Weight: 0.8KG
Product Package Size (Length*Width*Height): 462*180*55mm
Compatible System: win7/win10/win11/mac (Notice: For better product usage experience, we recommend to use with the system win7 later version

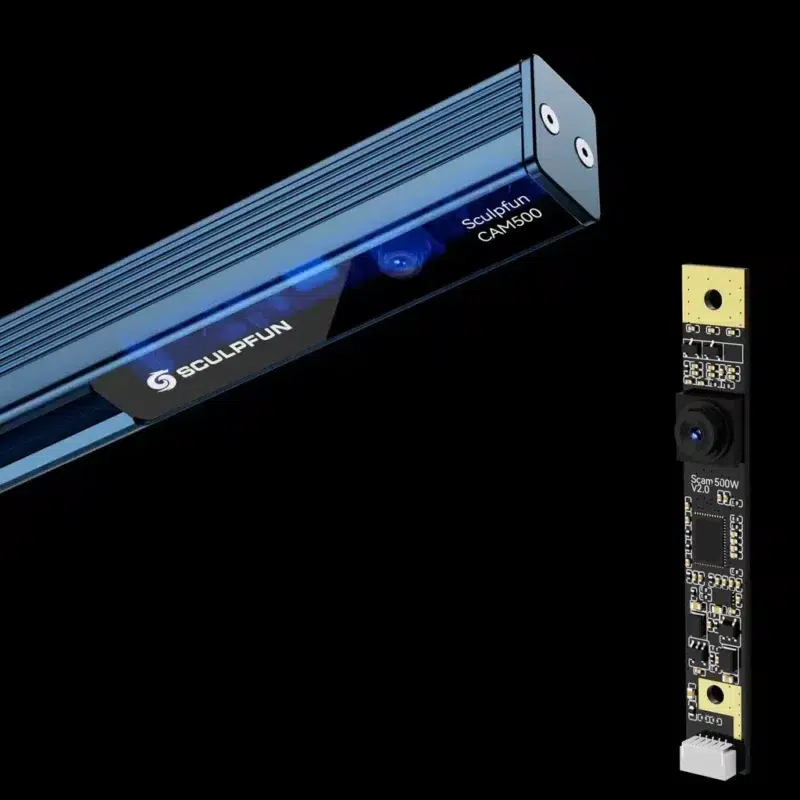

Camera Parameter
Pixel: 5MP
Color Image Sensor: 1/4-inch CMOS
Maximum Resolution: 2592*1944
Pixel Size: 1.4um*1.4um
Focal Length: 1.79mm
Focusing Mode: Fixed Focus Fixed Focus Distance: 325mm
Viewing Angle Width: 120ยฐ
Aperture: F2.4
USB Interface: USB 2.0
ย Packing List:
1 x Camera Vertical Rod Assembly
1 x T-shaped Clamp Assembly
1 x Camera Slider (Rod Connector)
1 x U-shaped Clamp Assembly
1 x Screw Bag
4 x Basswood Plywood
3 x A5 Size Image Calibration Paper
1 x User Manual
1 x Soft Ruler
