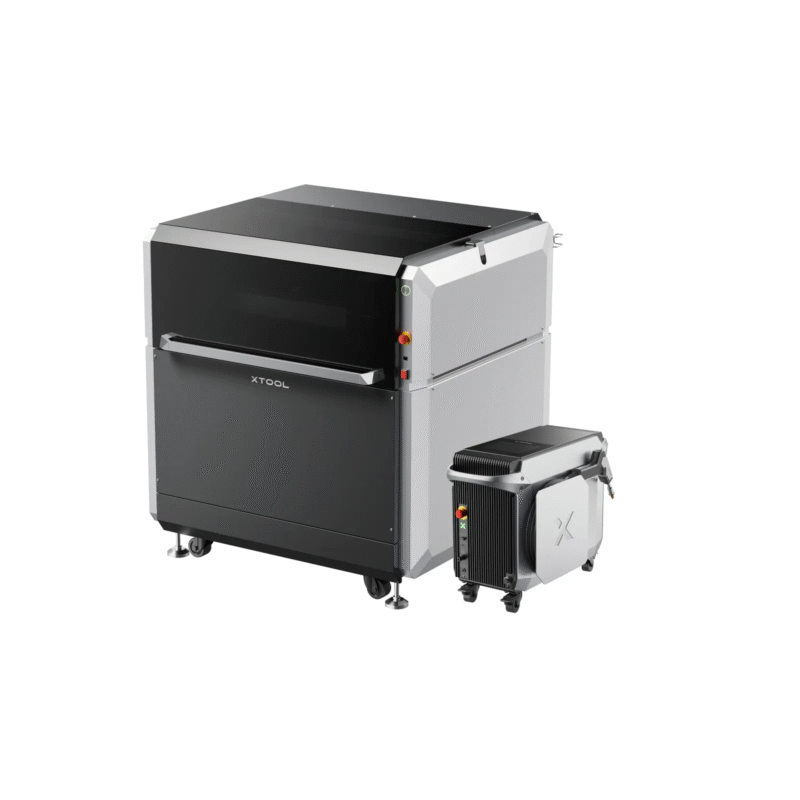

xTool MetalFab Laser Welder 800W

Price range: ₹685,999.00 through ₹2,716,999.00

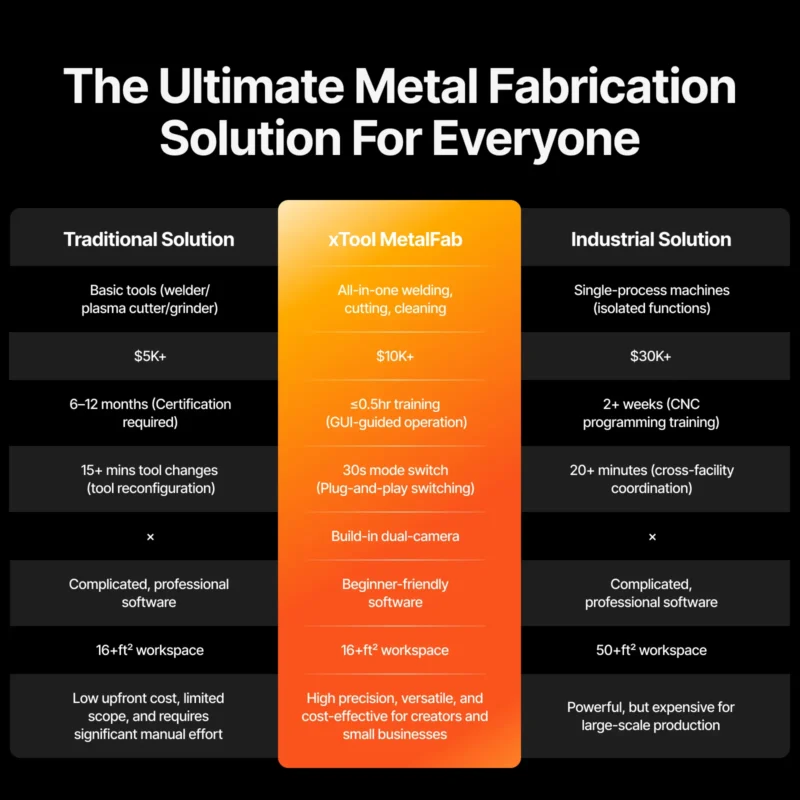

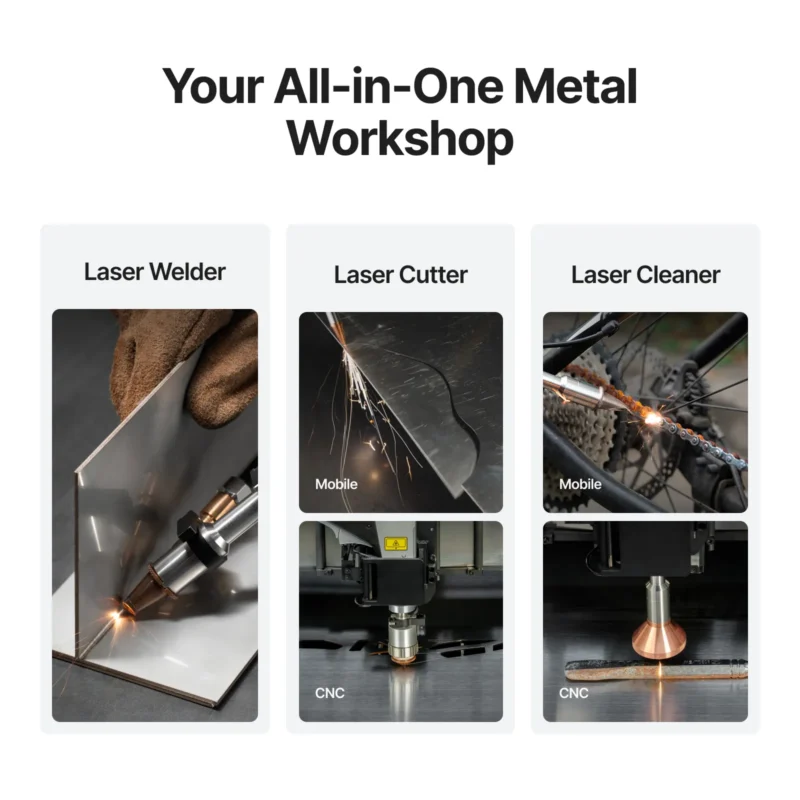

All-in-One Metal Workshop for Small Businesses & DIYers: Weld, cut, and clean with one device. MetalFab meets small-batch needs in metalworking, repair, or crafting, saving space, labor, and costs.

Industrial-Grade Performance: Deliver precise welds and cuts on stainless steel, carbon steel, brass, and aluminum with professional stability.

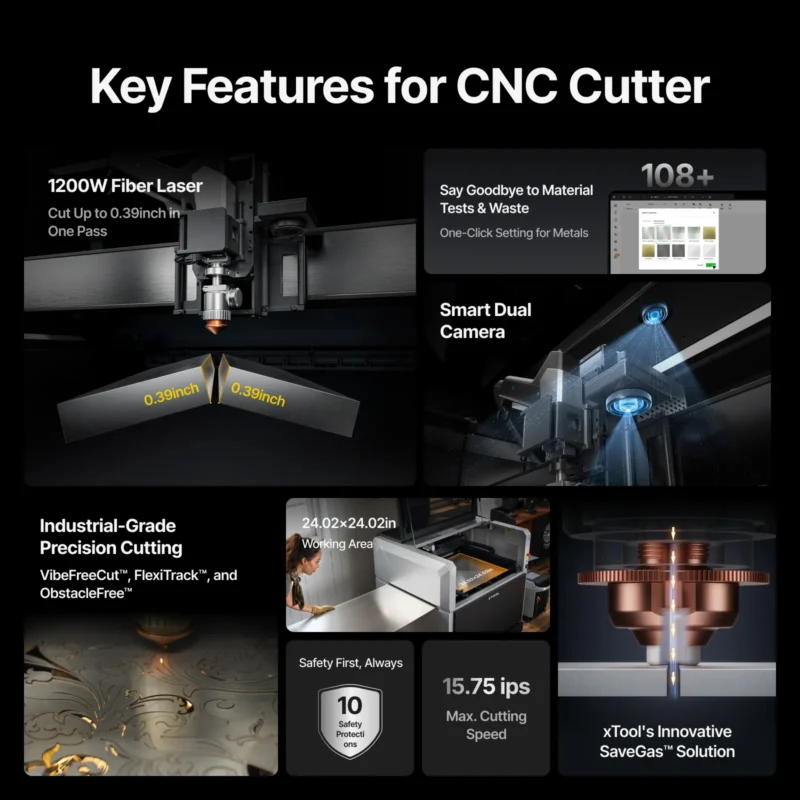

Exclusive Technology for Enhanced Efficiency:Smart dual cameras, VibeFreeCut™, FlexiTrack™, and SaveGas™ ensure flawless cuts, reducing costs and improving ROI.

Easy for Everyone – Low Learning Curve: One-click, built-in 108+ parameters make it simple to create in minutes, without the need for specialized training.

Quality and Safety Guaranteed: 10,000+ hours laser lifespan, 24/7 stable output, and 10 safety features for reliable operation in tough conditions (-10°C to 40°C).

EAN: 8903470705227 SKU: xTLMetalFab800W Category: Uncategorized

Package

Clear

Processing time: 1 days

Check Estimated Delivery at

Buy on Whatsapp

Add ₹999.00 to cart and get free shipping! Free shipping over 999/-

13 People watching this product now!

Mechblock Shopping Event

Hurry and get discounts on all Mechblock Products up to Rs.1000

Coupon code: MECHBLOCK

Description

xTool MetalFab Laser Welder: a revolution in metalworking

The xTool MetalFab Laser Welder 800W is a multifunctional engineering solution for professional and amateur metalworking. Thanks to advanced technology and 800W power, it combines speed, precision, and ease of use in one compact package and provides welding of up to 4mm of various types of metals.

The ideal choice for workshops, manufacturing facilities, repair services, including on-site customer service. Reliable professional equipment for welding stainless and carbon steel, aluminum, and other metals.

Features and advantages

Power 800 W. An infrared fiber laser with a wavelength of 1080±10 nm provides high-quality welding of thick-walled metals up to 4 mm.
Professional speed. Welds 8 times faster than traditional TIG – 20 mm seam in 14 seconds.
Intelligent wire feed. Built-in automatic wire feed system with support for different diameters (check the documentation for parameters).
Accuracy and preservation of metal properties. The minimum heat-affected zone of ≤ 0.05 mm prevents deformation even on thin materials. Thanks to the high-precision fiber laser and Coherent chiller technologies.
Portability. Thanks to its compact design (632×304×472 mm) and weight of only 35 kg, it is easy to transport and install in confined spaces.
Safe welding. The safety system includes automatic shutdown in case of overheating or unstable current, multi-level protection, and CE, FCC, and FDA certification.

Technical characteristics

Laser type – fiber, with a wavelength of 1080±10 nm
Power – 800 W
Thickness of welded metal – up to 4 mm (stainless/carbon steel), up to 3 mm (aluminum)
Laser life – over 10,000 hours
Supports welding in an inert environment – nitrogen, argon
Nominal power – 3000 W
Full load current – max. 15 A
Dimensions – 632×304×472 mm
Weight – 35 kg
Operating temperature – from −10 °C to +40 °C
Cable length – 3.5 m

Who is this unit for?

Metalworking shops. A reliable solution for small-batch production, equipment repair, and structural manufacturing.
Metallurgical and repair enterprises. Provides strong and accurate welds on various types of metals without the need for complex settings.
Professional welders and engineers. Enables stable quality and high productivity with a low error rate.
Designers and metal art studios. Ideal for creating complex design solutions: unique metal furniture, decorative elements, installations, and art objects with high aesthetic qualities.

FAQ

–What metals can xTool MetalFab cut/weld? How does the 1200W welder differ from the 800W model?

xTool MetalFab can cut/stainless steel, aluminum, brass, carbon steel, galvanized sheet, titanium, nickel alloy, magnesium.

Welding and cutting capabilities:

The 1200W welder can weld up to 5mm stainless steel/carbon steel, while the 800W model handles up to 4mm.
The 1200W welder can cut (handheld cutting) up to 5mm stainless steel/carbon steel, while the 800W model handles up to 3mm.
When paired with a CNC cutting platform:

Design differences:

The 1200W welder includes a free wire feeder, while the 800W model has a built-in wire feeding mechanism and is lighter in weight.

–What gases are required for welding, cutting, and cleaning different metals?

Welding: Nitrogen or argon gas with purity above 99.99% is suitable for most metals. The required welding pressure ranges from 0.1–0.2 MPa, with a gas flow rate of 15–30 L/min (argon is required for welding titanium alloys).

Cutting: Compressed air, nitrogen/argon (purity >99.99%), or oxygen are commonly used as shielding gases.

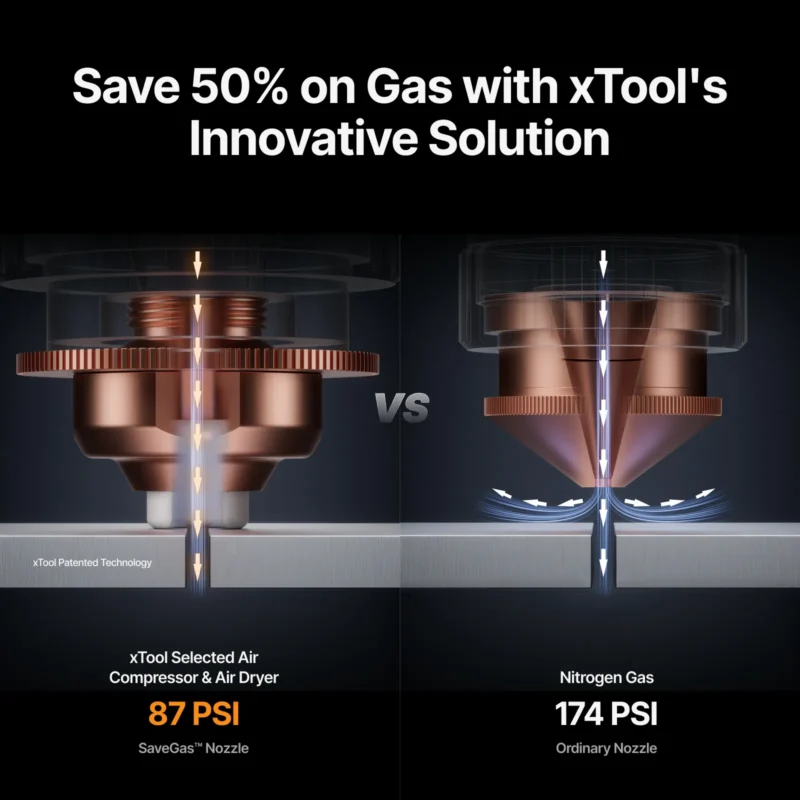

xTool air compressor and air dryer provide stable compressed air, enabling burr-free cuts at 0.6 MPa for 4mm stainless steel, 4mm aluminum, 3mm copper, 1mm carbon steel, and galvanized steel (1200W laser) when paired with xTool SaveGas™ Nozzle. This setup significantly reduces costs compared to gas cylinders.
Nitrogen/argon (at 1.2 MPa) can achieve burr-free cuts for the same materials (1200W).
Oxygen is primarily used for cutting carbon steel and galvanized steel above 1mm thick. With a dual-layer nozzle and focal extension tube at 0.06–0.07 MPa, it can cut up to 10mm carbon steel/galvanized steel (1200W).

Cleaning: Compressed air is sufficient, but nitrogen or argon is recommended for brighter, oxidation-free results.

–Can I use xTool MetalFab for engraving?

Yes, xTool MetalFab supports engraving on stainless steel, galvanized steel, titanium, and coated metals (e.g., anodized aluminum). It supports vector engraving, vector filling, and bitmap filling. Just use XCS for one-click parameter setup!

Note: To protect the laser, avoid engraving on high-reflectivity metals like copper.

–Why do I need the camera? What’s the benefits?

The camera-driven workflow will significantly enhance your metalwork efficiency and minimize material waste.

xTool MetalFab integrates dual high-definition cameras for intelligent metal processing-advantages that products without cameras cannot match:

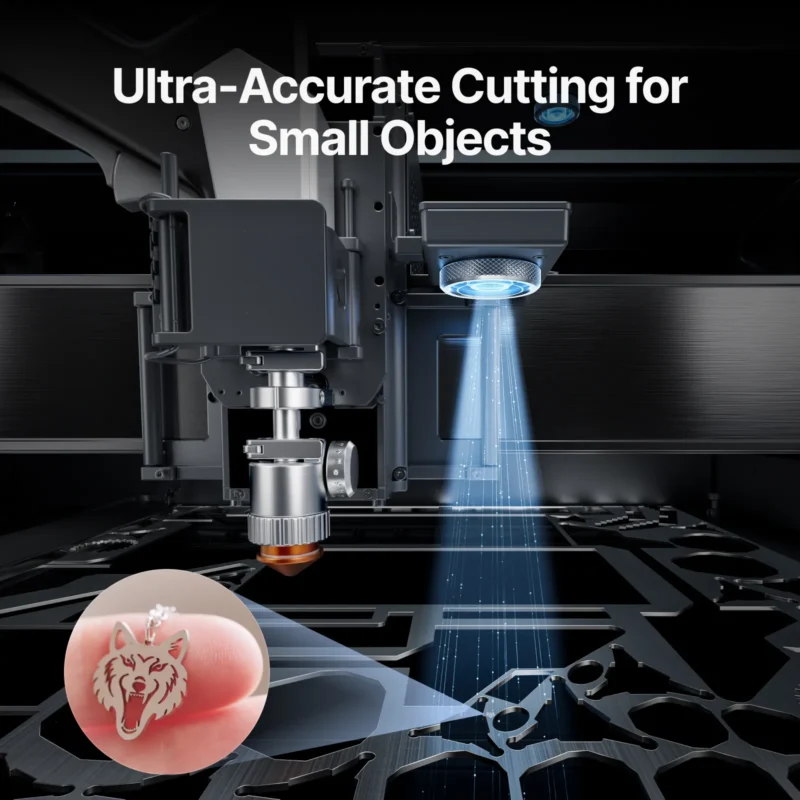

The 16MP Panoramic camera captures full-bed imaging for precise positioning and enables Smart Nesting function with up to 98.7% material use. The close-range camera enables micron-level precision for secondary/fine processing through localized high-res imaging.

–What software is used? Is it user-friendly?

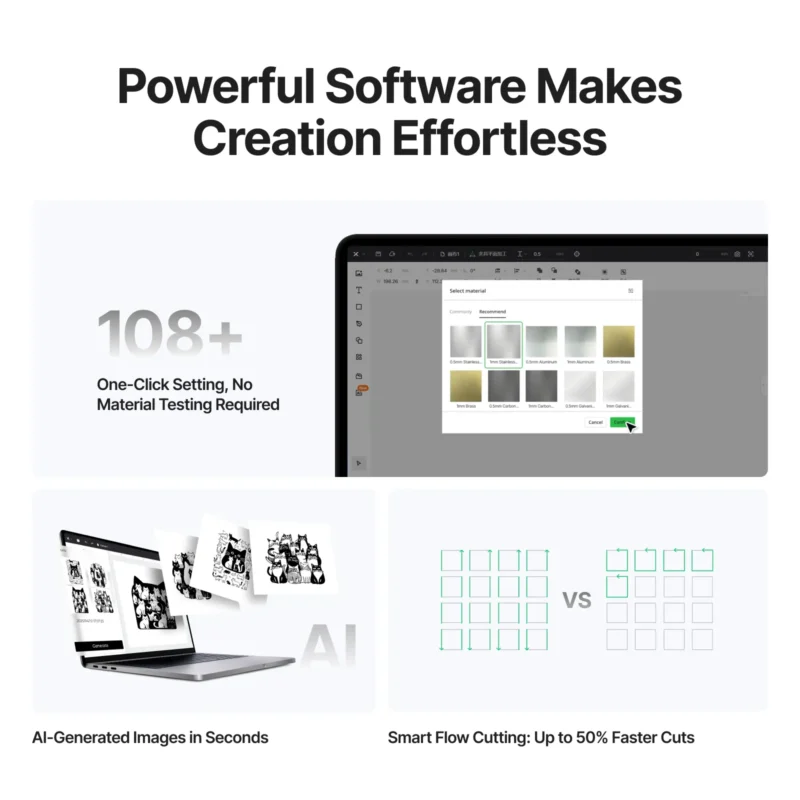

xTool MetalFab operates on the XCSSoftware, designed for intuitive control and streamlined workflows:

It features the Material EasySet Library with100+ pre-optimized parameters for 30+ materials. You only need to select the material you want to cut, and all parameters can be applied with a single click. It also supports Auto Lead-in Lines, Automatic Path Optimization, which significantly improves cutting efficiency.

–I have no laser welding experience. Is it easy to learn? How about welding quality?

We have designed xTool MetalFab to ensure a smooth and simple user experience, so you don’t need to worry about lacking experience—you can get started in just five minutes!

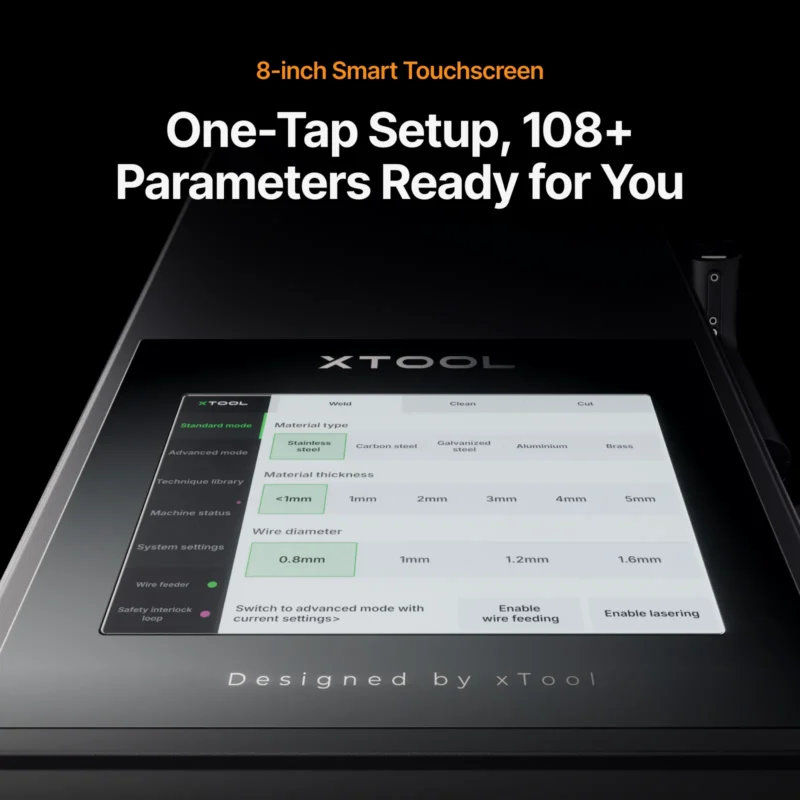

It features the 550g ultra-light integrated welding gun which enables a 5-second quick-release. The 8-Inch Smart Touchscreen has 108+ built-in parameters for one-click use.

xTool MetalFab can weld up to 5mm stainless steel or carbon steel, and we have passed SGS welding quality tests, so you can rest assured about its performance and reliability!
