Home OpenBuilds Electronics Fans & Cooling 50mm Blower Turbine 12V/24V DC Cooling Fan
40mm Brushless 12V/24V DC Cooling Fan
40mm Brushless 12V/24V DC Cooling Fan ₹144 – ₹360
Back to products
8mm Smooth Rod
8mm Smooth Rod ₹105 – ₹657
50mm Blower Turbine 12V/24V DC Cooling Fan
Click to enlarge
MECHBLOCK

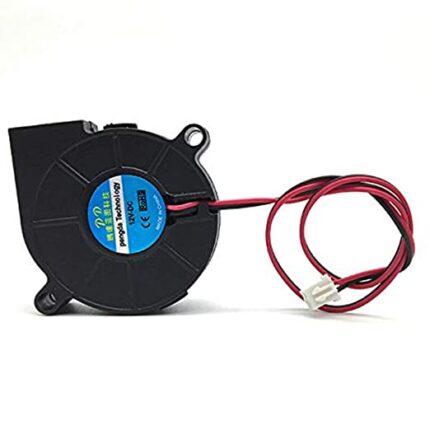

50mm Blower Turbine 12V/24V DC Cooling Fan

Rated 5.00 out of 5 based on 1 customer rating
(1 customer review)

₹194 – ₹325

This 12V/24V DC Blower Turbine 50mm fan is excellent for cooling electronics, hotends, 3D prints and laser modules.

Rated Voltage

12V DC, 24V DC

Type of Bearing

Oil Bearing, Double Ball Bearing

Condition

New

Brand

MECHBLOCK

HSN

84439090

Clear
Select a product variation to get estimate
Compare
Add to wishlist
43 People watching this product now!
EAN: 8903470336551 SKU: MODCF50T Category: Fans & Cooling Tag: fan
Share:
  • Description
  • Reviews (1)
  • About MECHBLOCK
  • WARRANTY
Description

This 12V/24 DC Blower Turbine 50mm fan is widely used in:

  • Widely used in 3D Printer, Humidifier, Cool Xboxs, PC CPU Server, etc.
  • Intelligent industrial control equipment plate cooling heat.
  • High Precision Medical equipment cooling.
  • PC RAM Card Cooling Dissipation.
  • Suitable for daily general use,Anywhere & electronic that need cooling.
Specifications:
  • Model: DCF50T-12V
    Item name: 50mm Blower Turbine 12V DC Fan
    Bearing: oil bearing
    Material : Plastic
    Rated Voltage: 12V DC
    Rated Current: 0.15A
    Consumed power :1.8W
    Revolution: 5482 ± 5% RPM
    Noise: 29 dBA
    Expected life: 28000 hours
    Size: 50mm x 50mm x 15mm(L x W x H)
    Wiring: red to positive black to negative
    Wire length:250mm
  • Model: DCF50T-24V
    Item name: 50mm Blower Turbine 24V DC Fan
    Bearing: oil bearing
    Material : Plastic
    Rated Voltage: 24V DC
    Rated Current: 0.1A
    Consumed power :2.4W
    Revolution: 5589 ± 5% RPM
    Noise: 30 dBA
    Expected life: 28000 hours
    Size: 50mm x 50mm x 15mm(L x W x H)
    Wiring: red to positive black to negative
    Wire length:250mm
  • Model: DCF50TD-12V
    Item name: Blower Turbine  DC Fan Double Ball Bearing
    Bearing: Double Ball
    Material : Plastic
    Rated Voltage: 12V DC
    Rated Current: 0.06A
    Consumed power :0.72W
    Revolution: 3630 ± 5% RPM
    Noise: 23 dBA
    Expected life: 50000 hours
    Size: 50mm x 50mm x 15mm(L x W x H)
    Wiring: red to positive black to negative
    Wire length:250mm
  • Model: DCF50TD-24V
    Item name: Blower Turbine  DC Fan Double Ball Bearing
    Bearing: Double Ball
    Material : Plastic
    Rated Voltage: 24V DC
    Rated Current: 0.1A
    Consumed power :2.4W
    Revolution: 5589 ± 5% RPM
    Noise: 30 dBA
    Expected life: 50000 hours
    Size: 50mm x 50mm x 15mm(L x W x H)
    Wiring: red to positive black to negative
    Wire length:250mm
Dimensions Chart:

%E9%B9%8F%E8%BE%BE%E5%9B%BE%E7%BA%B8%E4%B8%8B%E8%BD%BD

Application:

DCF40T 12

DCF40T 13

Reviews (1)
5
Rated 5 out of 5
1 review
Rated 5 out of 5
1
Rated 4 out of 5
0
Rated 3 out of 5
0
Rated 2 out of 5
0
Rated 1 out of 5
0

1 review for 50mm Blower Turbine 12V/24V DC Cooling Fan

Clear filters
  1. Bakul Verma (verified owner) – 11/02/2023

    Rated 5 out of 5

    An awesome product with great flexibility. The customer support is superb. I recommend this without any doubt.

    0
    0
Add a review Cancel reply

Your email address will not be published. Required fields are marked *

1 2 3 4 5
1 2 3 4 5
1 2 3 4 5
1 2 3 4 5
1 2 3 4 5
1 2 3 4 5

You have to be logged in to be able to add photos to your review.

About MECHBLOCK
Literally and metaphorically your single soup to nuts destination, Sun Enterprises(https://mechblock.in/) is a New Delhi based innovators collective. We’re here to look after all your Machine Design as well factory goods requirements, we design turn-key solutions for everyone. We understand that easy access to components and parts forms the basis of all great inventions. Sun Enterprises(https://mechblock.in/) was founded to address this basic challenge of the availability of high-quality reasonably-priced products with quickest deliveries.
WARRANTY

1 Year Manufacturer Warranty

This item is covered with a Manufacturer warranty of 1 year from the time of delivery against manufacturing defects only. This is a quality product from the original manufacturer. Only manufacturing defects are covered under this warranty. Reimbursement or replacement will be done against manufacturing defects.

How to Claim Warranty:

  1. All Branded Product comes with 1 Year of warranty.
  2. For any Manufacturing defects, You can directly contact the after-sales team of the Manufacturer( Contacts is also mentioned in the User Manual)
  3. For claiming a warranty you need to submit support ticket.  https://mechblock.in/support/
  4. After a successful claim, Manufacturer will provide you with the products through us or directly.

What voids the warranty:

If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.

*All Generic & Non-Branded products do not come under warranty.



Related products

30mm Blower Turbine 12V/24V DC Cooling Fan
Compare
Quick view
Add to wishlist

30mm Blower Turbine 12V/24V DC Cooling Fan

MECHBLOCK
Rated 5.00 out of 5

In stock

₹237 – ₹349
Select options
Rated Voltage

12V DC, 24V DC

Type of Bearing

Oil Bearing, Double Ball Bearing

Condition

New

HSN

84439090

Brand

MECHBLOCK

30mm Brushless 12V/24V DC Cooling Fan
Compare
Quick view
Add to wishlist

30mm Brushless 12V/24V DC Cooling Fan

MECHBLOCK
Rated 5.00 out of 5

In stock

₹120 – ₹424
Select options
Brand

MECHBLOCK

Condition

New

Heat Sink

Included, Not Included

Rated Voltage

12V DC, 24V DC

Type of Bearing

Oil Bearing, Double Ball Bearing

HSN

84439090

New
Cooler Boss CAH-209-03 Cooling Fan for CPU
Compare
Quick view
Add to wishlist

Cooler Boss CAH-209-03 Cooling Fan for CPU

Cooler Master
Rated 5.00 out of 5

In stock

₹6,499 Incl GST (₹5,508 +18%GST)
Add to cart
Brand

Cooler Master

Condition

New

40mm Brushless 12V/24V DC Cooling Fan
Compare
Quick view
Add to wishlist

40mm Brushless 12V/24V DC Cooling Fan

MECHBLOCK
Rated 5.00 out of 5

In stock

₹144 – ₹360
Select options
Brand

MECHBLOCK

HSN

84439090

Rated Voltage

12V DC, 24V DC

Type of Bearing

Oil Bearing, Double Ball Bearing

Heat Sink

Included, Not Included

Fan Guard for 30mm/40mm/50mm Fans
Compare
Quick view
Add to wishlist

Fan Guard for 30mm/40mm/50mm Fans

MECHBLOCK
Rated 5.00 out of 5

In stock

₹50
Select options
Size

30mm, 40mm, 50mm

Brand

MECHBLOCK

Condition

New

HSN

84439090

Compare
Quick view
Add to wishlist

40mm Blower Turbine 12V/24V DC Cooling Fan

MECHBLOCK
Rated 5.00 out of 5

In stock

₹213 – ₹328
Select options
Rated Voltage

12V DC, 24V DC

Type of Bearing

Hydraullic Bearing, Oil Bearing, Double Ball Bearing

Brand

MECHBLOCK

Condition

New

HSN

84439090

50mm Brushless 12V/24V DC Cooling Fan
Compare
Quick view
Add to wishlist

50mm Brushless 12V/24V DC Cooling Fan

MECHBLOCK
Rated 5.00 out of 5

In stock

₹160 – ₹403
Select options
Rated Voltage

12V DC, 24V DC

Type of Bearing

Oil Bearing, Double Ball Bearing

Heat Sink

Included, Not Included

Brand

MECHBLOCK

Condition

New

HSN

84439090

Mechblock Sales Office

S-5, 2nd floor, Manish Link Road Plaza 2,Plot No. 10, Sector 5 Market, Dwarka,South West Delhi, New Delhi-110075

Mechblock Registered Office

 E-502, Plot No 36, Sector 10,Vinayak Apt, Dwarka,  South West Delhi, New Delhi-110075

Mechblock Warehouse

Plot No. 10, Sector 5, Central Road, Dwarka, South West Delhi, New Delhi-110075

mechblock

ORTUR | ATOMSTACK | TWOTREES | SCULPFUN| COMGROW Authorized Dealer Distributor Partner in India

Subscribe us

Brands

    • Ortur
    • Atomstack
    • Sculpfun
    • Twotrees
    • Openbuilds
    • Comgrow

Useful Links

    • About Us
    • Our contacts
    • Become an Affiliate
    • Submit Support Ticket
    • GST Input Tax Credit

Our Policies

    • About Us
    • Privacy Policy
    • Terms of Service
    • Shipping & Return Policy
    • Payment & Refunds
    • International Shipping Payments & Returns

Launching soon

Check us also at

mechblock
MECHBLOCK 2023 OWNED BY SUN ENTERPRISES. INDUSTRIAL E-COMMERCE SOLUTIONS.
payments
  • Menu
  • Categories
  • Atomstack
  • Ortur
  • Sculpfun
  • TwoTrees
  • OpenBuilds
  • Home
  • All Laser Engraver
  • Atomstack
  • Ortur
  • Sculpfun
  • CNC
  • OpenBuilds
  • Wishlist
  • Compare
Shopping cart
Close
Sign in
Close

Lost your password?

Continue with Google
OR
Don't have an account? Signup

No account yet?

Create an Account
We use cookies to improve your experience on our website. By browsing this website, you agree to our use of cookies.
Accept
Loading...
0 Compare
0 Wishlist
0 items Cart
Menu

Back

Insert/edit link

Enter the destination URL

Or link to existing content

    No search term specified. Showing recent items. Search or use up and down arrow keys to select an item.
