Inside Hidden Corner Bracket-20/30/40series
₹49.00 – ₹139.00 (Incl. GST)
- These connectors provide a hidden inside 90-degree corner connection for V-Slot or 2020/3030/4040 compatible extrusion system.
- Connection is quick and easy with included set screws.
- Fits V-Slot and your standard 20/30/40 series T-Slot Aluminium Extrusion.
| Quantity | Price | Discount |
|---|---|---|
| 2-10 | ₹48.02 | 2% |
| 11-50 | ₹46.55 | 5% |
| 51+ | ₹45.08 | 8% |
10
People watching this product now!
Mechblock Shopping Event
Hurry and get discounts on all Mechblock Products up to Rs.1000
Coupon code: MECHBLOCK
Description:

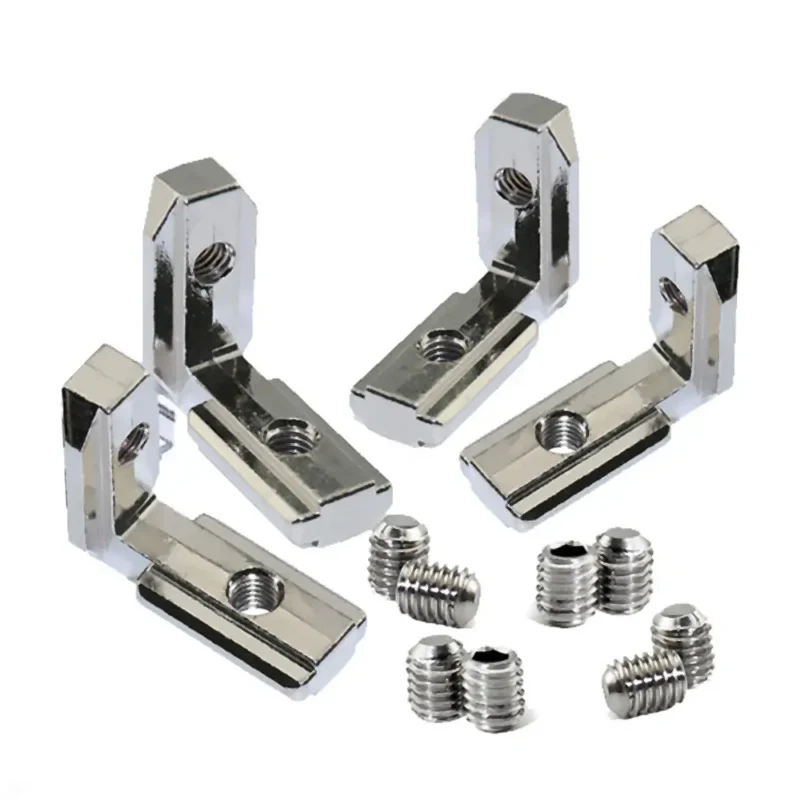

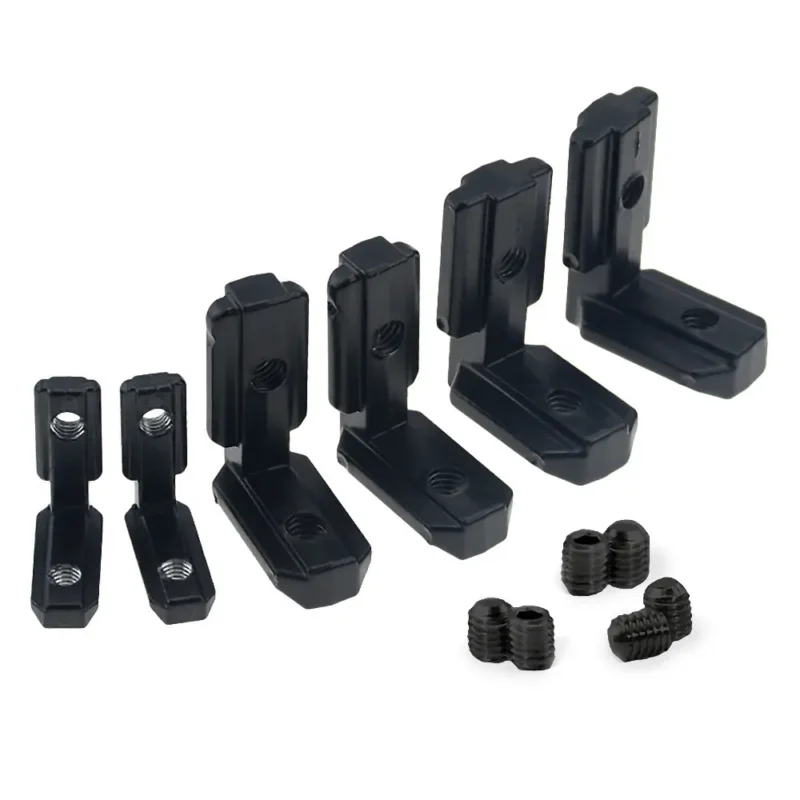

- These connectors provide a hidden inside 90-degree corner connection for V-Slot or 2020/3030/4040/4545 series compatible extrusion system.
- Connection is quick and easy with included set screws.
Each package includes:
- 1x Bracket
- 2x Screw
They are sold individually and are available with the following hole sizes:

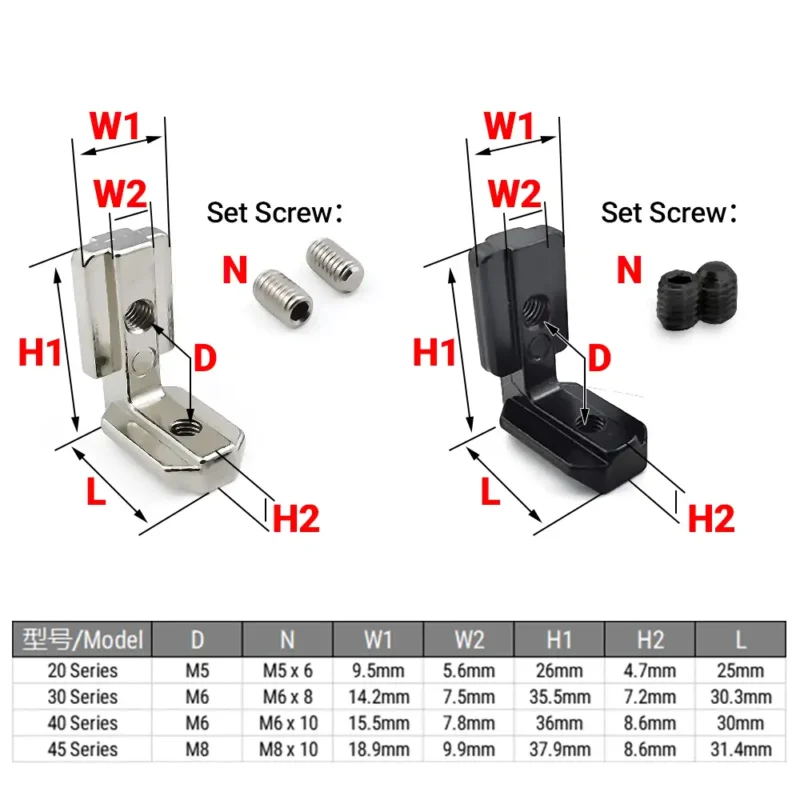

Specifications:
- Model:Â BR0001-1/BR0001-1B
- Item Name:Inside Hidden Corner
- Thread Size:M5
- Material:Â Zinc Alloy
- Finish:Â Silver Anodized or Black Anodized
- Compatible with 20mm Series V-Slot Linear Rail
- Model:Â BR0001-2/BR0001-2B
- Item Name:Inside Hidden Corner
- Thread Size:M6
- Material:Â Zinc Alloy
- Finish:Â Silver Anodized or Black Anodized
- Compatible with 30mm Series V-Slot Linear Rail
- Model:Â BR0001-3/BR0001-3B
- Item Name:Inside Hidden Corner
- Thread Size:M6
- Material:Â Zinc Alloy
- Finish:Â Silver Anodized or Black Anodized
- Compatible with 40mm Series V-Slot Linear Rail
- Model:Â BR0001-4
- Item Name:Inside Hidden Corner
- Thread Size:M8
- Material:Â Zinc Alloy
- Finish:Â Silver Anodized
- Compatible with 45 Series V-Slot Linear Rail
Application:
Package Include:
- 1*Inside Hidden Corner Bracket
