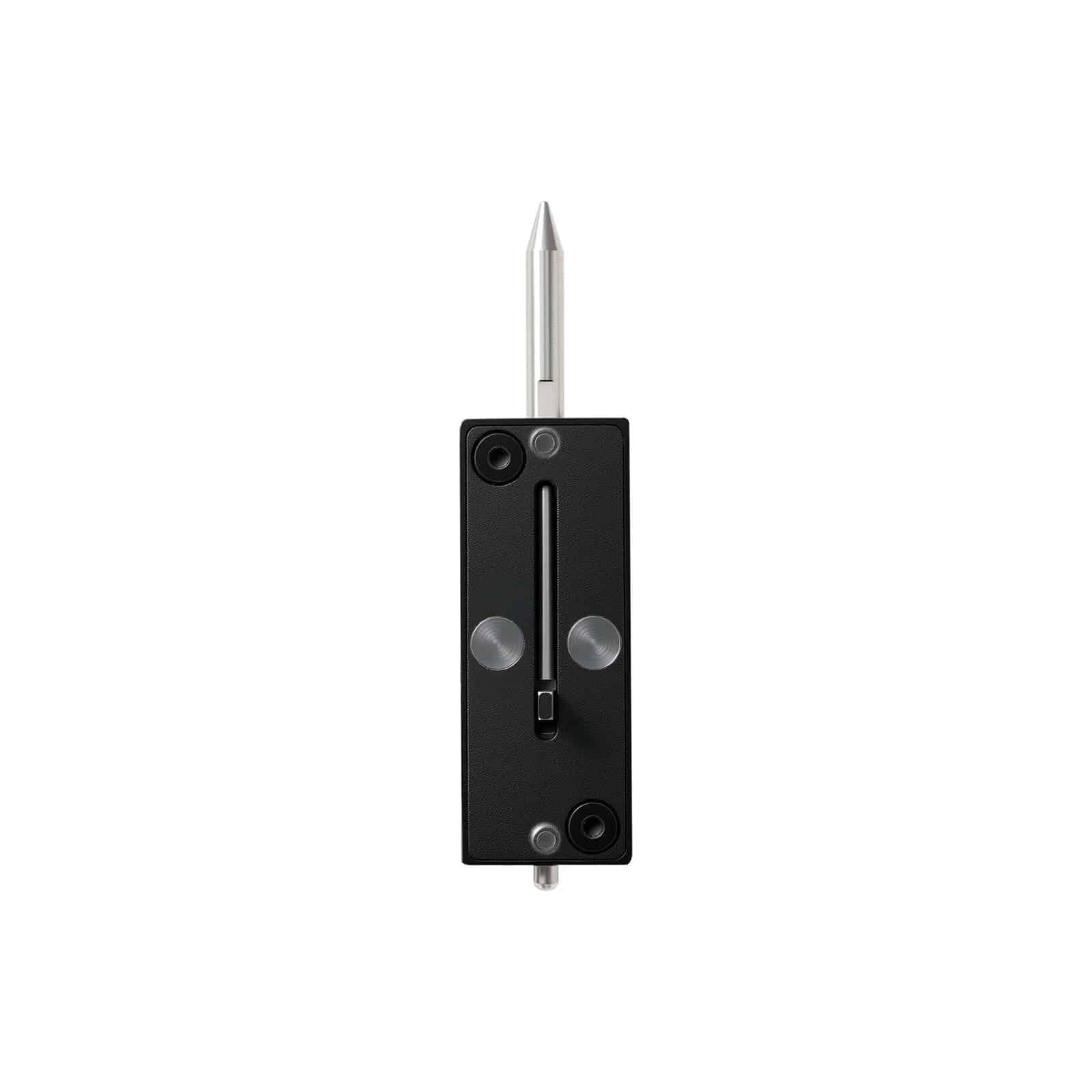

Distance Sensor for xTool S1

The Distance Sensor for xTool S1 is a dedicated accessory used with the xTool S1 for automatic distance measurement. It measures the distance between the laser module and the surface of the material, allowing the S1 to use the measured value for its Auto-measure and focusing workflow.

This xTool S1 distance sensor is particularly useful when the material height needs to be measured accurately before engraving or cutting. Instead of relying entirely on manual measurements, the S1 can use the sensor to determine the distance from the laser module to the material surface through the Auto-measure function in xTool Creative Space (XCS).

Key Features

• Designed specifically for the xTool S1
• Used for the S1 Auto-measure function
• Measures the distance between the laser module and material surface
• Supports the S1’s auto-focus workflow
• Attaches to the laser module
• Uses a probe to contact the material surface when measuring
• Useful for flat and suitable curved-material measuring workflows
• Available as a replacement accessory for the xTool S1

Automatic Distance Measurement

The main purpose of the Distance Sensor for xTool S1 is to provide automatic measurement of the distance between the laser module and the material surface.

When using the Auto-measure function, the laser module is positioned over the material and the locating spot is placed on the desired surface. XCS can then initiate the measurement, allowing the xTool S1 to determine the distance automatically.

This can simplify the setup process when preparing the machine for a new material or project.

Supports the xTool S1 Auto-Focus Workflow

The measured distance is used as part of the xTool S1’s focusing process. xTool explains that the S1 performs auto-focus based on the Distance parameter during processing.

The xTool S1 distance sensor therefore plays an important role in helping the machine establish the appropriate distance between its laser module and the material surface before processing.

How the Distance Sensor Works

The sensor is positioned on the laser module and uses its probe to measure the material surface. During installation, xTool’s S1 User Guide instructs users to align the protruding points on the back of the distance sensor with the corresponding holes on the laser module and guide the sensor toward the module until it attaches magnetically.

When Auto-measure is used, the sensor measures the distance from the laser module to the material surface. The resulting measurement can then be used by XCS for the machine’s focusing workflow.

Useful for Different Material Setups

Material thickness and surface height can vary considerably between projects. The Distance Sensor for xTool S1 provides an automatic measurement option that can make setup more convenient when changing between different materials or project configurations.

For suitable curved materials, xTool’s documentation explains that the distance sensor’s probe can touch the material surface during measurement. The material should be secured or supported when necessary to maintain stability during this process.

Compatible with xTool S1

The official product page specifically identifies the Distance Sensor for xTool S1 as compatible with the xTool S1. It is not presented as a universal distance sensor for other xTool machines.

For customers looking for an xTool S1 accessory to replace a damaged or missing distance sensor, this product is designed specifically for the S1 platform.

Replacement and Spare Use

The distance sensor is a removable component of the xTool S1 setup. xTool provides an official replacement procedure for the Distance Sensor for xTool S1, confirming that it can be replaced when necessary.

A replacement sensor can therefore be useful for maintaining the automatic measurement functionality of an existing S1 when the original sensor is damaged, lost, or otherwise needs replacement.

Auto-Measure in xTool Creative Space

The xTool S1 distance sensor works together with xTool Creative Space (XCS) for automatic measurement. On the computer version of XCS, users can position the laser module over the material and select the Auto-measure function under the Distance parameter. The S1 then measures the distance from the laser module to the material surface.

This provides a more convenient alternative to manually measuring the distance and entering the value into the software.

Manual Measurement Alternative

Although the distance sensor enables automatic measurement, xTool also documents a manual measurement method. Users can measure the distance from the material surface to the top of the laser module and calculate the value required for the Distance parameter.

The sensor is therefore an accessory that simplifies the measurement process rather than the only possible method of setting the S1’s distance parameter.

Important Usage Considerations

Before using Auto-measure, xTool instructs users to ensure that the probe of the distance sensor is not extending. The laser module should also be positioned so that the locating spot falls on the material surface before starting the measurement.

When measuring curved materials, make sure the material is stable because the sensor probe contacts the surface during measurement. xTool recommends using additional objects to secure or support the material when necessary.

Practical Applications

The Distance Sensor for xTool S1 can be useful for:

• Automatic distance measurement
• S1 auto-focus setup
• Preparing the machine for different material thicknesses
• Measuring suitable curved material surfaces
• Replacing a damaged or missing S1 distance sensor
• Maintaining the Auto-measure functionality of an xTool S1
• Streamlining setup before engraving and cutting projects

Specifications

The official xTool product page specifically confirms compatibility with the S1 and use for the machine’s Auto-measure function. The installation and operating details are based on xTool’s official S1 User Guide and support documentation.

Why Choose the Distance Sensor for xTool S1?

For xTool S1 users who need reliable automatic distance measurement, the Distance Sensor for xTool S1 provides the dedicated component required for the S1’s Auto-measure workflow. By measuring the distance between the laser module and material surface, it helps simplify setup and supports the machine’s automatic focusing process.

Whether you need a replacement for an existing sensor or a spare component for your S1, this xTool S1 accessory is designed specifically for maintaining the machine’s distance-measurement functionality.
