Description

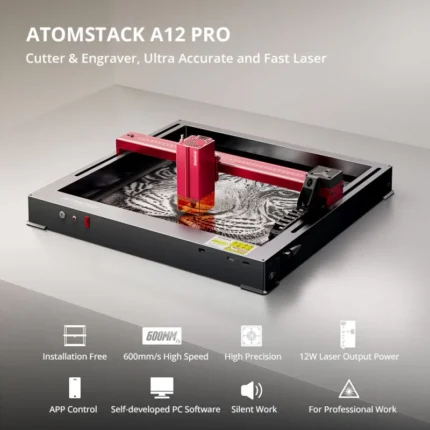

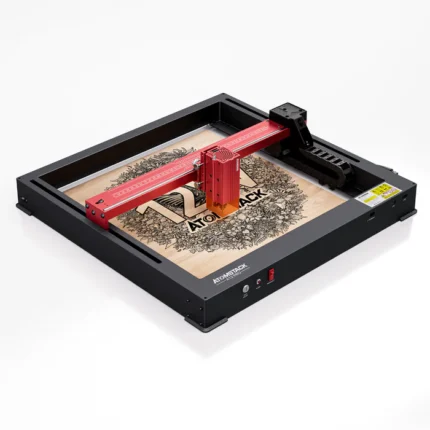

Atomstack A12 Pro Optical Power 12W All-In-One 50W 2nd Generation Unibody Frame Laser Engraver

Main Features:

1. Unprecedented Power: The world’s first laser engraver boasting a 12W optical power. With a cutting-edge combination of two 6W lasers.

2. Sturdy and No Setup Required: Crafted from anodized full aluminum alloy, this design ensures durability and engraving precision. Plus, it’s one-piece frame design, calibrated with precision before shipping, allowing you to use the perfect machine right out of the box.

3. Enhanced Motion Structure: The Atomstack A12 PRO sets a new standard with its superior structural stability, employing a linear guide for the X-axis. This ensures smooth operation at high speeds of up to 600mm/s, yielding perfect engraving and cutting lines without any shaking.

4. Cross Laser Positioning: Newly added cross laser positioning feature for clear visibility of the laser’s location, perfect alignment for engraving, and easy horizontal adjustment.

5. Advanced 32-bit Motherboard: Our latest AtomStack innovation features a 256-bit color scale, delivering unparalleled engraving clarity and contrast. Now, vibrant projects aren’t just a dream!

6. AtomStack Mobile App: Available on major Android and Apple stores, our custom-designed app provides a unique, seamless control experience. All in the palm of your hand!

7. Eye-Protection Redefined: Our panoramic filter glass cover shields eyes effectively, blocking 97% of UV light. No more goggles; observe your engraving in real-time, safely.

8. State-of-the-Art Fixed-Focus Laser: No more pre-engraving adjustments. This laser’s focal spot is notably smaller and more precise, marrying detailed engraving with powerful cutting.

9. Universal Compatibility: Supports a plethora of engraving software like LaserGRBL and LightBurn. Compatible with numerous OS and file formats, ensuring flexibility in your projects.

10. Detailed Axis Scale Lines: Precise scales on the X and Y axes enable swift measurements. With a generous 365*305mm engraving area, all your project needs are covered.

11. Double Compression Spot Coupling Technology: Ultra-fine laser focus area is reduced to 0.06*0.06mm, high-density laser can easily cut 15-20mm thick wooden boards and 10-15mm thick black acrylic; it can directly engrave mirror stainless steel Metal, ceramic, glass, etc. Its performance rivals that of a 150W CO₂ laser engraver.

12. Integrated Screw Rod: An all-in-one design for the stepper motor and screw rod ensures pinpoint laser accuracy and enhanced durability.

13. Convenient Laser Adjustment: Newly incorporated knob facilitates easy height adjustments.

14. Extreme Sintering Temperatures: Laser sintering reaches up to a searing 1200℃.

15. Side-Over Warning: Built-in gyroscope detection, when the tilt angle of the machine is greater than 15°, an alarm will be triggered, making engraving safer.

16. Emergency Control: An incorporated stop button ensures immediate response during unexpected situations, enhancing safety.

17. Built-In Limiter: Included for added safety and precision.

18. Reset Capability: Built-in for user convenience.

Specification:

Brand: Atomstack
Model: A12 Pro
Engraving Size: 365*305mm
Overall Machine Power: 50W
Laser Output Optical Power: 10-12W
Laser Wavelength: 455±5nm
Laser Spot: 0.06*0.06 mm
Focusing Mode: fixed focus laser, no focus
Laser Protective Cover: Laser shield: There is a protective shield on the laser that protects the user’s eyes, eliminating the need to wear additional eye protection. It also prevents pets from grabbing the laser spot.
Operating Software: LaserGRBL, LightBurn, Supports Windows/Linux/macOS
Supported File Formats: JPG, JPEG, SVG, PNG, BMP, PDF, G-Code, DXF.
Data Transfer Method: USB, APP
Power Supply: International standard power
Input: 100-240V AC, 50/60HZ
Output: 24V 5A
Certification: CE FCC RoHS FDA PSE

 More Details:

List of accessories:

Cable anchor x 8PCS
Cable clamp x 8PCS
WIFl antenna
Fixed focus lens
Flash drive
Power adapter 24V,5A
H3 hexagon L-shaped wrench
M4 thumb screw x 2PCS
Slider
Switch key
One-to-two TYPE C cable
Power cable
X-axis link cable
Silicone hose(air hose)
Goggles
100*30 lint-free cloth
(M4*6)x 4PCS
User manual
