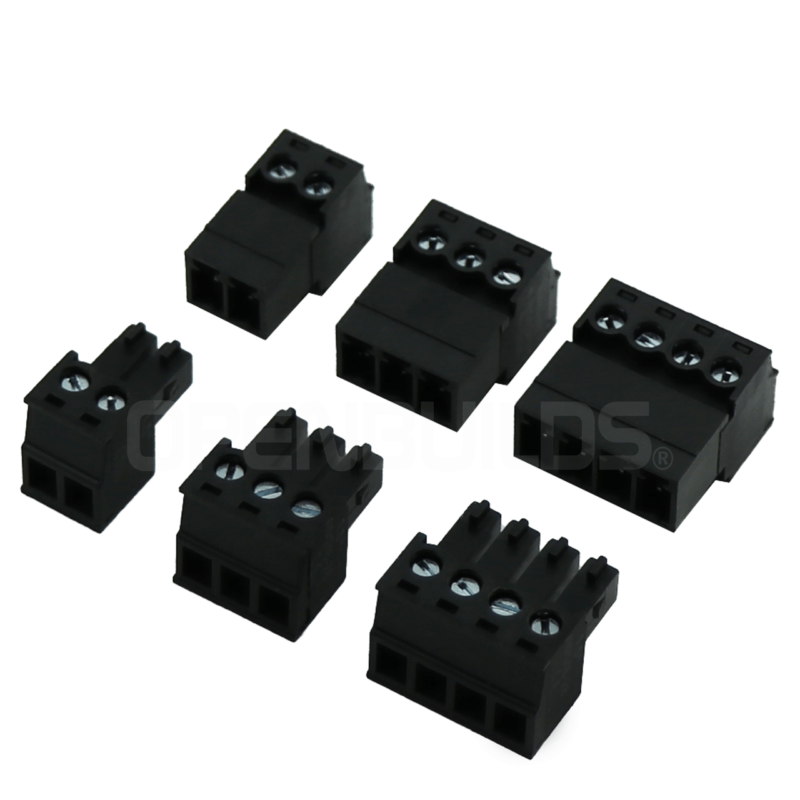

Welding-free Plug-in Terminal Block 2EDGRK Pitch – Black
₹58.00 (Incl. GST)
- These Plug-in Connector Terminal Blocks are a simple and efficient and method of terminating your electrical connections.
- These Connector Blocks comes in a pair of Male and Female connectors.
- We provide two kinds of 3.81mm and 5.08mm of the distance between the Centre of each terminal.
In stock
In stock
13
People watching this product now!
Mechblock Shopping Event
Hurry and get discounts on all Mechblock Products up to Rs.1000
Coupon code: MECHBLOCK
These Plug-in Connector Terminal Blocks are a simple and efficient method of terminating your electrical connections.
These Connector Blocks come in a pair of Male and Female connectors. We provide two kinds of 3.81mm and 5.08mm the distance between the centre of each terminal.
Specification
- Main Colour: Black
- Country of Manufacture: China
- Minimum Operating Temperature: -40°C
- Maximum Operating Temperature: 105°C
- Soldering Temperature: 250℃/5s ( ±10℃)
- Distance between contacts (centre): 3.81mm/5.08mm
- Terminal orientation: Straight
- Maximum Voltage Rating: 300 V
- Maximum Rating Current: 10 A
- Connector Type: Plug terminal block
- Connector kind: Male / Female
- Terminal type: Cage clamp, Screw terminal (flat head)
- Terminal size: Suitable for 1.5mm² wire
- Housing material: PA66
- Recommended stripping length 6-7mm
-The number of terminals (holes):
-
- TB381A-2P/3P/4P
- TB508A-2P/3P/4P
Pro Tips:
For stranded wire: Strip wire to the appointed length and mate with the corresponding type of ferrule or lug. Alternatively tin ends with solder.
Tighten by hand, do not use power tools.
Use the two-pin connector to deliver DC voltage with DC Cable – 2 Core 2mm for currents up to 6A.
