SSR-40DA Solid State Relay Module 3-32VDC/24-380VAC 40A

(20 customer reviews)

339.00 Incl GST (287.29 +18%GST)

  • Long Service life and high Reliability
  • Reduced Electromagnetic Interference
  • Highly reliable, compact size designed to offer users maximum simplicity
  • Trigger Voltage: 3-32VDC
  • Switching Voltage: 24-380VAC@40A
EAN: 8903470453364 SKU: MB-40DASSRM Categories: , Tags: ,

2 in stock

2 in stock

Check Availability At

Shipping to IN
Add 1,999.00 to cart and get free shipping!
13 People watching this product now!

Mechblock Shopping Event

Hurry and get discounts on all Mechblock Products up to Rs.1000

Coupon code: MECHBLOCK

Description:

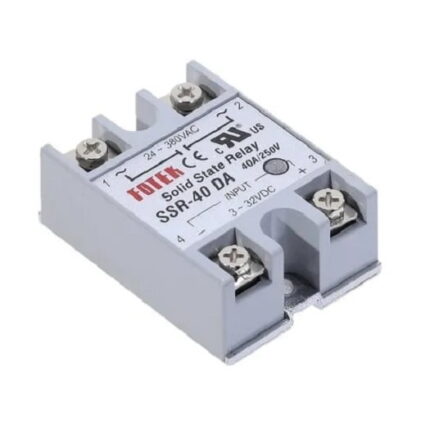

This is SSR-40DA Solid State Relay Module 3-32VDC/24-380VAC 40A. A solid state relay (SSR) allows you to control high-current AC loads from lower voltage DC control circuitry. Solid state relays have several advantages over mechanical relays.

One such advantage is that they can be switched by a much lower voltage and at a much lower current than most mechanical relays. Also, because there are no moving contacts, solid state relays can be switched much faster and for much longer periods without wearing out.

This particular SSR can switch current loads of up to 40A with a 3-32V DC input and a zero cross trigger control method. Each one of these relays is equipped with four screw terminals (for use with ring or fork connectors) and a plastic cover that slides over the top of the relay to protect the terminals.

Features:

  • Long service life and high reliability
  • Reduced electromagnetic interference
  • Highly reliable, compact size designed to offer users maximum simplicity.

Specification:

Model SSR-40DA
Dielectric Strength Over 2.5kVA / 1 min
Trigger Voltage (VDC) 3-32
Switching Voltage (VAC) 24-380@40A
Operating Temperature Range (°C) -20 to 85
Material ABS

Package Include:

  • SSR-40DA Solid State Relay Module -1Pc
Weight 0.12 kg
Dimensions 7 × 6 × 3 cm
