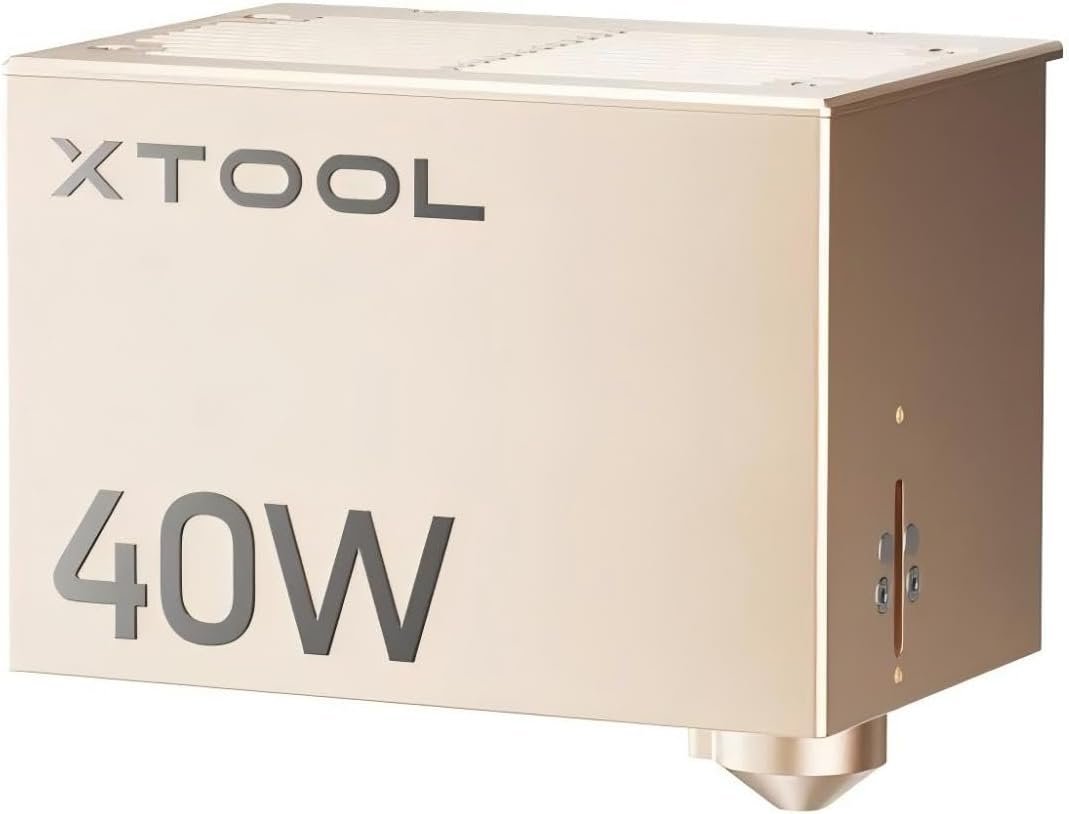

Replacement Laser Module for xTool S1 40 W Optical Power
₹99,999.00 Incl.GST / ₹84,744.92 Excl.GST
- Powerful Cutting: Combines eight 5.5W lasers, achieving 40W CO2-like cutting power.
- Thick Material Cuts: Cuts up to 18mm wood and colorful acrylic with ease.
- Fast Cutting Speed: Cuts 3mm basswood at up to 15mm/s, faster than 20W and 10W modules.
- High Precision: Fine engraving with a precise 0.08*0.10 mm laser spot size.
- Multi-Material Use: Cuts wood, acrylic, and thin metal, ideal for varied projects.
Mechblock Shopping Event
Hurry and get discounts on all Mechblock Products up to Rs.1000
Coupon code: MECHBLOCK
Description
Compatible with S1 Laser Engraver Only – Create like a professional with our 40W laser head, capable of reaching speeds up to a blazing 600mm/s. Effortlessly slice through materials up to 18mm thick in a single pass.
Powerful Cutting Efficiency – The 40W can cut 18mm cherry wood, 15mm dark opaque acrylic, and 0.1mm stainless steel in one pass.
Upgrade with Ease – Upgrade effortlessly by simply replacing the laser head, eliminating the need to purchase an additional machine. This maximizes cost and space savings for you.
Thicker cut: Maximum thickness of one cutting
| Laser Module | 40W | 20W | 10W |
|---|---|---|---|
| Cherry Wood | 18mm | 10mm | 6mm |
| Basswood Plywood | 15mm | 10mm | 6mm |
| Walnut Wood | 15mm | 10mm | 6mm |
| Black Acrylic | 15mm | 8mm | 3mm |
| Stainless Metal | 0.1mm | 0.04mm | – |
Higher efficiency: MAX.cutting speed of one cutting
| 40W | 20W | 10W | |
|---|---|---|---|
| 3mm Basswood | 15mm/s | 9mm/s | 5mm/s |
| 6mm Basswood | 10mm/s | 4mm/s | – |
| 10mm Basswood | 6mm/s | 3mm/s | – |
Higher precision: Fine engraving
| ย 40W | 20W | 10W | |
|---|---|---|---|
| Spot Size | 0.08*0.10 mm | 0.08*0.06 mm | 0.06*0.04 mm |
Additional information
| Weight | 0.35 kg |
|---|---|
| Dimensions | 12 × 12 × 12 cm |
