USONGSHINE Nema 17 17HS6001S Stepper Motor for CNC 3D Printer
₹1,499.00 Incl GST (₹1,270.34 +18%GST)
2020 V-Slot Gantry Plate with Three Wheels Buckle
₹999.00 Incl GST (₹846.61 +18%GST)
USONGSHINE Nema 17 17HS3401 Stepper Motor for CNC 3D Printer
₹650.00
Step angle accuracy: +-5%
Resistance accuracy: +/- 10%
Inductance accuracy: +-20%
Temperature rise: maximum 80 degrees
Check Estimated Delivery at
Shipping to IN
12
People watching this product now!
Mechblock Shopping Event
Hurry and get discounts on all Mechblock Products up to Rs.1000
Coupon code: MECHBLOCK

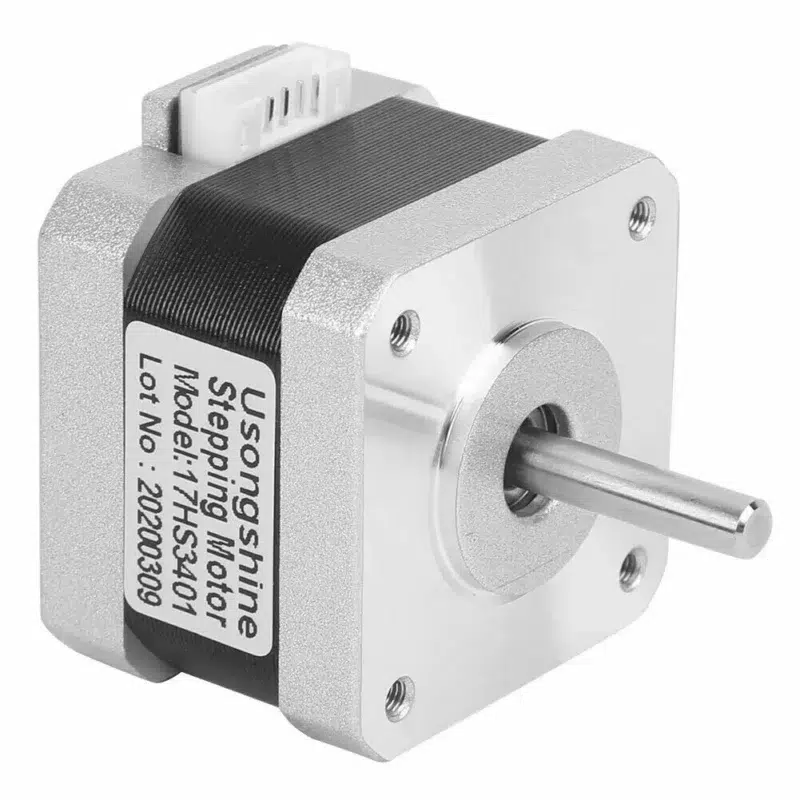

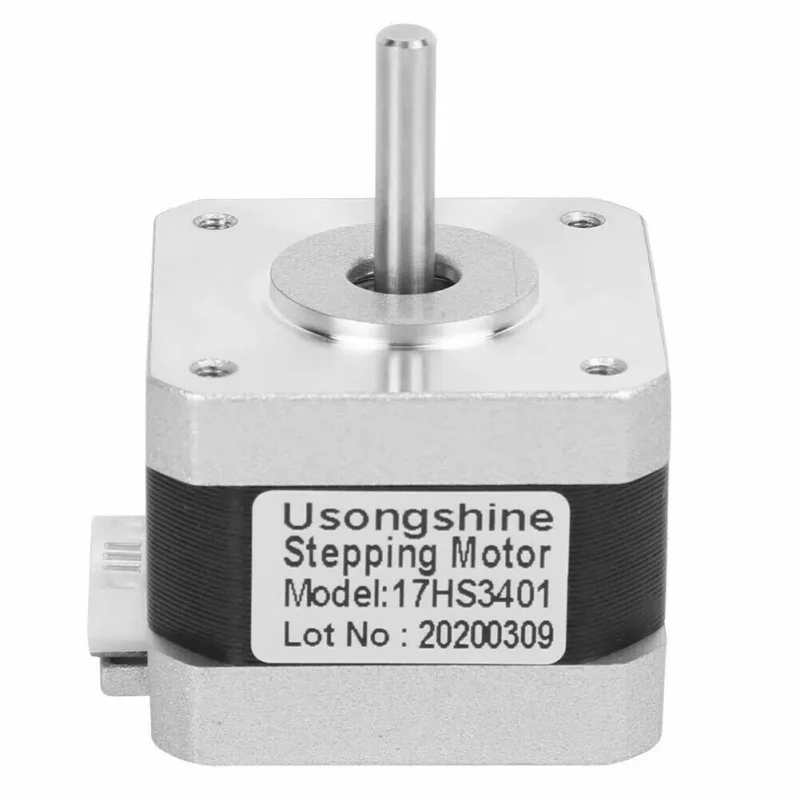

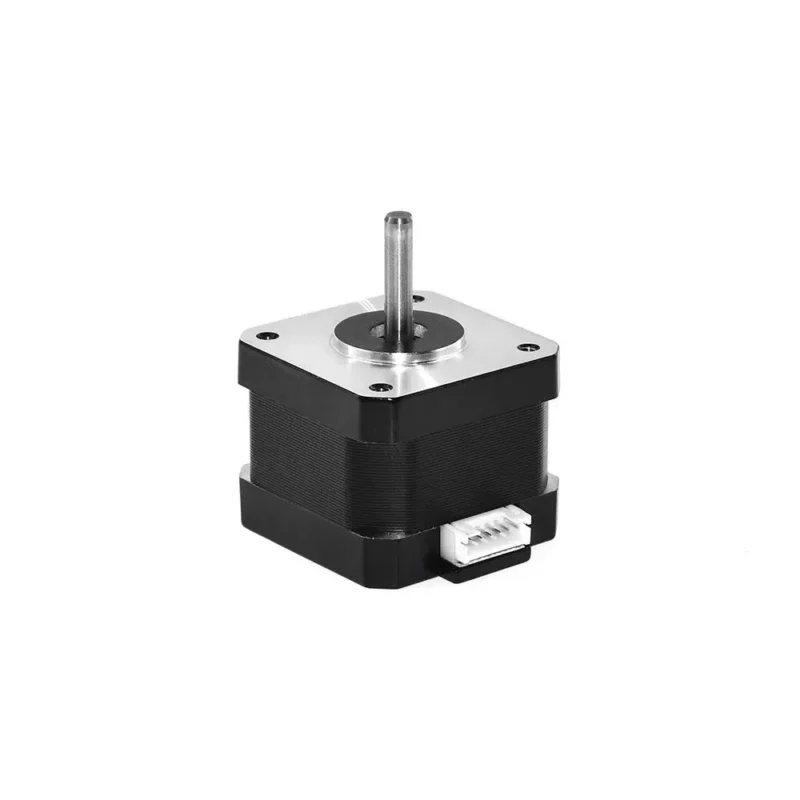

USONGSHINE – 17HS3401
With its advanced magnetic circuitry and low noise levels, the Nema 17 stepper motor provides smooth and reliable operation, ensuring accurate positioning and efficient motion control. It is widely used in 3D printer, CNC machine, laser engraving, medical equipment, and other automation systems. Its compact size and high torque make it suitable for various demanding applications.
- Â Body Length: 33mm/1.3inch;
- Step Angle: 1.8 degree;
- Phase: 2;
- Rated Voltage: 3.4V;
- Rated Current: 1A;
- Phase Resistance: 3.4Ω;
- Phase Inductance: 3.4mH;
- Holding Torque: 29N.cm (41.3oz.in);
- Detent Torque: 2.0N.cm
- Step angle accuracy: +-5% (full step, no load)
- Resistance accuracy: +/- 10%
- Inductance accuracy: +-20%
- Temperature rise: maximum 80 degrees (rated current, two-phase line)
- Ambient temperature — 20 degrees ~ 50 degrees
- Isolation resistance: Minimum 100mΩ, 500vdc
- Isolation strength — 500VAC for one minute

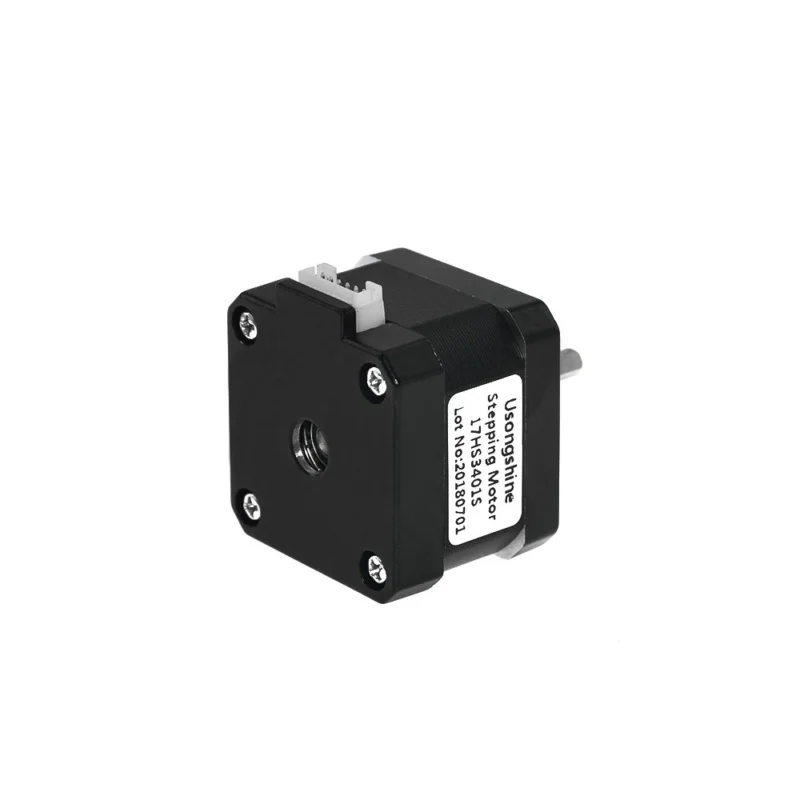

USONGSHINE – 17HS3401S
The 17HS3401S USONGSHINE Stepper Motor is a high-precision motor with superior performance for your DIY projects. With a step angle of 1.8 degrees and a Detent torque of 18mN.m, this motor is perfect for various applications. Whether building a 3D printer or a CNC machine, the USONGSHINE Stepper Motor delivers the accuracy and reliability you need.
- Â Step angle- 1.8 degrees
- Rated Voltage- 7.3 V
- Rated current- 1 A
- Detent torque- 18mN.m
- Relative humidity- 90%
- No. phases- 2
- Low noise
- Low heat

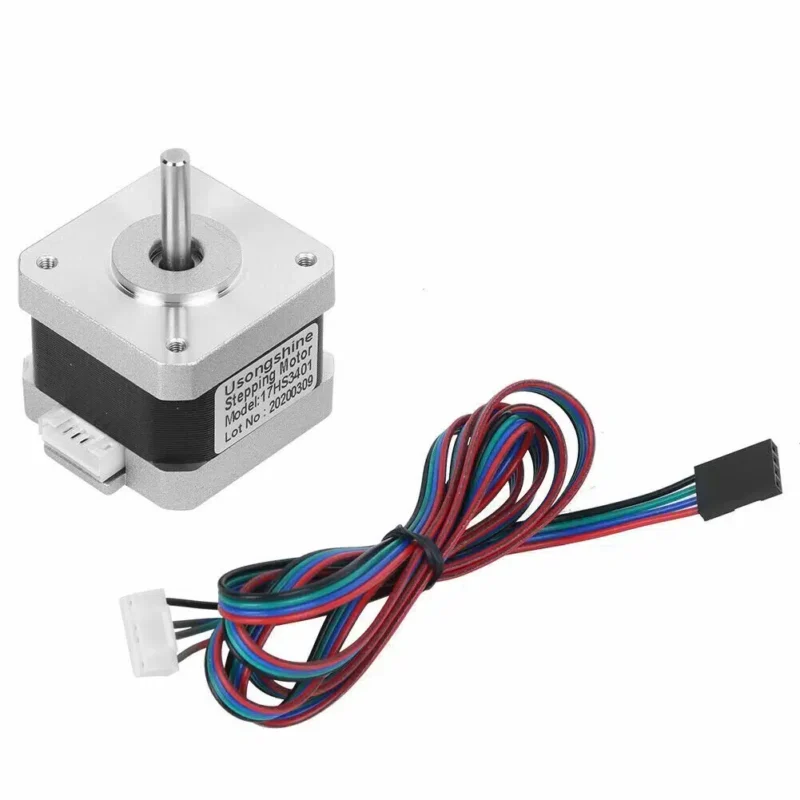

PAckage Include : 1*USONGSHINE Stepper Motor for CNC 3D Printer 17HS3401S/17HS3401
| Weight | N/A |
|---|---|
| Brand | |
| Condition | |
| HSN Code | |
| Model | , |
15 Days Warranty
This item is covered with a standard warranty of 15 days from the time of delivery against manufacturing defects only. This warranty is given for the benefit of Mechblock customers from any kind of manufacturing defects. Â Reimbursement or replacement will be done against manufacturing defects.
What voids warranty:
If the product is subject to misuse, tampering, static discharge,mishandelling of the product, accident, water or fire damage, use of chemicals & soldered or altered in any way.
