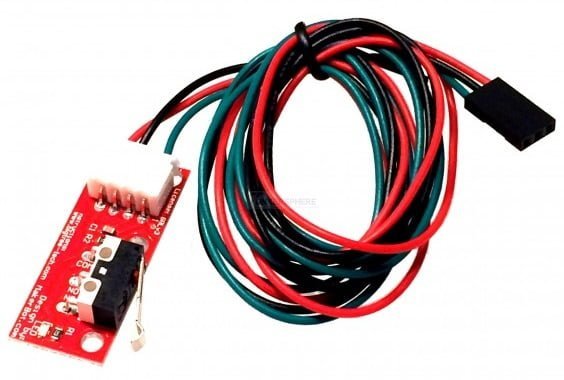

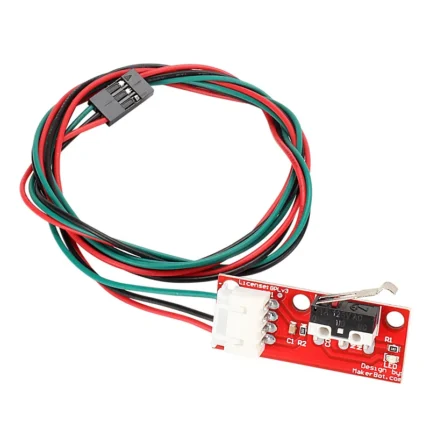

End Stop Switch – PCB Mounted with Connectors and Wire
₹91 Incl GST (₹77 +18%GST)
These End Stop Switch are for RepRap 3D Printers or CNC machines, it is supported by RepRap electronics, RAMPS 1.4 and by other popular RepRap boards. They are easy to mount and even easier to connect.
Mechblock Shopping Event
Hurry and get discounts on all Mechblock Products up to Rs.1000
Coupon code: MB01510
The End Stop Switches are customized high-quality connection, using 22AWG wire, copper wire inside is very thick, can be resistant to current 2A, 300V voltage. An insulating layer over a wide range of temperatures, up to 80 degrees. Not easy to break, convenient for the plug, ease for use, one side is an integrated plug.
Compared to regular microswitches, these PCB-mounted switches have onboard LEDs – making it easy to see if your End Stop Switches are being triggered. Cut out the guesswork!
1) red line connecting VCC (ramps of +)
2) Connect the black wire GND (ramps of -)
3) Green Line connection SIGNAL (ramps in s)
Tips: Under normal circumstances, the system must be configured to at least three mechanical switches.
Pros: Easy to install, the more common styles.
1 x Mechanical Switch PCB
1 x Cable 3-pin 70CM
