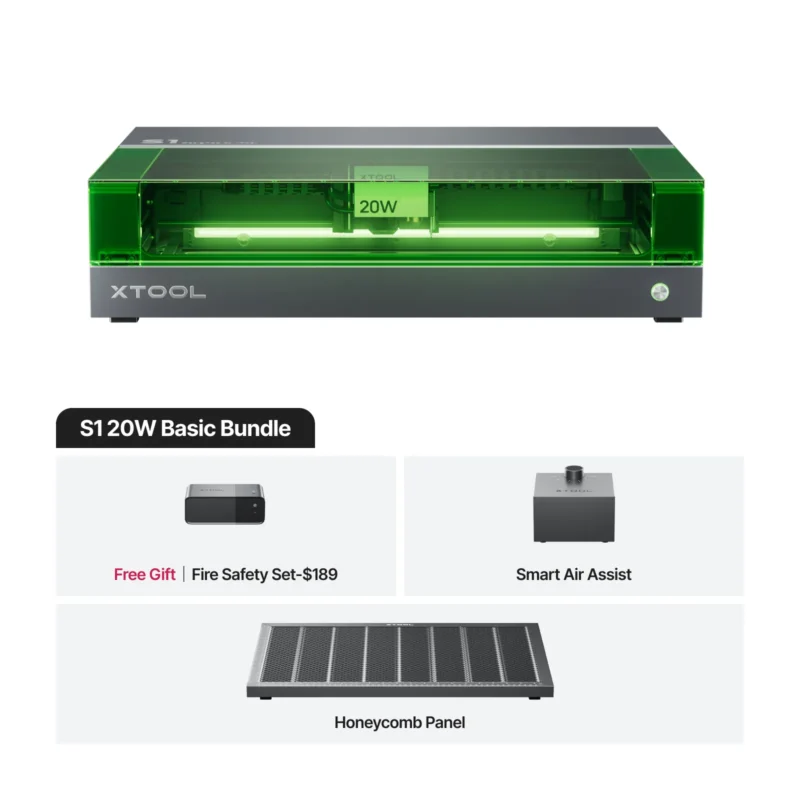

xTool S1 20W Enclosed Diode Laser Cutter & Engraver
Powerful, Safe, and Built for Precision
The xTool S1 20W is a high-performance enclosed diode laser machine designed to deliver exceptional precision, speed, and safety in a compact, professional-grade package. Whether you’re a creative hobbyist or a small business owner, the S1 offers the power and versatility needed to bring your ideas to life—safely and efficiently.

Key Features
20W Diode Laser Power
With a powerful 20-watt laser output, the xTool S1 can engrave and cut a wide variety of materials with excellent detail and efficiency. It’s ideal for working with wood, leather, fabric, paper, opaque acrylic, coated metals, and more.

High Speed and Accuracy
Achieve engraving speeds up to 600 mm per second, with a fine laser spot size of 0.08 × 0.06 mm. This ensures clean, sharp detail and minimizes time spent on each project.

Smart Autofocus and 3D Engraving
The S1 features an advanced autofocus system with 3D surface detection. It automatically adjusts for material height and surface curvature, enabling accurate engraving even on uneven or curved objects.

Large Working Area with Expansion
Enjoy a generous 498 × 319 mm work area—perfect for both personal and commercial projects. Optional accessories like a conveyor system and riser base allow for even larger or thicker materials.

Secure Enclosed Design
Built as a Class 1 laser device, the machine is fully enclosed for maximum user safety. Features like a locking lid, emergency stop, auto shut-off when opened, and built-in smoke exhaust make it safe to use indoors or in shared spaces.

Modular Laser Head System
The xTool S1 supports interchangeable laser modules. While this model uses the 20W module, it’s fully upgradeable—allowing you to switch to different power levels or even an infrared module without buying a new machine.

Creative Control Made Simple
Pin-Point Positioning
Dual-laser crosshair alignment makes setup easy and highly accurate, letting you position your designs without relying on cameras.

Smart Software Integration
The S1 works seamlessly with xTool Creative Space and also supports LightBurn for advanced workflows. Use preloaded material presets or fine-tune your settings with full control.

Multi-Platform Compatibility
Connect via USB or Wi-Fi. Compatible with Windows, macOS, iOS, and Android, so you can work from your computer, tablet, or smartphone.

Versatile Applications
Cutting & Engraving: Wood, leather, fabric, paper, cardboard, felt, bamboo, dark acrylic, and coated metals

Marking: Painted or coated metals

Customization: Ideal for crafting personalized items like signage, jewelry, home décor, phone cases, business cards, and promotional items

Accessories & Add-ons
Enhance the capabilities of the S1 with optional accessories:

RA2 Pro Rotary Tool – for engraving mugs, tumblers, and cylindrical objects

Riser Base – process taller items

Air Assist & Smoke Purifier – cleaner cuts and improved safety

Conveyor Feeder – for long material passthrough

Package Includes:

1 x  xTool S1

1 x Laser module

1 x Screwdriver

1 x Distance sensor

11 x Screw M3*8

1 x Key

1 x Power cable and adapter

1 x USB cable

1 x Smoke exhaust pipe

1 x Parts storage box

1 x User manual
