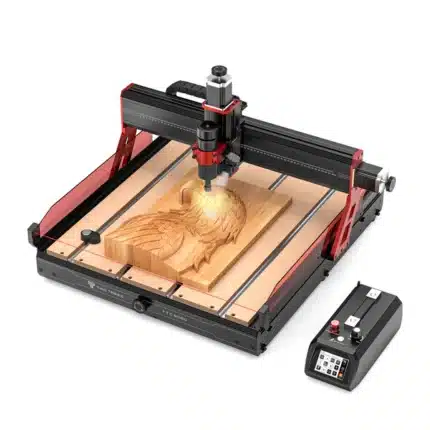

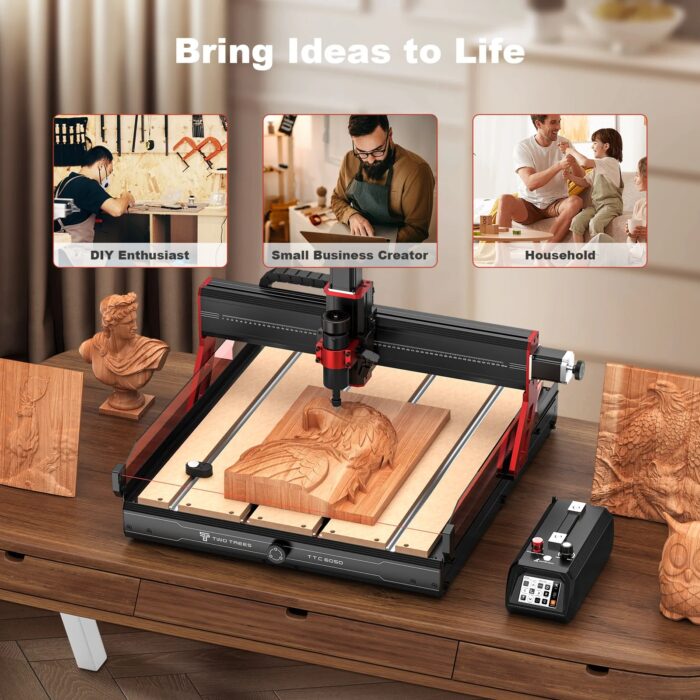

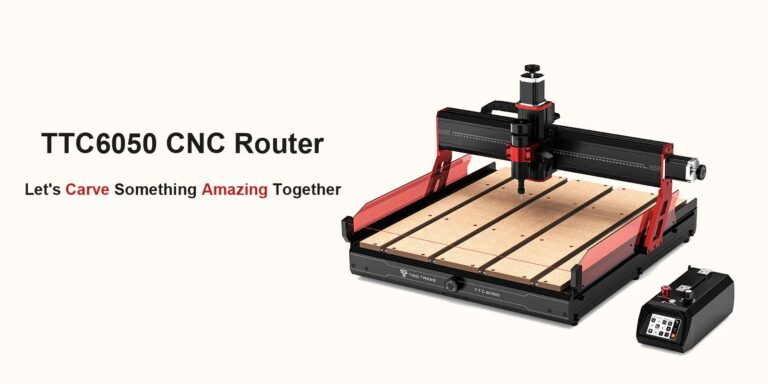

Twotrees TTC6050 CNC Router Machine
- Spindle – A 500-watt spindle motor with a maximum speed of 12,000 RPM, suitable for high-precision milling and engraving tasks.
- Working Area – 600 x 500 x 100 mm
- Supported Materials – Plywood, MDF, hardwood, acrylic, carbon fiber, aluminum, copper, stainless steel
- Dust protection – System prevents dust and debris from entering the drive system, extending the machine’s lifespan.
- Structure – Made of aluminum, equipped with ball screws and linear guide rails on the XYZ axes
- Safety – Infrared sensors to detect obstacles, spindle stop button for safe tool changes, emergency stop
- Expansion – 20W laser module, rotary axis, and an 800W spindle
₹128,699.00 Incl.GST / ₹109,066.95 Excl.GST
10 in stock
10 in stock
Shipped from Our Delhi Warehouse
Description
TwoTrees TTC6050 CNC Router Machine – Large-Format Precision CNC for Makers and Professionals
The TwoTrees TTC6050 CNC Router Machine is a powerful and versatile desktop CNC designed for creators, workshops, educational institutions, and small businesses seeking professional-grade engraving and cutting capabilities. Featuring a spacious 600 × 500 × 100 mm working area, a high-performance 500W spindle, and an industrial-style motion system with linear guides and ball screws, the TTC6050 delivers impressive precision, stability, and reliability across a wide range of materials.
Built around the open-source GRBL control platform, the machine combines advanced functionality with user-friendly operation through its integrated touchscreen controller, Wi-Fi connectivity, and offline file support. Whether you’re creating custom wood signs, acrylic displays, carbon fiber parts, aluminum components, or detailed artistic engravings, the TTC6050 offers the flexibility and performance required for demanding projects.
Powerful 500W Spindle with Upgrade Potential
At the heart of the TTC6050 is a 500W high-speed spindle capable of delivering smooth and consistent cutting performance. For users requiring additional power, the machine supports optional upgrades to 800W, 2000W, and 3000W spindle configurations, making it adaptable for everything from hobby projects to more advanced manufacturing applications.
The spindle operates across a wide 8,000–30,000 RPM speed range and utilizes an ER11 collet system, compatible with cutting tools ranging from 0.5 mm to 6 mm in diameter. This versatility enables precise engraving, contour cutting, pocket milling, and detailed carving across multiple materials.
Compatible Materials
The TTC6050 is designed to process a broad range of materials, including:
- Hardwood and softwood
- MDF and plywood
- Acrylic and plastics
- Carbon fiber sheets
- PCB materials
- Aluminum
- Copper
- Brass
- Stainless steel (light-duty engraving applications)
This multi-material capability makes the machine suitable for woodworking, prototyping, custom signage, model making, product development, and educational training.

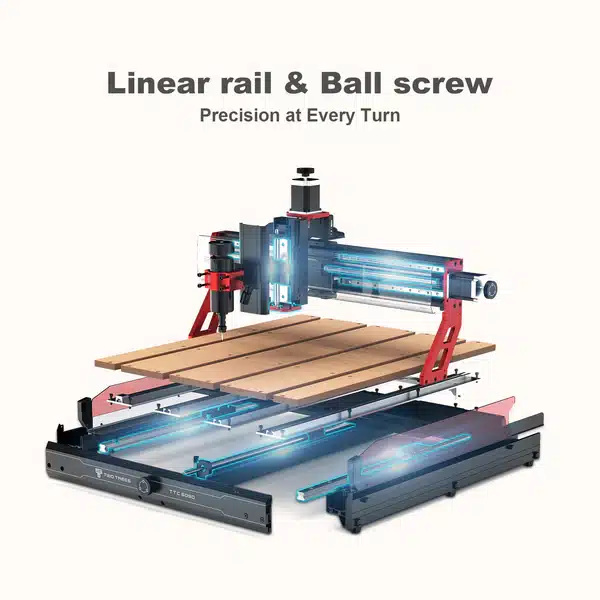

Industrial-Grade Motion System for High Accuracy
Unlike entry-level CNC machines that rely on belts or rollers, the TTC6050 uses a professional-grade transmission system featuring:
- C7 precision ball screws
- Linear guide rails on all axes
- Rigid aluminum alloy frame construction
- Dust-protected drive components
This robust architecture provides exceptional rigidity while minimizing backlash and vibration during operation.
Precision Specifications
- X/Y Axis Positioning Accuracy: 0.01 mm
- Z Axis Positioning Accuracy: 0.0025 mm
- Engraving Accuracy: ±0.05 mm

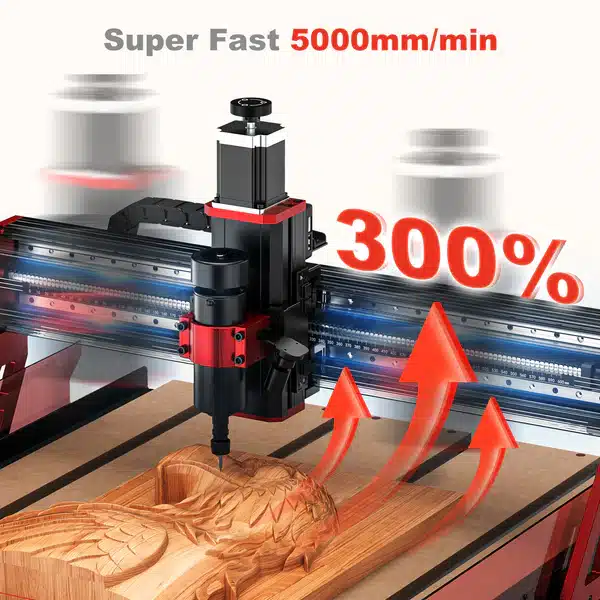

- Maximum Travel Speed: 5000 mm/min
These specifications allow the TTC6050 to reproduce intricate details accurately while maintaining consistent results across extended production runs.
Intelligent GRBL Controller with Touchscreen
The machine is powered by a modern GRBL-based control system that simplifies machine setup and operation. The included 3.5-inch touchscreen controller provides direct access to essential CNC functions without requiring constant computer connectivity.
Key controller functions include:
- Manual axis movement
- Speed and feed adjustment
- Tool height calibration
- Work origin setup
- CNC and laser mode switching
- Job monitoring and control
- Multi-language support (8 languages)
The controller supports industry-standard .NC and .GCODE file formats and works with popular CNC software including:
- Fusion 360
- ArtCAM
- Candle
- Universal G-Code Sender
- Other GRBL-compatible CAM software
Wi-Fi Connectivity and Offline Operation
For added convenience, the TTC6050 includes built-in 2.4GHz Wi-Fi connectivity and TF card support, allowing users to run projects without maintaining a direct USB connection.
Benefits include:
- Wireless file transfer
- Reduced cable clutter
- Reliable offline machining
- Easy project management
This functionality is especially useful for workshop environments and educational settings where multiple users may share equipment.

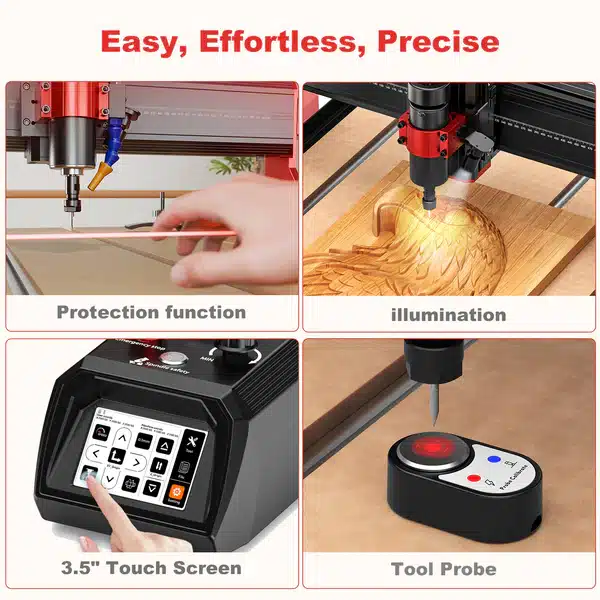

Enhanced Safety Features
Safety is an important aspect of the TTC6050 design. The machine incorporates several protective systems to help reduce operational risks.
Infrared Monitoring System
An integrated infrared detection system continuously monitors the machining area and can automatically stop spindle operation when unexpected interference is detected.
Limit Switch Protection
Mechanical limit switches help prevent over-travel on machine axes and improve positioning consistency during homing operations.
Expandable Platform for Future Upgrades
One of the TTC6050’s major strengths is its modular design and expansion capability.
The controller includes interfaces for additional accessories such as:
- Rotary (4th-axis) modules
- Laser engraving heads
- Air assist systems
- Dust collection accessories
- Higher-power spindle upgrades
This upgrade path allows users to expand machine functionality as project requirements evolve without replacing the entire CNC platform.
Durable Construction with Dust-Protected Components
The TTC6050 is engineered with long-term durability in mind. Its enclosed transmission design helps protect critical motion components from dust, chips, and debris generated during machining operations.
Benefits include:
- Reduced maintenance requirements
- Improved reliability
- Longer component lifespan
- Consistent machining accuracy
The machine also features replaceable MDF spoilboards, making maintenance simple and cost-effective after repeated cutting operations.

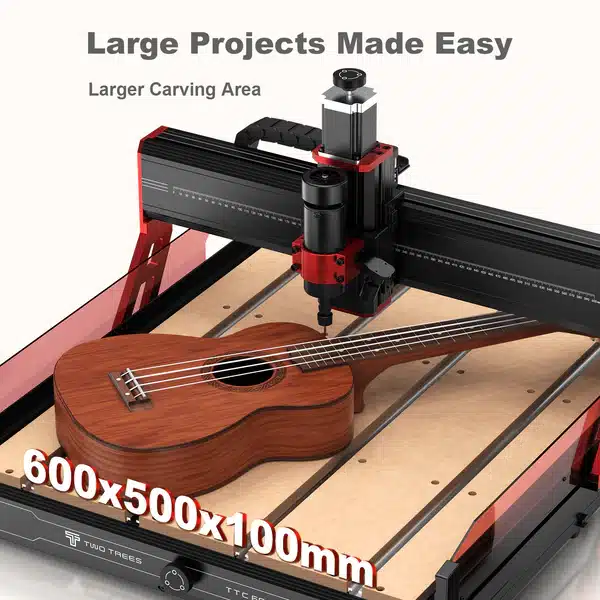

Large Working Area for Bigger Projects
The generous 600 × 500 × 100 mm work envelope allows users to process significantly larger projects than typical desktop CNC routers.
This larger workspace is ideal for:
- Furniture components
- Large signs
- Decorative wall art
- Prototype panels
- Acrylic displays
- Educational engineering projects
- Small production runs
The additional machining area reduces the need for repositioning larger workpieces, improving workflow efficiency and accuracy.
What’s Included in the Box?
The TTC6050 package comes nearly ready for assembly and includes:
- TwoTrees TTC6050 CNC Machine (95% pre-assembled)
- 500W spindle motor
- Touchscreen controller
- Power supply
- Bit height probe
- Four workpiece clamps
- Engraving tools and cutters
- Safety glasses
- Hearing protection
- User manual
- Test engraving material
Depending on the package selected, users may also receive optional accessories such as additional end mills, upgraded spindle motors, or dust collection systems.
Why Choose the TwoTrees TTC6050?
The TTC6050 combines a large working area, industrial-style motion components, upgrade flexibility, and intelligent controls into a single CNC platform. Its blend of precision, durability, and ease of use makes it suitable for beginners entering CNC machining as well as experienced makers seeking a capable desktop production machine.
Specification
Overview
| Weight | 35.9 kg |
|---|---|
| Dimensions | 81.1 × 76.9 × 53.0 cm |
| Frame Material | Aluminum |
| Max Speed | 5000mm/min |
| Engraving Accuracy | 100±0.05mm |
| Spindle motor | 500W |
| Spindle Speed | 12,000 RPM |
| Collet | ER11 |
| Waste board | MDF, Replaceable |
| Lighting | 500lm spotlight |
| Safety features | Emergency Stop & Infrared Sensor |
| Compatible software | VCarve, Fusion360, EASEL, Carveco Maker |
| Materials | Wood, Plastic, Soft metals like aluminum, and PCB materials |
| Overall Power | 150W |
| Engraving Area | 600*500*100mm |
| HSN Code | 84561100 |
