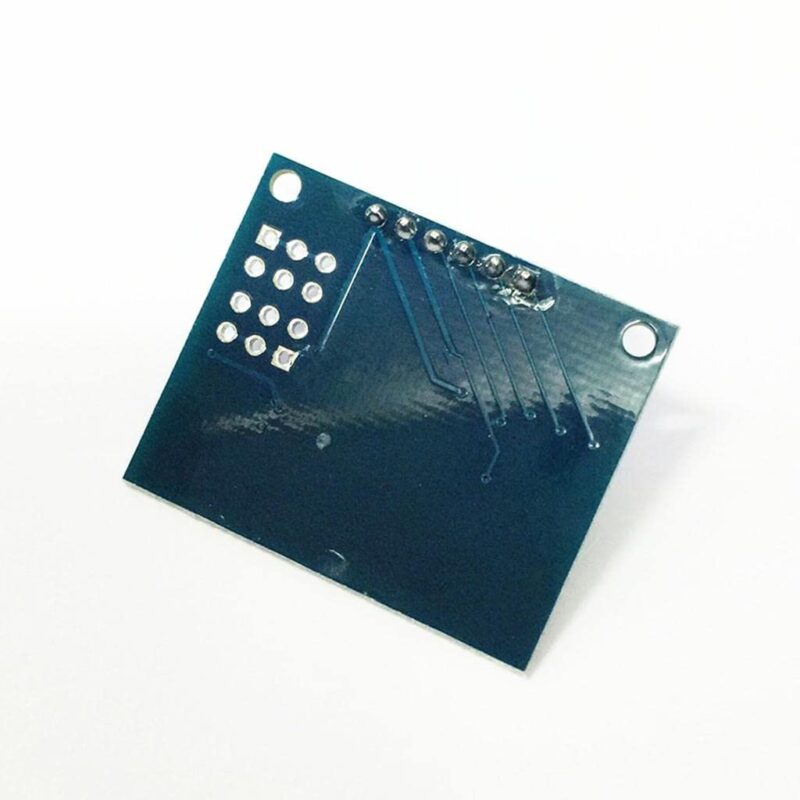

TTP224 4-way Capacitive Touch Switch Sensor Module

This is a 4 switch digital touch sensor with capacitive sense technology, the TTP 224 IC offers capacitive sense input feed designed for touchpad control, followed by a 4- finger-sized touchpad. The board has a jumper’s arrangement to change the keypress output mode in Timed or Toggle, Active High or Active Low. Separate jumper adjustments are provided for changing the response time of the pressed key: 60mS fast mode or 160mS in Low power. The output side of the board has 6 pin headers, with 4 pins to be connected with the digital I/O of any microcontroller board (Arduino, ARM STM32). 4 status LED SMD types are provided to check the status of each pressed key. TTP 224 4 Channel Digital Touch Sensor is compatible with all Arduino’s board. The board finds applications in HMI(Human-machine Interface), mechanical Button key replacement.

• TTP224 4-way switch digital touch capacitive touch sensor module. 4 key board TTP224 capacitive touch sensor IC
• Onboard 4-level status indicator. Operating voltage: 2.4V-5.5V
• Module can set the output mode, the key output mode, the longest time and fast output / low power options
