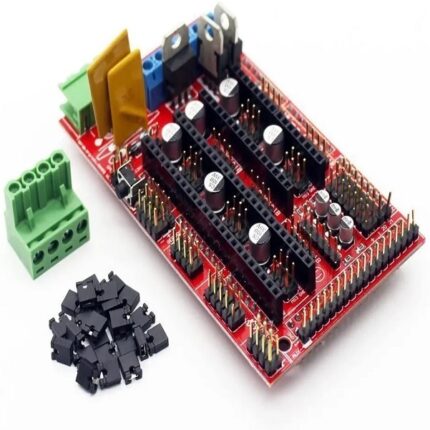

Ramps 1.4 Board 3D Printer Control Panel Mega Shield

(2 customer reviews)

290 Incl GST (246 +18%GST)

  • Supply Voltage: 12V
  • Standard interfaces (as that of the extruder)
  • Reserved GCI like I2C and RS232
  • 3 MOSFET’s are applied to the heater/ fan and thermistor circuit.
  • Another 5A added to protect the component parts.
  • An 11A fuse is added to the hotbed.
  • Support 5 stepper drive board
EAN: 8903470460133 SKU: MB-PCPMS Category: Tag:

In stock

In stock

Add 999 to cart and get free shipping!
46 People watching this product now!

Mechblock Shopping Event

Hurry and get discounts on all Mechblock Products up to Rs.1000

Coupon code: MB01510

This is Mega Pololu Shield or RAMPS for short. The 3D Printer Controller Board RAMPS 1.4 is designed to fit the entire electronics needed for a RepRap in one small package for low cost. RAMPS interfaces an Arduino Mega with the powerful Arduino MEGA platform and has plenty of room for expansion.

RAMPS can only work when connected to its motherboard Mega 2560 and A4988/DRV8825. Owning’s to its stability in operation and great compatibility with the most 3D printer (all RepRap-model such as Prusa i2 and i3). The combination of Ramps 1.4 + MEGA2560 + A4988/DRV8825 is becoming a mainstream of DIY 3D printer control board.

The modular design includes the plug in stepper drivers and extruder control electronics on an Arduino MEGA shield for easy service, part replacement, upgrade-ability, and expansion. Additionally, a number of Arduino expansion boards can be added to the system as long as the main RAMPS board is kept to the top of the stack.

Features:

  • xpandable to control other accessories.
  • 3 Mosfets for heater/fan outputs and 3 thermistor circuits.
  • Fused at 5A for additional safety and component protection
  • Heated bed control with additional 11A fuse
  • Shield has on pin header sockets so they can be replaced easily or removed for use in future designs.
  • Suitable for 2-phase and 4-phase motors
  • I2C and SPI pins are left available for future expansion.
  • Servo-style connectors are used to connect to the end stops motors and LEDs.
  • These connectors are rated for 3A, very compact, and globally available.
  • SD Card add on available
  • LEDs indicate when heater outputs on

Package Include:

  • Ramps 1.4 Board 3D Printer Control Panel Mega Shield – 1Pc
Weight 0.1 kg
