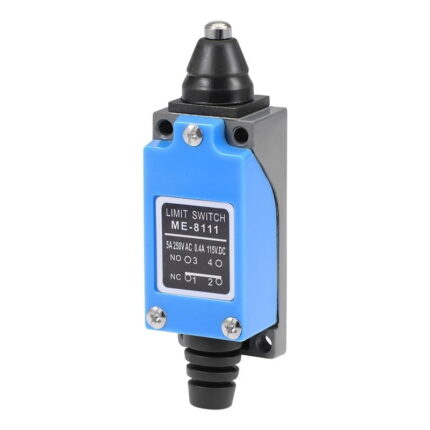

This Limit switch features a compact design and a long mechanical life. They have easy wiring with full open terminals and dust, water, oil proof construction .
A strong body with a combination of reinforced plastic and aluminium Die Casting components.
- Model: ME-8111
- Actuator Type: Standard Pin Plunger, Automatic Reset
- Pin Diameter(Approx.):6.8mm / 0.27″
- Contact Configuration: 2 NC + 2 NO
- IP Rating: IP66
- Power: AC 250V,5A / DC 115V. 0.4A
- Mounting Hole Diameter: 4.5mm
- Hole Center Point Distance: 56mm x 21mm
- Overall Size: 99 x 28 x 25mm
- Operation speed: 0.5mm-50cm/sec
- Operating frequency:
Mechanical: 120 operations/minute
Electrical: 30 operations/minute
- Contact resistance: 25mΩ max. (initial value)
Insulation resistance: 100mΩ min. (at 500VDC)
- Vibration: 10-55HZ,1.5mm double amplitude
- Mechanical Life : 10,000,000 operations
- Electrical Life: 500,000 operations
- Weight: About 130 to 190g
