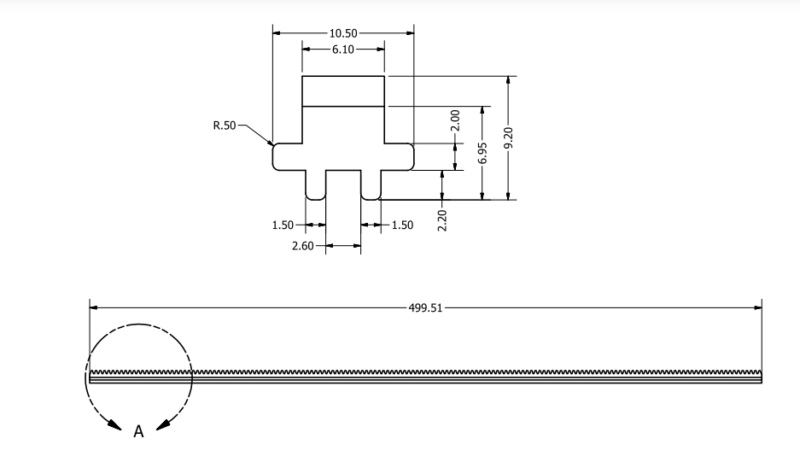

The Internal Gear Rack is designed to slide inside the channel of our 20 profile V-Slot Linear Rail and works with standard 20 profile T-Slot as well. Simply slide the gear rack into the V-Slot Channel and secure it in place using a T-Nut and Bolt on each end.
Gear Racks are designed so that multiple pieces can be butt joined to create a longer continuous length. With this design there is not limit to the length of a gear rack!
Simply slide the gear rack into the V-Slot Channel and secure it in place using a T-Nut and Bolt on each end.
Take a look at our External Gear Rack as well!
Specifications:
Material: Polyoxymethylene (POM), also known as Delrin
Gear type: Module 1.0
Tolerance: DIN ISO 2768 (Fine)
Colour: Black
Fixing Type: Insert
Credit: Designed by Steven Brown of Maker Store and published with his permission under Attribution-NonCommercial-ShareAlike 4.0 International (CC BY-NC-SA 4.0)
