GRBL Controller Control Board 3 Axis Stepper Motor With Offline Double Y Axis USB Driver Board For CNC Laser Engraver

Product Description
Friendly Reminder:
1. The spindle motor and laser cannot be connected at the same time
2. The offline control board and the SUB data cable cannot be connected at the same time
3. Turn on the power after the electrical connection is completed
4. The positive and negative of the input power must not be reversed, and the reverse connection will burn
5. The 48VDC interface cannot be connected to the switching power supply, and the voltage that can be passed through the DC seat of the control board cannot be greater than 5A
Specification
Power Supply:
DC12-48V
Spindle:
48V 0-500W
Stepper Motor:
X/Y1/Y2/Z
Fan:
5V
Connect Laser:
2pin/3pin/2pin-2pin
Support:
Servo/Offline controller/Limit switch
Connection:
USB Cable

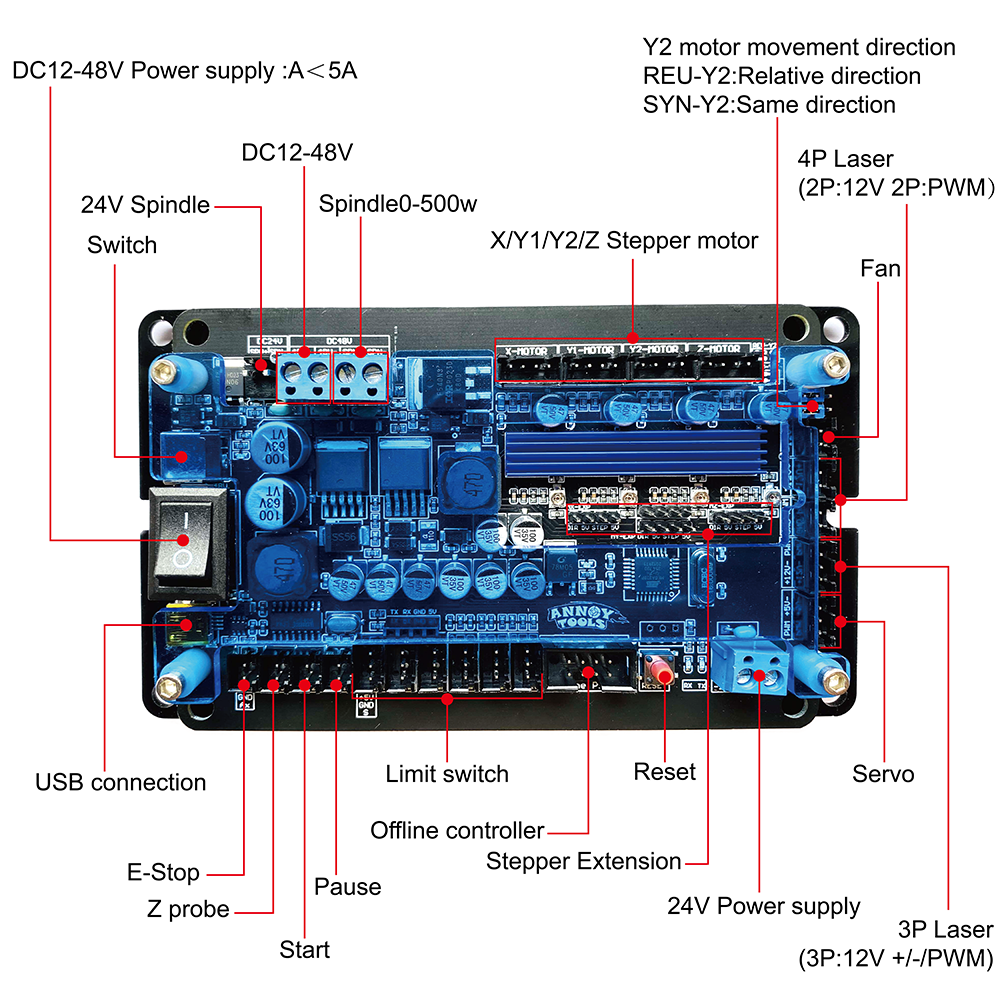

H095e39cb614846449bff7e4e796eccafa

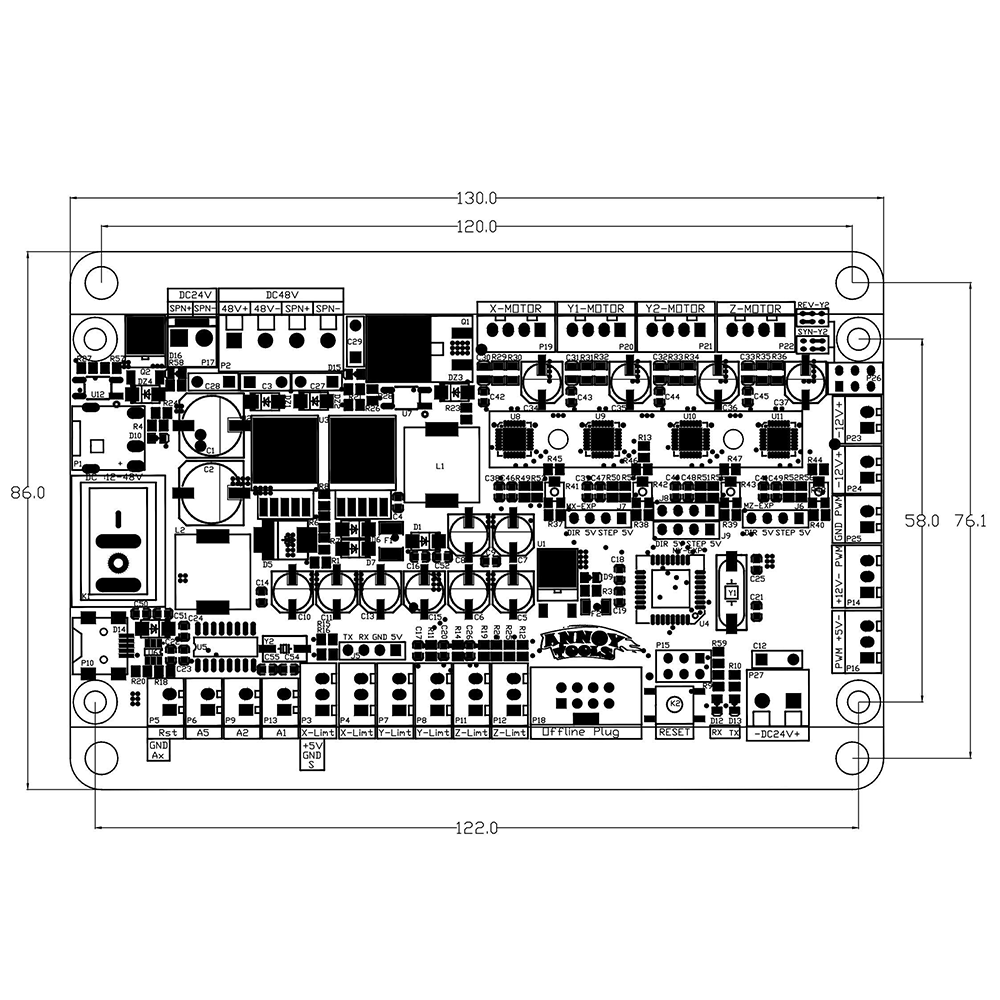

Hfdc5b5fb833b4db1884e7064f9d9b5fbLHow to connect?

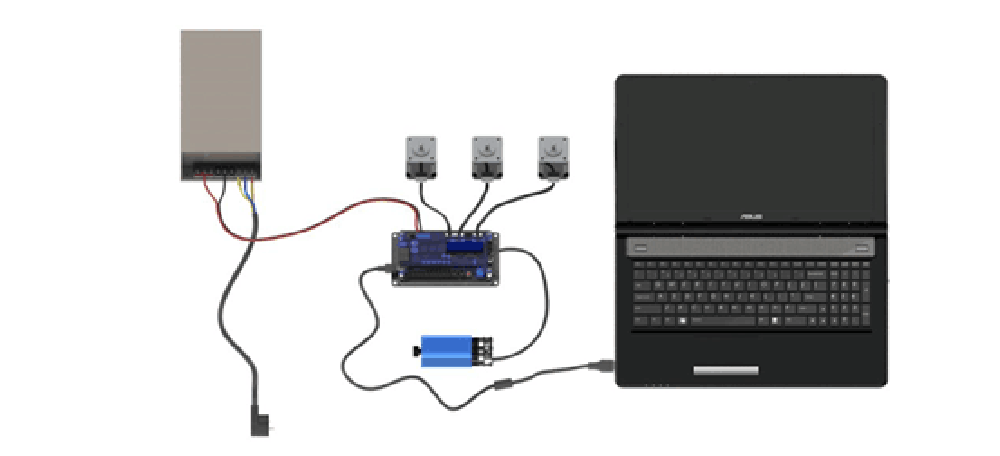

Connect Laser:

H16e1b94ad9d74eefb64edb8c72620d12L

GRBL Controller Control Board 3 Axis Stepper Motor

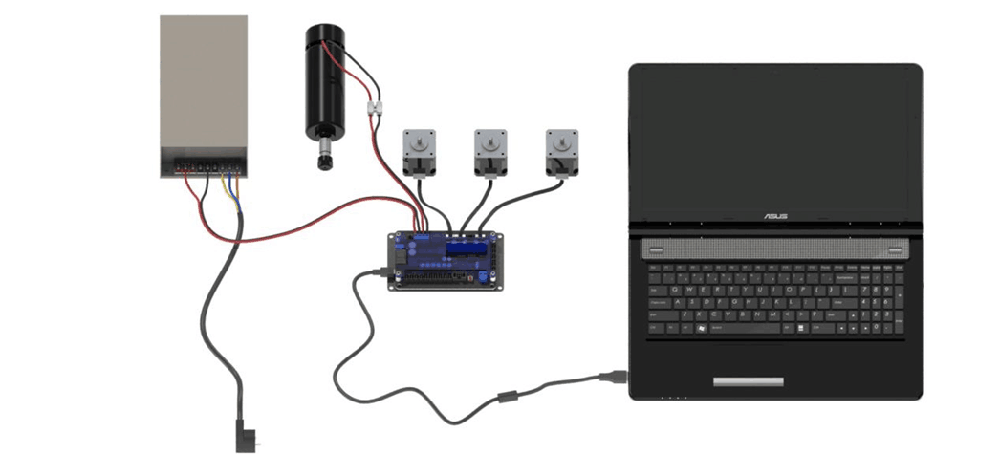

Connect Spindle:



Hfd1015add7134a38a69758f1973b3457R
GRBL Controller Control Board 3 Axis Stepper Motor
Weight 0.170 kg
Dimensions 18 × 10 × 3.5 cm
