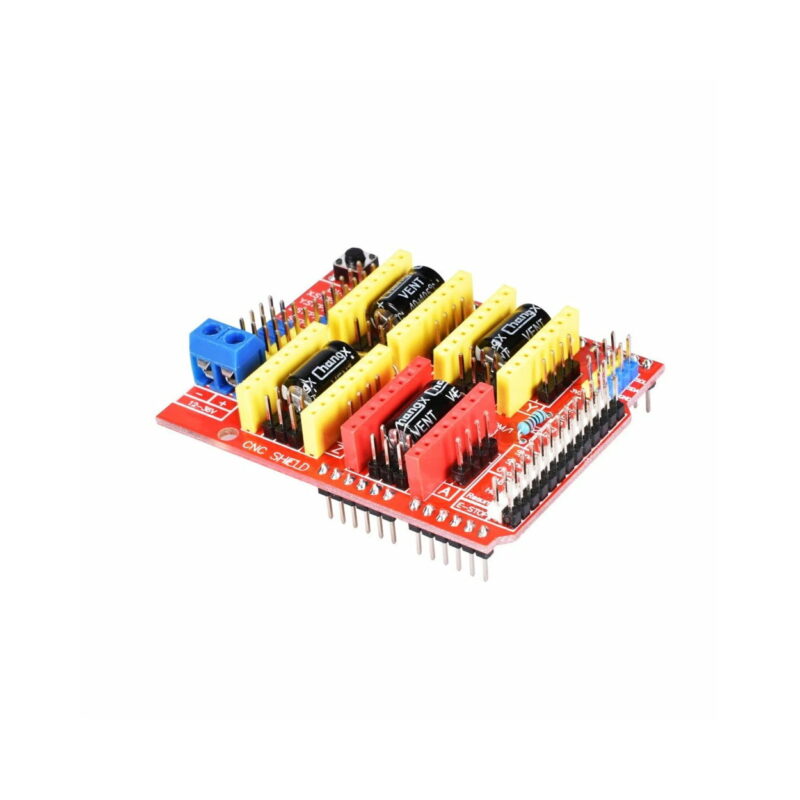

cnc shield v3 for engraving machine 3d printers controller board 002
12 7 3
Click to enlarge

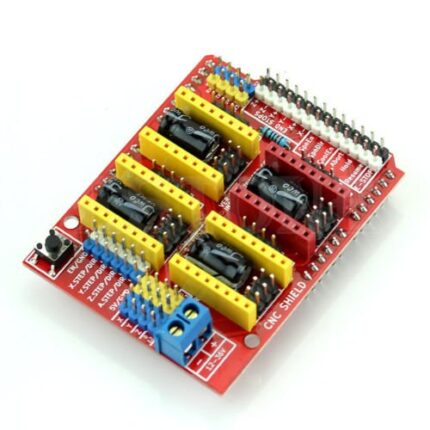

    CNC shield V3 for Engraving Machine 3D Printer A4988 DRV8825 driver expansion board

    (48 customer reviews)

    ₹280.00 (Incl. GST)

    • Latest Arduino CNC Shield Version 3.10
    • GRBL 0.9 compatible. (Open source firmware that runs on an Arduino UNO that turns G-code commands into stepper signals)
    • Coolant enable
    • Jumpers to set the Micro-Stepping for the stepper drivers. (Some drivers like the DRV8825 can do up to 1/32 micro-stepping )
    • Compact design.
    • 4-Axis support (X, Y, Z, A-Can duplicate X, Y, Z or do a full 4th axis with custom firmware using pins D12 and D13)
    • 2 x End stops for each axis (6 in total)
    EAN: 8903470426269 SKU: CNCSHIELD Categories: , Tags: ,

    In stock

    In stock

    Purchase & earn 3 MechBlock points!
    Processing time: 1 days
    Check Estimated Delivery at
    Shipping to IN
    Add ₹999.00 to cart and get free shipping! Free shipping over 999/-
    20 People watching this product now!

    Mechblock Shopping Event

    Hurry and get discounts on all Mechblock Products up to Rs.1000

    Coupon code: MECHBLOCK

    CNC shield V3 for Engraving Machine 3D Printer A4988 DRV8825 driver expansion board

    This expansion board as a driver expansion board, can be used for engraving machines, 3D printers, CNC. It is a total of four slots, can drive four A4988 stepper motor. Each road stepper motors only need two IO ports. In other words, six IO ports can be well managed three stepper motors.

    The CNC shield V3 for Engraving Machine 3D Printer A4988 DRV8825 driver expansion board is very convenient to use.

    After insert Arduino CNC Shield V3.0 into Arduino UNO, and installed GRBL firmware then you can quickly DIY a CNC engraving machine.

    Features :

    1. Coolant enable
    2. Uses removable Pololu A4988 compatible stepper drivers. (A4988, DRV8825 and others) (Not Included)
    3. Jumpers to set the Micro-Stepping for the stepper drivers. (Some drivers like the DRV8825 can do up to 1/32 micro-stepping )
    4. Compact design.
    5. Stepper Motors can be connected with 4 pin molex connectors or soldered in place.
    6. Runs on 12-36V DC. (At the moment only the Pololu DRV8825 drivers can handle up to 36V so please consider the operation voltage when powering the board.)
    7. Please note that this is an unassembled kit and needs soldering.
    8. Latest Arduino CNC Shield Version 3.10
    9. GRBL 0.9 compatible. (Open source firmware that runs on an Arduino UNO that turns G-code commands into stepper signals)
    10. PWM Spindle and direction pins
    11. 4-Axis support (X, Y, Z , A-Can duplicate X,Y,Z or do a full 4th axis with custom firmware using pins D12 and D13)
    12. 2 x End stops for each axis (6 in total)

    Package Includes :

    1 x CNC shield V3 engraving Machine

    Weight 0.1 kg
    Dimensions 15 × 15 × 5 cm
