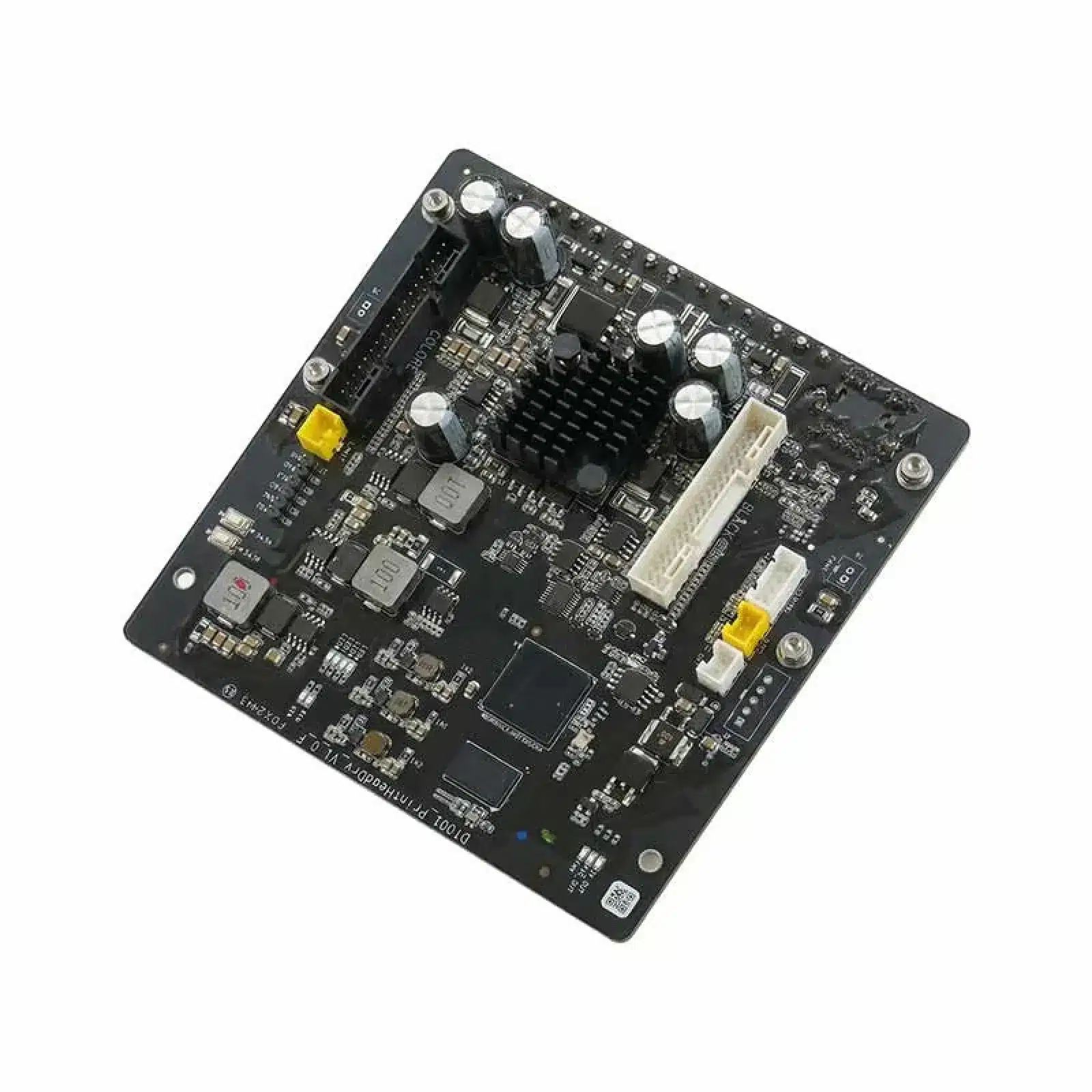

Carriage Controller Board for Apparel Printer

The Carriage Controller Board for Apparel Printer is a printhead control board (PCB) designed for inkjet and cutter management in the xTool Apparel Printer. It is a dedicated replacement component for the printer’s carriage and is intended to provide the control functions handled by the carriage controller board.

Key Features

• Designed for the xTool Apparel Printer
• Printhead control board (PCB)
• Supports inkjet and cutter management
• Intended as a replacement component for the printer carriage
• Official xTool spare part

Product Function

The Carriage Controller Board for Apparel Printer is a control PCB located within the printer carriage. xTool identifies this component as a printhead control board for inkjet and cutter management, making it an important electronic component within the Apparel Printer’s carriage system.

Compatibility

Replacement Information

This Carriage Controller Board for Apparel Printer is intended for replacement when the existing carriage controller board has been diagnosed as malfunctioning. xTool’s official support documentation states that replacement should be performed only when the board has been diagnosed as faulty by xTool technical experts.

For replacement, xTool provides an official step-by-step tutorial covering removal and installation of the carriage controller board. The support instructions also specify that the printer’s power cord should be unplugged before carrying out disassembly or assembly work.

• Official xTool Replacement Tutorial: https://support.xtool.com/article/2042

Important Usage Considerations

• Use this board with the xTool Apparel Printer.
• Confirm that the carriage controller board requires replacement before ordering.
• Follow xTool’s official replacement procedure.
• Disconnect the power cord before performing replacement work.
