1. Description

xTool P2 Riser Base

The xTool P2 Riser Base is an accessory designed to increase the available working height of the xTool P2, making it possible to handle taller objects for engraving and cutting. By raising the machine while maintaining an enclosed working area, the xTool P2 Riser Base provides additional vertical clearance without changing the machine’s core processing area.

Designed specifically for the xTool P2, this riser base provides a working space of 640 × 330 mm and a processing area of 500 × 250 mm. It supports workpieces up to 208 mm high with the tray and up to 215 mm without the tray.

Key Features

• Designed for the xTool P2
• Increases available height for taller engraving and cutting projects
• Maximum workpiece height of 208 mm with tray
• Maximum workpiece height of 215 mm without tray
• 640 × 330 mm working space
• 500 × 250 mm processing area
• Enclosed raised-machine configuration helps prevent light and smoke from leaking
• Right-side storage space for removed screws, slats, and the RA2 Pro
• Supports specified rotary engraving diameter ranges

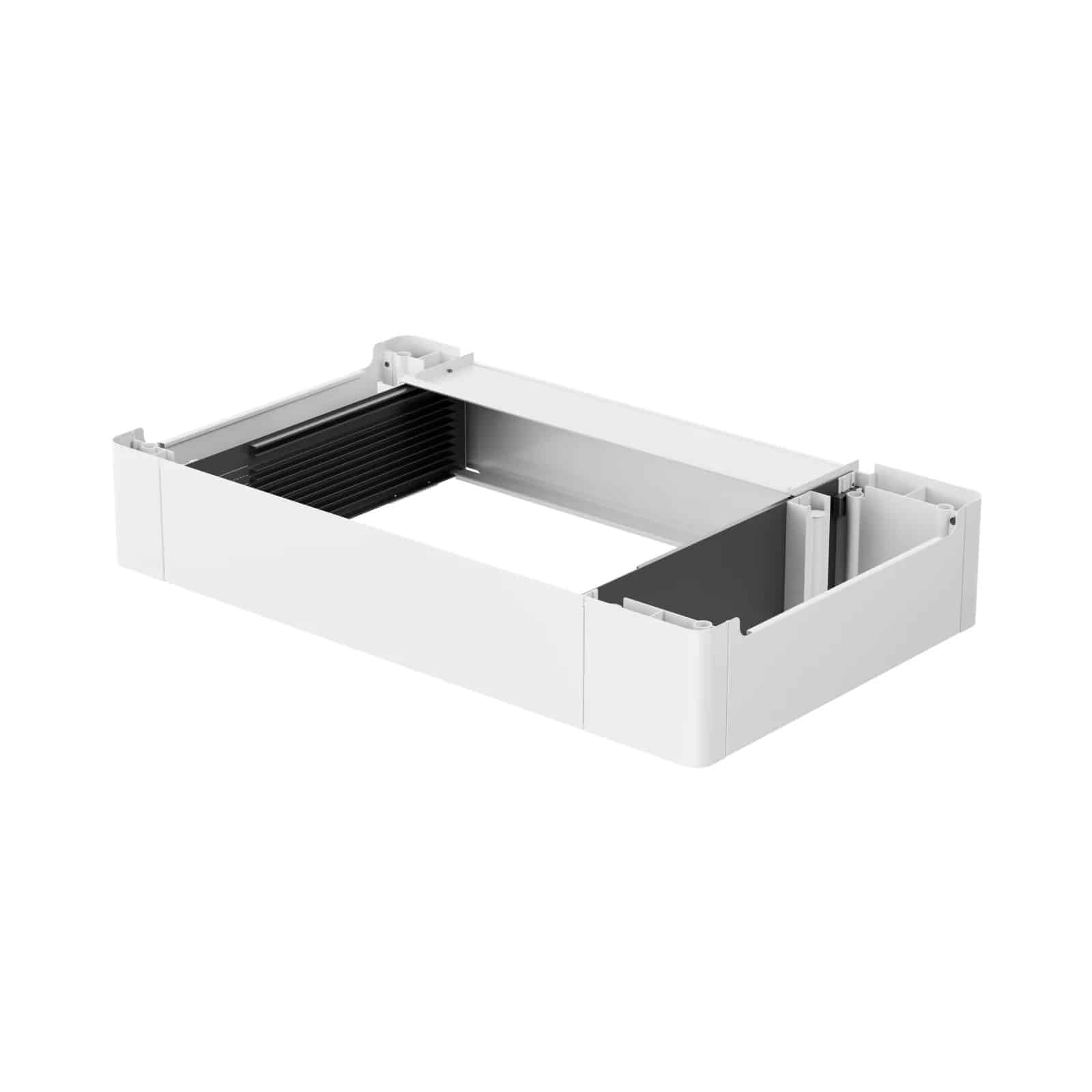

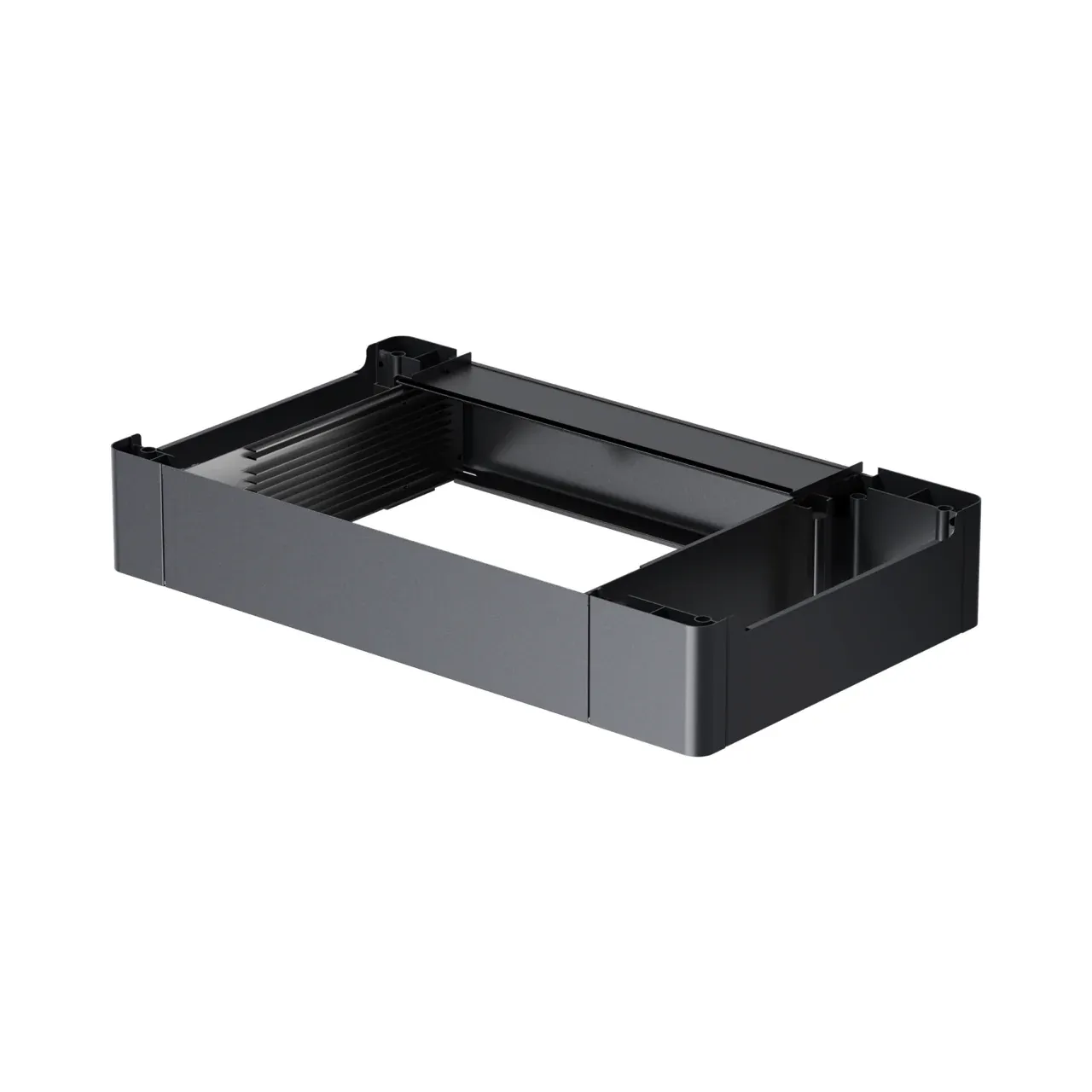

• Available in Pearl White and Space Grey
• Product weight of 11 kg

Increase the xTool P2 Working Height

The main purpose of the xTool P2 Riser Base is to provide additional vertical clearance. Raising the xTool P2 allows users to work with taller objects that would not fit within the standard machine height.

With the tray installed, the maximum workpiece height is 208 mm. Removing the tray increases the maximum listed workpiece height to 215 mm. This makes the riser base particularly useful for projects where object height is the limiting factor.

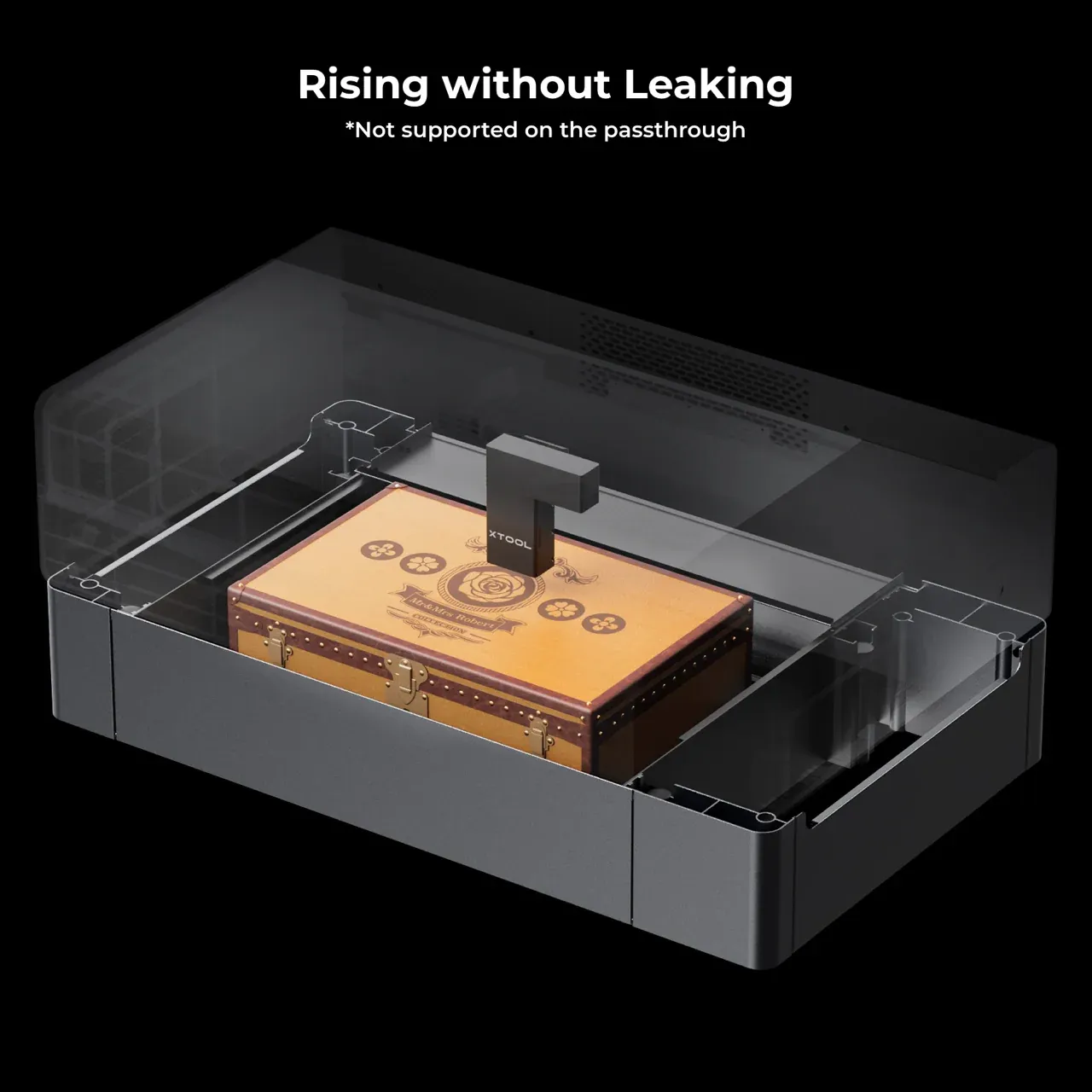

Enclosed Design for Taller Projects

The raised configuration is designed to keep the work area enclosed while the machine is elevated. xTool states that the riser base helps prevent light and smoke from leaking during higher-object engraving and cutting.

This enclosed operation applies to the supported raised configuration. xTool specifically notes that the enclosed design is not supported on the passthrough.

More Space for Larger Workpieces

The xTool P2 Riser Base provides a 640 × 330 mm working space and a 500 × 250 mm processing area. The primary benefit is increased vertical clearance rather than an increase in the machine’s horizontal processing area.

For users looking for an xTool P2 accessory that expands the types of objects they can place inside the machine, the riser base offers a practical way to accommodate taller projects.

Rotary Engraving Support

The listed specifications also include rotary engraving diameter ranges. With the roller configuration, the supported diameter is 3–180 mm, while the chuck configuration supports 0–100 mm.

These specifications make the xTool P2 Riser Base relevant to projects where additional vertical clearance is required alongside rotary engraving.

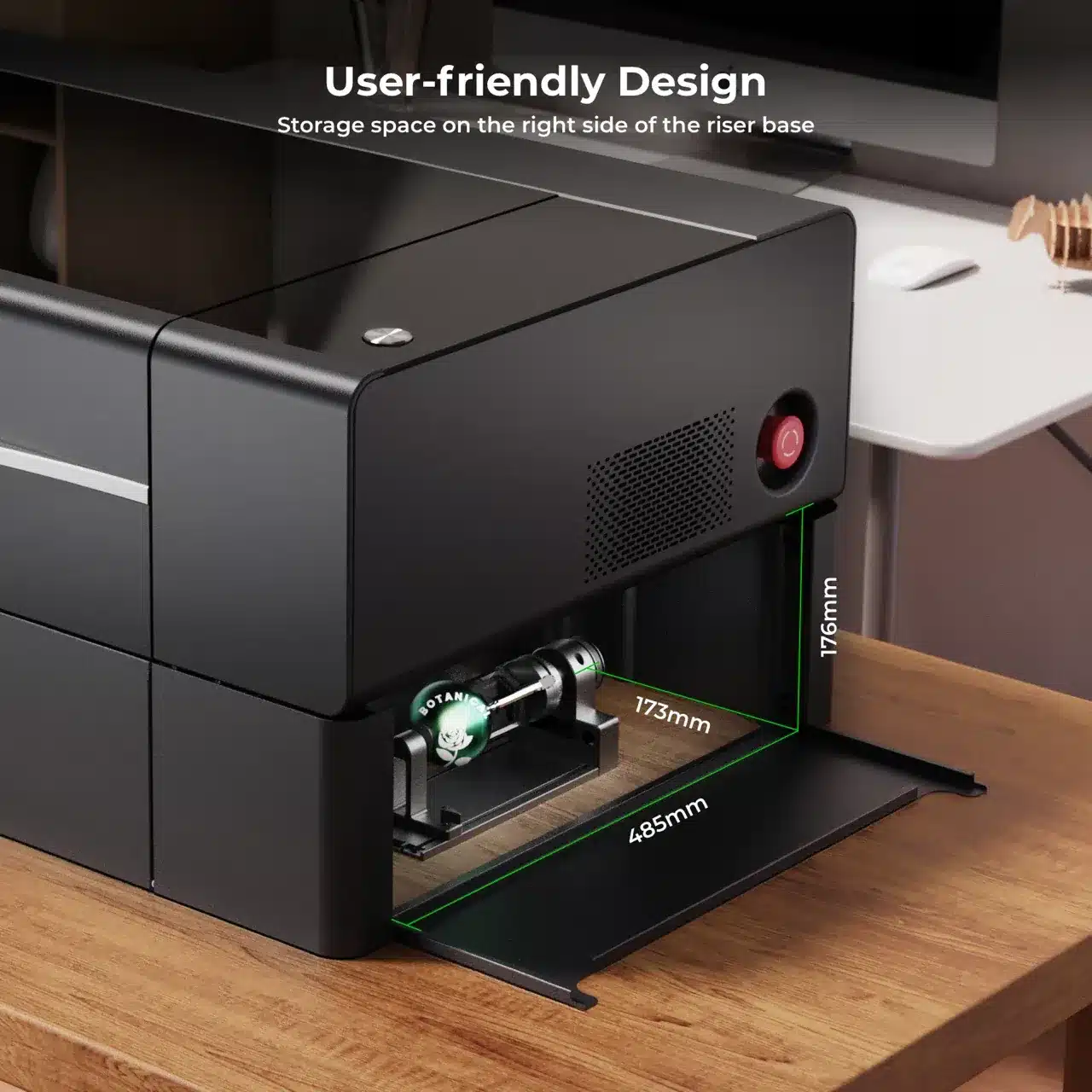

Right-Side Storage

A useful feature of the riser base is the storage space integrated into its right side. xTool states that this area can be used to store removed screws and slats, as well as the RA2 Pro, keeping these components accessible when needed.

This built-in storage helps keep the workspace more organized when the P2 is being used in its raised configuration.

xTool P2 Compatibility

The official specification identifies the xTool P2 as the applicable machine. The xTool P2 Riser Base should therefore be selected specifically for an xTool P2 setup.

xTool’s current accessory listings also group the riser base with its P2/P2S accessory range, but the product specification on the provided page identifies the applicable machine as xTool P2.

Passthrough Information

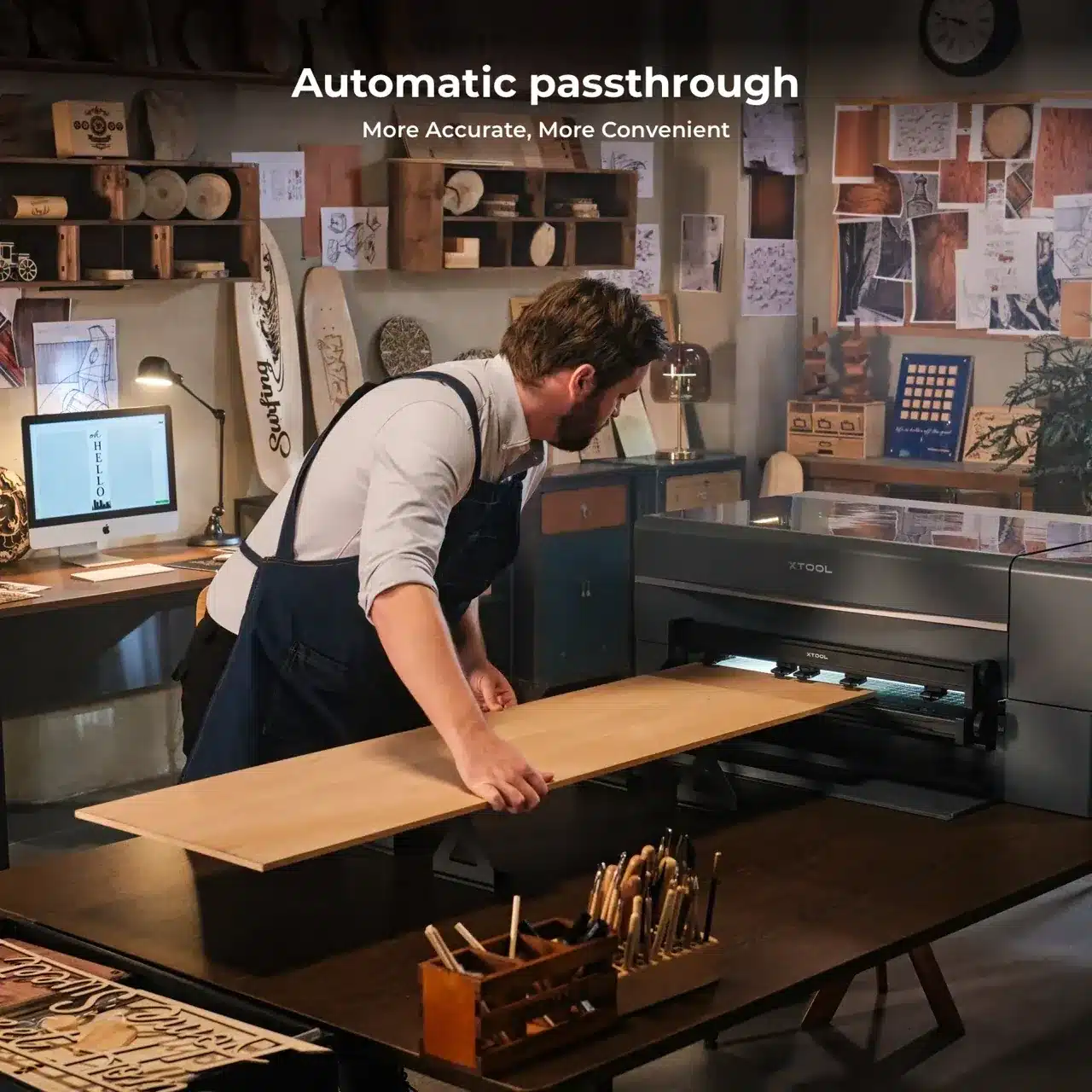

The official page lists a maximum passthrough width of 640 mm and maximum passthrough height of 115 mm. However, the same page includes a note that the passthrough function can be used in the future and explains that the automatic passthrough setup requires the Automatic Conveyor Feeder.

For this reason, passthrough capability should not be assumed simply from the listed dimensions. Users should follow xTool’s current supported configuration and documentation when planning passthrough workflows.

Practical Applications

The additional height provided by the xTool P2 Riser Base can be useful for a range of taller-object projects, including:

• Engraving taller workpieces
• Cutting taller objects within the supported dimensions
• Projects requiring increased vertical clearance
• Rotary engraving within the specified diameter ranges
• Workflows involving larger or taller objects
• Projects where the standard P2 working height is restrictive

The xTool P2 Riser Base expands the available vertical workspace while retaining the P2’s specified horizontal working and processing areas.

Specifications

All specifications above are based on the current official xTool product page. xTool notes that specifications and processing features are based on internal testing under optimized conditions and that actual performance may vary depending on materials, usage, environmental conditions, and other factors.

Available Variants

The xTool P2 Riser Base is listed in two style options:

The variants represent the available finishes; the listed technical specifications apply to the riser base product.

Product Size and Weight

The xTool P2 Riser Base measures 1000 × 590 × 175 mm and weighs 11 kg. The listed package size is 820 × 345 × 270 mm. These measurements should be considered when planning the installation and storage area for the raised xTool P2 setup.

Why Choose the xTool P2 Riser Base?

For xTool P2 users who need more vertical clearance, the xTool P2 Riser Base provides a dedicated solution for taller workpieces. Its increased working height, enclosed raised configuration, rotary engraving support, and integrated side storage make it a useful xTool P2 engraving accessory for expanding project possibilities.

When selecting the riser base, check the workpiece dimensions and supported machine configuration against the requirements of your intended project. This helps ensure that the available height, processing area, and operating configuration are suitable before beginning the job.
