Automatic Conveyor Feeder for S1

The Automatic Conveyor Feeder for S1 is a dedicated accessory designed for the xTool S1 laser cutter and engraver. It allows the xTool S1 to automatically feed compatible materials through the machine, making it possible to work with longer materials beyond the standard working area.

The Automatic Conveyor Feeder for S1 is designed to work together with the xTool S1 and the compatible S1 Riser Base. With the conveyor system installed, users can process longer materials for engraving and cutting while using the conveyor mechanism to move the material through the machine. xTool specifies a maximum processing area of up to 118 × 18.5 inches (3000 × 470 mm) when the required additional conveyor rails are used.

Key Features

• Designed for the xTool S1
• Enables automatic material conveying
• Supports longer engraving and cutting projects
• Must be used with the compatible S1 Riser Base
• Maximum processing area up to 118 × 18.5 inches with additional rails
• Maximum material width of 21.5 inches (545 mm)
• Minimum material width of 2.5 inches (65 mm)
• Maximum material thickness of 0.55 inches (14 mm)
• Maximum conveying speed of 160 mm/s
• Includes aligning grids for material positioning
• Adjustable positioning using the lower knob
• Supports multiple conveyor rail configurations

Designed for xTool S1

The Automatic Conveyor Feeder for S1 is specifically designed for use with the xTool S1. xTool’s documentation explains that the feeder allows the S1 to process long materials using a conveying mode, extending the practical material-handling capability of the machine.

The conveyor feeder must be used together with the xTool S1 and the compatible riser base supporting the conveyor feeder. The riser base provides the required setup for using the conveyor system with the S1.

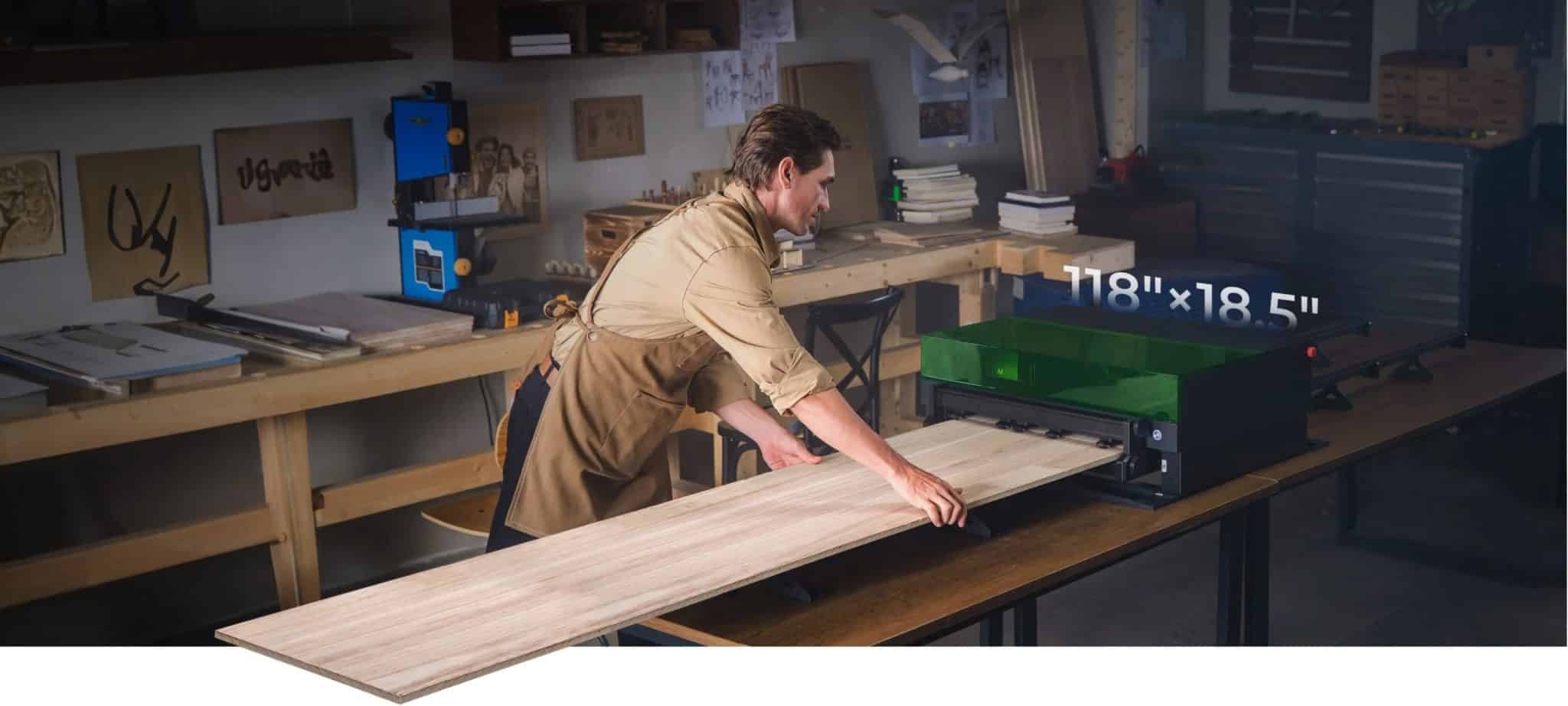

Extra-Large Processing Area

One of the main advantages of the Automatic Conveyor Feeder for S1 is its ability to support longer material processing. xTool lists a maximum processing area of 118 × 18.5 inches (3000 × 470 mm) when the required additional conveyor rails are installed.

The standard configuration can support shorter material lengths, while additional conveyor rail sets can be added to extend the supported length.

The maximum length requires additional conveyor rails. These figures are based on xTool’s published specifications.

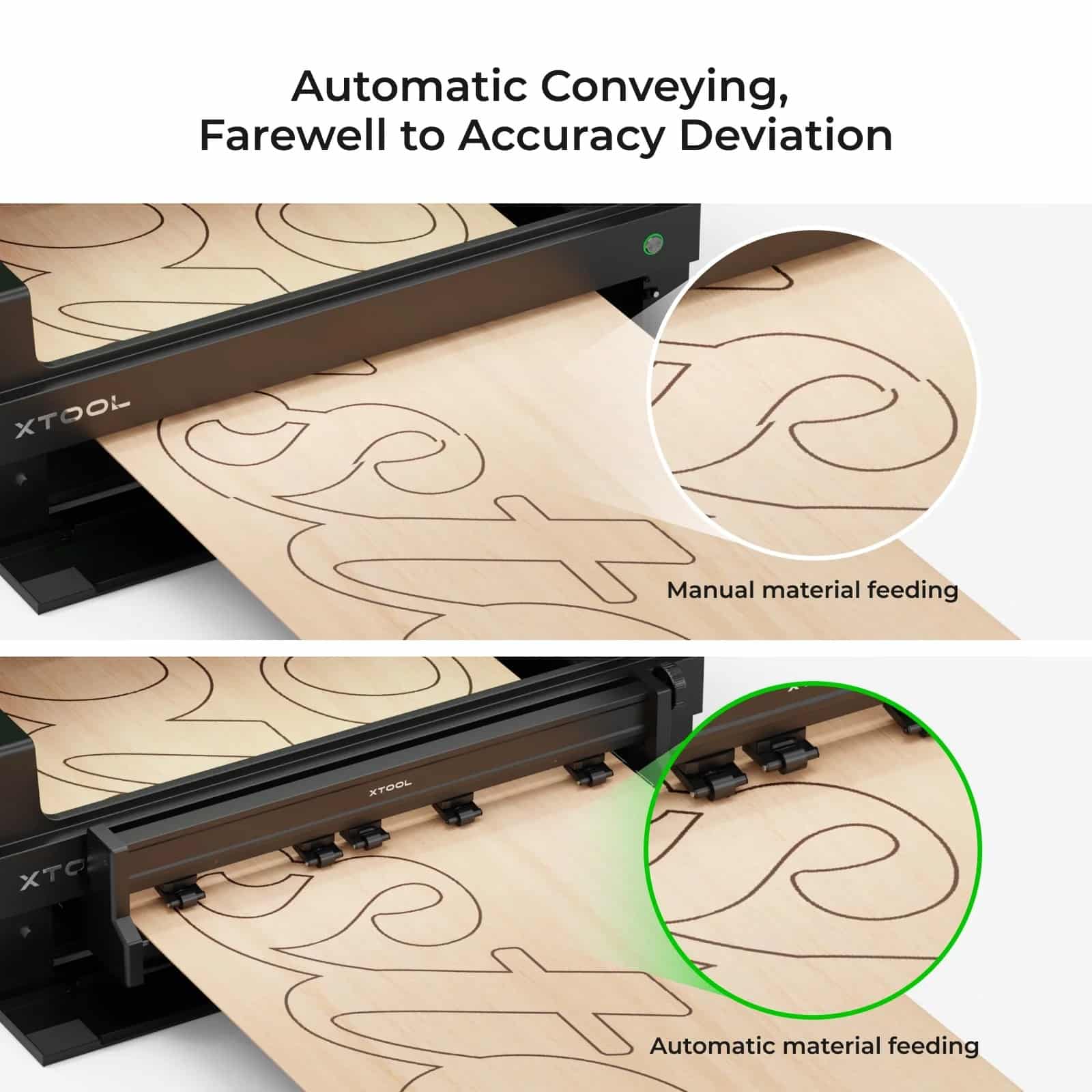

Automatic Conveying for Cutting and Engraving

The Automatic Conveyor Feeder for S1 is designed for automatic material conveying during both cutting and engraving workflows. xTool describes automatic engraving path planning and material conveying as part of the system, reducing the need for manual material feeding.

This makes the conveyor feeder useful for projects where the material extends beyond the standard S1 working area. Instead of manually repositioning the material for every section, the conveyor system can move compatible material through the machine.

Precise Material Positioning

The Automatic Conveyor Feeder for S1 includes aligning grids that help users position the material parallel to the conveying direction. Correct alignment is important because uneven positioning can affect the resulting engraving or cutting pattern.

xTool recommends aligning the material with the grids on the conveyor feeder before conveying it into the S1. The support documentation also recommends using flat materials without warped edges for reliable operation.

Easy Position Adjustment

A lower adjustment knob allows users to adjust the position of the material within the conveyor system. This provides a convenient way to make positioning adjustments before processing.

The adjustable design helps accommodate different material widths within the supported range while keeping the material positioned correctly for conveying.

Supports Different Material Types

The Automatic Conveyor Feeder for S1 can transport different types of compatible materials. xTool states that the feeder can handle hard materials, flexible and thin materials such as kraft paper, and soft and thick materials such as cork board and EVA foam board.

Different materials require different positioning methods. Hard materials are placed on the conveyor rails, while flexible and thin materials can use the material pressing rod instead of the conveyor rails. xTool also recommends PET tape on the back of certain soft and thick materials before placing them on the conveyor rails.

Conveyor Rail Configuration

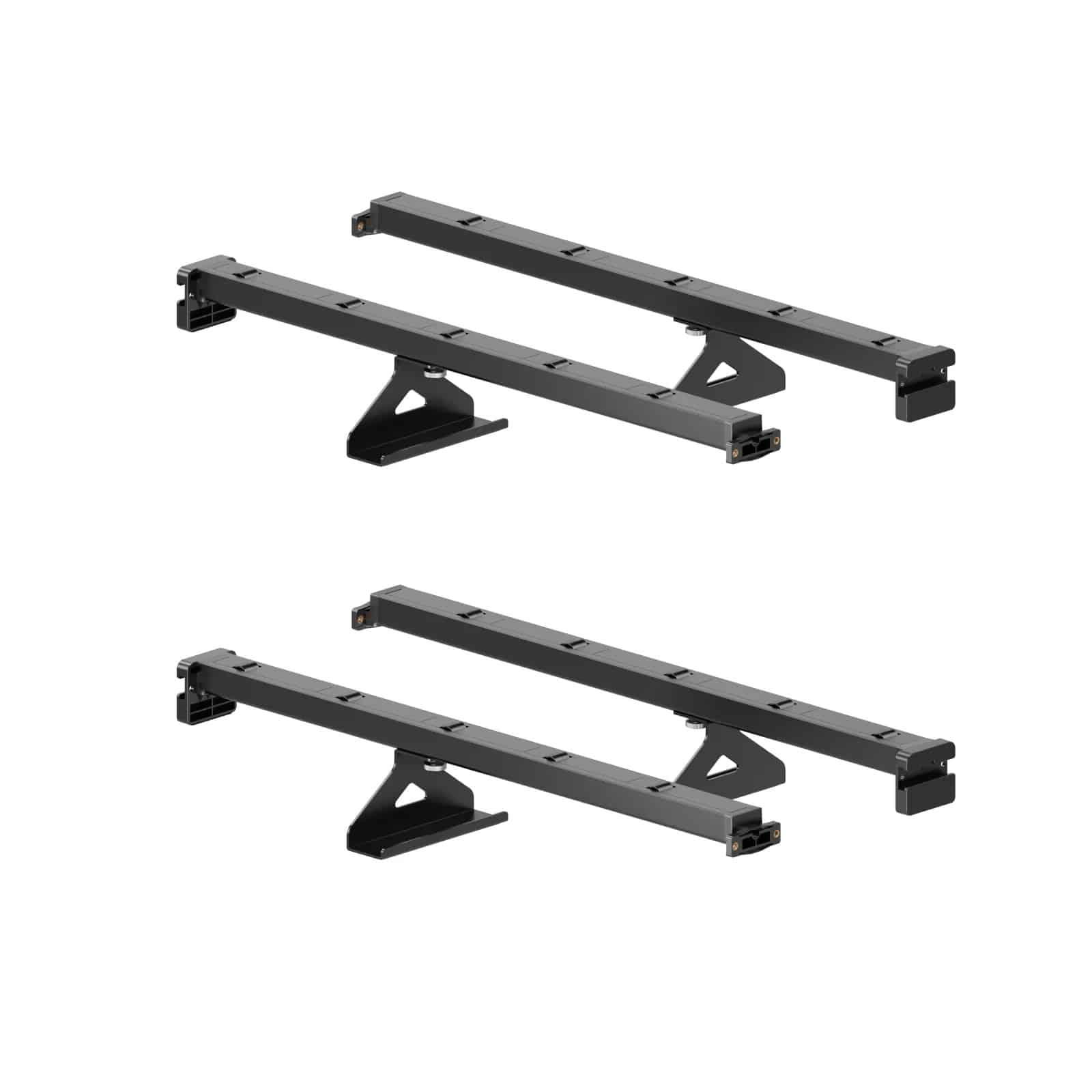

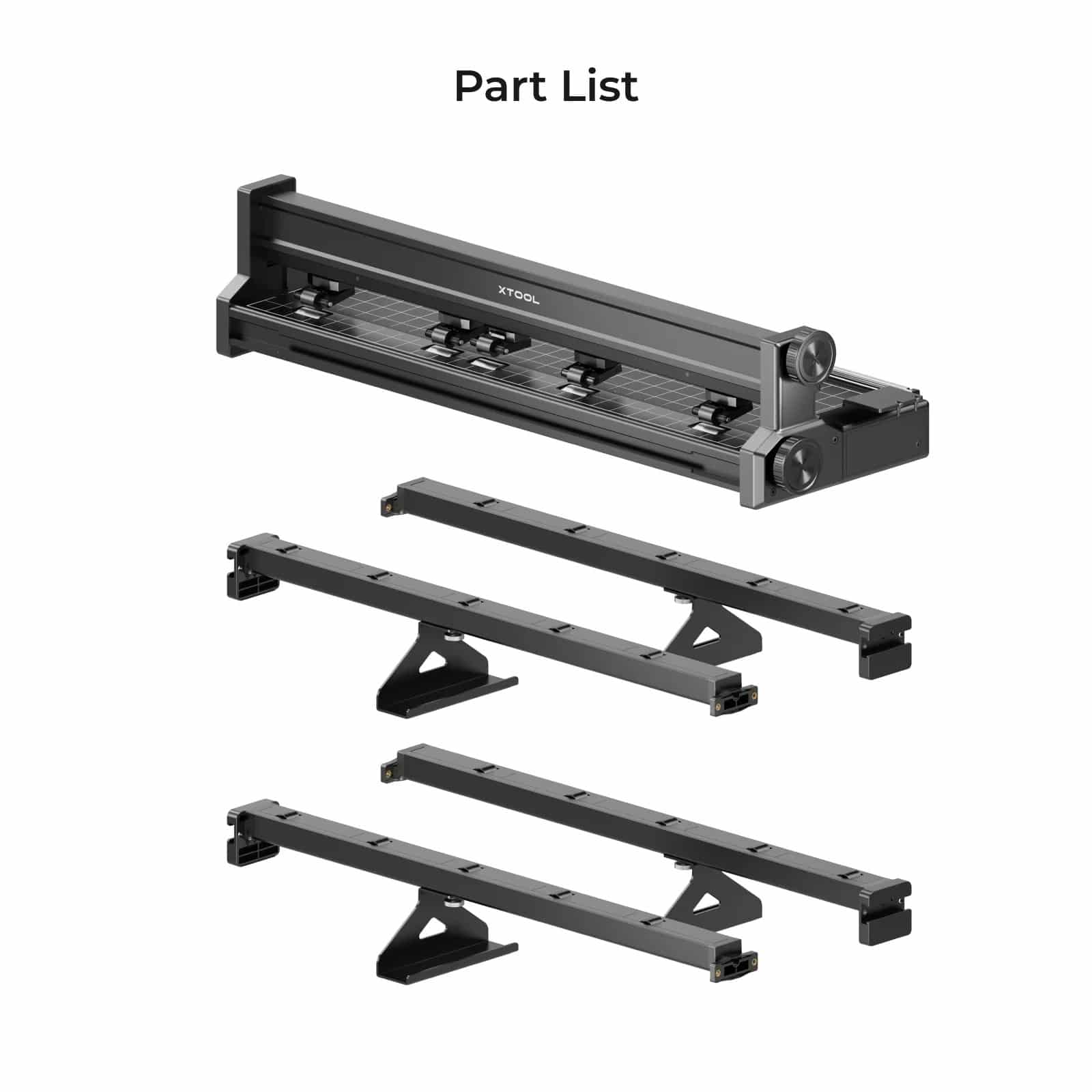

The Automatic Conveyor Feeder for S1 supports multiple conveyor rail configurations. The basic setup uses two pairs of rails, while additional rail sets can be added to extend the supported material length.

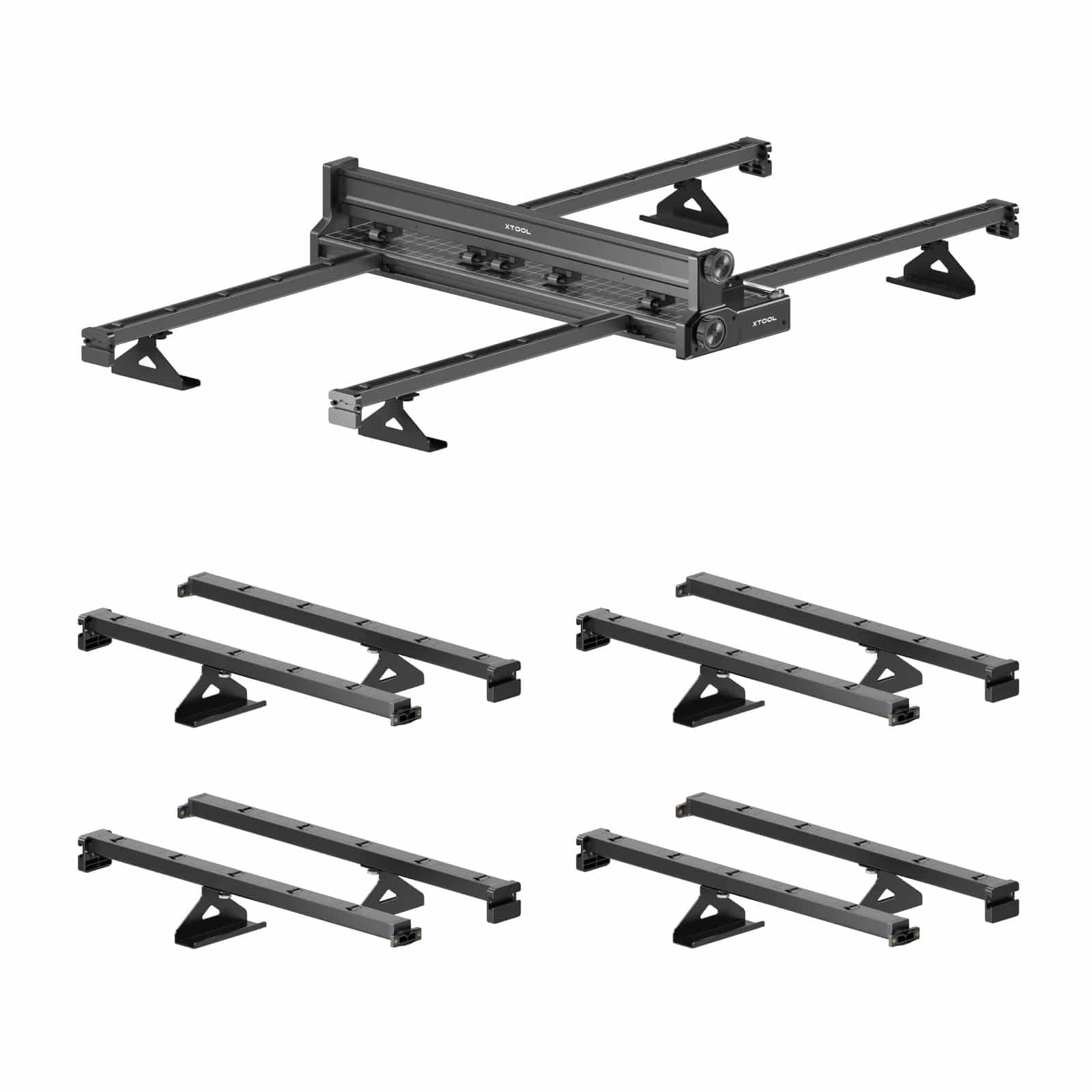

xTool states that the conveyor feeder can support up to eight pairs of conveyor rails in total, with up to six additional pairs added to the basic setup. The number of rails used affects the supported material and processing length.

Material Size

The Automatic Conveyor Feeder for S1 supports materials within specified width and thickness limits. xTool lists a maximum material width of 21.5 inches (545 mm), a minimum material width of 2.5 inches (65 mm), and a maximum material thickness of 0.55 inches (14 mm).

When using hard materials on the conveyor rails, xTool recommends that the section of material hanging outside the rails should not exceed 30 cm. This helps maintain the intended material support during conveying.

Product Specifications

The specifications are based on xTool’s current product information.

Easy Disassembly and Storage

The Automatic Conveyor Feeder for S1 is designed so that it can be removed and stored when the extended conveyor setup is not required. xTool highlights easy disassembly and storage as one of the features of the system.

This can be useful for users who alternate between standard S1 projects and longer-format cutting or engraving work.

Metal Short Rail Design

The conveyor system also uses a metal short rail design. xTool describes the short rail material as resistant to temperatures up to 600°C and states that its breathable design helps reduce burn marks in the processing area.

These manufacturer-provided characteristics are part of the conveyor feeder’s rail design and should not be interpreted as a guarantee of results for every material or processing setting.

Using the Riser Base

The Automatic Conveyor Feeder for S1 must be used with the compatible S1 Riser Base supporting conveyor feeder. The riser base raises the S1 and provides the configuration needed for the conveyor system.

The conveyor feeder is not included with the riser base, so users who do not already have the feeder need to purchase it separately.

Important Usage Information

Before using the Automatic Conveyor Feeder for S1, users should make sure that the material is flat and does not have warped edges. Material should be positioned correctly using the alignment grids, and the rail spacing should be adjusted according to the material width.

For materials positioned on the conveyor rails, xTool recommends ensuring that the material fully covers the lower pinch rollers and that the unsupported hanging section does not exceed 30 cm.

A Practical S1 Expansion Accessory

The Automatic Conveyor Feeder for S1 provides a dedicated way to extend the material-processing capability of the xTool S1. By automatically conveying compatible materials through the machine, it allows users to work on longer cutting and engraving projects without being limited to the standard working area.

With support for additional conveyor rails, adjustable material positioning, aligning grids, and multiple material types, the Automatic Conveyor Feeder for S1 is designed as a practical accessory for users who need extended material handling with their xTool S1.

For users working on longer materials or repeated cutting and engraving projects, the Automatic Conveyor Feeder for S1 provides an official xTool solution for extending the S1’s material-processing range while maintaining a dedicated conveyor-based workflow.
