Automatic Conveyor Feeder for P2/P2S

The Automatic Conveyor Feeder for P2/P2S is a dedicated accessory designed to extend the material-handling capability of compatible xTool P2/P2S setups. It allows materials to be automatically conveyed through the machine, making it possible to work with longer materials and larger processing areas than the standard working area.

The Automatic Conveyor Feeder for P2/P2S is available in three selectable styles: Basic (39″), All in one kit (90″), and Conveyor Rail (25.5″). Each option is intended for a different conveyor configuration, allowing users to choose the setup that matches their material length and workflow requirements.

Key Features

• Designed for the xTool P2/P2S
• Automatically conveys materials during processing
• Supports longer material processing
• Available in 3 selectable styles
• Basic (39″) configuration
• All in one kit (90″) configuration
• Conveyor Rail (25.5″) configuration
• Must be used with the Riser Base
• Supports both hard and compatible soft materials
• Maximum processing area of up to 118″ × 19.6″ according to xTool
• Maximum material width of 24.5″
• Maximum material thickness of 0.55″

Three Available Styles

The Automatic Conveyor Feeder for P2/P2S is offered in three different product styles. Selecting the correct variant is important because each option provides a different conveyor configuration.

The Basic configuration uses two pairs of rails and supports a material length of up to 39″. The All in one kit includes the additional rail configuration and supports up to 90″. xTool also offers the Conveyor Rail as a separate 25.5″ rail option.

Larger Processing Area

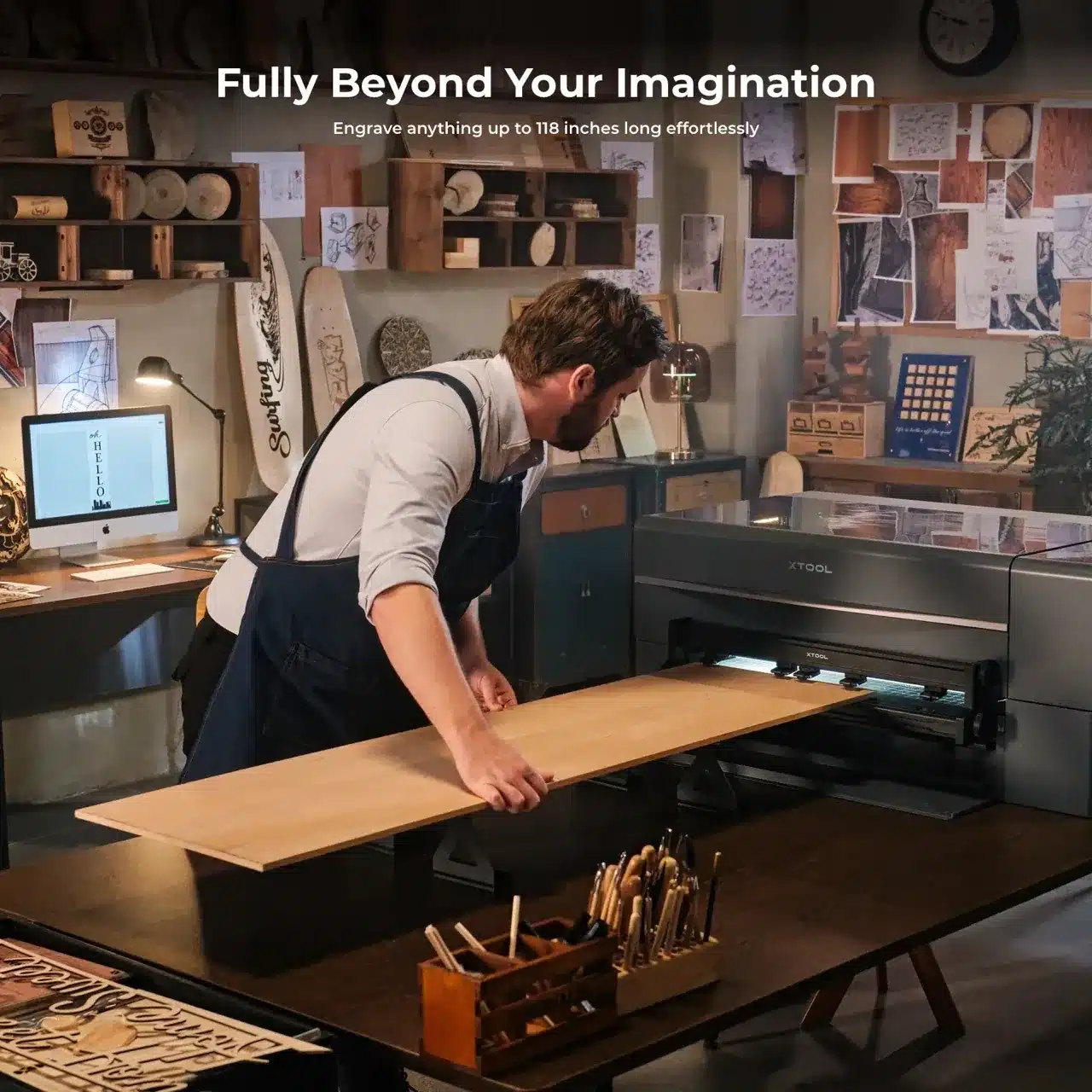

The Automatic Conveyor Feeder for P2/P2S expands the potential processing area for compatible setups. xTool states that the maximum processing area can reach 118″ × 19.6″ (3000 × 500 mm), allowing users to work with materials that extend beyond the standard machine working area.

The available conveyor configurations determine how much material length can be supported. With additional conveyor rails, xTool lists support for hard materials up to 118″ in length, including material extending outside the working area.

The supported lengths above are based on xTool’s published specifications. Actual results can vary according to material type, setup, and processing conditions.

Automatic Material Conveying

The Automatic Conveyor Feeder for P2/P2S is designed to automatically convey material during processing. xTool describes automatic engraving path planning and material conveying as part of the system, reducing the need for manual material feeding.

This conveyor-based workflow can be useful when working with longer materials or when processing multiple pieces as part of a production workflow. The feeder helps move the material through the machine while maintaining the conveying direction.

xTool notes that conveying may have a deviation of less than 2 mm per 1000 mm under its stated conditions. Actual results can vary depending on the material, machine setup, environmental conditions, and other factors.

Support for Different Materials

The Automatic Conveyor Feeder for P2/P2S expands the range of material formats that can be handled through the conveyor setup. xTool describes applications involving plywood, acrylic, and fiberboard, as well as softer materials such as felt, cork, and EVA.

Hard materials can be supported by the conveyor rails, while certain soft materials can hang down on both sides of the conveyor feeder. xTool notes that some soft materials may require PET tape during processing.

Stable Material Conveying

The feeder uses upper and lower pressure wheels with anti-slip materials to help hold different material sizes during conveying. This design helps reduce slipping or shifting while material moves through the system.

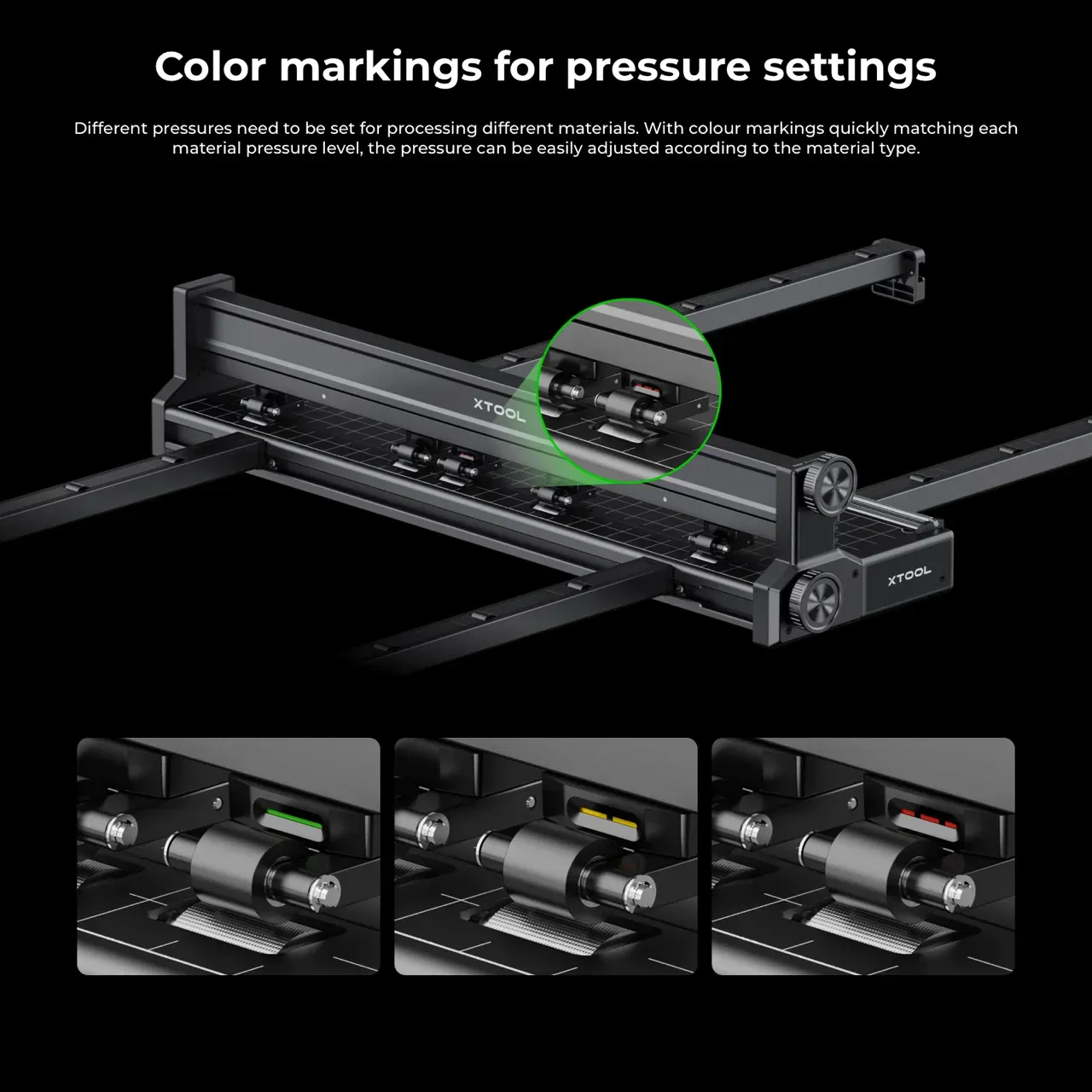

The Automatic Conveyor Feeder for P2/P2S also includes color markings for pressure adjustment. Different pressure levels can be selected according to the material being processed, providing a straightforward way to adjust the feeder for different materials.

Easy Positioning and Alignment

A lower adjustment knob allows users to adjust the position of the material within the conveyor system. The feeder also includes aligning grids that help users position material parallel to the conveying direction before processing.

Correct material positioning is important when using a conveyor system. xTool’s support documentation notes that material placement can affect engraving results and recommends ensuring that the material is positioned perpendicularly to the P2 when using the automatic conveyor feeder.

Riser Base Requirement

The Automatic Conveyor Feeder for P2/P2S must be used with the compatible Riser Base. xTool specifically highlights this requirement on the product listing.

Users should therefore make sure that the required Riser Base is available before installing and using the conveyor feeder.

Product Specifications

The specifications above are taken from xTool’s published product information.

Basic (39″) Variant

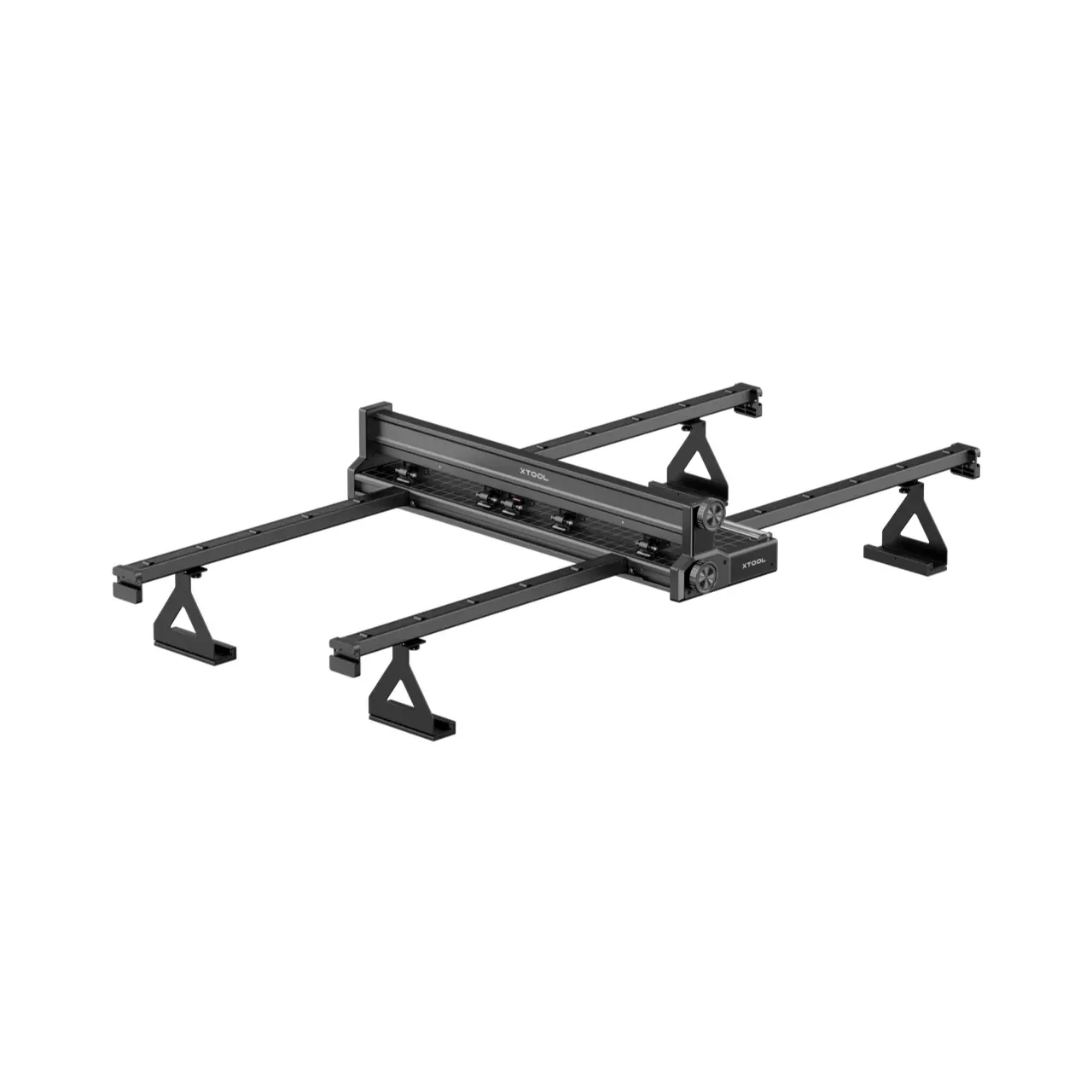

The Basic (39″) variant is the shorter conveyor configuration offered for the Automatic Conveyor Feeder for P2/P2S. It uses 2 pairs of rails and supports hard material lengths of up to 39″ (1 m) according to xTool.

This option can be suitable for users who need conveyor functionality for moderately longer materials without requiring the longer rail configuration.

All in one Kit (90″) Variant

The All in one kit (90″) provides a longer conveyor configuration for users who need additional material support. xTool lists this configuration as supporting up to 90″ (2.3 m) of hard material when configured with the relevant rail setup.

This variant is intended for users who need a longer conveying range than the Basic configuration.

Conveyor Rail (25.5″) Variant

The Conveyor Rail (25.5″) is the individual rail option available within the product listing. It can be used as part of the conveyor rail configuration when additional rail length is required.

Users should select the appropriate rail configuration based on the desired conveying length and the specific setup being used with the P2/P2S.

Designed for Longer Projects

The Automatic Conveyor Feeder for P2/P2S provides a way to extend material handling beyond the standard machine area. Instead of limiting a project to the dimensions of the normal working area, the conveyor system allows compatible materials to be fed through the machine.

This can be useful for longer engraving and cutting projects, repeated production work, and applications where a larger material format is required.

Important Product Information

The Automatic Conveyor Feeder for P2/P2S is not simply a standalone rail system. It is designed to work with the compatible xTool machine and must be used with the Riser Base.

Users should also select the correct variant according to their required conveyor length. The three styles in this listing have different configurations and should not be treated as identical products.

A Flexible Conveyor Solution

The Automatic Conveyor Feeder for P2/P2S provides a dedicated way to automatically convey longer materials through compatible xTool P2/P2S setups. With three available styles, users can choose between the Basic (39″), All in one kit (90″), and Conveyor Rail (25.5″) options according to their intended setup.

With automatic conveying, adjustable pressure, positioning controls, aligning grids, and support for a range of compatible materials, the Automatic Conveyor Feeder for P2/P2S is designed to make longer-format engraving and cutting workflows more practical.

For users looking to extend the working possibilities of their compatible xTool P2/P2S setup, this conveyor feeder provides an official xTool accessory solution with multiple configuration options.
