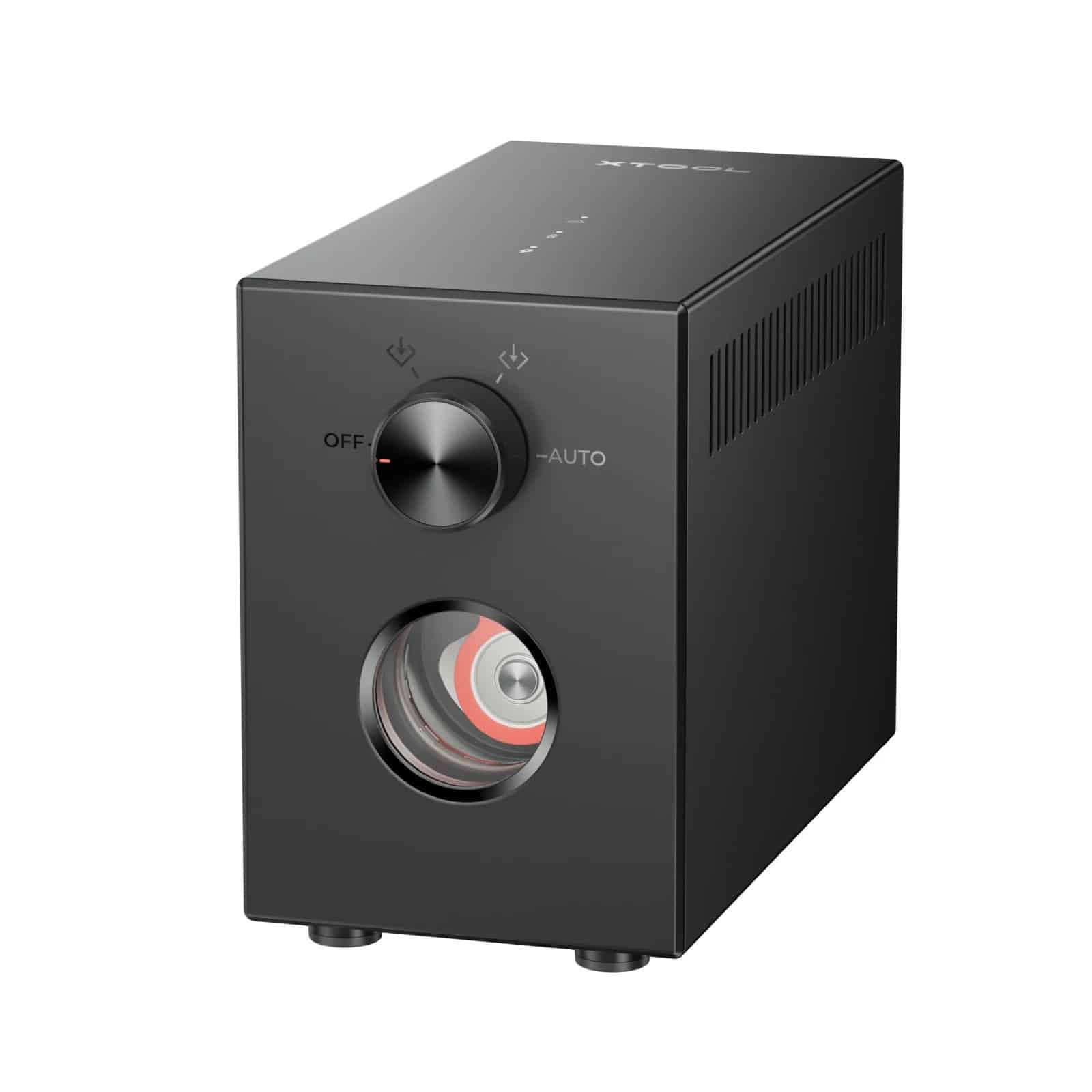

Air-Compress Assist

The Air-Compress Assist is a high-performance air-assist accessory designed to improve laser cutting and engraving performance by delivering strong, consistent airflow to the processing area. It uses an upgraded metal piston pump to provide TRUE 30 L/min terminal airflow under machine load, helping clear smoke and debris from the cutting area while keeping the laser lens cleaner. xTool lists the accessory as compatible with its D/M/S Series, with specific AUTO airflow functionality available for compatible S1 and M1 Ultra setups.

The Air-Compress Assist is designed as an upgraded alternative to traditional rubber-diaphragm air-assist systems. Its metal piston pump reduces airflow loss under machine load, while the built-in HEPA filtration system helps provide cleaner air output.

Key Features

• Metal piston pump design
• TRUE 30 L/min terminal airflow
• High-volume airflow for cutting and engraving
• Helps clear smoke and debris from the cutting area
• Can improve cutting efficiency by up to 20% under xTool’s tested conditions
• Automatic airflow control for compatible machines
• HEPA filtration removes 99.7% of smoke and dust according to xTool
• Helps reduce dirt buildup on the laser lens
• Compact design
• Compatible with D/M/S Series machines
• Independent power supply

Metal Piston Pump

The Air-Compress Assist replaces the deformable rubber diaphragm design found in traditional air-assist pumps with a metal piston and pump system. According to xTool, this design helps maintain TRUE 30 L/min terminal airflow when the pump is operating under machine load.

Traditional diaphragm pumps can experience airflow loss because the rubber diaphragm deforms during operation. The metal piston design is intended to minimize this loss and deliver stronger airflow at the laser head.

This makes the Air-Compress Assist particularly useful for laser cutting applications where consistent airflow is important for clearing smoke, debris, and combustion byproducts from the cutting path.

TRUE 30 L/min Terminal Airflow

The Air-Compress Assist provides a rated terminal airflow of 30 L/min. xTool distinguishes terminal airflow from no-load airflow, with terminal airflow referring to the airflow produced while the pump is operating under machine load.

Maintaining strong airflow at the laser head can help keep the cutting area clearer during processing. This can contribute to cleaner cutting results and reduce the accumulation of smoke and debris around the workpiece.

Improved Cutting Efficiency

The Air-Compress Assist is designed to improve airflow during laser cutting, helping the laser cut through material more effectively under suitable processing conditions.

xTool reports that its testing showed a 20% improvement in cutting efficiency when using enhanced airflow. The manufacturer notes that this result was obtained under specific laboratory conditions, including tests with the xTool S1 and particular wood materials, so actual results can vary depending on the machine, material, settings, and environment.

The stronger airflow helps clear smoke and debris from the cutting path, allowing the laser to maintain a cleaner processing area.

Cleaner Cutting Area

The Air-Compress Assist directs a strong flow of air toward the laser processing area. This airflow helps move smoke and debris away from the cutting point, which can help produce cleaner cutting edges.

xTool describes the 30 L/min airflow as helping create nearly spotless cutting edges. Actual results depend on material selection, laser settings, focus, speed, power, and other processing conditions.

For users who frequently cut wood and other compatible materials, stronger air assistance can be especially useful for managing smoke and debris during repeated cutting operations.

Automatic Airflow Control

The Air-Compress Assist includes an AUTO mode that can automatically adjust airflow according to the processing task on supported machines.

xTool states that AUTO airflow control is available with compatible S1 and M1 Ultra configurations. In AUTO mode, the system can adjust its airflow for engraving or cutting tasks, reducing the need for users to manually change airflow levels between different operations.

This feature can make the accessory more convenient when switching between engraving and cutting workflows.

HEPA Filtration

The Air-Compress Assist includes a HEPA filter designed to improve the cleanliness of the air passing through the system. xTool states that the filter can remove 99.7% of smoke and dust, providing cleaner air output compared with traditional wool-felt filter systems.

The filtration system also helps manage particles that could otherwise accumulate around the air-assist system. The filter is replaceable when required, and xTool provides dedicated instructions for filter replacement.

Helps Protect the Laser Lens

The Air-Compress Assist provides cleaner and stronger airflow around the laser processing area, helping reduce the amount of smoke and debris that can reach the laser lens.

xTool states that cleaner airflow can reduce dirt buildup on the laser lens and help extend its lifespan.

Keeping the lens cleaner can also help maintain consistent laser performance. However, regular inspection and cleaning should still be performed according to the maintenance requirements of the compatible laser machine.

Compatible Machines

The Air-Compress Assist is designed for xTool D/M/S Series machines. xTool’s current product comparison identifies compatibility with the S1, M1 Ultra, D1, D1 Pro, and M1, with an accessory kit required for the D1, D1 Pro, and M1 configurations.

Users should verify the required accessory kit and connection method for their specific machine before installation.

Compact Design

The Air-Compress Assist uses a compact pump design measuring approximately 6.2 × 3.2 × 4.6 inches (158 × 81 × 117 mm) according to xTool’s current product comparison.

Its compact size allows the pump to be integrated into a laser workstation without taking up the amount of space typically associated with larger external air compressors.

Independent Power Supply

Unlike some traditional air-assist systems that draw power directly from the laser machine, the Air-Compress Assist uses an independent power supply. xTool lists this as one of the differences between the Air-Compress Assist and the older air-assist systems shown in its comparison.

This independent power arrangement allows the pump to provide the required airflow without relying solely on power supplied through the compatible laser machine.

Product Specifications

Specifications are based on xTool’s current product information.

Engraving and Cutting Applications

The Air-Compress Assist can be used during both laser engraving and cutting. During engraving, controlled airflow can help manage smoke and debris around the processing area. During cutting, stronger airflow can help clear the cutting path and improve the overall processing environment.

On compatible S1 and M1 Ultra machines, AUTO mode can adjust airflow according to whether the machine is engraving or cutting.

Reduced Smoke and Debris

Smoke and debris produced during laser processing can accumulate around the workpiece and laser head. The Air-Compress Assist addresses this by supplying a continuous flow of air toward the processing point.

xTool states that the strong terminal airflow helps clear debris and smoke for cleaner cuts. This airflow can also help reduce the amount of contamination reaching the laser lens.

Filter Maintenance

The HEPA filter is an important component of the Air-Compress Assist because it helps remove smoke and dust from the airflow. Over time, dirt accumulation on the filter can restrict airflow and affect processing performance.

xTool’s support documentation notes that dirt buildup can reduce airflow and recommends replacing the filter when performance indicates that replacement is required.

Regular inspection and replacement of the filter can help maintain the intended airflow performance.

Wireless Connection on Compatible Machines

For compatible S1 and M1 Ultra configurations, the Air-Compress Assist can communicate with the machine through the included wireless dongle. xTool’s support documentation explains that the accessory can connect to these machines using a 2.4 GHz wireless network.

This wireless connection supports the AUTO mode workflow on compatible machines and helps the air-assist system coordinate with the processing task.

Airflow for Cleaner Processing

The Air-Compress Assist is designed to provide stronger airflow exactly where it is needed during laser processing. By clearing smoke and debris from the cutting area, the accessory can help create a cleaner processing environment.

The combination of a metal piston pump, 30 L/min terminal airflow, automatic airflow control, and HEPA filtration makes the system a substantial upgrade over conventional air-assist configurations.

A Powerful Air-Assist Upgrade

The Air-Compress Assist provides a dedicated airflow solution for compatible xTool laser machines. Its metal piston pump maintains TRUE 30 L/min terminal airflow, while the HEPA filtration system helps deliver cleaner air.

For users who regularly perform laser cutting and engraving, the Air-Compress Assist can help manage smoke and debris, reduce contamination around the laser lens, and provide more controlled airflow during processing.

With AUTO airflow control on supported S1 and M1 Ultra setups, compact construction, independent power, and replaceable HEPA filtration, the Air-Compress Assist is designed to provide a cleaner and more consistent air-assist workflow for compatible xTool laser machines.
