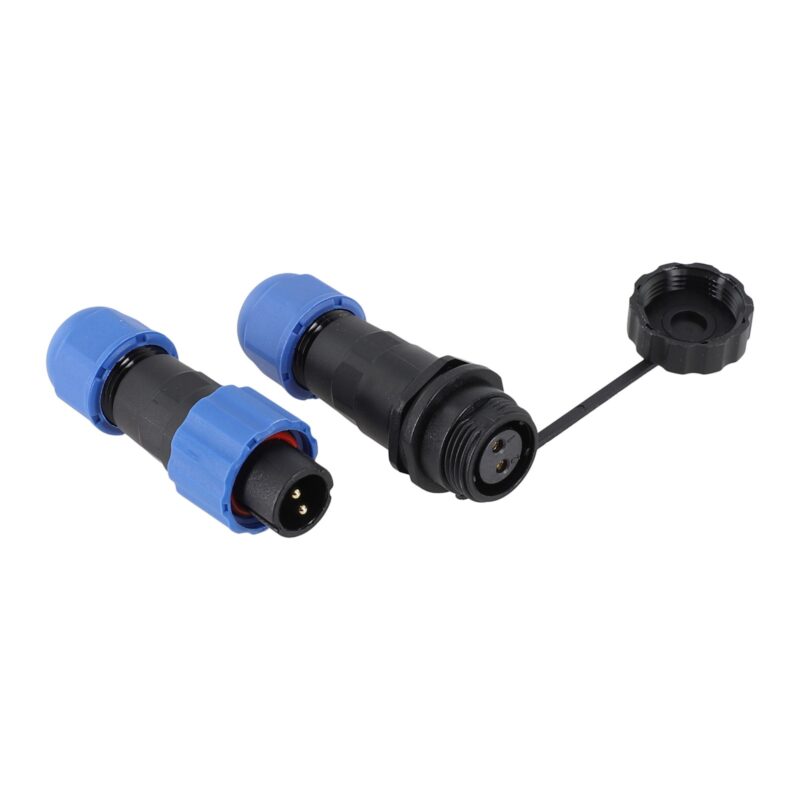

SD13 Waterproof Cable Mount Aviation Connector Male Plug Female Socket IP68
₹678.00 – ₹801.00 (Incl. GST)
- Features:
- IP68 rating, applicable in harsh environments
- Strong anti-corrosion, anti-light hydration
- High cost-effective with good quality
- Easy quick connect and disconnect coupling
Application:
- CCTV Security System
- Solar Panels
- Rear View Camera
- Vision System
- Communications
- Mechanical equipment
- Automotive
Mechblock Shopping Event
Hurry and get discounts on all Mechblock Products up to Rs.1000
Coupon code: MECHBLOCK
Aviation connectors are primarily used in the fields of power transmission and signal transmission and contain many different types of connectors, such as SD connectors. Therefore, the aviation plug and socket does not refer to a plug and socket of one model. The SD series has different classifications depending on the size of the opening. The number behind the SD represents the size of the hole in the chassis, which is the thread diameter of the socket.
SD connectors can be used for electrical connections between instrumentation and electronic devices or interconnections between wires and cables. SD connectors are threaded, stable in electrical conductivity, and have a waterproof function.
Features:
- IP68 rating, applicable in harsh environments
- Strong anti-corrosion, anti-light hydration
- High cost-effective with good quality
- Easy quick connect and disconnect coupling
Application:
- CCTV Security System
- Solar Panels
- Rear View Camera
- Vision System
- Communications
- Mechanical equipment
- Automotive
Specification:
Material: Nylon
Welding pinhole: beryllium bronze, gold-plated style
Sealing ring: Silicone
Shell gender: male and female
Connection method: threaded connection
Working temperature: -45°C~85°C
Relative humidity: 90%~95% (40±2°C)
Salt fog: 48h in 5% NaC1 fog
Tightness: IP68
Applicable wire diameter: Φ4.0~6.5mm
Mechanical life: 500 times
Insulation resistance: 500M Ω
Working current: 1P=25A, 2P=10A, 3P ~ 7P=5A
Contact resistance: Φ1.8 = 2M Ω, Φ1 =5M Ω
Working voltage and withstand voltage Working voltage: 250V (AC) Withstand voltage: 1500V (AC)
Package Include :
1*SD13 Waterproof Cable Mount Aviation Connector Male Plug Female Socket IP68 ( selected pin option )
