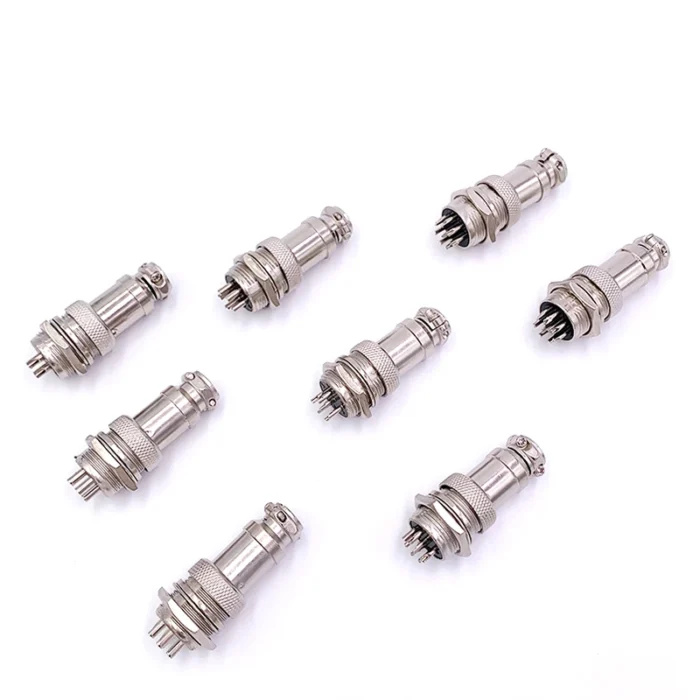

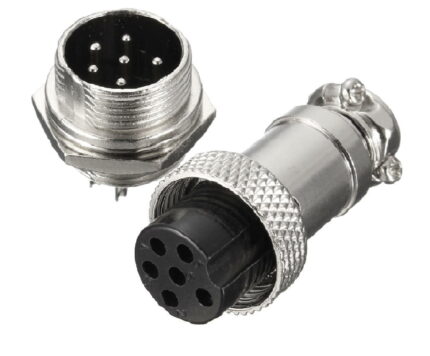

GX16 Male And Female Connector

MECHBLOCK

Rated 5.00 out of 5 based on 39 customer ratings

(39 customer reviews)

₹118.00 – ₹234.00

GX16 connectors, known as Aviation connectors, are now widely used in aviation, navigation, data acquisition systems, Inclinometer, computer automation measurement and control systems, Mechanical equipment, Audio & Video, Communications, Automotive and other industries.
Mainly Used for The Electrical Connection Between the Cables.Waterproof, Airproof and Really a Great Apparatus Electronic Connector.

EAN: 8903470329546 SKU: MOGX16MF-MOGX16M Categories: Connectors, Electronics Tags: Connector, cable

Type of Connector	Male Male and Female
Number of Pin	2Pin 3Pin 4Pin 5Pin 6Pin 7Pin 8Pin 9Pin 10Pin Clear

Processing time: 1 days

Check Estimated Delivery at

Shipping to IN

Add ₹1,999.00 to cart and get free shipping!

Compare

Add to wishlist

12 People watching this product now!

Mechblock Shopping Event

Hurry and get discounts on all Mechblock Products up to Rs.1000

Coupon code: MECHBLOCK

GX16 connectors, known as Aviation connectors, are now widely used in aviation, navigation, data acquisition systems, Inclinometer, computer automation measurement and control systems, Mechanical equipment, Audio & Video, Communications, Automotive, and other industries.

Mainly Used for The Electronical Connection Between the Cables. It is waterproof, Airproof, and Really a Great Apparatus Electronic Connector.

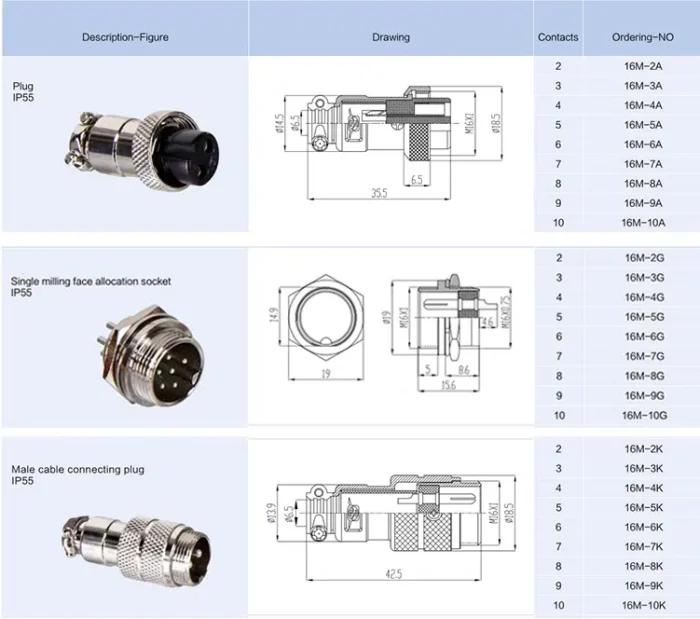

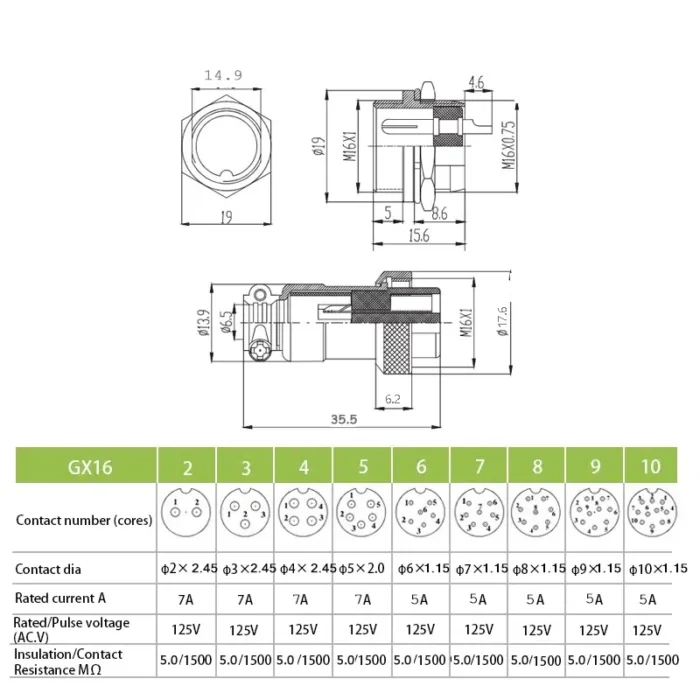

Specifications:

Type: 2/3/4/5/6/7/8/9/10 pin (Optional)
Model Number: GX16
Material: Metal
Color: Silver
Male Connector Length: 21mm/0.83in
Female Connector Length: 35.5mm/1.42in
2/3/4/5 Pin Rated Current/Voltage: 7A-125V
6/7/8/9/10 Pin Rated Current/Voltage: 5A-125V
Diameter of connector: 16mm
Contact Resistance: the Contact Resistance of Each Contact Pair is Not Greater Than 0.005 Ohm
Environment Temperature: -20~+85°C
Relative Humidity: The Temperature is + 40° Could Reach 98%

Insulation Resistance: Normal Conditions No Less Than 1000 MΩ, Not Less Than 200 MΩ After the Constant Temperature Test
Test Voltage(AC.V): 1500V
Contact/Insulation resistance(MΩ)：5.0/1500
Separating force: 1–3N per pin
Atmospheric Pressure: 4.4kpa
Vibration: Frequency is 10 ~ 100Hz, Accelerated Speed is 100 m/s2.
Impact: Frequency is 60 ~ 80 times/min, and the Acceleration is 250 m/s2.
Centrifugal: Acceleration is 250 m/s2.
Price Includes: Male + Female Connector or Male Connector only

Package includes：

2/3/4/5/6/7/8/9/10 Pin Female Connector (1pcs for choice)
2/3/4/5/6/7/8/9/10 Pin Male Connector (1pcs for choice)

Note: You can also buy male connectors separately.
2/3/4/5/6/7/8/9/10 Pin male Connector (1pcs for choice)

Brand	MECHBLOCK
Type of Connector	Male , Male and Female
Number of Pin	2Pin , 3Pin , 4Pin , 5Pin , 6Pin , 7Pin , 8Pin , 9Pin , 10Pin
HSN Code	84439090
Condition	New

15 Days Warranty

This item is covered with a standard warranty of 15 days from the time of delivery against manufacturing defects only. This warranty is given for the benefit of Mechblock customers from any kind of manufacturing defects. Reimbursement or replacement will be done against manufacturing defects.
