SCULPFUN S30 Pro 10w Laser Module for Laser Engraver

(51 customer reviews)

39,999.00 (Incl. GST)

SCULPFUN S30 Pro 10w Laser Module Diode Interchangeable Lens Laser Module Wood Laser Engraving Cutting Machine Module Laser Head

  • Built-in high-pressure air-assisted nozzle
  • Replaceable protective lens
  • Highly compatible design
  • Ultra-fine and high-density 10W laser shaping technology
  • Faster, stronger and cleaner
  • Detachable laser eye shield
  • Universal 12V/PWM modulation board

Out of stock

Out of stock

Add 499.00 to cart and get free shipping! Free shipping over 499/-
16 People watching this product now!

Mechblock Shopping Event

Hurry and get discounts on all Mechblock Products up to Rs.1000

Coupon code: MECHBLOCK

SCULPFUN S30 Pro 10w Laser Module
Product Model
SCULPFUN S30 Pro Laser module Set
Laser output power
10W (light energy)
Inner diameter of air pipe
7.5mm (recommended to use 30L/min, 0.03Mpa air compressor, out diameter of nozzle:8mm) Laser wavelength 455±5nm
Laser type and fixed focus
 fixed focus laser, fixed focus through 50mm measuring column

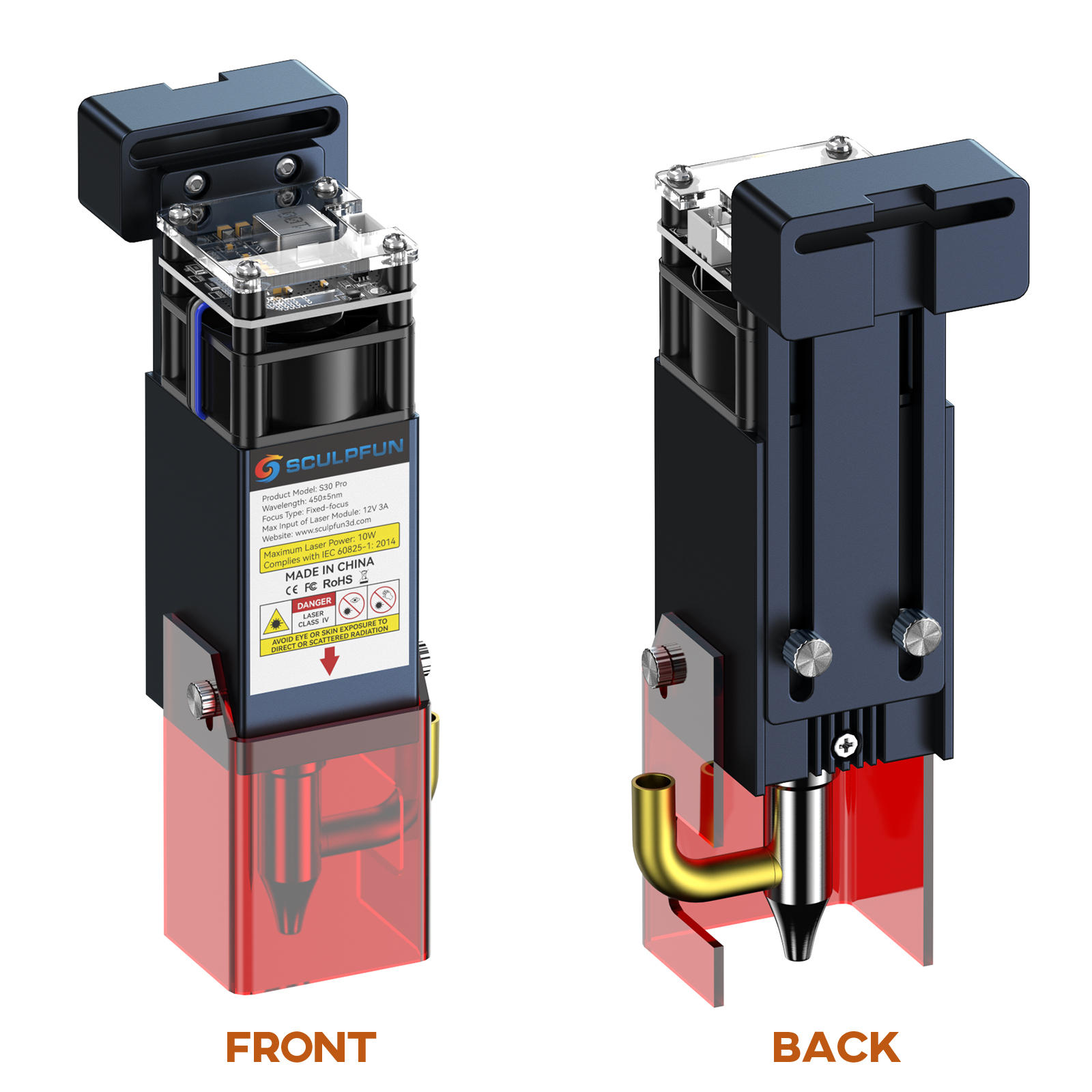

Laser protection cover
Equipped with a detachable laser protection cover to protect the eyes. You can adjust it up and down, or remove the goggles.
Laser shell material
aluminum alloy
Laser circuit board parameters
Circuit Board Size
40*40mm
Circuit Board
12V/PWM modulation board
Input voltage
12V
Max Input of laser module
12V 5A
Wire Rod

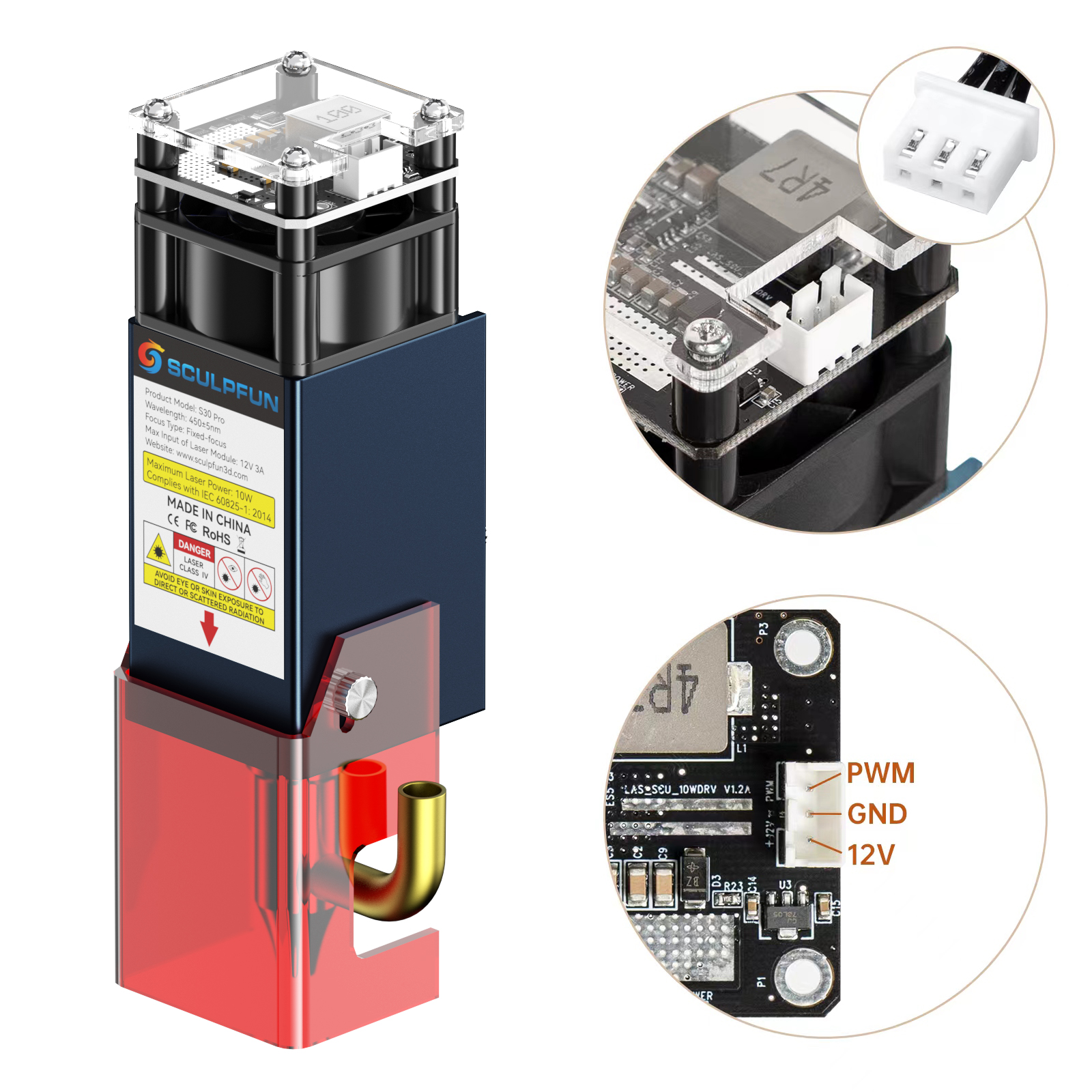

HY2.0, 3Pin terminal (3-core cable, A: PWM +, B: GND, C: VCC ).
Fan
12V 0.15A 4020 fan
Fan speed
 15000 rpm
Operating temperature
 -20 ℃ to 70 ℃

Main feature:

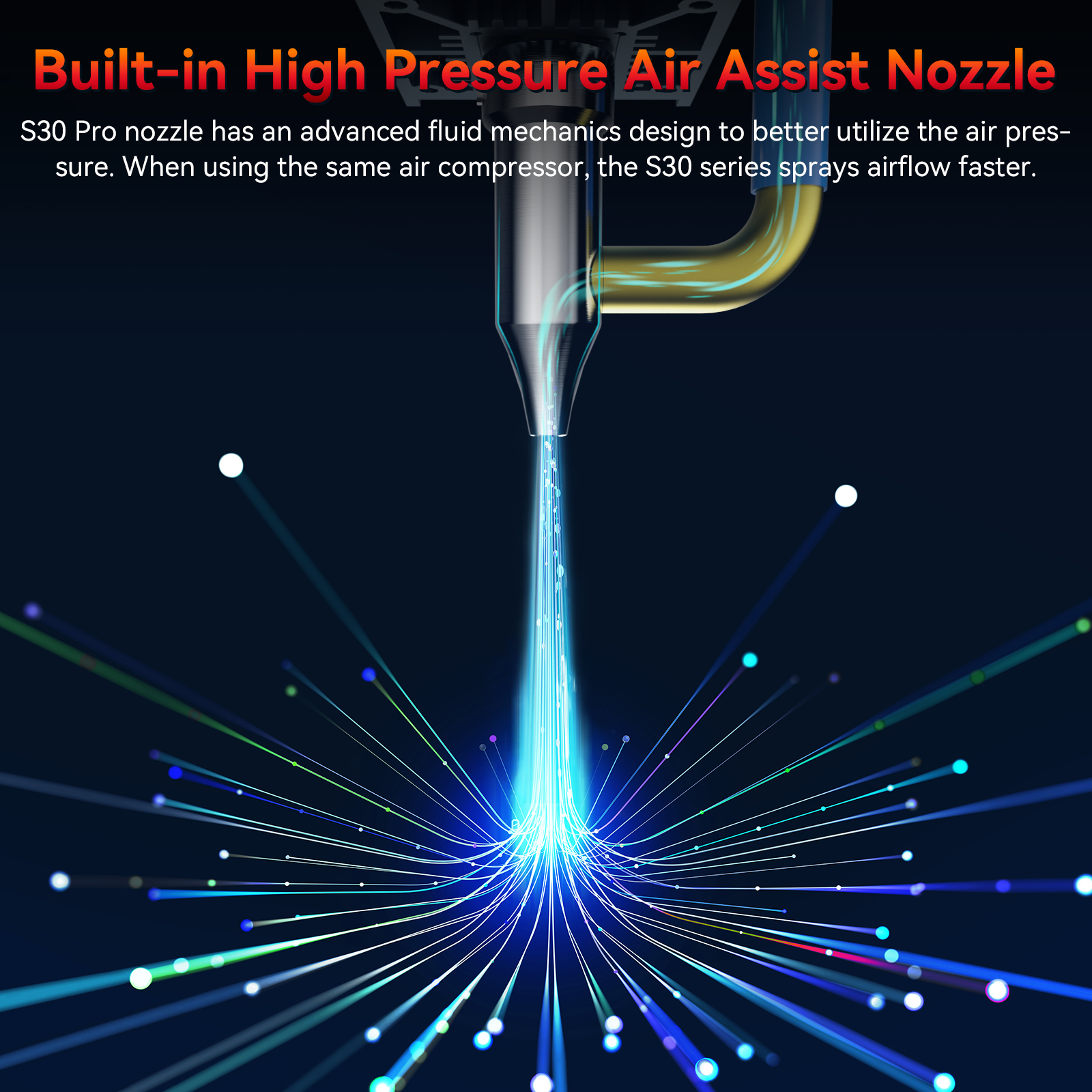

1. Built-in high-pressure air-assisted nozzle

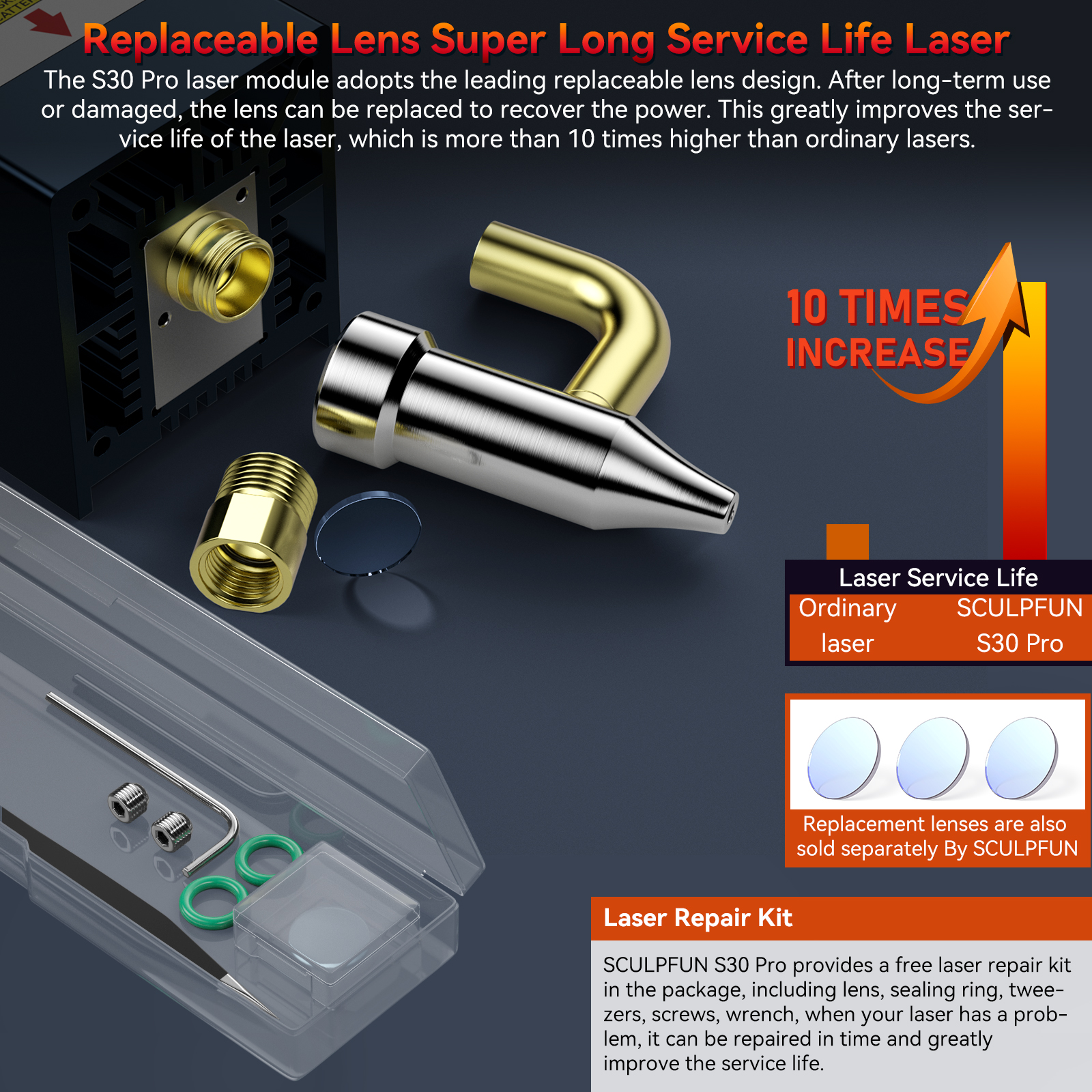

2.Replaceable protective lens
3. Highly compatible design

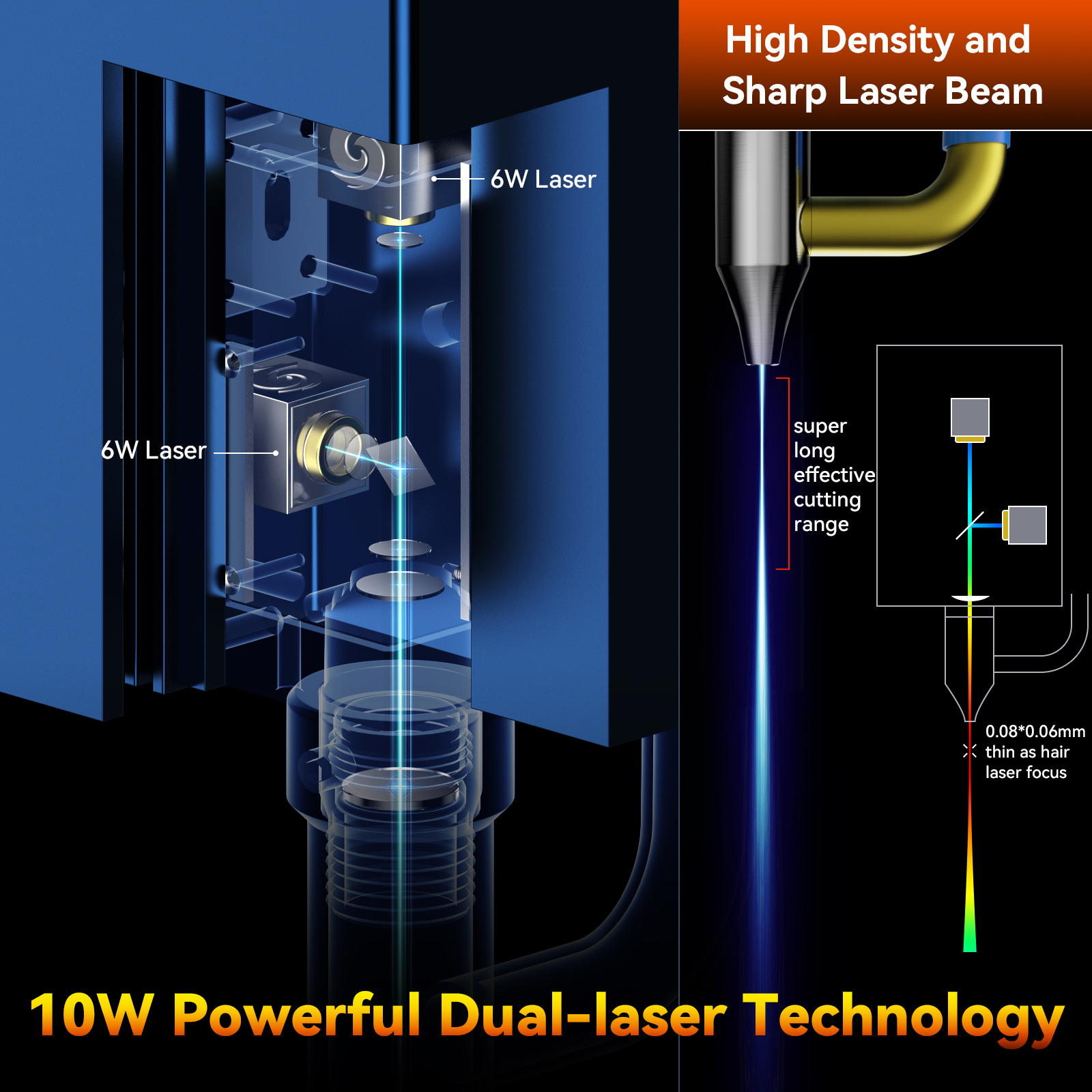

4. Ultra-fine and high-density 10W laser shaping technology
5. Faster, stronger and cleaner
6. Detachable laser eye shield
7. Universal 12V/PWM modulation board
Applicable machines:
laser engraving machines such as SCULPFUN S9/S6pro/S6 or DIY 3D printers, CNC machine tools.
How to judge whether the S30 Pro laser is suitable for use? You need to pay attention that the input voltage of the S30 Pro laser is 12V, and the S30 Pro is a 3pin interface
Engraving/cutting materials: Engraving material: all kinds of wood (including walnut, cherry and other high-density wood), MDF, zigzag, cardboard, plastic, leather, PCB board, aluminum oxide, 304 stainless steel, ceramic, dark stone
Cutting material: all kinds of wood (including walnut, cherry and other high-density wood), MDF, acrylic board, cardboard, non-woven, bamboo, leather, some plastic boards, PCB boards

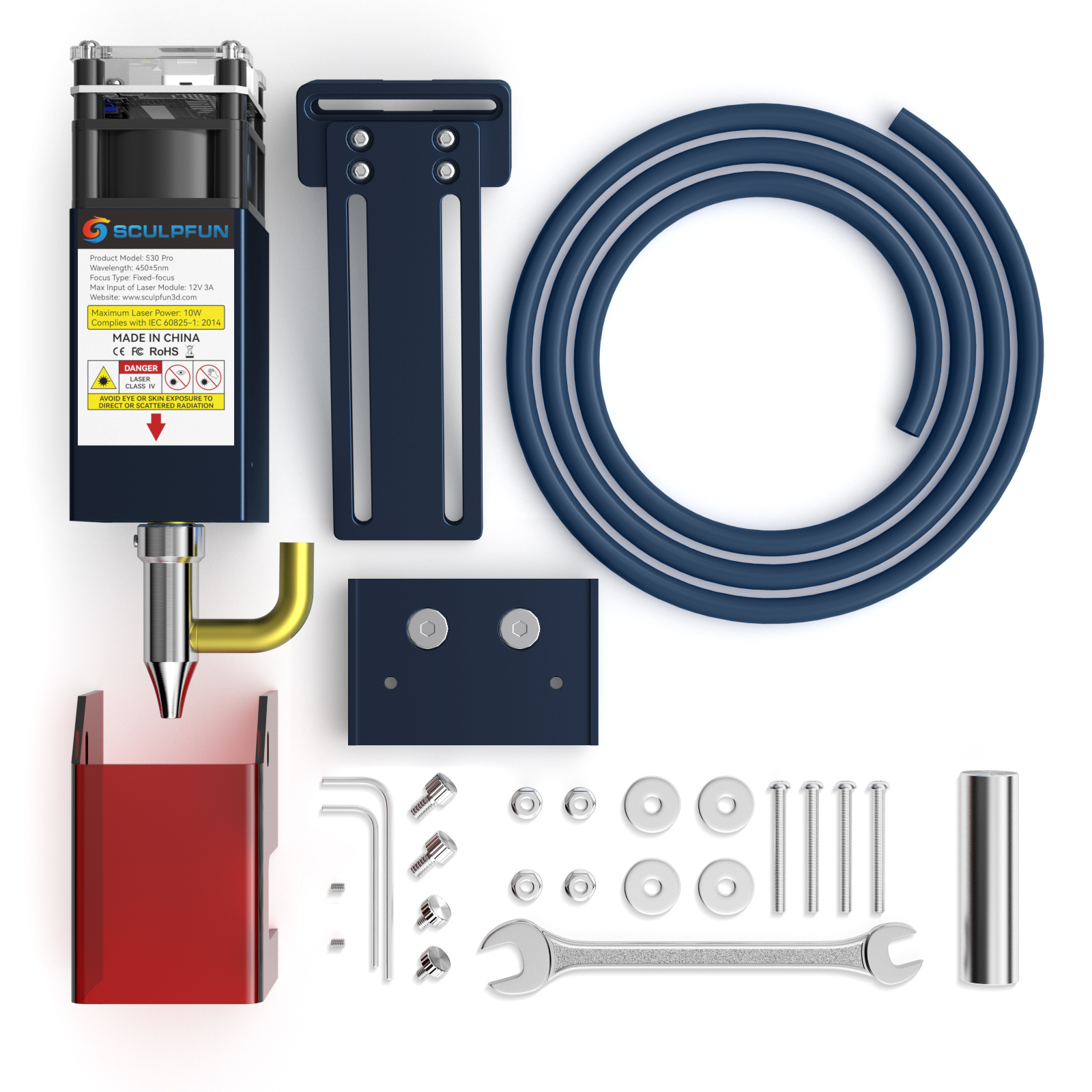

S30 Pro laser module packing list:
7.5mm inner diameter air tube acrylic protective cover
S30 Pro Laser head*1
Multi-function connector*1
50mm measuring column*1
Screw and tool kit*1

Note:

●Because of the powerful laser of S30 Pro, it is forbidden to run the engraving machine unattended. Pause it if you’re not around.

●For detailed machine instructions, please refer to the manual for parameter settings.

●When operating the laser engraving machine, please install the laser protective cover; if it is not installed, you need to wear goggles.

●Do not touch the laser with your hands, otherwise you may burn your hands.

●Please avoid strong impact on the machine.

●It is forbidden for children under 14 years old to use this product, and children over 14 years old need adult attended.

●Do not use the laser directly to any specular reflection object, which may cause injury to the operator or burn the laser.

H57bcaa3df2e842979007ce05578a14f8m
H67c7b13c8f33404e88dd05a8ad300600v
H47c77c6fe3354c01ba7fa15011cb7e4aW
H6f543c68da6a4e6ead879468300224475
H542e5fa3032c44f8bda152db56e934498
Hfb222fc87920484f9f654802531414fdk
H52499d8200cc44e8a97b62ae4222a236N
H430d994b00274aa4839dcf342b786767k

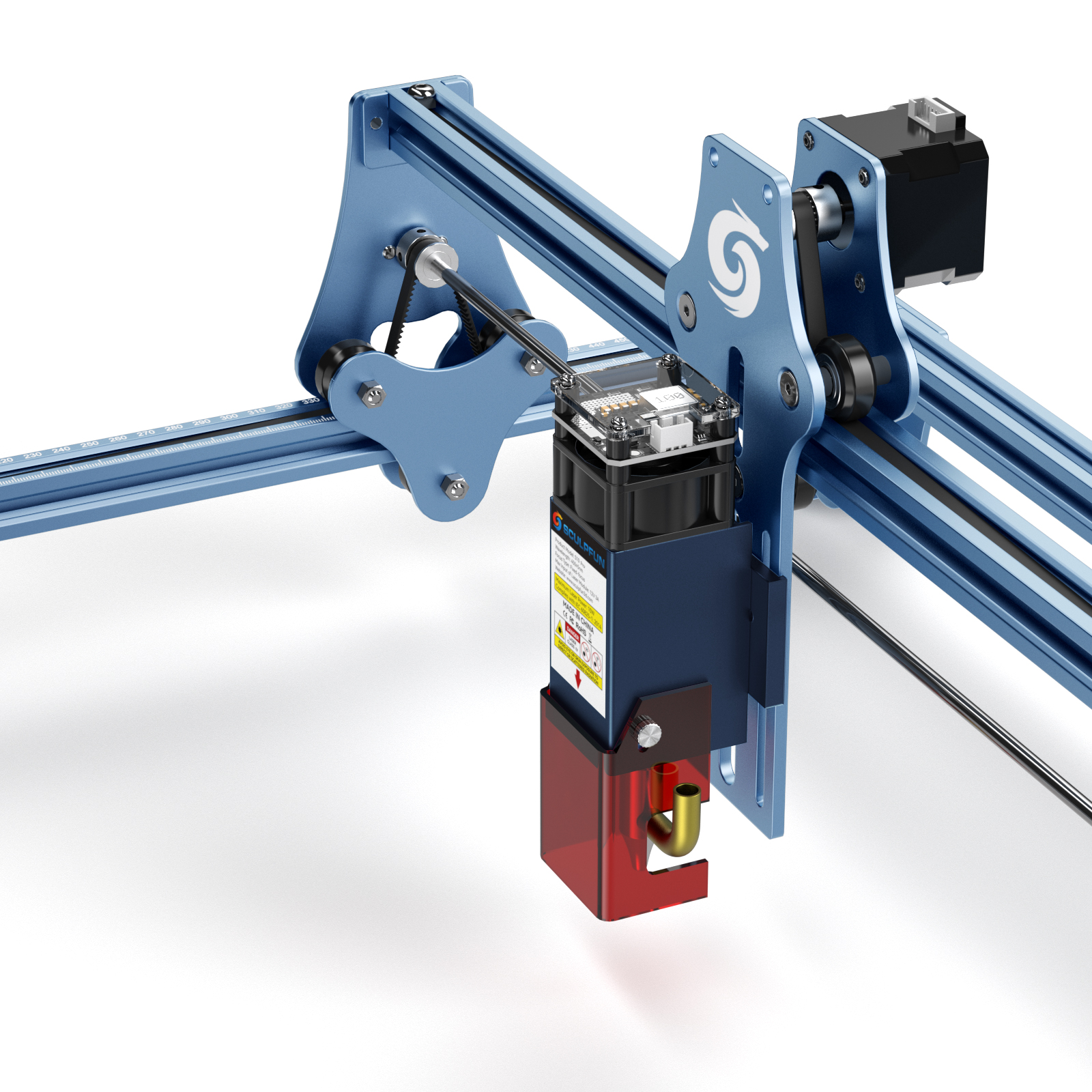

H7652473f20494d69ba02300cf0b7a347O
H2a3cce9262e74fc1ba1a688b03e72483D
Ha4f36503360b4942a01b4e56828750ea2
Hb4ab327a2b724dbd8815f54e8ef2a90dC
Weight 1.5 kg
Dimensions 31 × 15 × 13 cm
Brand

Condition

Optical Power

HSN Code

4.9
51 reviews
47
3
1
0
0

51 reviews for SCULPFUN S30 Pro 10w Laser Module for Laser Engraver
